Professional High Capacity External Battery with special connectors for Apple
iBook, iPad, iPhone, iPod, iTouch, MacBook, MacBook Pro, PowerBook.
Battery
Features: 1.This battery has 3 output ports:
Output I is a 5V USB port which can be used to power or
charge cell phones, iPhone/iPod/iTouch, MP3/MP4 players, PDAs and any device
that can be charged from a USB port with the USB power cable included.
Typical run time for iPhone:
Talk Time: Up to 60
hours
Internet Use: Up to 60 hours
Audio Playback: Up to 300 hours
Video Playback: Up to 85 hours
Port II output nominal voltage is 11.1V (Range from 9V ~
12.6V). It can supply power for many portable DVD players and digital photo
frames.
Port III can output 3 different regulated voltages: 16V, 19V, 24V.
This port can be used to power Apple iBook / MacBook / MacBook Pro /
PowerBook with the output cable and special connector tips for Apple.

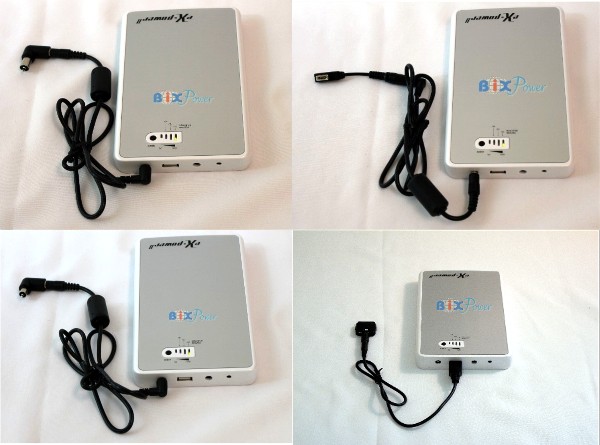

The battery pack comes with 4 special connectors for Apple Mac laptops and Apple
iPhones. By selecting different output voltage and using different Apple
connector tip, this battery can be used to power or charge many different Apple
laptop computers.
Laptop computer not included.
2. High Capacity, Long
Running Time:
This battery capacity is equivalent to a 9-cell
lithium-ion battery. In most case, it can double your Apple
laptop running time together with your internal laptop battery. For some small model, it may even triple the running time.
Typical run time for iPhone:
Talk Time: Up to 60 hours
Internet Use: Up to 60 hours
Audio
Playback: Up to 300 hours
Video Playback: Up to 85 hours
Typical
run time for MacBook laptops:
Laptop Model
MacBook
Air
New 11"
New
13"
2008
2009
MacBook
2006-07
Aluminum 2008
2008-mid 09
Late 2009
2010
MB Pro
13"
2009
2010
MB Pro 15"
Early 2006
Late 2006
2007
Early 2008
Late 2008
2009
2010
MB Pro 17"
2006
2007
2008
2009
2010
|
Battery Life
15 hrs
17 hrs
13 hrs
14 hrs
14 hrs
13 hrs
10 hrs
15.0 hrs
21 hrs
15.0 hrs
21 hrs
10.00 hrs
11.0 hrs
13.0 hrs
11.0 hrs
12.0 hrs
14.0 hrs
17.0 hrs
11 hrs
12 hrs
10 hrs
14 hrs
15 hrs |
Specifications:
It has 6600mAh/11.1V, 73Watt-Hour capacity.
Its universal platform works for most of the notebook computers which
require 15V~24V DC input voltage. (This voltage is notebook AC power adapter
output voltage, not the internal battery voltage.)
Built-in USB Power Port for Charging or Powering PDA's, Cell Phones, Media
Players, or Anything that can be Charged from it's USB Cable
Its compact size can easily fit into a laptop/notebook carry bag.
5V, 16V, 19V and 24V DC output
Maximum Output: 65W
Capacity: 73 Wh
Weighs only 1.4 Lbs. Compact size 7.5 x 4.5 x .0.9 inches
Excellent security and reliability
High efficiency power conversion
No Memory effect

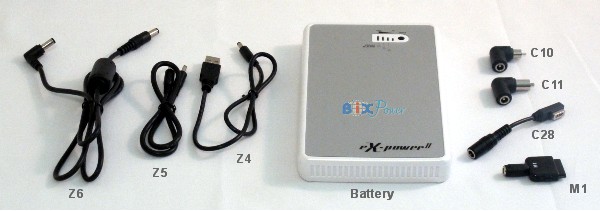

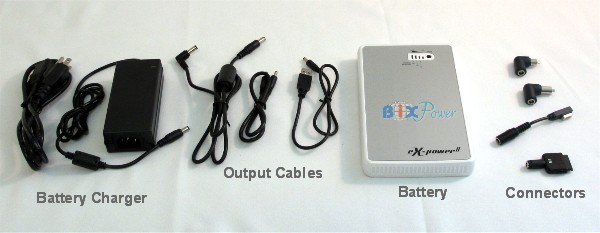

Standard package:
This battery pack comes with a high capacity BP75 rechargeable lithium battery
pack, a battery charger, power cable and 4 special connector tips for iBook /
MacBook / PowerBook laptop computers and iPhone /iPod /iTouch/iPad.
How
to use the battery:
<1>Charge the battery:
This battery can be charged from 100V ~ 240V 50Hz/60Hz AC power source
with the battery AC charger:
<2>
Decide Battery Output Voltage:
The battery output voltage should close to your laptop power
adapter output voltage or laptop computer input voltage
|
|
|
|
Step 2a:
Refer to
the label on AC adapter for your notebook - to check the "Output" power.
|
Step 2b:
Refer to
the label stuck on the bottom of your notebook - to check the "power input"
requirement. |
The battery Port III can
output 3 different regulated voltages: 16V, 19V, 24V. This port can be
used to power Apple iBook / MacBook / MacBook Pro / PowerBook with the output
cable and special connector tips for Apple. Please set the port III output
voltage close to your laptop power adapter output voltage or laptop itself input
voltage.
There are 3 LED lights to indicate port III output voltages.
When you plug the output cord to the port III, one LED will light to show you
current active output voltage.
If you
want to change, just:
1. Press and hold the "CHECK" button for about 3 seconds.
2. One of the LED indicator will begin flashing.
3. Press and release the "CHECK" button, the flashing LED will jumper to
different voltage. When it jumps to the voltage you want, stop press the "CHECK"
botton
Wait about 5 seconds, the flashing LED will be gone and the voltage
selection has been confirmed. for laptop computers.
<3>According to output voltage, select Output Port and
Connector Tip:
Port I: 5V USB power output with USB cable can be used to power or charge
iPhone, iPod, iThouch.
Port III: 16V ~ 24V DC output port with Output Cable
Z6. and 3 different connectors: C10 , C11 and C28 .
Compatibility

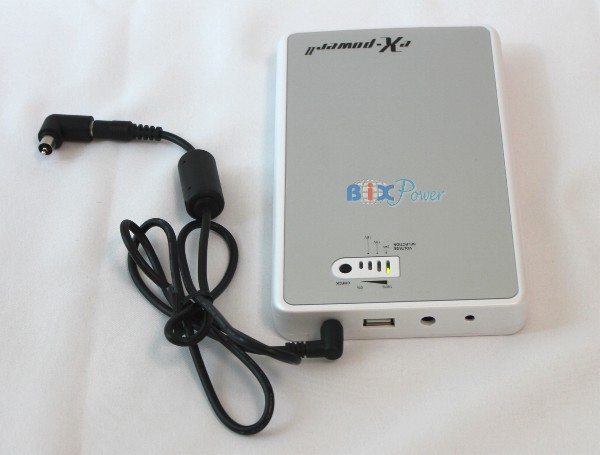

1. Using Port III and C10 connector , this battery is compatible
with:
APPLE PowerBook G4 Series:
PowerBook G4
Series (12" Screen), PowerBook G4 Series (12.1" TFT Wide Screen), PowerBook G4
Series (15" Aluminum), PowerBook G4 Series (15" Titanium), PowerBook G4 Series
(15.2" TFT Screen), PowerBook G4 Series (17" Screen), PowerBook G4 Series
(Aluminum), PowerBook G4 Series (DVI), PowerBook G4 Series (Gigabit Ethernet),
PowerBook G4 Series (Titanium)
Apple iBook Series:
iBook 12.1" Screen Dual USB, iBook 14" Dual USB Opaque White, iBook
14.1" LCD, iBook 14.1" LCD 16 VRAM, iBook 14.1" LCD 32 VRAM, iBook 32 VRAM,
iBook Crystal White Series, iBook Late 2001 Model, iBook Opaque White 16 VRAM,
iBook Snow White Series
& More...

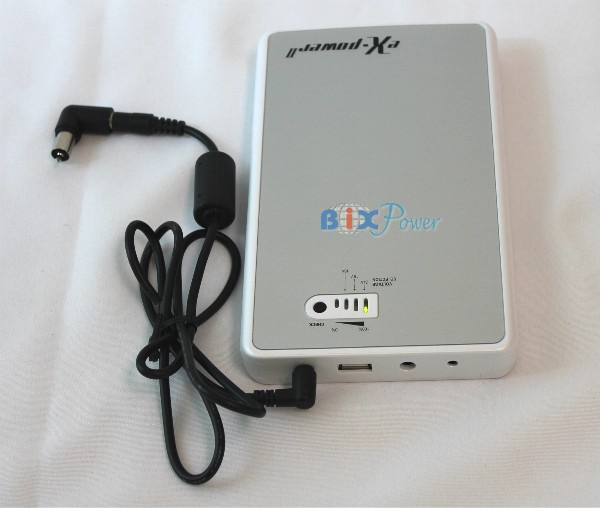

2. Using Port III and C11 connector
, this battery is compatible with:
Apple PowerBook 1400 Series
Apple PowerBook 2300 Series
Apple PowerBook Duo 2300 Series
Apple PowerBook 3400 Series
Apple PowerBook G3 Series: PowerBook FireWire Series (M7712LL/A), PowerBook
G3 Series (1997 Models), PowerBook G3 Series (1998 Models), PowerBook G3 Series
(1999 Models), PowerBook G3 Series (2000 Models), PowerBook G3 Series (Bronze
Keyboard), PowerBook G3 Series (Early Original G3 Model), PowerBook G3 Series
(FireWire), PowerBook G3 Series (Lombard), PowerBook G3 Series (Lumbard),
PowerBook G3 Series (Pismo), PowerBook G3 Series (Wall Street)
Apple iBook Series: iBook Blueberry Series, iBook Clamshell, iBook FireWire
Series, iBook Graphite Series, iBook Indigo Series, iBook Lime Green Series,
iBook Tangerine Series.
& More...

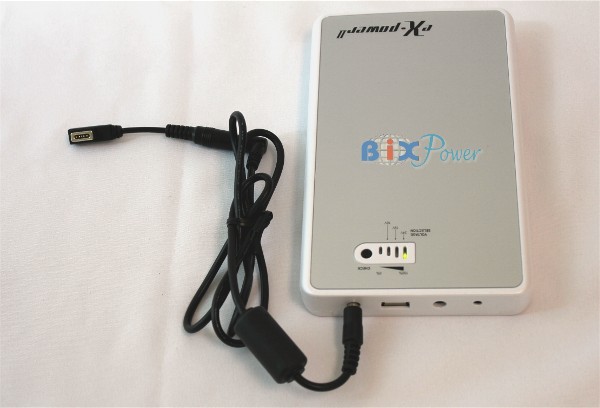

this battery is compatible with Apple MacBook and
MacBook Pro series laptop computers such as:
Apple Mac Book: MA254LL/A, MA255LL/A, MA472LL/A, MA699LL/A, MA700LL/A,
MA701LL/A, MB061LL/B, MB062LL/B, MB063LL/B, MB061LL/A, MB062LL/A, MB063LL/A.
APPLE Mac Book: MA463LL/A, MA464LL/A, MA090LL, MA600LL, MA601LL, MA092LL/A,
MA609LL, MA610LL, MA611LL/A, MA895LL/A, MA896LL/A, MA895LL, MA896LL, MA897LL/A,
Core Duo 1.67 15-inch, 15.4-inch Glossy, 17-inch, Late 2006, Mid 2007 17-inch
Santa Rosa, Late 2007 15.4-inch Santa Rosa
Most APPLE MacBook 13" Laptops
Most APPLE MagSafe MacBook PRO Laptops
Most APPLE MacBook Pro 13" Laptops
MacBook Air Series such as: MacBook Air A1237, MacBook Air A1304, MacBook
Air 11" A1370, MacBook Air 13" A1369
MacBook 13" Series such as: MacBook 13" A1181, MacBook 13" A1278
MacBook Pro 13" Series such as: MacBook Pro 13” A1278
& More...

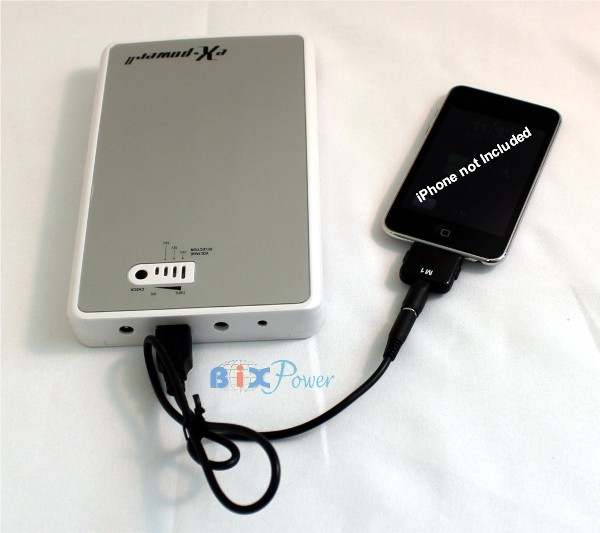

4. Using Port I and USB Power Cable Z4 and Connector M1, this
battery is compatible with Apple iPhone / iPod / iTouch.
Typical run time for iPhone: Talk Time: Up to
60 hours
Internet Use: Up to 60 hours
Audio Playback: Up to 300 hours
Video Playback: Up to 85 hours
