Super High Capacity (300 Watt-Hour) Light Weight Lithium Ion
Battery. Super High Capacity: A typical 9-cell lithium laptop
battery capacity is around 75 Watt-hour, this battery capacity is 300
Watt-hour, equivalent to 4 of 9-cell laptop lithium batteries.
Light Weight: This battery capacity is equivalent to a 12V
25Ah lead acid battery. A typical 12V 25Ah Lead Acid battery weight is around 20
pounds, this battery weight is only 5 pounds.
Specifications:
| Model No. |
|
| Chemistry |
|
| Voltage |
- Nominal Voltage: 14.8 V
- Minimum Voltage: 10V
- Maximum Voltage: 16.8V
|
| Capacity |
|
| Continuous Discharge Current |
|
| Maximum Discharge Current |
|
| Size |
- 260 x 150 x 35 mm (or 10.2" x 6" x 1.4")
|
| Weight |
|
| Operate Temp. Charge |
|
| Operate Temp. Discharge |
|
| Storage Temp. |
|
| Cycle Life |
|
| PCB Safety Function |
- Cell balancing
- Over-discharge
- Over-current protection
- Over-charge
- Temperature protection
- Secondary protection

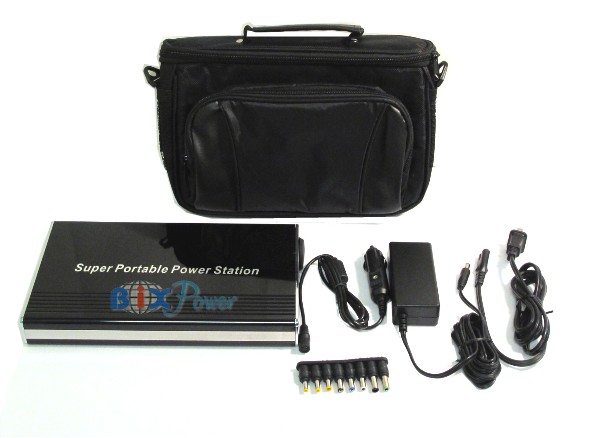

| Standard Package: The stand battery package
comes with:
A 300 Watt-hour super high capacity lithium battery
A carry bag
A AC charger that can charge the battery from 100V ~ 240V AC power outlet.
A output cable and 8 connector tips that can directly output battery
power.
How to use the battery
Charge the
Battery:
The battery pack comes with its own AC charger. You can
charge the battery from 100V ~ 240V AC power outlet from home and
office.
Get the power from Output Port:
1. Use
the battery directly:
The battery has a output port same as a car
cigarette socket. The battery pack comes with a output cable that one end can
plug to the battery output port, another end can plug different connector tips.
The battery output nominal voltage is
14.8V, voltage range is 10V ~ 16.8V. If your devices can accept 10V ~ 16.8V DC
power, you can directly get the power from the battery with output cable
provided and 8 different connectors.
2. Use the battery with the
Universal DC to DC Power Adapter
If your devices need different
voltages, such as laptop computers, you can use the optional Universal DC to DC power adapter that can plug
to the battery output port to get the power you needed.
Universal DC to DC Power Adapter is optional, Not Included in the
standard package.
This compact
Universal DC to DC Power Adapter has multi-voltage selections from 15V to
24V (can set at: 15V, 16V, 18V, 19V, 20V, 22V, 24V )and 8 different
interchangeable connector tips, it will works for most laptop/notebook computers
on the market.
This
universal DC to DC power adapter can also be used to power and charge your
devices from vehicles with 12V standard cigarette lighters. It provides up
to maximum 120W power between 15V ~ 24 volts, which is the sufficient enough to
power most portable electronic devices, even notebook computers with big
screens.
It also has a 5V USB port for charging cell phone, PDA,
iPhone/iPod & more...
 The 5V USB
port power can be used to charge your cell phone, PDA, iPhone/iPod &
more. USB power cable not included.
Important
Note: This optional DC to DC power adapter is specially designed to accept
10V ~ 17V DC power input. Most power inverters on market may only accept 10.5V ~
15.5V DC power input, which may not work with this battery.
3. Use
the battery with DC to AC Power Inverter
You can also use this
battery with our optional DC to AC power inverter
to provide universal 110V AC power.
 DC to AC
Power Inverter Not Included in the
standard package.
Important Note: This optional DC to
AC power inverter is specially designed to accept 10V ~ 17V DC power input. Most
power inverters on market may only accept 10.5V ~ 15.5V DC power input, which
may not work with this battery.
This power inverter can convert DC power
from this battery or a car cigarette lighter socket into 110V 60Hz AC power,
which is similar to the power supplied from your home electrical outlets. Its
input side is a car cigarette light plug, which can directly plug to this
battery or a car cigarette lighter socket. Its output side is a universal 3-hole
AC socket which accept both 2-pin and 3-pin AC plugs.
The optional DC to
AC power inverter is a pure sine power inverter. Compared to the traditional
inverters, which output in modified sine wave, AC power in pure sine wave is
more similar to commercial power. The electronic appliances run cleaner, cooler,
and quieter when running on pure sine power. As a result, pure sine inverters
save energy costs and extend the life of appliances.
The
pure sine inverter also reduces electronic interference, making it a better
alternative for operating sensitive audio/video equipment and medical devices.
Appliances with dimmers, speed controls, and certain battery chargers may
require pure sine power to operate.
Specifications:
| Model No. |
|
| Chemistry |
|
| Voltage |
- Nominal Voltage: 14.8 V
- Minimum Voltage: 10V
- Maximum Voltage: 16.8V
|
| Capacity |
|
| Continuous Discharge Current |
|
| Maximum Discharge Current |
|
| Size |
- 260 x 150 x 35 mm (or 10.2" x 6" x 1.4")
|
| Weight |
|
| Operate Temp. Charge |
|
| Operate Temp. Discharge |
|
| Storage Temp. |
|
| Cycle Life |
|
| PCB Safety Function |
- Cell balancing
- Over-discharge
- Over-current protection
- Over-charge
- Temperature protection
- Secondary protection
|
|
|
|
