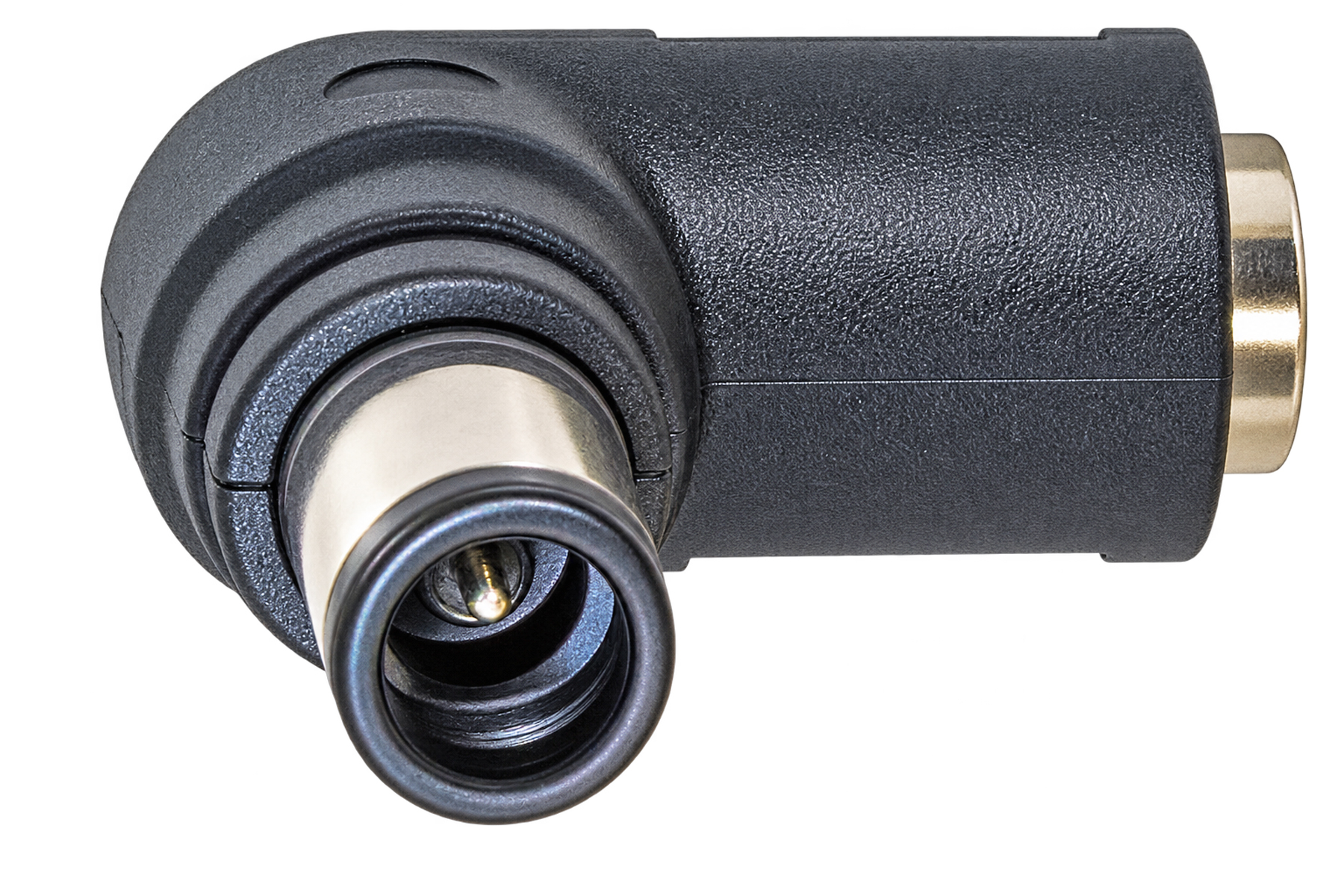

C24 Power Connector Tip for HP Compaq - 7.4 x 5.0mm Male Connector with Center Pin to 5.5 x 2.5mm Female Jack
CNT-C24



Regular Price: US$19.95
Sale Price: US$6.95

Stock Status:In Stock
Product Code: CNT-C24
Qty:

Description

DC Power Connector Plug Tip for HP Compaq Laptop Computers

Connector size: 7.4mm (Outer Diameter) x 5.08mm (Inner Diameter) with center pin.





Important: This connector tip is an accessory of our external batteries and power adapters. It is NOT for changing your current straight connector to right angle connector. If you are looking for a connector that can convert your HP/Compaq power adapter connector from straight connector to right angle connector, please view our LC90 Connector Converter.

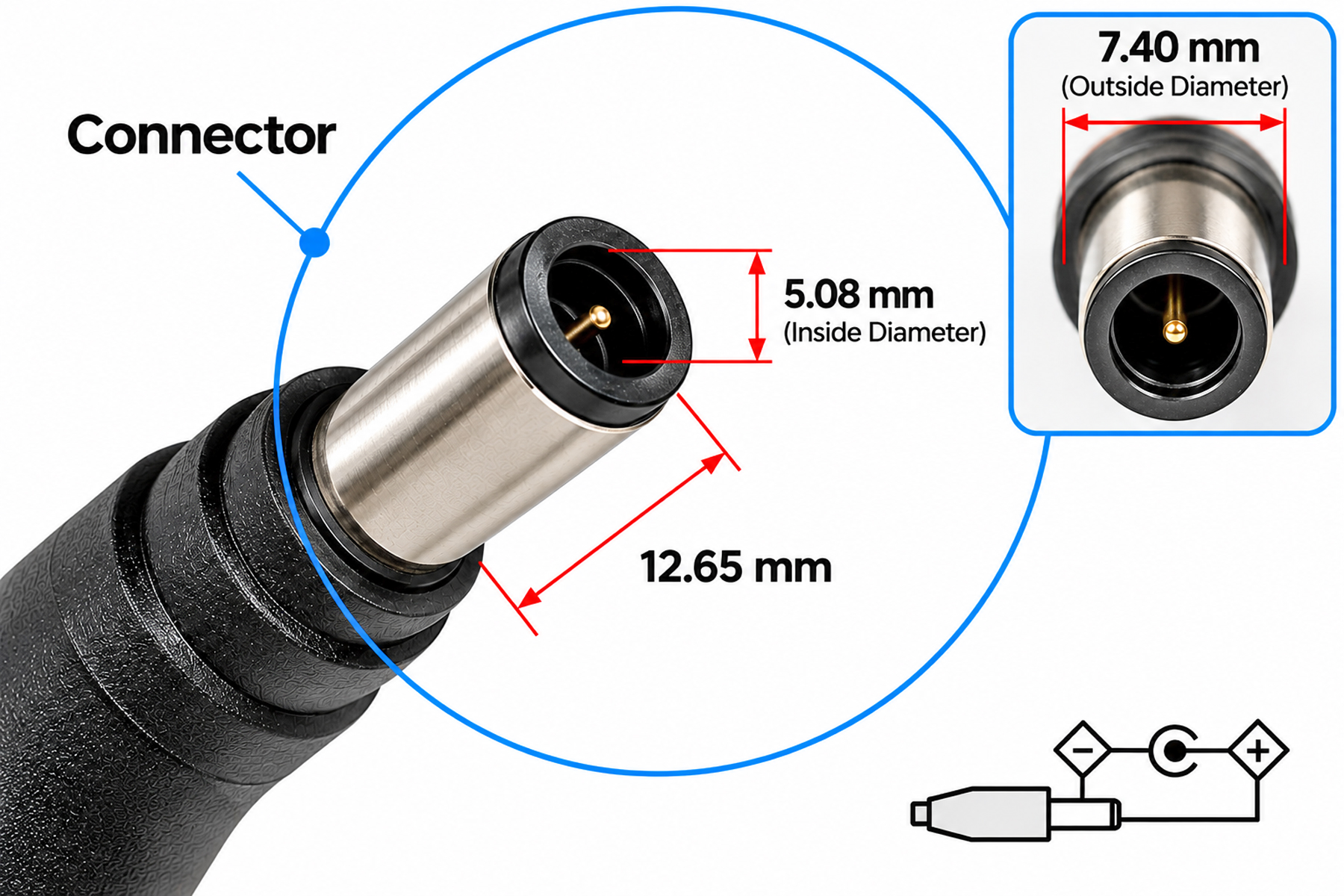

One side of this connector tip has a male connector like this:



Fits laptop models: (Following is just a partial list. We are unable to verify each laptop model listed here, so please use above detailed picture of this connector tip to make sure it is the right one for you.)

  • COMPAQ
    Compaq 511, 515,
    Compaq Presario A900 Series,
    Compaq Presario B1200 Series,
    Compaq Presario CQ20, CQ35 Series
    Compaq Presario CQ40, CQ41 Series,
    Compaq Presario CQ45 Series,
    Compaq Presario CQ50 Series,
    Compaq Presario CQ50-100,
    Compaq Presario CQ60, CQ61 Series,
    Compaq Presario V3700 Series,
    Compaq Presario V3800, V3900 Series,
    Compaq Presario V6500 Series,
    Compaq Presario V6600 Series
    Compaq TouchSmart tx2 Series

  • HP
    HP 530, 550,
    HP HDX X16, HDX X18 Series

  • HP Pavilion Seires
    Pavilion dm1 Series
    Pavilion dv3 Series
    Pavilion dv4, Pavilion dv4-1000,
    Pavilion dv5, Pavilion dv5-1000,
    Pavilion dv5-1019tx,
    Pavilion dv7,
    Pavilion dv7-1000, Pavilion dv7-1014tx,
    Pavilion dv2600, Pavilion dv2800,
    Pavilion dv3000, dv3100, dv3500, dv3600, dv3700 Series
    Pavilion dv6400, dv6500, dv6600,
    Pavilion dv6700, dv6800, dv6900,
    Pavilion dv9600, dv9700, dv9800, dv9900,
    Pavilion dx6000 Series Pavilion tx1300, Pavilion tx2000,tx2100,
    Pavilion tx2500, tx2600

  • HP COMPAQ
    HP Compaq Business Notebook tc4400,
    HP Compaq Mini-Note 2133
    HP Compaq Presario B1200, B1210 Series

  • HP Compaq Business Notebook Series:
    Business Notebook 2210b, 2510p, 2710p,
    Business Notebook 6510b, 6515b, 6710b, 6710s, 6715b, 6715s, 6720S,
    Business Notebook 6820S, 6910p,
    Business Notebook 8510p, 8710p

  • HP Compaq Business Notebook nc Series:
    Business NoteBook nc2400, nc2410,
    Business Notebook nc4400, nc6140, nc6320, nc6400, nc8430

  • HP Compaq Business Notebook nx Series:
    Business Notebook nx6115, nx6130, nx6310, nx6315, nx6320, nx6325,nx6330,
    Business Notebook nx7300, nx7400, nx8410, nx9420, nx9600

  • HP Compaq Mobile Workstation Series:
    Mobile Workstation 8510w, 8710w,
    Mobile Workstation nw8440, nw9440,
    Mobile Workstation nx8420

    And other HP/Compaq laptop computers that requre a power connector like this:





    Important Notes:
  • 1. Above compatibility list is just a partial list. The connector tip may actually work for more models.

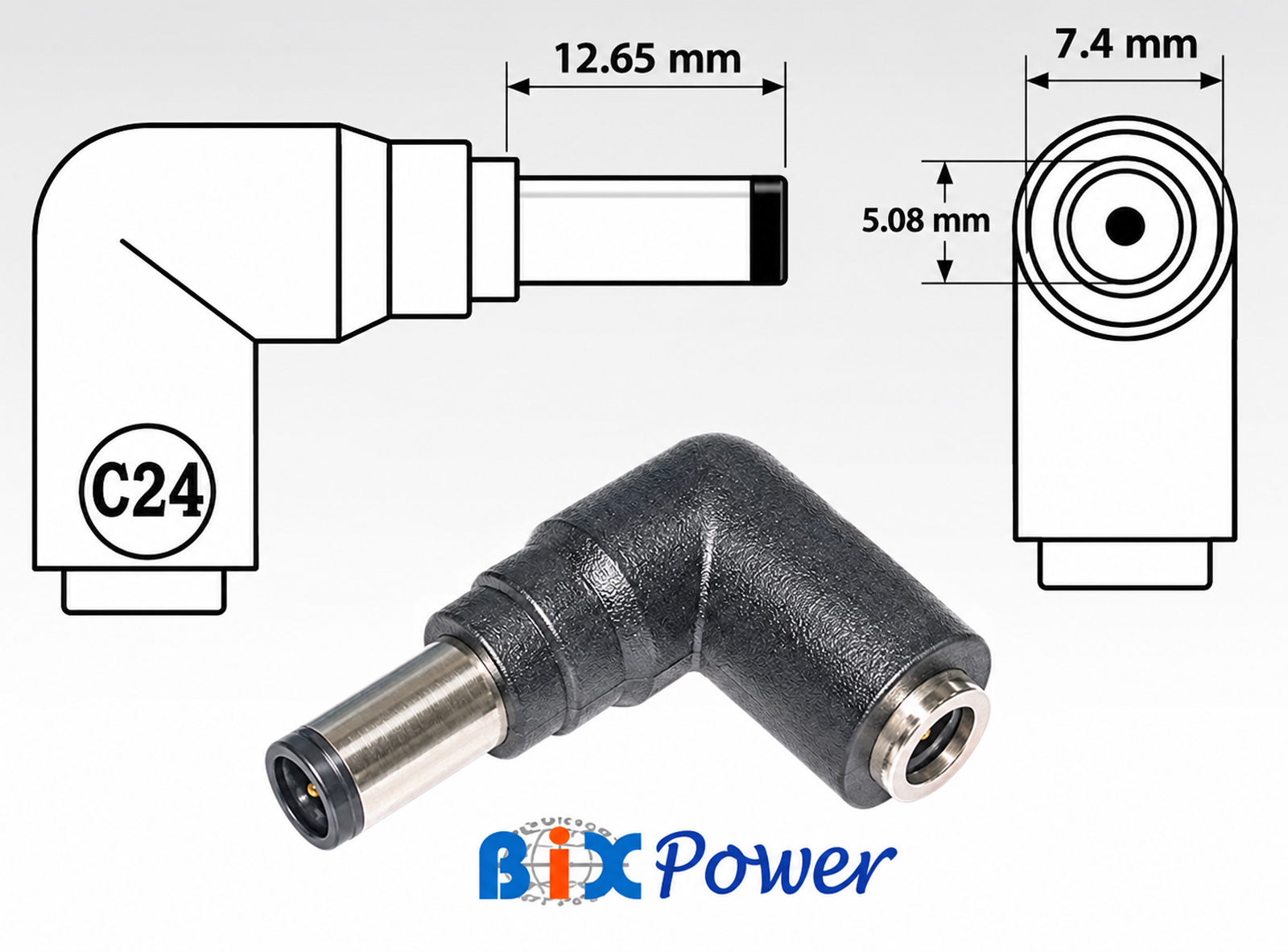

  • 2. Some models listed above have many different sub-models which may not use this connector. Please compare your current connector with this picture to make sure this connector tip will work for you:
  • 3. The power adapter you are using with this connector tip should have the correct voltage and power capacity to meet your computer's requirement. Most HP laptops listed above need 18V~19V DC input.
  • 4. Important: This connector tip is an accessory of our external batteries and power adapters. It is NOT for changing your current straight connector to right angle connector. If you are looking for a connector that can convert your Dell power adapter connector from straight connector to right angle connector, please view our LC90 Connector Converter.

    This connector tip's female side looks like this:



    It can only plug to a 5.5x2.5mm connector like this:



    If your current connector is not 5.5mm x 2.5mm connector, then this connector tip will not work for you.

    How to use this connector tip?

    This special connector tip back actually is a 5.5 x 2.5mm female jack:

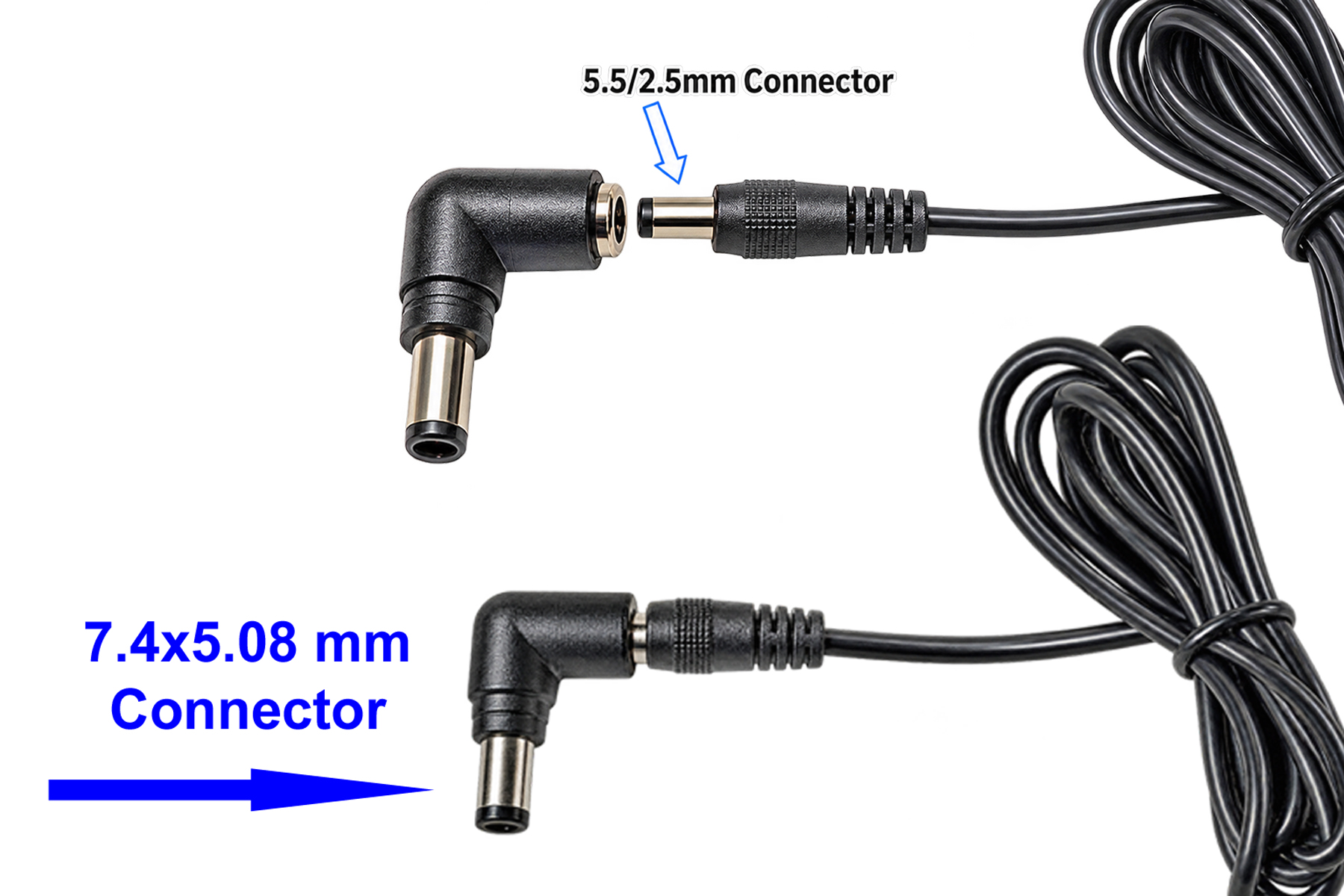

    So it can plug into a standard 5.5 /2.5mm (Outside diameter is 5.5mm, Inside diameter is 2.5mm) connector and convert it to a special connector:



    Now you can connect the power connector to your HP/Compaq Laptop/Notebook computers like this:



    * 5.5/2.5 mm connector (Outer Diameter 5.5mm, Inner Diameter 2.5mm) is one of the most popular DC connectors. If you have a power adapter with 5.5 x 2.5mm connector, you can use it for HP/Compaq laptop notebook computers listed above buy using this connector tip.

    If you are using this special connector tip with some of our universal batteries or power adapters, you need to find the 5.5/2.5mm standard connector tip that comes with the batteries or power adapters first, then plug it into the battery or power adapter output cord:



    Then plug this special connector tip to the 5.5/2.5mm connector.
