Output I is a 5V USB port can be used to power or charge cell phones, iPhone/iPod/iTouch, MP3/MP4 players, PDAs and any device that can be charged from a USB port (USB power cable not included).

Typical run time for iPhone:
Talk Time: Up to 60 hours
Internet Use: Up to 60 hours
Audio Playback: Up to 300 hours
Video Playback: Up to 85 hours

Port II can supply 9V ~ 12V power for many portable DVD players and digital photo frames.

Port III can output 3 different voltages: 16V, 19V, 24V. There are 3 led lights to indicate output voltages. When you plug the output cord to the port III, one LED will light to show you current active output voltage.

If you want to change, just:

1. Press and hold the "CHECK" button for about 3 seconds.

2. One of the LED indicator will begin flashing.

3. Press and release the "CHECK" button, the flashing LED will jumper to different voltage. When it jumps to the voltage you want, stop press the "CHECK" botton

Wait about 5 seconds, the flashing LED will be gone and the voltage selection has been confirmed. for laptop computers.

Laptop computer not included.

With  different connector tips, this battery can be used to power or charge many different laptop computers.

2. High Capacity:

This battery capacity is equivalent to a 9-cell lithium-ion battery. In most case, it can double your laptop running time together with your internal laptop battery. For some small netbook computers, it may even triple the running time.

3. Wide range input voltage:

This battery can be charged from 12V to 24V DC power. It may use your current laptop AC power adapter as a charger if it has a 5.5x2.1mm connector. In this case, there is no need to carry an extra charger when you travel. If your current laptop AC power adapter connector is not 5.5x2.1mm connector, you can use the  battery AC charger to charge the battery from 110V or 220V AC power source.

Specifications:

It has 6600mAh/11.1V, 73Watt-Hour capacity.

Its universal platform works for most of the notebook computers which require 15V~20V DC input voltage. (This voltage is notebook AC power adapter output voltage, not the internal battery voltage.)

Built-in USB Power Port for Charging or Powering PDA's, Cell Phones, Media Players, or Anything that can be Charged from it's USB Cable

Its compact size can easily fit into a laptop/notebook carry bag.

Will provide up to 2 ~ 4 Hours of Power depending on Laptop and Usage. Fully Recharges with OEM or Equivalent Laptop AC Power Supply in about 2.5 Hours

5V, 16V, 19V DC output - 6600mAh Lithium Ion (73Wh)

Maximum Output: 65W

Capacity: 73 Wh

Weighs only 1.4 Lbs. Compact size 7.5 x 4.5 x 0.9 inches

Excellent security and reliability

High efficiency power conversion

No Memory effect

<1>Charge the battery: This battery can be charged from 12V to 24V DC power.  The battery AC charger can charge the battery from 100V ~ 240V 50Hz/60Hz AC power source.

<2>Set the correct output voltage: If you want to use this battery for a laptop computer, please use the port III. The output port III can output 3 different voltages: 16V, 19V, 24V. There are 3 led lights to indicate output voltage. When you plug the output cord to the port III, one LED will light to show you current active output voltage.


<3>This battery also has a Port I with 5V USB power output and Port II with 9V ~ 12V DC output. If you want to use these two output ports, you can order our optional USB DC Power Cable -Z4 for USB port and DC Power Cable - Z5 for 9V ~ 12V port and Plug Tips that fit your devices at Consumer Electronics Plug Tips.

 <4> Select right tip:

Included with your battery is a output cable with  more than 10 different connector plug tips.

The output cable (Z6 Power Cable) one end connect to the battery output port, another end has a 5,5mm/2.5mm connector which will fit a lot laptop notebook computers and other devices.

If the Z6 cable connector does not fit your laptop notebook computers, you can use one of  following connector plgu tips  that work with most  laptop notebook computers.  With the plug tips not connected to Z6 output  cord, locate the correct tip by fitting the tip into your laptop notebook computer or other device DC Jack. The tip should fit snugly in the DC jack. The plug the tip to the Z6 output power cable.

Plug Tips For Laptops:

C1	C2	C3	C5	C6	C7
C8	C12	C13	C14	C15	C18
C19	C21	C23	C24

* We may discontinue some old tips and add some new tips without notice. Actual connector tips may not be exactly same as the pictures show.

<5>   Plug the connector and output cord

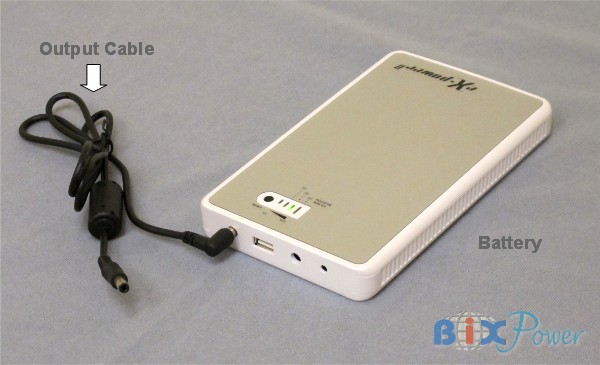

After select right connector, plug it on the Z6 output cord, then plug output cord to the battery output port:



Just that simple, now you are ready to use it !





Polarity
The default battery output cable and connectors are configured as positive polarity, which meet the needs of most of devices.

Compatibility

The following are compatible laptop models this battery works for. It is just a partial list; this battery can work for more models. All must have a 60w-70w AC power adapter with an 15v-20v output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this battery as an external battery, but you can use it to charge your internal battery while your laptop computer is turned off.

Acer:: works for Acer Laptop that has a 60W ~70W AC power adapter with 18V~20V DC output, such as:

Acer Aspire One Series

Acer aspire one ZG5

Acer Aspire One A110L

Acer Aspire One A150L

Acer Aspire One A150X

Acer Aspire One AoA110-1295

Acer Aspire One AoA110-1722

Acer Aspire One AoA150-1006

Aspire 1300, 3002, 3002LCi, 3002WLCi, 3003, 3003LCi, 3003WLCi, 3004, 3005, 3009, 3050, 3100, 3502WLCi, 3623, 3624,

Aspire 5002, 5003, 5004, 5005, 5100, 5102, 5601, 5672, 9400, 9402

Acer Extensa 355, 365, 366D, 367D, 368D, 390, 390C, 390CX, 393,

Acer Extensa 500, 501DX, 501T, 502D, 502DX, 502T, 503DX, 503T, 505DX, 506DX, 515,

Acer Extensa 600, 610, 610CD, 610CDT, 650, 900, ESS3-391T

AcerNote 350, 355, 356, 367D, 367T, 370C, 374, 390, 390A, 391, 392, 393, 394, 395, 850C

AcerNote Light 350, 350C, 352, 355, 356, 358, 359, 360, 361, 363, 370, 370C, 370P, 370PC, 372, 373, 373+, 380, 381, 383, P100

Acer Anywhere 1100LX, 1120LX

Acer TravelMate 200, 200DX, 200T, 201T, 202T, 240, 244LCi, 244LC-XPP, 2480, 250, 250PE, 252ELC, 252ELCi, 254ELCi,

Acer TravelMate 505DX, 506T, 507DX, 507T, 512DX, 512T, 524TX, 524TXV, 735TLV, 735TXV
Asus: works for the Laptop that has a 60W ~70W AC power adapter with 18V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Compaq:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Dell:: works for Laptop that has a 60W ~70W AC power adapter with 18V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
E-Machine:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Fujitsu:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Gateway:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
HP:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
IBM/Lenovo:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Panasonic:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Sony:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.
Toshiba:: works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter has more than 70W output power(such as 90W for some models), you may not use this external battery as normal, but you still can use this external battery to charge your internal battery when your laptop notebook computer is turned off.

Even you can not find your laptop or other device listed in our web site, the battery may still work for you. If your device needs 15V ~ 24V DC power ( it is same as your device AC power adapter DC output voltage), the DC plug is round shape and looks similar to one of connector tips shows on the following picture, then this battery should work for your device.
