Universal Netbook & Laptop External Rechargeable Battery -
SP75
Need more running time for your notebook computers ?
Can not
find a battery for your notebook computers ?
This Universal External
Lithium Rechargeable Battery Pack is the Solution for You. In most case, it can
double your laptop running time together with your internal laptop
battery. For some small netbook computers, it may even triple the running
time.
Features & Specifications:
It has 6600mAh/11.1V, 73Watt-Hour capacity. (*
We notice that some batteries on market with the similar appearance
only have 400mAh/11.1V, 44.8Watt-hourcapacity.)
Its universal platform works for most of the notebook computers which
require 15V~20V DC input voltage. (This voltage is notebook AC power adapter
output voltage, not the internal battery voltage.)
Built-in USB Power Port for Charging or Powering PDA's, Cell Phones, Media
Players, or Anything that can be Charged from it's USB Cable
Its compact size can easily fit into a laptop/notebook carry bag.
Will provide up to 2 ~ 4 Hours of Power depending on Laptop and Usage. Fully
Recharges with OEM or Equivalent Laptop AC Power Supply in about 2.5 Hours
5V, 16V, 19V DC output - 6600mAh Lithium Ion (73Wh)
Maximum Output: 65W
Capacity: 73 Wh
Weighs only 1.4 Lbs. Compact size 7.5 x 3.5 x 1 inches
Excellent security and reliability
High efficiency power conversion
No Memory effect
 Laptop
computer not included.
Smart
Designs:
<1>. The battery uses your current laptop AC power
adapter as a charger; there is no need to carry an extra charger when you
travel.
Note:
Please select a 16V or 19V AC charger we offer as an option if you need a
separate AC charger instead of your own. Select the AC charger with output
voltage the same or close to your device input voltage.
If you don't have
a power adapter that can charge the battery, we recommend you purchase the
optional 90W Universal AC
Charger with the battery. This 90W Universal AC Charger has adjustable
output voltage, you can set its output voltage same as or close to your device
input voltage. In this case, you can leave the battery connected to your device
when the battery is connected to the AC power adapter.
 Optional 90W Universal AC
Charger
<2>. You can connect the battery to your laptop,
and connect your laptop AC power adapter to the battery like this:
The
battery passes the power from the AC power adapter directly to the laptop
without consuming its own power. The laptop is actually powered from the AC
power adapter even though it is connected to the battery. In this case, the
battery cells are in charging mode and use the AC adapter to charge the battery.
There is no waste of the battery cells life time when AC power is available.
It will provide power to the laptop only when the AC charger is out of
power.

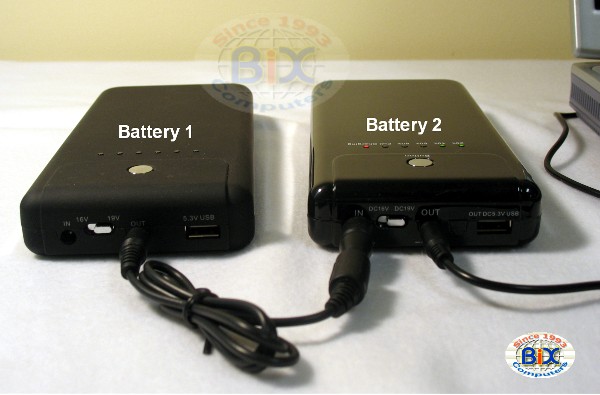

<3>. You can use two or more batteries simultaneously
If you need more power. Just link battery 1�s output to battery 2�s
input. Then link battery 2�s output to the laptop, as shown in the following
pictures
The
laptop computer gets power from battery 1 first and uses battery 2 when battery
1 is out of power. You can connect multi-batteries in this way to power your
device for the extra running time you need.
<4>
This battery also has a 5V USB port power output. If you want to use this
battery for a device that needs 5V DC power, you can order our optional USB DC Power Cable -Z4 and a
Plug Tip that fits your device. Connect them to the USB port on the battery as
shown here:
 USB
Cable & DS Game Player Not Included.
 USB Cable
& iPod Not Included.
To see available plug tips we have,
please visit our Consumer
Electronics Plug Tips.
How to use this battery:
1.
Charge the battery: This battery uses your current laptop AC power adapter as a
charger. If your laptop AC power adapter does not fit the battery input charging
port, please use one of different input tips that comes with the package to make
your current AC power adapter to fit the battery input port:
Note:
If you are using your device original or compatible power adapter to charge the
battery, you can leave the battery connected to your device when charging the
battery. The battery uses a small portion of power from the charger to charge
itself and passes the rest power directly to the device. In this case, if the
device is turned on, it is actually powered from the power adapter, not the
battery. The battery will start providing power to the device when the power
adapter has not power output.
In order to optimize your charge
time , it is recommended that this battery not be charged while connected to
your portable computer or other device. If charged while connected to the
device, charge time will take significantly longer than when disconnected from
the device.
If the power adapter you are using to charge the battery is
not your device original power adapter and it has different voltage output from
the original power adapter, please do NOT connect the battery to your
device when you are charging the battery. Disconnect the power adapter when you
connect the battery to your device. Otherwise, since the battery passes the
power directly from the power adapter to the device, it may damage your
device.
Do not charge this battery with an AC adapter that output voltage
is greater than 24 Volts, as this may damage the battery.
Recommended
AC Charger: If you don't have a power adapter that can charge the battery,
we recommend you purchase the optional 90W Universal AC Charger with the battery. This
90W Universal AC Charger has adjustable output voltage, you can set its output
voltage same as or close to your device input voltage. In this case, you can
leave the battery connected to your device when the battery is connected to the
AC power adapter.
Optional 90W Universal AC Charger
2.
Select the right connector tip: Included with the battery pack are 8 output tips
that work with most notebooks & other devices. With the plug tip not
connected to the output cord, locate the correct tip by fitting the tip into the
notebook DC Jack. The tip should fit snugly in the DC jack
After you have
selected the proper plug tip, connect the plug tip to the battery cord.
3. The
battery has a switch to select output voltages: 16V or 19V. Select the output
voltage close to the voltage of your device�s AC power adapter output voltage
after connecting the tip to the battery output cord.
4. Connect the
external battery to your notebook�s DC power input jack (which is the same
jack your notebook AC power adapter usually plugs into). Now you can power your
notebook from this External Battery Pack.
Note: If
your notebook�s internal battery is in good condition and has been fully
charged, you can leave it in your notebook. Otherwise, we recommend you removing
the internal battery from it. The external battery will still work fine with the
non-charged internal battery in the notebook, but it may not reach the maximum
running time.
How long can this external battery run ?
This
battery's capacity is 73Wh(Watt-hour), which equivalent to a 11.V/6600mAh
battery. If your notebook internal battery output is: 11.1V & 4400 mAh,
then, this external battery capacity is about 1.5 times of your internal battery
capacity. In this case, if your internal notebook battery runs 2 hours, then the
external battery pack can run about 3 hours. Actual running time varies,
depending on the notebook computer's configurations and applications (Ex: screen
brightness, the use of the CPU, the hard drive, the CD drive, etc.). The total
run-time of the battery is also heavily dependent upon the design of the
notebook. To ensure maximum performance of the battery, optimize the computer's
power management features. Refer to the computer manual for further
instructions.
If you need more power, you can use two or more batteries
simultaneously. Just link battery 1�s output to battery 2�s input. Then link
battery 2�s output to the laptop, as shown in the following pictures
The
laptop computer gets power from battery 1 first and uses battery 2 when battery
1 is out of power. You can connect multi-batteries in this way to power your
device for the extra running time you need.
Package:
Standard
Accessories:
7 Input Tips
Output Cord & 8 Output Tips
User Manual
Polarity
The default battery
output cable and connectors are configured as positive polarity, which meet the
needs of most of devices.
Compatibility
The following are compatible laptop models this battery works for.
It is just a partial list; this battery can work for more models. All must have
a 60w-70w AC power adapter with an 15v-20v output. If your laptop AC power
adapter has more than 70W output power(such as 90W for some models), you may not
use this battery as an external battery, but you can use it to charge your
internal battery while your laptop computer is turned off.
Acer::
works for Acer Laptop that has a 60W ~70W AC power adapter with 18V~20V DC
output, such as:
Acer Aspire One Series
Acer aspire one ZG5
Acer Aspire One A110L
Acer Aspire One A150L
Acer Aspire One A150X
Acer Aspire One AoA110-1295
Acer Aspire One AoA110-1722
Acer Aspire One AoA150-1006
Aspire 1300, 3002, 3002LCi, 3002WLCi, 3003, 3003LCi, 3003WLCi, 3004, 3005,
3009, 3050, 3100, 3502WLCi, 3623, 3624,
Aspire 5002, 5003, 5004, 5005, 5100, 5102, 5601, 5672, 9400, 9402
Acer Extensa 355, 365, 366D, 367D, 368D, 390, 390C, 390CX, 393,
Acer Extensa 500, 501DX, 501T, 502D, 502DX, 502T, 503DX, 503T, 505DX, 506DX,
515,
Acer Extensa 600, 610, 610CD, 610CDT, 650, 900, ESS3-391T
AcerNote 350, 355, 356, 367D, 367T, 370C, 374, 390, 390A, 391, 392, 393,
394, 395, 850C
AcerNote Light 350, 350C, 352, 355, 356, 358, 359, 360, 361, 363, 370, 370C,
370P, 370PC, 372, 373, 373+, 380, 381, 383, P100
Acer Anywhere 1100LX, 1120LX
Acer TravelMate 200, 200DX, 200T, 201T, 202T, 240, 244LCi, 244LC-XPP, 2480,
250, 250PE, 252ELC, 252ELCi, 254ELCi,
Acer TravelMate 505DX, 506T, 507DX, 507T, 512DX, 512T, 524TX, 524TXV,
735TLV, 735TXV
Asus: works for the Laptop that has a 60W ~70W AC
power adapter with 18V~20V DC output. If your laptop AC power adapter has more
than 70W output power(such as 90W for some models), you may not use this
external battery as normal, but you still can use this external battery to
charge your internal battery when your laptop notebook computer is turned off.
Compaq:: works for Laptop that has a 60W ~70W AC power adapter with
15V~20V DC output. If your laptop AC power adapter has more than 70W output
power(such as 90W for some models), you may not use this external battery as
normal, but you still can use this external battery to charge your internal
battery when your laptop notebook computer is turned off.
Dell::
works for Laptop that has a 60W ~70W AC power adapter with 18V~20V DC output. If
your laptop AC power adapter has more than 70W output power(such as 90W for some
models), you may not use this external battery as normal, but you still can use
this external battery to charge your internal battery when your laptop notebook
computer is turned off.
E-Machine:: works for Laptop that has a 60W
~70W AC power adapter with 15V~20V DC output. If your laptop AC power adapter
has more than 70W output power(such as 90W for some models), you may not use
this external battery as normal, but you still can use this external battery to
charge your internal battery when your laptop notebook computer is turned off.
Fujitsu:: works for Laptop that has a 60W ~70W AC power adapter with
15V~20V DC output. If your laptop AC power adapter has more than 70W output
power(such as 90W for some models), you may not use this external battery as
normal, but you still can use this external battery to charge your internal
battery when your laptop notebook computer is turned off.
Gateway::
works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If
your laptop AC power adapter has more than 70W output power(such as 90W for some
models), you may not use this external battery as normal, but you still can use
this external battery to charge your internal battery when your laptop notebook
computer is turned off.
HP:: works for Laptop that has a 60W ~70W AC
power adapter with 15V~20V DC output. If your laptop AC power adapter has more
than 70W output power(such as 90W for some models), you may not use this
external battery as normal, but you still can use this external battery to
charge your internal battery when your laptop notebook computer is turned off.
IBM/Lenovo:: works for Laptop that has a 60W ~70W AC power adapter
with 15V~20V DC output. If your laptop AC power adapter has more than 70W output
power(such as 90W for some models), you may not use this external battery as
normal, but you still can use this external battery to charge your internal
battery when your laptop notebook computer is turned off.
Panasonic::
works for Laptop that has a 60W ~70W AC power adapter with 15V~20V DC output. If
your laptop AC power adapter has more than 70W output power(such as 90W for some
models), you may not use this external battery as normal, but you still can use
this external battery to charge your internal battery when your laptop notebook
computer is turned off.
Sony:: works for Laptop that has a 60W ~70W
AC power adapter with 15V~20V DC output. If your laptop AC power adapter has
more than 70W output power(such as 90W for some models), you may not use this
external battery as normal, but you still can use this external battery to
charge your internal battery when your laptop notebook computer is turned off.
Toshiba:: works for Laptop that has a 60W ~70W AC power adapter with
15V~20V DC output. If your laptop AC power adapter has more than 70W output
power(such as 90W for some models), you may not use this external battery as
normal, but you still can use this external battery to charge your internal
battery when your laptop notebook computer is turned off.
please use
our Laptop/Notebook Upgrade
Guide to find right battery for you . If this battery is
listed under your laptop, it means it will work for your laptop.
Even
you can not find your laptop or other device listed in our web site, the battery
may still work for you. If your device needs 15V ~ 20V DC power ( it is same as
your device AC power adapter DC output voltage), the DC plug is round shape and
looks similar to one of connector tips shows on the following picture, then this
battery should work for your device.
If
you want to use this battery for a device that needs 5V DC power, you can order
our optional USB Power Cable -Z4
and a Plug Tip that fits your device, connect them to the USB port on the
battery |
|
|
|
|
|
|
|
|
Products may also like...
|
|
|
|
|
