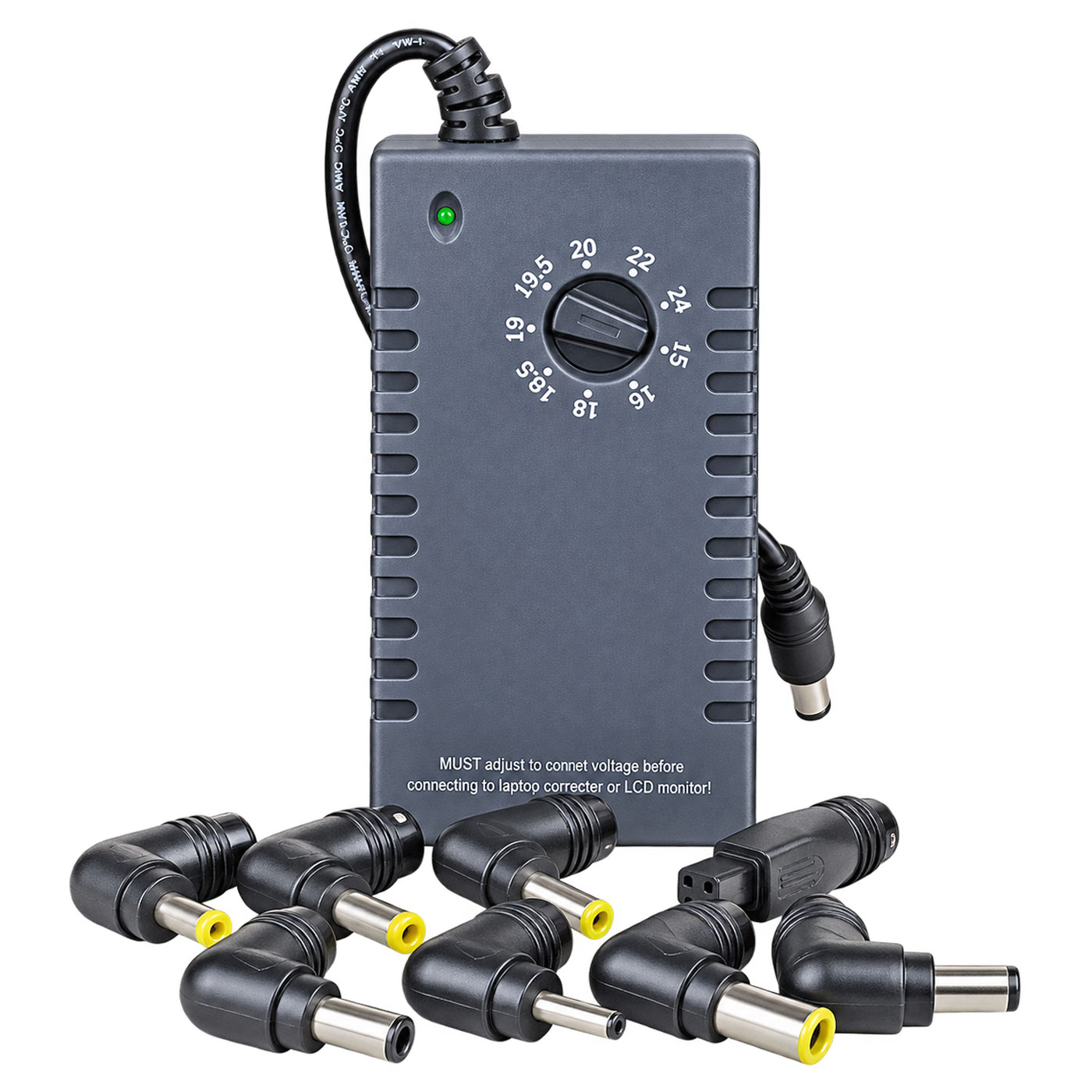

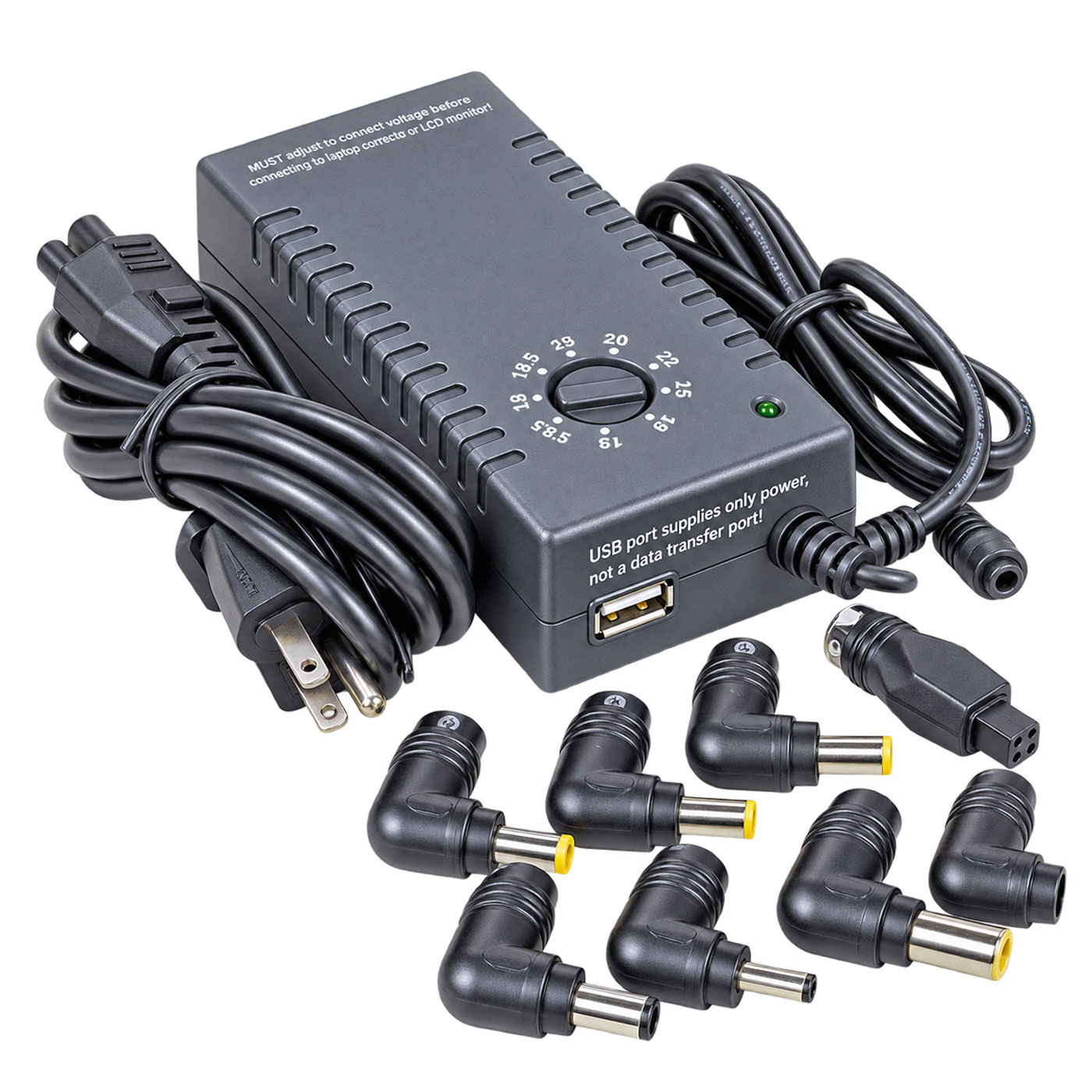

This Universal Output Adjustable AC to DC Power Adapter has adjustable DC output
(range 15V ~ 24V) and 7 most common connectors that can be used with notebook
computers and other devices. Features:
Input Voltage: AC100-240V, , can be used worldwide.
Input Frequency: 47 -- 63 HZ
Over-Load Protection
Short-circuit Protection
Output Voltage: 15v, 16v, 18.5v, 19.5v, 20v, 22V, 24v, 7 Section
adjustable
Max. Output: 90W Max.*
SAFETY: CE APPROVED
SIZE: 5.5" x2.2" x 1.2"
*Max Output = Voltage Output x Maximum
Current Output.
For example, if you set the voltage at 19V, then maximum
current output of this AC power adapter will be 4.3A.
The current output
of a AC adapter varies: it depends how much the device needs. For example, if a
AC power adapter maximum current output is 4A, it does not mean the AC adapter
current output is 4A. It means the power adapter current output maximum capacity
is 4A, actual output current can be anything between 0~4A.
How to use
it:
1. Set DC Output
Voltage

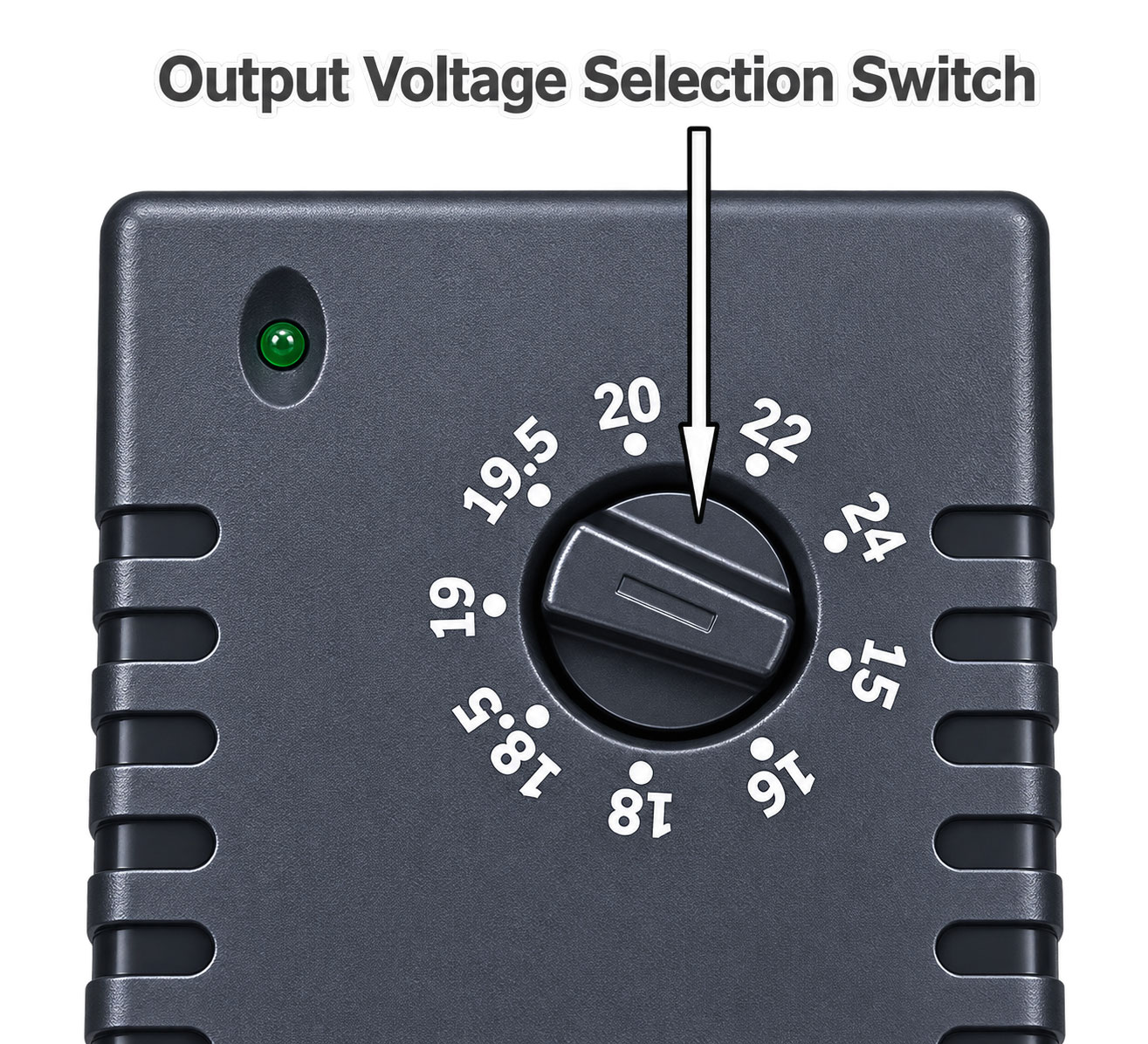

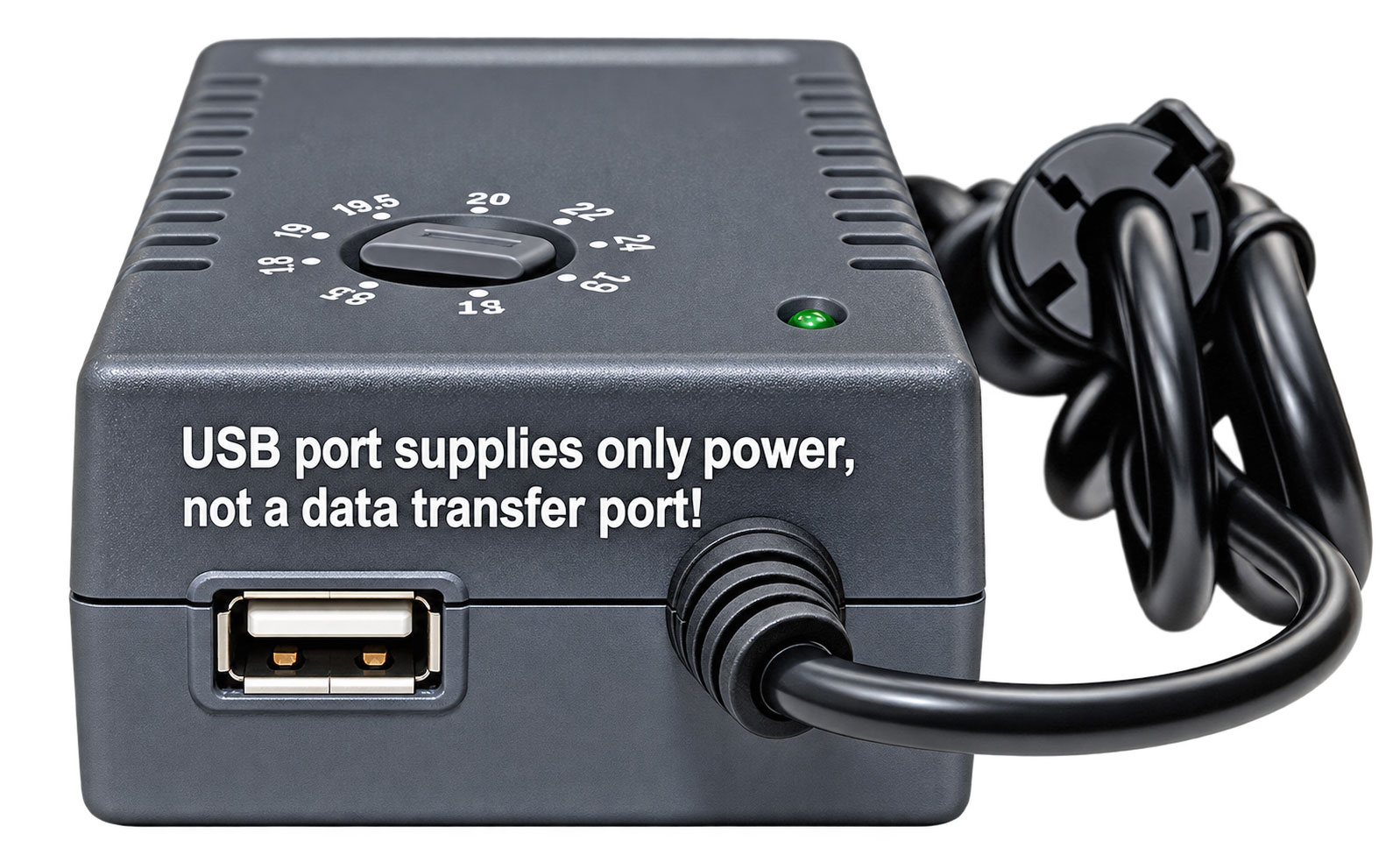

This Universal AC to DC Power Adapter has a
output voltage switch on the front that lets you select the voltage you need
within a range of 15V ~ 24 volts. Please refer to the electronic item you are
powering to determine voltage. It should be marked on the DC input jack. You may
also refer to the manual to determine the proper voltage setting.
This
power adapter has 7 different voltage outputs. It also come with 7 different

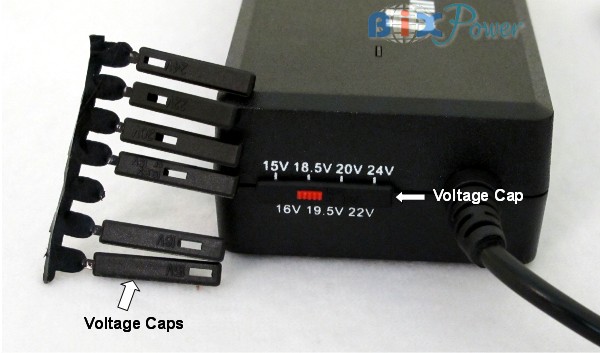

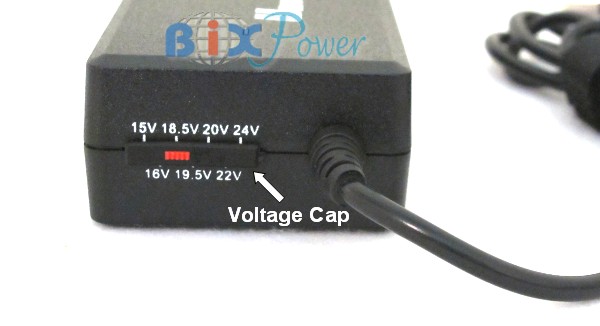

voltage caps. After select output voltage, you can put the voltage protection
cap for the specific voltage on the adapter to fix the switch position , prevent
the accident movement of voltage selection switch.
2. Select right tip:
Included with your adapter are 8-plug tips that work with most products. With
the plug tip not connected to the adapter cord, locate the correct tip by
fitting the tip into the DC Jack. The tip should fit snugly in the DC jack

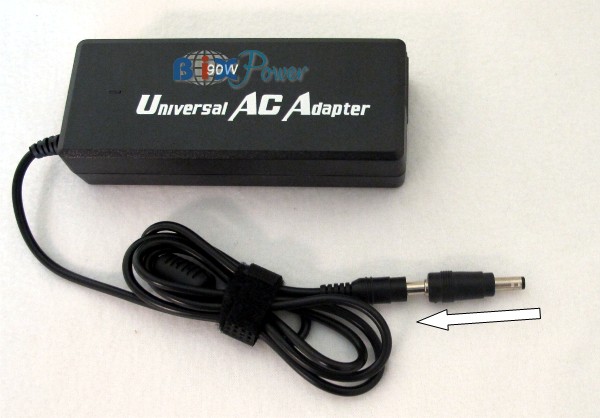

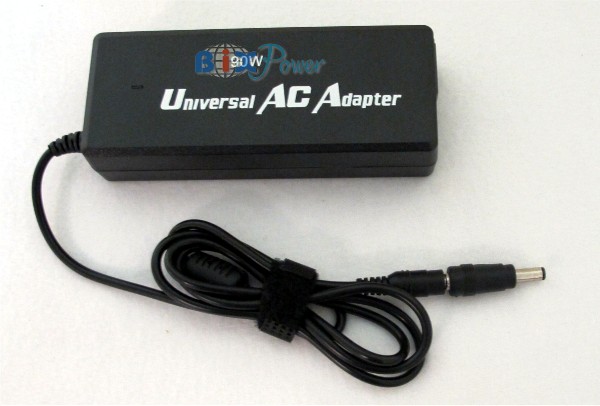

3.Plug the tip
The
connector on power adapter cord may fit some laptops without any extra tip. If
not, after select right tip, just plug the tip into the adapter cord.
Just that simple, now you are ready to use it !

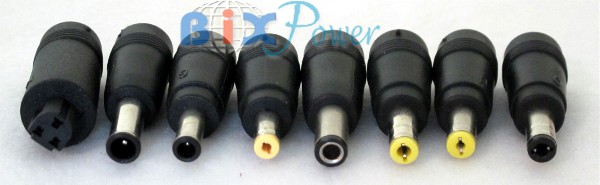

DC
plug-in Connector: 9 tips
Tip on the adapter cable - 5.5mm x 2.1mm
Tip A - 6.4mm x 4.4mm
Tip D - 6.3mm x 3.0mm
Tip E - 4.8mm x 1.7mm
Tip F - 5.5mm x 2.5mm
Tip G - 5.5mm x 3.0mm
Tip H - Dell PA-9 model
Tip O - 5.5mm x 2.5mm
Tip N - 5.5mm x 1.5mm
About the Tip Size: 5.5 x2.5mm means the
connector's outside diameter is 5.5mm, inside diameter is 2.5mm, 6.3x3.0mm means
outside diameter is 6.0mm, inside diameter is 3.0mm ...

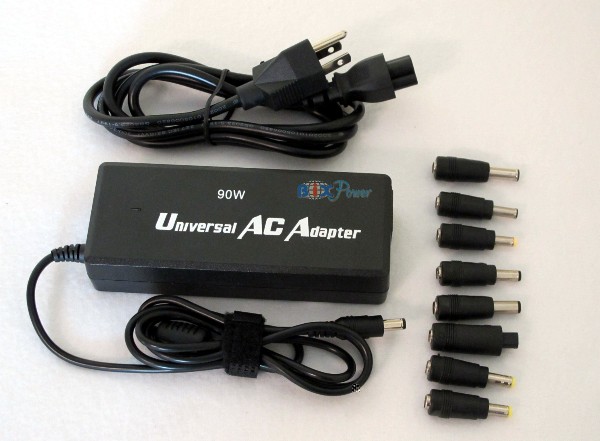

Package
Including:
AC to DC Power Adapter: x 1
AC Power Cord (with USA plug) x 1
DC Connector Tips x 8
Compatibility:
This
AC power adapter will work for your device if:
1. Your device DC input (same as your current AC power adapter voltage
output) is in the range of this AC power adapter's voltage output (12V, 15v,
16v, 18v, 19v, 20v, 21v);
2. One of the DC plugs fits your device.
3. Voltage x Maximum current smaller than 90w;

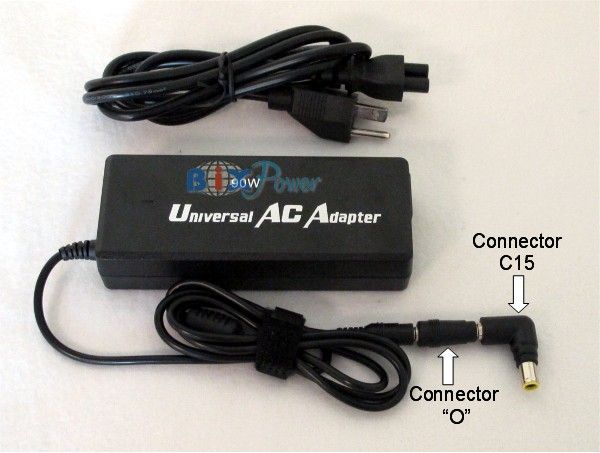

You can use this power
adapter with our optional C15, C21 and C24 connector tips for new IBM/Lenovo, Dell
and Compaq/HP laptops. To use those right angle connector tips, you first need
to put the connector "O" (5.5mmx2.5mm) comes with the power adapter to
the output plug, then plug the optional connector tip over the connector
"O".
|
|
|
 |
|
 |
|
