Super Capacity Battery with Multi Output Voltages DC Converter Combo Pack - MP330DC

Alternative Views:

Regular Price: US$699.00
Sale Price: US$399.95

Stock Status:In Stock

Product Code: BAT-MP330DC

Super High Capacity (322 Watt-Hour) Light Weight Lithium Ion Battery with selectable output voltage DC power adapter.

Battery Specifications:

  • 12.8Ah @ 25.2V or 322 Watt-hour
Maximum Continuous Discharge Current
  • 12 A

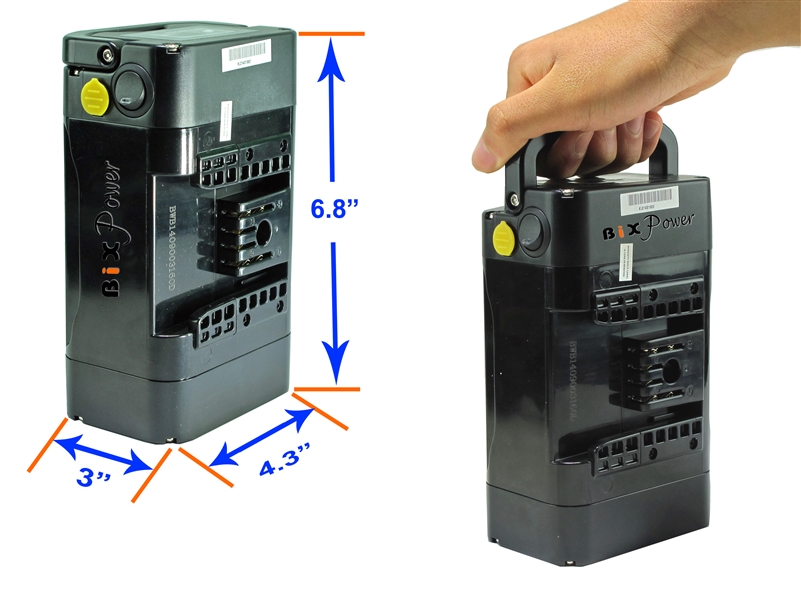

  • 175.00 x 110.00 x 75.00 mm
  • ( or 6.8" x 4.3" X 3")
  • 1.86 kg (or 4.1 pound)
Operate Temp. Charge
  • 0~45 ℃
Operate Temp. Discharge
  • -20~60 ℃
Storage Temp.
  • -20~40 ℃
Cycle Life
  • 500 Times
PCB Safety Function
  • Cell balancing
  • Over-discharge
  • Over-current protection
  • Over-charge
  • Temperature protection
  • Secondary protection

How to use the battery

Charge the Battery:

The battery pack comes with its own AC charger. You can charge the battery from any 100V ~ 240V AC power source.

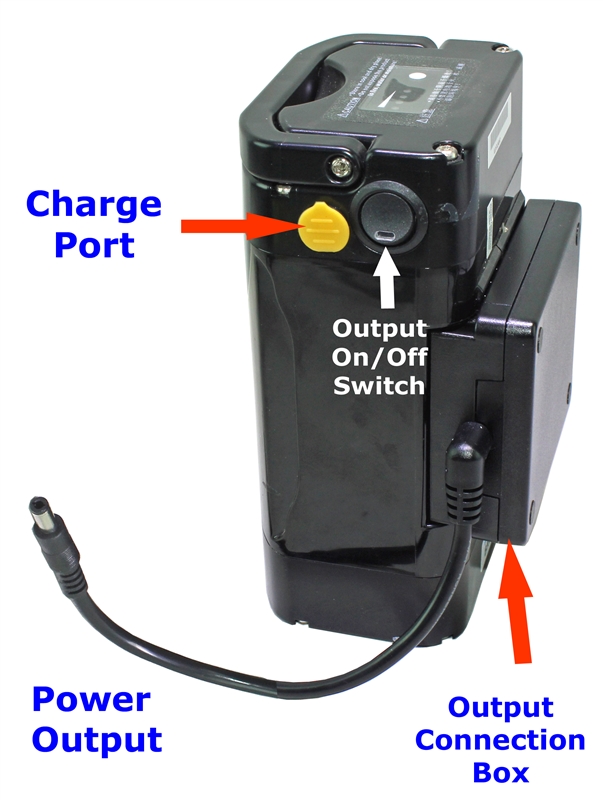

Get the power from Output Port:

1. Use the battery directly:

The battery pack comes with a output cable. One end plugs to the battery output port while the other end can plug directly into your device, or into many different connector tips if the plug does not fit.

The battery output voltage range is 20V ~ 29.5V, and its nominal voltage is 25V. When the battery is fully charged, its output voltage is 29.5V. The output voltage will decrease gradually and finally cut off at around 20V. Most of the time, the voltage will be around 24V to 26V.

Because of this, please make sure your device can accept all voltages from 20V ~ 30V.

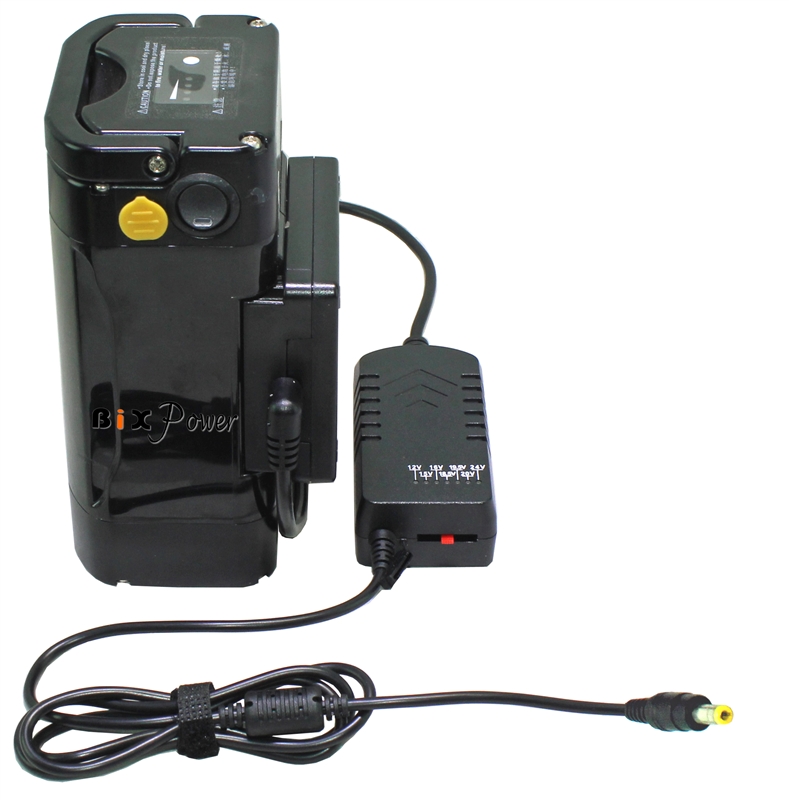

2. Use the battery with the BiXPower DD90X DC to DC Power Adapter

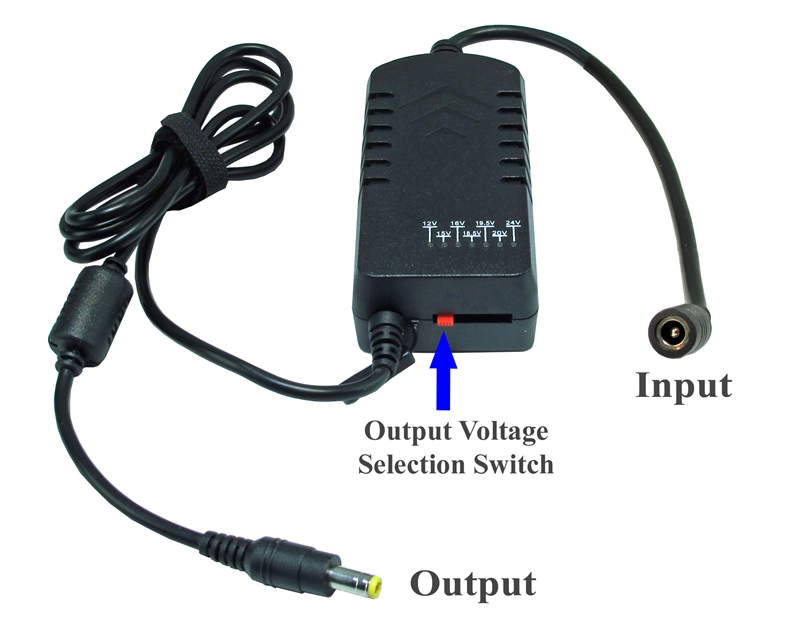

If your device needs a different voltage, you can use the BiXPower DD90X DC to DC Power converter. Using the voltage selection switch, it converts the battery output voltage to any of the following voltages: 12V, 15V, 16V, 18.5V, 19.5V, 24V. 12 interchangeable connector tips are included.

It also has a 5V USB port for charging cell phone, PDA, iPhone/iPod, etc.

DC Converter Technical Specifications:
Acceptable Input DC Voltage: 10V - 30V
Efficiency >88%(TYP)
Selectable Output Voltages: 5V/12V/15V/16V/18V5/19.5V/24V (±5%@ typical±0.8V)
Maximum output power: 90W
Over Load Protection (Over current & Over Voltage Protection) * : Yes.
Short Circuit Protection: Yes
Storage Temperature: -10℃ to 60℃
Operating Temperature: 0℃ to 40℃
Storage Humidity: 10% to 90%
Operating Humidity: 20% to 80%
Weight :0.55 lb (260g )
Dimensions: 4.5” x 2” x 1.2” (110 x 50 x 30 mm)
Color: Black

Connector Tips:

The DD90X power adapter standard package does not come with any extra connector tips. The connector on the output cable is a 5.5 x 2.5mm barrel connector with 5.5mm outside diameter and 2.5mm inside diameter.

C series connector tips: .

You may plug a connector tip over the 5.5 x 2.5mm connector on output cable to change it to a different size connector.

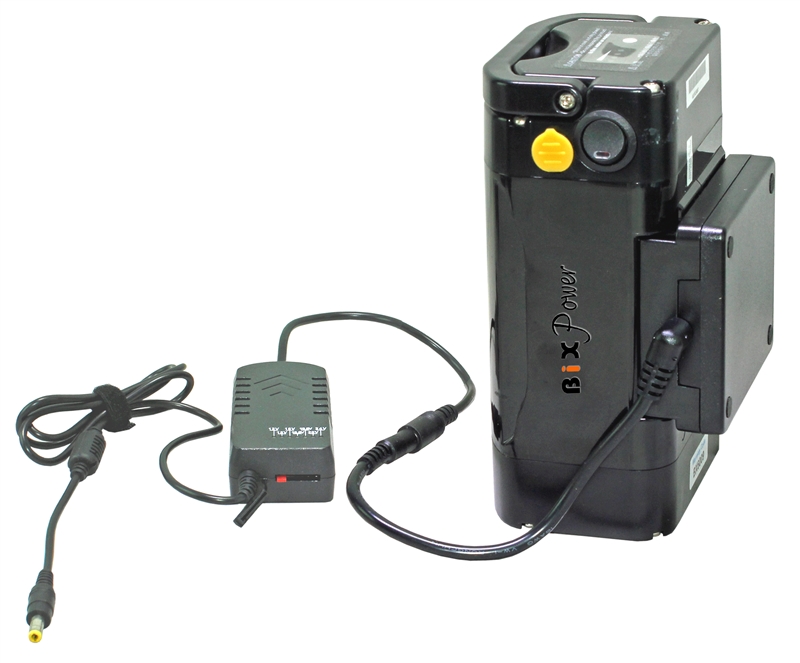

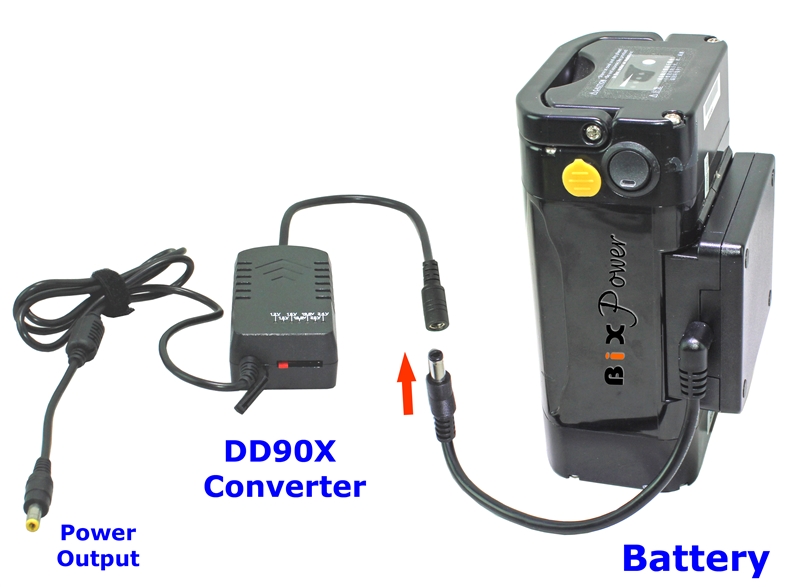

Use battery with DD90X Power Converter:

Just plug battery output to DD90X DC power converter input end, then you can change the battery variable voltage to a stable regulated voltage:

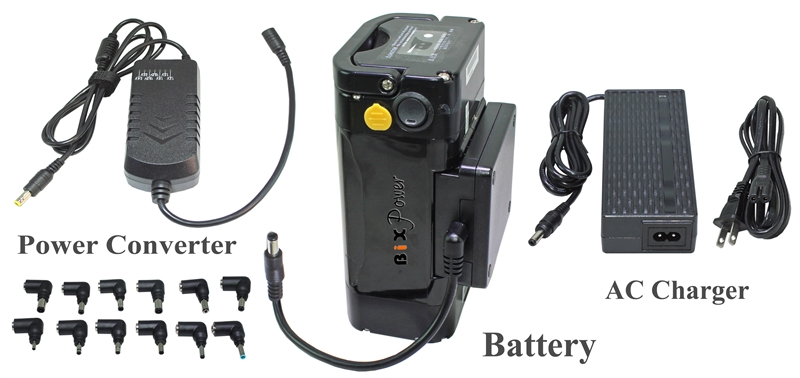

Standard Package:

The stand battery package comes with:
  • Super high capacity lithium battery
  • AC charger
  • DD90X DC to DC Power Adapter with 12 interchangeable connector tips

  • Warranty: One Year limited warranty. The one year limited warranty covers manufacturing and quality defects only. Please note that batteries wear out with use. The amount of charge a battery can hold gradually decreases due to usage and aging, which is normal, and this is not the issue covered by warranty.
