BiXPower V100 99Wh V-Mount Battery & Portable AC Charger Combo Kit
Rechargeable 14.4V V-Lock Camera Battery + 16.8V 1.8A Charger | Complete Portable Power Kit
Get the battery and charger you need in one convenient package.
The BiXPower V100 V-Mount Battery and AC Charger Combo Kit
combines a compact, professional 99Wh-class rechargeable lithium-ion
camera battery with the ACC-16VMC portable V-Mount AC charger.
Designed for compatible professional video cameras, broadcast camcorders,
field monitors, and V-Mount accessories, this combination provides a practical
and affordable power solution for studio production, location filming,
documentary work, and travel.
The included charger connects directly to the battery's V-Mount charging
interface. No separate charging plate, D-Tap charging cable, or
large charging station is required.

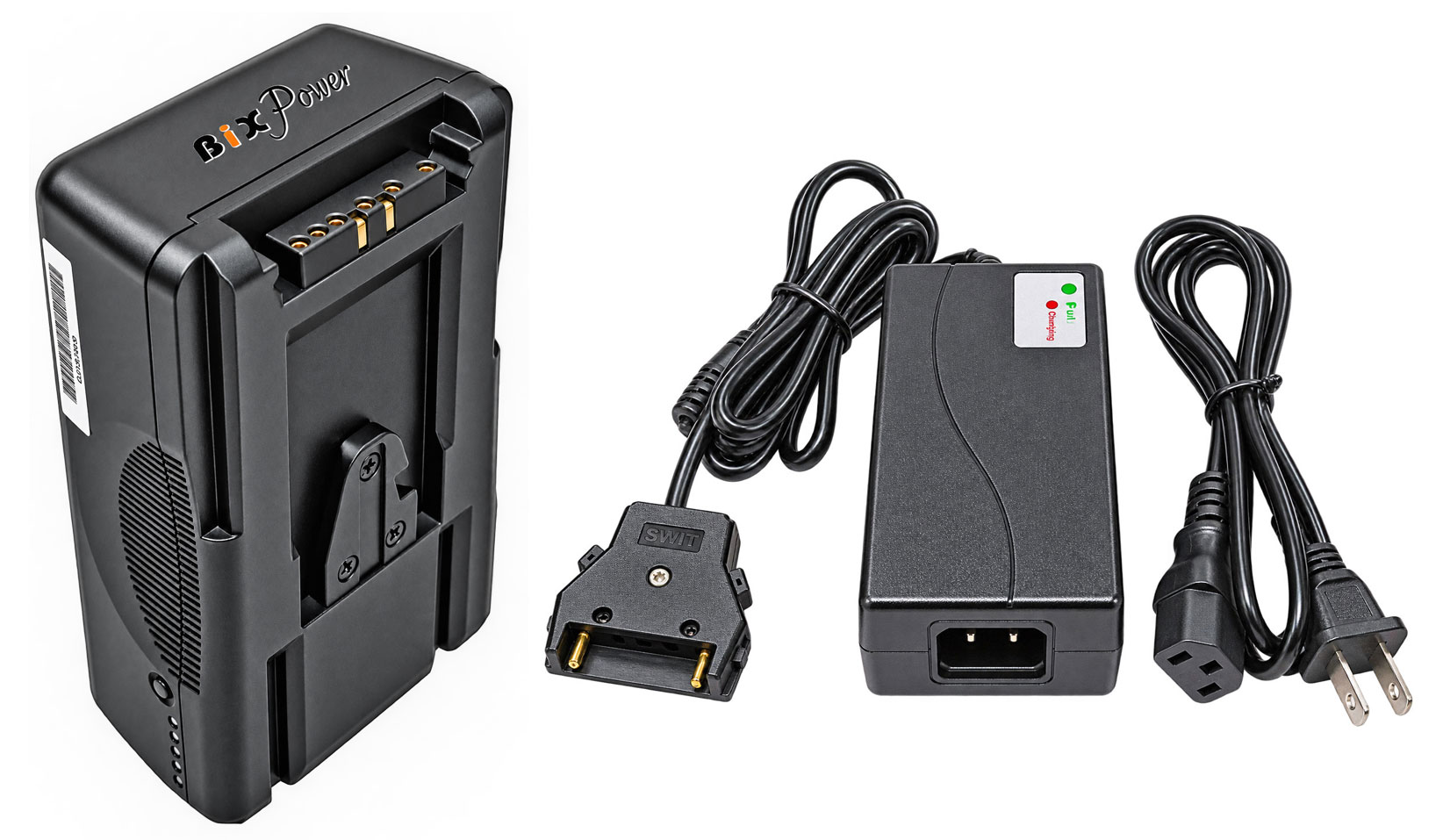

Complete 2-Product Combo Kit
1 x BiXPower V100 V-Mount Battery — 14.4V nominal, 99Wh-class capacity
1 x BiXPower ACC-16VMC AC Charger — 16.8V, 1.8A, with V-Mount charging connector and AC power cord
Why Choose This Battery & Charger Kit?
- Complete Power Solution: Battery and compatible charger included.
- 99Wh-Class Capacity: Portable energy storage for professional video equipment.
- Panasonic Lithium-Ion Cells: Quality rechargeable battery construction.
- Standard V-Mount / V-Lock Interface: For compatible cameras, plates, and production equipment.
- Direct V-Mount Charging: No additional charging plate required.
- Compact 1.8A Charger: Convenient for studio, field, and travel use.
- Worldwide AC Input: Charger accepts 100-240V AC, 50/60Hz.
- Battery-Level Indicator: Built-in LED display to check remaining battery power.
- Simple Charging Status: Red/green LED on the charger.
- One-Year Limited Warranty: BiXPower warranty coverage.
Part 1: BiXPower V100 Professional V-Mount Battery
The BiXPower V100 is a rechargeable lithium-ion battery designed for
compatible professional camera and video-production equipment.
Its 14.4V nominal output, standard V-Mount mechanical
interface, and compact design make it suitable for a variety of
portable power applications.
The V100 uses Panasonic lithium-ion cells and includes a built-in
LED battery-level indicator. It is useful as a primary power source,
replacement battery, or spare battery for supported camera systems.
BiXPower V100 V-Mount Camera Battery
Professional V-Mount / V-Lock Connection
The V100 features a professional V-Mount / V-Lock connection for
compatible camera battery plates, camcorders, and production accessories.
The mechanical locking interface helps keep the battery securely
attached while the electrical contacts supply power to the equipment.
The standard V-Mount design can be used with compatible Sony,
IDX, and other professional video equipment. Always confirm
the device's battery voltage, current requirements, mounting
interface, and any required battery communication functions.
Convenient Battery-Level Indicator
The V100 includes an LED indicator that displays the approximate
remaining battery charge. Press the battery's indicator button
to check the battery level before starting a recording session.
Part 2: ACC-16VMC Portable V-Mount AC Charger
The included BiXPower ACC-16VMC is a compact AC charger
designed for compatible 14.4V / 14.8V lithium-ion V-Mount batteries.
It delivers a maximum charging voltage of 16.8V DC
and a maximum charging current of 1.8A.
Unlike a bulky multi-bay professional charging station,
the ACC-16VMC offers a lightweight, convenient charging
solution that fits easily into a camera equipment bag.
ACC-16VMC Portable V-Mount AC Charger — Included
Direct Charging Through the V-Mount Interface
One of the biggest advantages of this combo kit is the
direct charging connection between the ACC-16VMC and
the V100 battery.
The charger has a dedicated V-Mount charging connector
that attaches to the V100 battery's charging contacts.
You do not need a separate V-Mount charging station
or an additional D-Tap charging adapter.
Worldwide AC Input and LED Charging Status
The ACC-16VMC accepts 100-240V AC, 50/60Hz,
making it convenient for international video production
and travel. A suitable AC plug adapter may be needed
for electrical outlets outside North America.
Its built-in charging status indicator provides a
simple way to monitor the charging process:
| LED Indicator |
Status |
| Red |
Battery charging in progress |
| Green |
Charging complete when a compatible battery is properly connected |
A green indicator with no battery connected does not necessarily
mean a battery has been fully charged.
How to Charge the V100 Battery
- Remove the V100 battery from the camera or other equipment.
- Inspect the battery and charger contacts for dirt, moisture, or damage.
- Align the charger's V-Mount charging connector with the battery's charging interface.
- Attach the charging connector securely without forcing it.
- Connect the AC power cord to the charger and a suitable wall outlet.
- Verify that the LED indicates normal charging operation.
- Wait until the charger indicates that charging is complete.
- Disconnect AC power and remove the charger from the battery.
- Press the battery's power-check button to verify the approximate battery charge level.

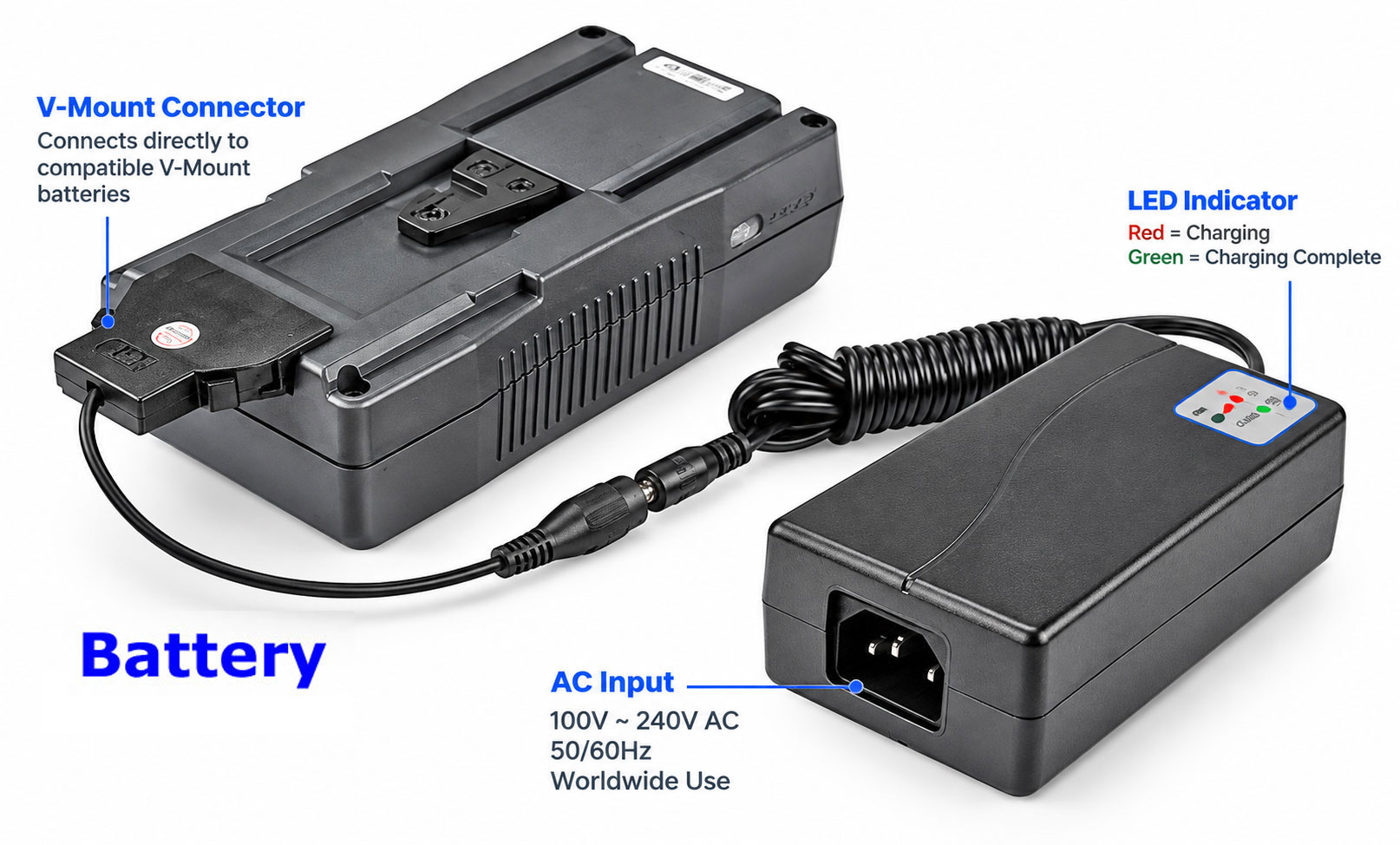

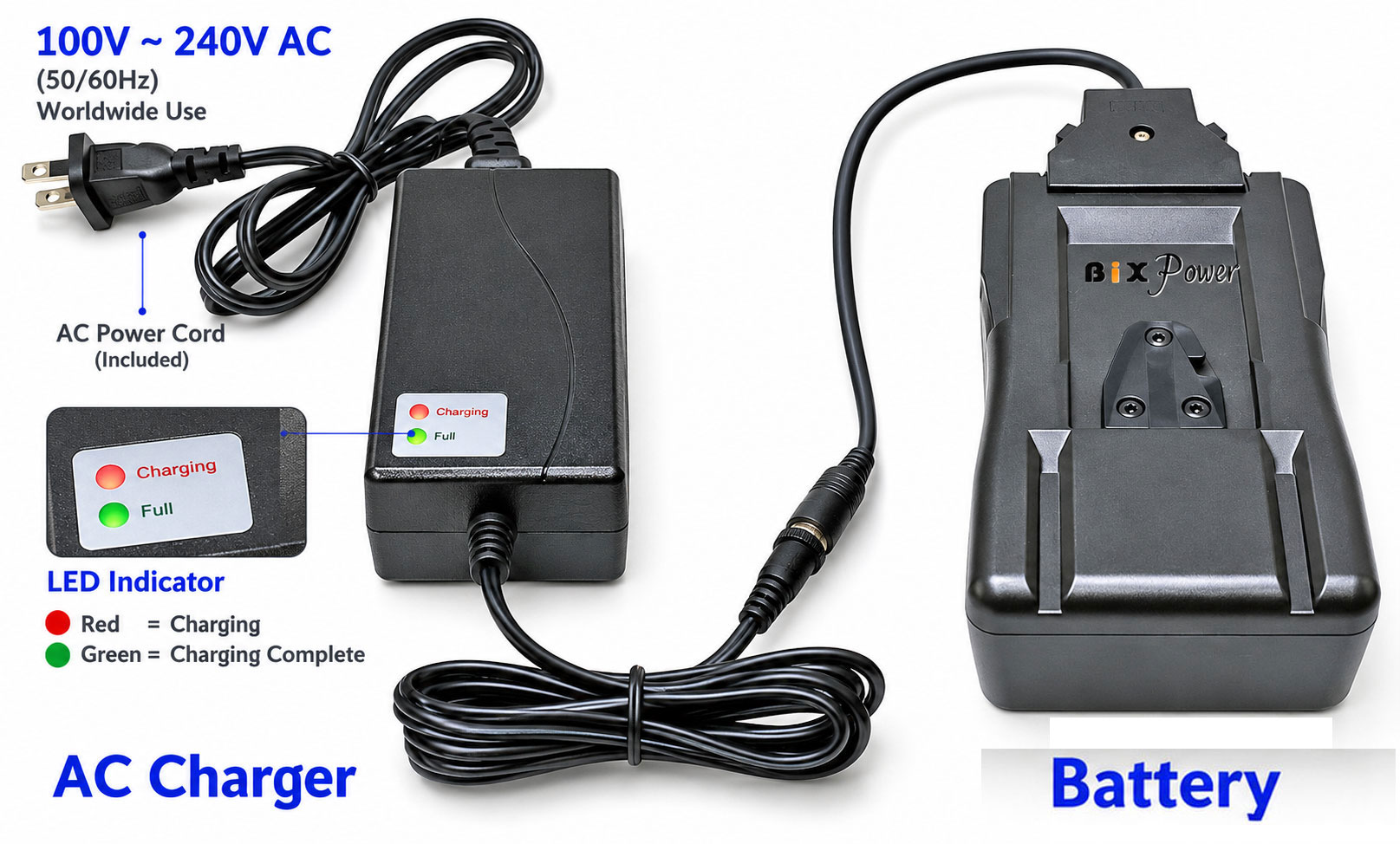

Charging connection illustration — This combo includes both the charger and the V100 battery.
Technical Specifications
V100 Rechargeable Battery
| Battery Model | V100-NL180D |
| Chemistry | Rechargeable Lithium-Ion |
| Nominal Voltage | 14.4V DC |
| Advertised Capacity Class | 99Wh class; check actual battery label |
| Battery Cells | Panasonic Lithium-Ion Cells |
| Battery Mount | V-Mount / V-Lock |
| Charge Indicator | Built-in LED Battery-Level Indicator |
| Dimensions | Approx. 141.5 x 85.95 x 48.5mm |
ACC-16VMC Portable Charger
| Charger Model | ACC-16VMC |
| AC Input | 100-240V AC, 50/60Hz |
| Maximum Charging Voltage | 16.8V DC |
| Maximum Charging Current | 1.8A |
| Charging Connection | Direct V-Mount Battery Charging Connector |
| Charging Status | Red / Green LED |
| Published Dimensions | Approx. 5.2 x 2.3 x 1.4 inches |
| Charger Weight | Approx. 8 oz (227g) |
| Warranty | 1 Year Limited Warranty |
Estimated Battery Charging Time
The V100 is a 99Wh-class lithium-ion battery.
At a maximum charging current of 1.8A,
charging from a low battery level may take
approximately 4.5 to 6 hours.
This is a planning estimate, not a guaranteed charging time.
Actual results depend on battery capacity, starting charge,
temperature, battery condition, and the charger's
constant-voltage finishing stage.
Ideal Applications
- Professional broadcast cameras with compatible V-Mount battery interfaces
- Sony and other supported professional camcorders
- Independent filmmaking and documentary production
- Location filming and field video production
- Compatible camera monitors and video accessories
- Replacement or backup power for professional camera crews
- Portable DC equipment with suitable V-Mount power adapters
The V100 can also be used for certain specialized applications,
such as portable satellite internet equipment or CPAP power
systems, when paired with the correct BiXPower connection
cables and any required voltage converter.
These accessories are not included in this kit.
Package Contents
1 x BiXPower V100 99Wh-Class V-Mount Lithium-Ion Battery
1 x BiXPower ACC-16VMC 16.8V 1.8A AC Battery Charger
1 x AC Power Cord for the included charger
Included: Battery, charger, and charger AC power cord.
Not Included: Camera, V-Mount camera plate,
D-Tap power cable, Starlink Mini cable, CPAP converter,
and other optional power accessories.
Frequently Asked Questions
Q: Does this kit include both the battery and charger?
A: Yes. This combo includes one V100 battery and one ACC-16VMC
portable V-Mount charger with its AC power cord.
Q: Do I need to purchase a separate charging plate?
A: No. The included ACC-16VMC charger connects directly
to the V100 battery's compatible V-Mount charging interface.
Q: Can the charger be used with the BiXPower V150 battery?
A: Yes. The ACC-16VMC is also compatible with the
BiXPower V150 battery, which is sold separately.
Q: Can the V100 be used with Sony professional cameras?
A: It may be used with compatible Sony and other V-Mount
camera systems. Confirm electrical and mechanical
compatibility before purchasing.
Q: Does the battery have USB-C output?
A: USB-C PD output is not a listed feature of this V100 model.
Use a suitable V-Mount power connection or approved accessory.
Q: Can I take the V100 battery on an airplane?
A: The V100 is marketed in the under-100Wh battery class.
Check the actual watt-hour rating printed on your battery
and follow airline regulations. Spare lithium-ion batteries
generally belong in carry-on baggage with terminals protected.
Q: Can I use this charger to directly power my camera?
A: No. The ACC-16VMC is a battery charger,
not a general-purpose camera power adapter.
Related BiXPower Products
BiXPower V100 99Wh V-Mount Battery — Battery Only
BiXPower ACC-16VMC Portable V-Mount Charger — Charger Only
BiXPower V150 144Wh V-Mount Battery
One Complete Kit for Professional V-Mount Power
The BiXPower V100 Battery & ACC-16VMC Charger Combo
brings together a compact 99Wh-class V-Mount lithium-ion
battery and a matching portable AC charger.
With Panasonic battery cells, a convenient power-level
indicator, direct V-Mount charging, and worldwide AC input,
it is a practical choice for professional camera operators
who need rechargeable portable power.
Battery and charger together — ready for your next production.
Safety Notice: Charge only with compatible charging equipment.
Do not use damaged batteries or chargers. Keep charging equipment
dry and ventilated. Verify camera voltage, current, mounting,
and electrical compatibility before use. Battery capacity and
runtime depend on actual battery labeling and operating conditions.
