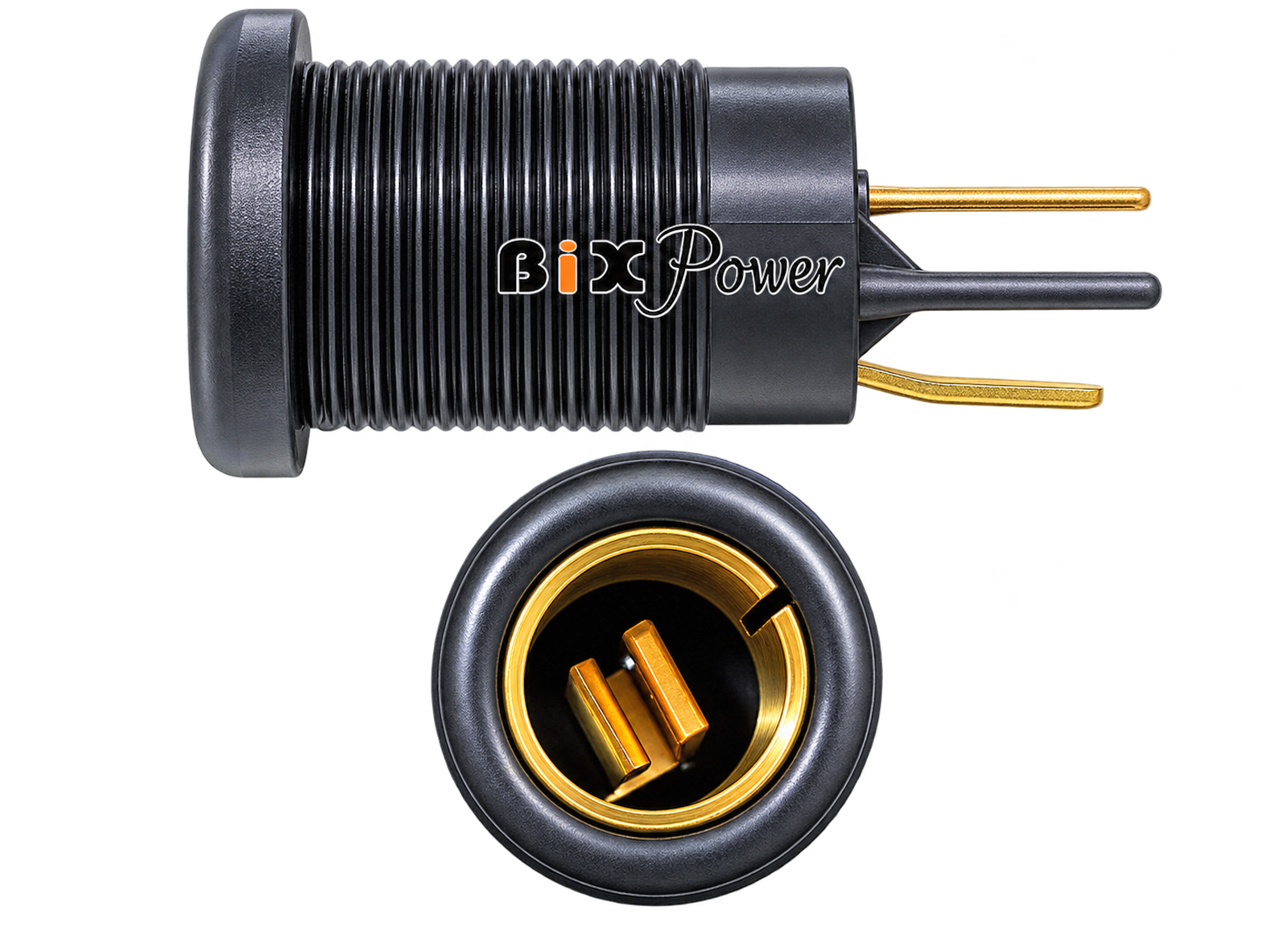

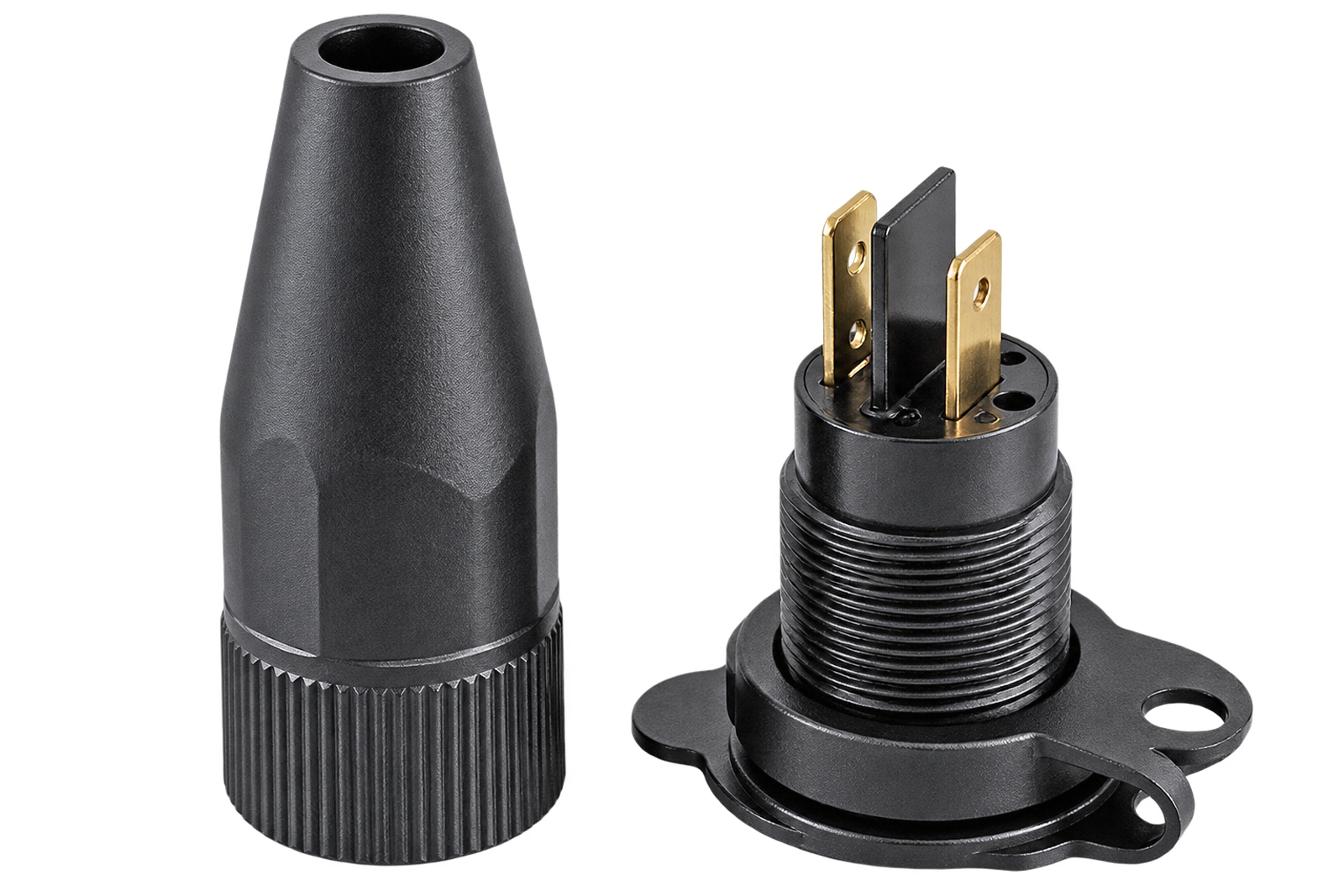

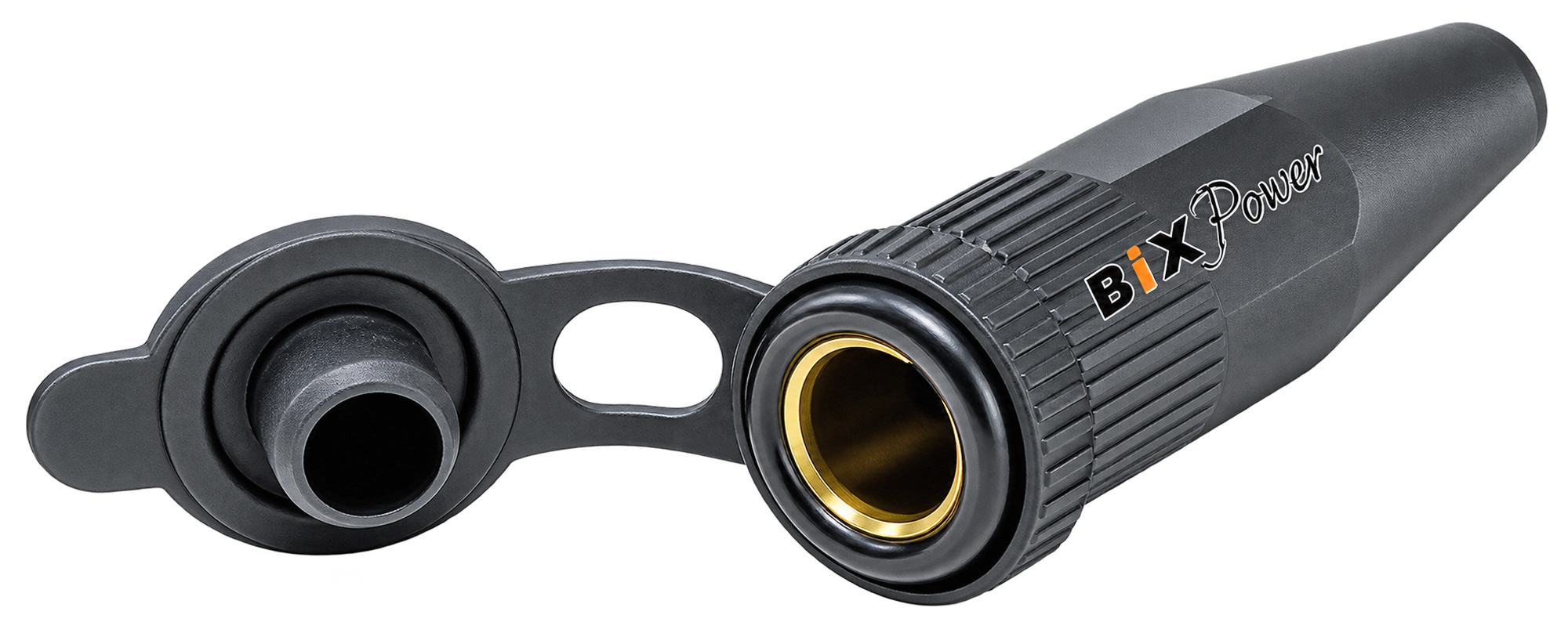

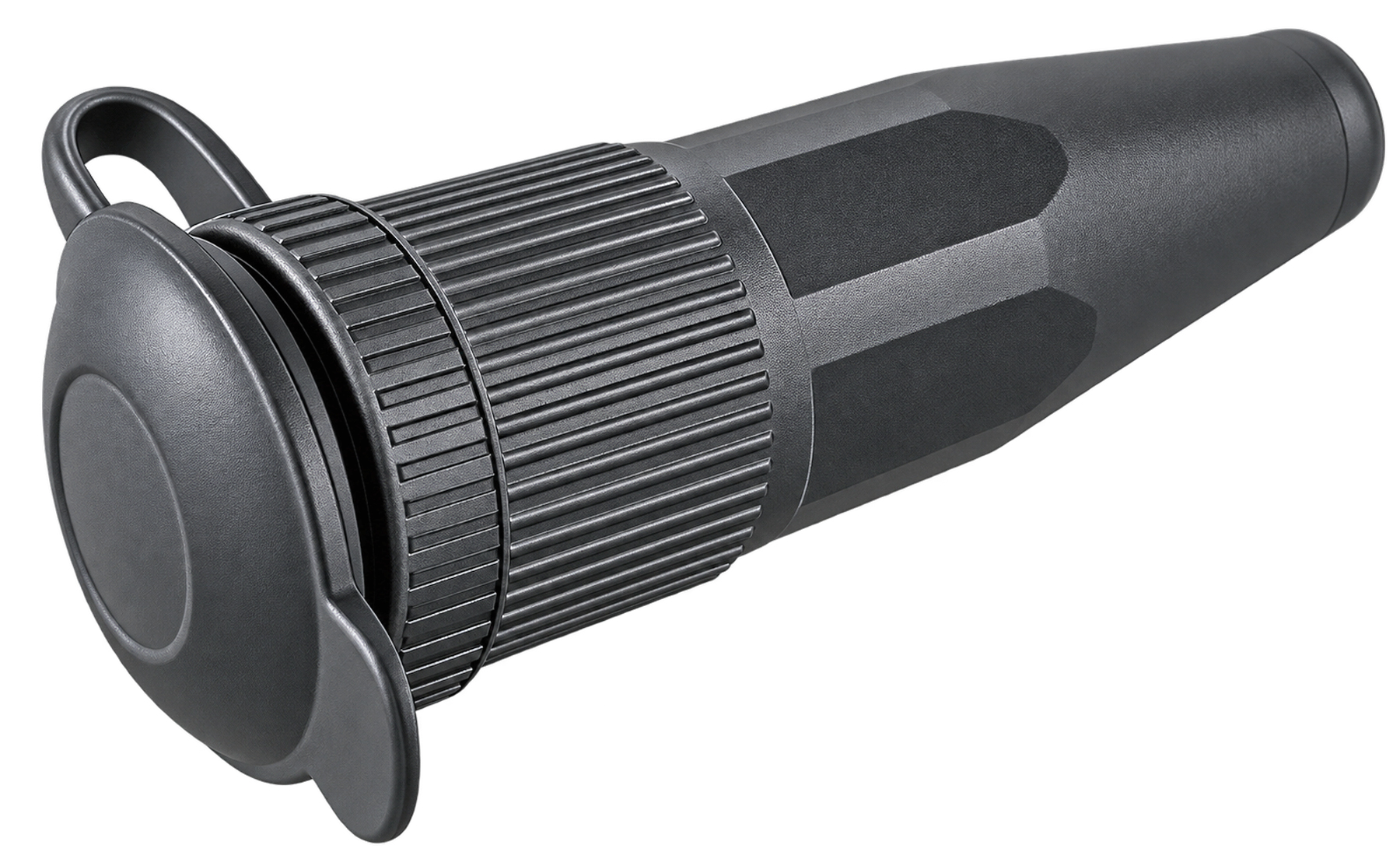

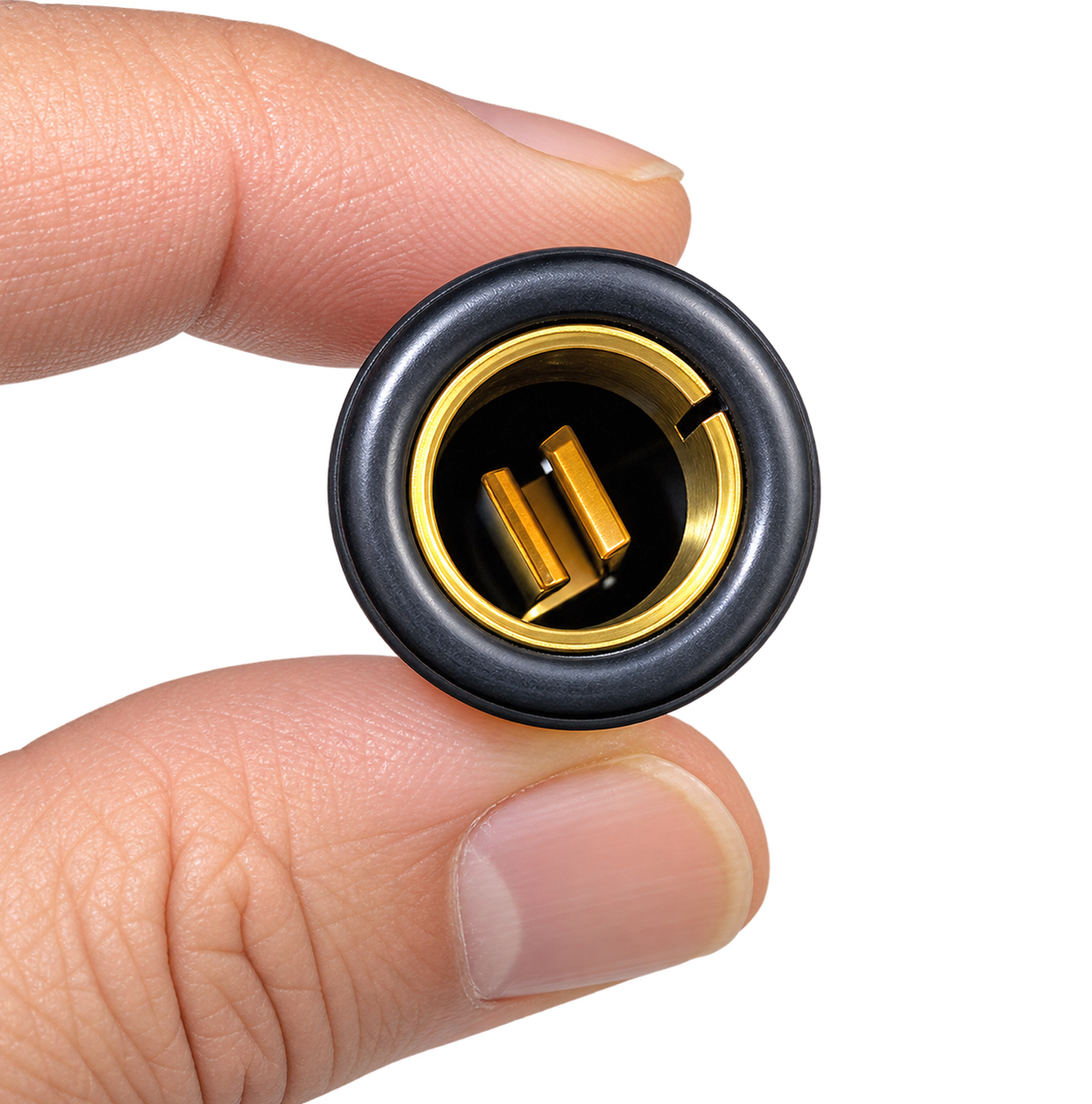

DIN 4165 Hella / Merit Inline Female Socket Connector – 18A

Heavy-duty inline female power socket for automotive, motorcycle, RV, boat and other DC power applications.

DIN 4165 Female Power Socket

This DIN 4165 Hella / Merit inline female socket provides a compact and durable connection point for DC-powered equipment. It is ideal for making custom power cables, extension leads, adapters and other automotive or mobile DC power connections.

The socket is manufactured with brass fittings and electrical contacts and a durable high-impact, high-temperature plastic housing. It is rated for up to 18A and includes a protective cap to help protect the socket when it is not in use.

DIN 4165, Hella, Merit & BMW Accessory Socket

This compact connector format is commonly referred to by several different names. Depending on the vehicle, equipment manufacturer or country, customers may see it described as a:

• DIN 4165 socket
• Hella socket
• Merit socket
• BMW accessory socket
• Motorcycle accessory power socket

These names generally refer to the same compact DIN-style accessory power connection. Before ordering, compare the connector dimensions and style with your equipment to make sure it is the correct connection for your application.

Common Applications

DIN 4165 / Hella / Merit connectors are commonly found in mobile and vehicle-based power systems. This inline female socket can be useful for:

Ideal for Custom DC Power Cables

The inline design makes this socket especially useful when building a custom cable rather than installing a socket permanently into a dashboard or panel.

It can be used to build extension leads, battery power cables, vehicle power adapters, equipment power cables and other custom DC wiring assemblies that require a DIN 4165 female connection.

Specifications

Installation Notes

This is a connector component intended for installation on a suitable DC power cable. Proper wiring and polarity are important. Use wire of an appropriate gauge for the expected current and cable length, and make sure all electrical connections are properly secured and insulated.

Please Check Connector Compatibility

DIN 4165 / Hella / Merit connectors are smaller than the standard automotive cigarette-lighter plug and socket. They should not be confused with a conventional full-size cigarette-lighter socket.

Please compare your existing plug or equipment connection with the product photos before ordering.

BiXPower CNT-DN4165 DIN 4165 Hella / Merit inline female socket connector. Suitable for custom DC power cables, automotive accessory connections, motorcycle power cables, RV power systems, marine applications and other compatible DIN-style DC power equipment.
