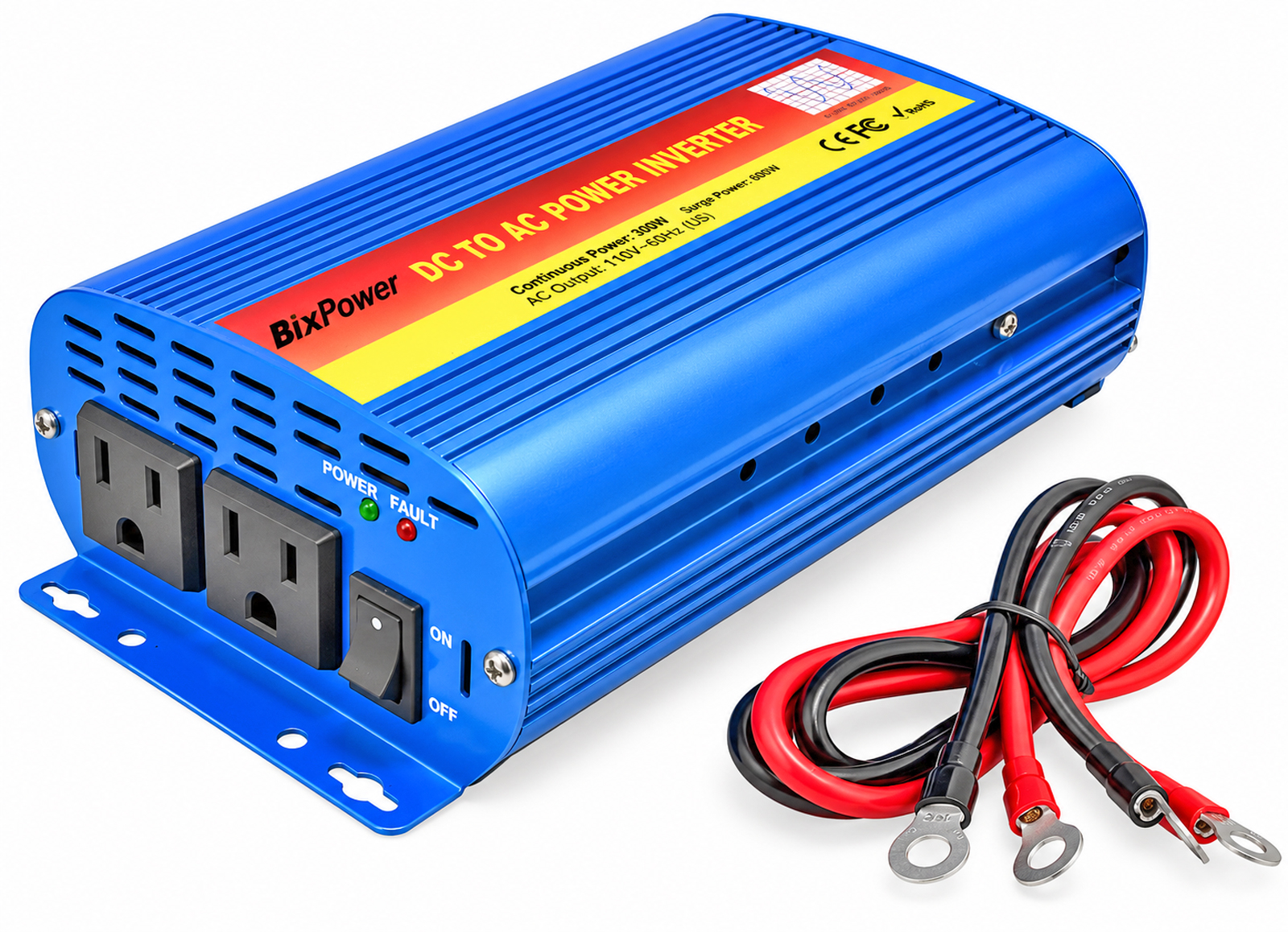

BiXPower DAS36300 36V to 110V AC 300W Pure Sine Wave Power Inverter
Convert power from a 36V battery system into standard 110V AC power
with the compact BiXPower DAS36300. This 300W pure sine wave inverter
accepts a wide 30V–45V DC input range and provides clean
110V / 60Hz AC output for powering compatible electronics,
chargers, adapters and other AC-powered equipment.
Key Features
- 36V DC input with a wide 30V–45V operating range
- 300W rated AC output
- 110V AC, 60Hz output
- True pure sine wave output
- Two standard U.S.-style AC outlets
- ≥85% efficiency
- Compact and lightweight design — approximately 2.1 lb
- Fan-assisted cooling
- Durable oxidized aluminum-alloy housing
- Low/over-voltage, overload, short-circuit and over-temperature protection
Convert a 36V Battery into Standard 110V AC Power
Many battery systems provide DC power, while everyday electronic equipment is
designed to operate from a standard AC wall outlet. The DAS36300 bridges that
gap by converting 30V–45V DC power into 110V AC power.
This allows compatible AC-powered devices to operate from a suitable 36V battery
source while using their normal AC power adapters or power cords.

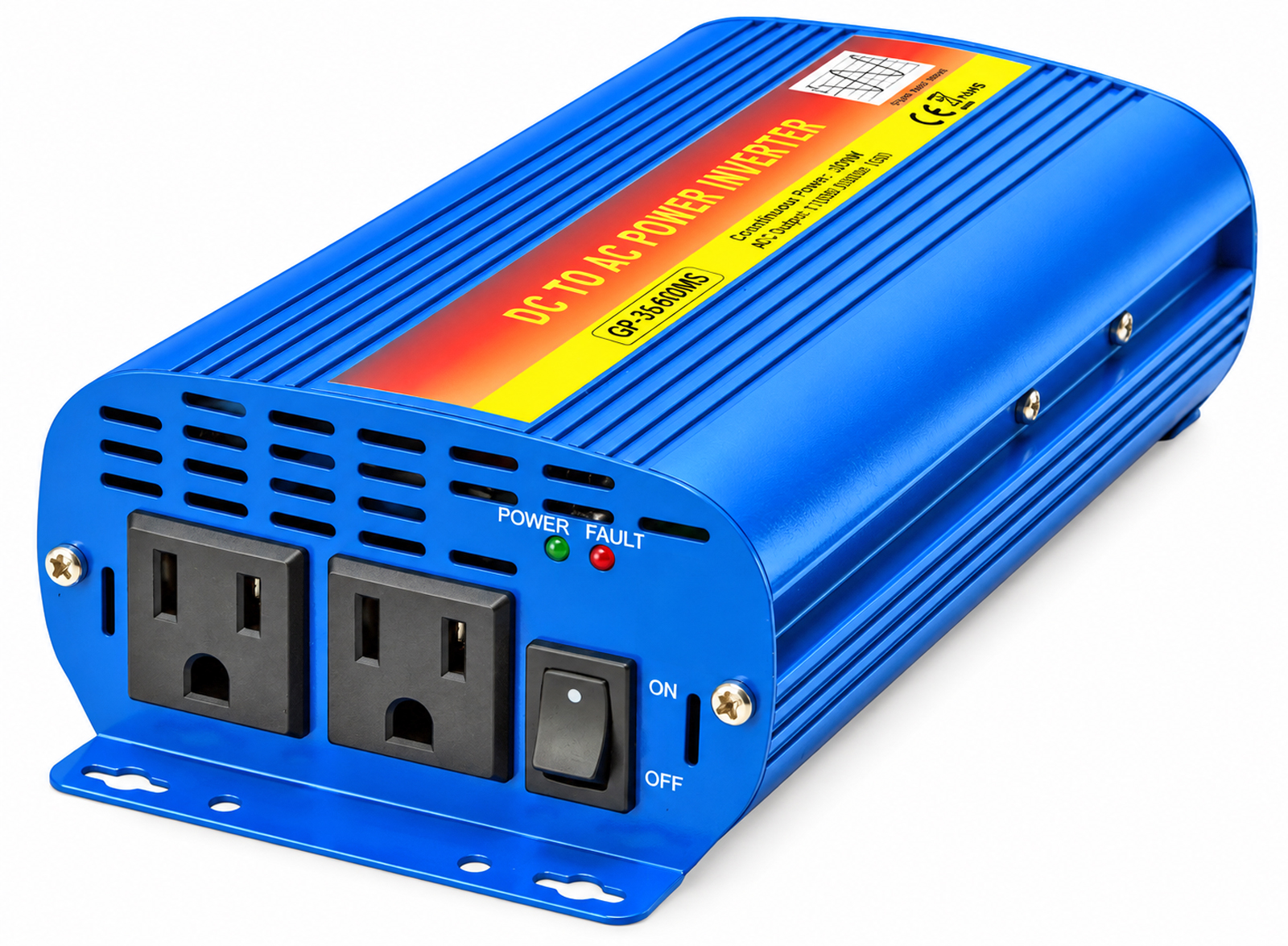

The front panel provides two standard U.S.-style 3-prong AC outlets
that can accept common 2-prong and 3-prong AC plugs. An ON/OFF switch and
operating-status indicators provide convenient control and monitoring.
Clean Pure Sine Wave AC Output
Unlike a modified-sine-wave inverter, the DAS36300 produces
true pure sine wave AC power. The smoother waveform is more
similar to the AC power supplied by a standard electrical outlet and is
particularly useful when powering electronics that may not operate properly
from a modified sine wave.
Pure sine wave output can be especially beneficial for sensitive electronics,
audio/video equipment, certain chargers, equipment with electronic controls,
and other devices that require a clean AC waveform.
Designed for 36V Battery Systems
The inverter is designed for a nominal 36V DC power source
and accepts an input voltage range of approximately 30V to 45V DC.
This makes it suitable for compatible 36V battery systems whose operating
voltage remains within this range.
Important – Check Polarity:
Connect the positive (+) battery terminal to the inverter's positive (+)
input and the negative (–) terminal to the negative (–) input.
Always verify voltage and polarity before making the connection.
Compact and Lightweight
Despite its 300W rated output, the DAS36300 is compact enough for portable

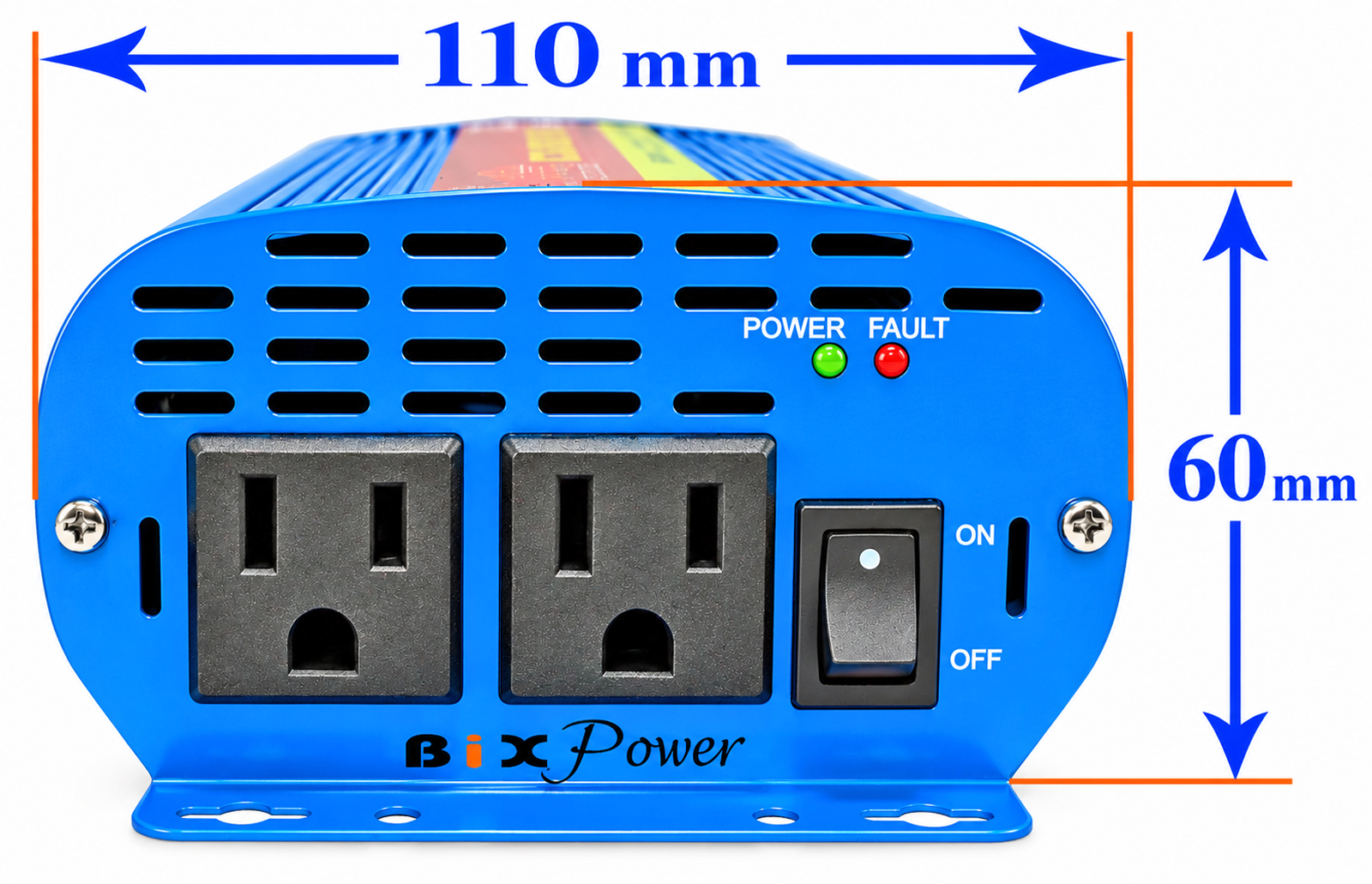

power applications and installations where space is limited. The inverter
measures approximately 8" × 4.3" × 2.4" and weighs only
about 0.95 kg (2.1 lb).
Installation-Friendly Housing
The aluminum-alloy enclosure provides durability while helping manage heat.
Integrated mounting flanges make the inverter convenient for fixed
installations where appropriate.
Install the inverter in a dry, well-ventilated location and
leave adequate open space around the cooling vents and fan. Do not cover the
inverter or restrict airflow during operation.
Battery Power Requirements
An inverter does not generate energy—it converts energy supplied by the
connected battery. Therefore, the amount of AC power available depends on
both the inverter and the battery supplying it.
Because power is lost during DC-to-AC conversion, a battery must supply more
than 300W of DC power for the inverter to deliver its full 300W AC rating.
With approximately 85% conversion efficiency, the battery may need to provide
roughly 350W or more under a full-load condition.
Before using a high-power load:
Make sure the connected battery and its wiring are capable of safely supplying
the required input current and power. A battery with an insufficient output
capability can limit the inverter's available AC output.
Typical Applications
The DAS36300 can be used to provide AC power from a compatible 36V battery
system for many lower-power electronic devices and AC adapters, including:
- Laptop and notebook AC adapters
- Battery chargers
- Small electronic equipment
- Audio/video equipment
- Communication equipment
- Test and measurement equipment
- Portable electronics
- Other compatible AC devices within the inverter's power capability
Important: Check Startup and Surge Power
Some devices require much more power when starting than during normal operation.
Motors, pumps, compressors, refrigerators and other inductive loads can have
startup or surge requirements several times higher than their normal running
wattage. A device rated below 300W during normal operation therefore may
still require an inverter rated substantially higher than 300W.
Before connecting this type of equipment, check both its
continuous operating wattage and startup/surge requirement.
If you are uncertain, choose an inverter with adequate additional capacity.
Technical Specifications
| Model |
DAS36300 |
| Rated Output Power |
300W |
| Nominal DC Input |
36V DC |
| DC Input Range |
30V–45V DC |
| AC Output Voltage |
110V AC |
| Output Frequency |
60Hz ±1% |
| Output Waveform |
Pure Sine Wave |
| Efficiency |
≥85% |
| No-Load Current |
Approx. 0.5A |
| Cooling |
Fan-assisted cooling |
| Housing |
Oxidized aluminum alloy |
| Operating Temperature |
-10°C to 45°C |
| Dimensions |
Approx. 8" × 4.3" × 2.4" |
| Weight |
Approx. 0.95 kg / 2.1 lb |
Built-In Protection
The DAS36300 incorporates multiple protective functions designed to help
protect the inverter and connected power system during abnormal operating
conditions.
- Low-input-voltage protection
- Over-voltage protection
- Overload protection
- Short-circuit protection
- Over-temperature protection
Important Usage Notes
- Use only with a DC source within the specified 30V–45V input range.
- Verify correct positive (+) and negative (–) polarity before connection.
- Make sure the battery can provide sufficient current for the connected AC load.
- Do not exceed the inverter's rated output capability.
- Allow adequate ventilation around the inverter and cooling fan.
- Use in a dry, ventilated environment.
- Check startup/surge requirements before operating motors, pumps, compressors or similar loads.
A Compact 36V Pure Sine Wave Power Solution
For applications that need to convert a 36V battery to 110V AC,
the BiXPower DAS36300 combines a compact enclosure, 300W pure sine wave
output, dual AC receptacles and a wide 30V–45V DC input range.
It provides a practical way to obtain standard AC power from compatible
36V battery systems without relying on a modified-sine-wave inverter.
