BiXPower BX2494B 24V 300Wh High-Capacity Lithium-Ion Battery Pack
Premium Lithium-Ion Cells • 300Wh High Capacity • Lightweight • Mountable & Removable Design
The
BiXPower BX2494B is a high-capacity 24V rechargeable
lithium-ion battery designed for applications that require substantial
portable energy without the size and weight of traditional battery systems.
With
300Wh (12.5Ah at 24V) of energy capacity, the BX2494B
delivers an excellent combination of
high capacity, strong output,
compact size, and relatively light weight
.
Made with Premium-Brand Lithium-Ion Battery Cells
The BX2494B is made with
premium-brand lithium-ion battery cells,
selected for dependable performance, high energy density, and long-term reliability.
Quality cells are especially important in a high-capacity battery pack because they
help provide more consistent performance throughout the battery's charge and
discharge cycle.
Lithium-ion technology provides excellent energy density, allowing this battery
to store
300 Watt-hours of energy while keeping the battery
relatively compact and lightweight.
300Wh High Capacity in a Lightweight Battery
The BX2494B provides
300Wh (12.5Ah at 24V) of battery capacity.
Despite this substantial energy storage, the battery itself weighs only approximately
4.2 lb (1.8 kg). With the mounting holder installed, the complete
assembly weighs approximately
5 lb (2.2 kg).
This combination of high capacity and relatively low weight makes the BX2494B
well suited for portable equipment, mobile applications, backup power systems,
and other 24V applications where both runtime and weight matter.

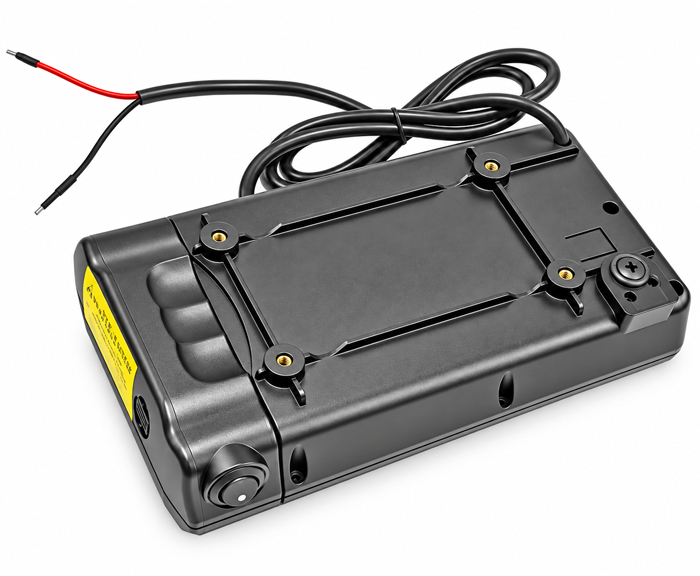

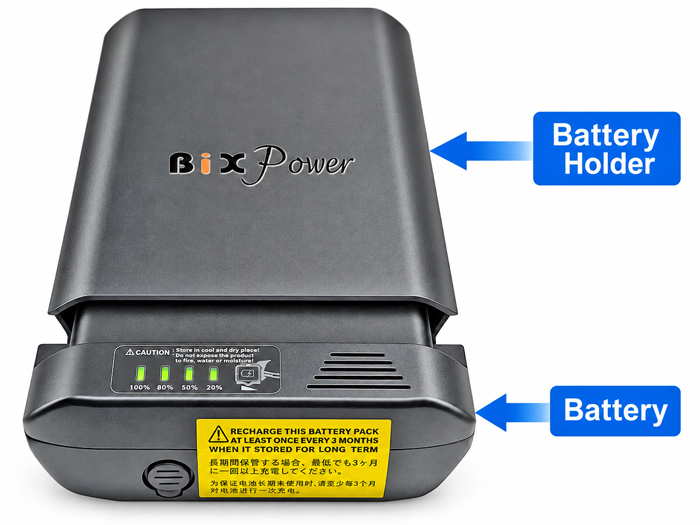

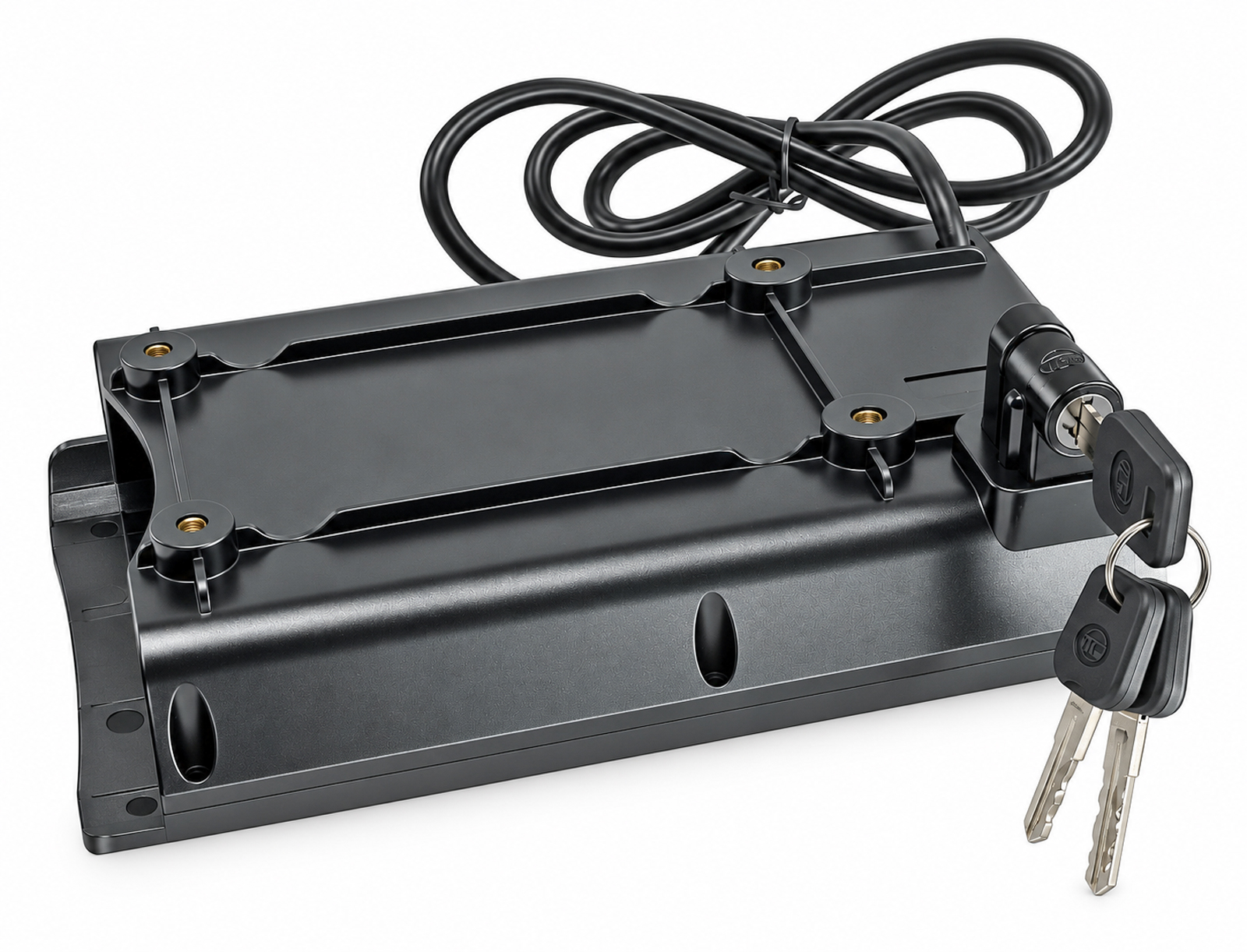

Convenient Removable & Mountable Battery Holder
One of the most useful features of the BX2494B is its
removable mounting system. The battery slides into its holder
for use and can be quickly removed when you need to recharge, transport,
replace, or store the battery.

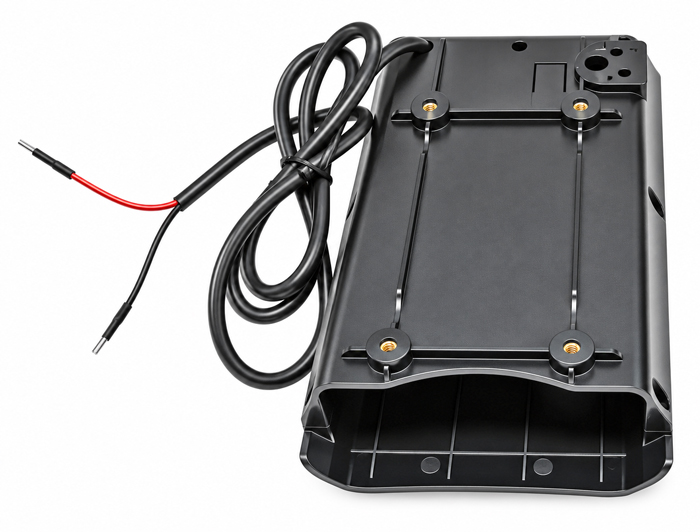

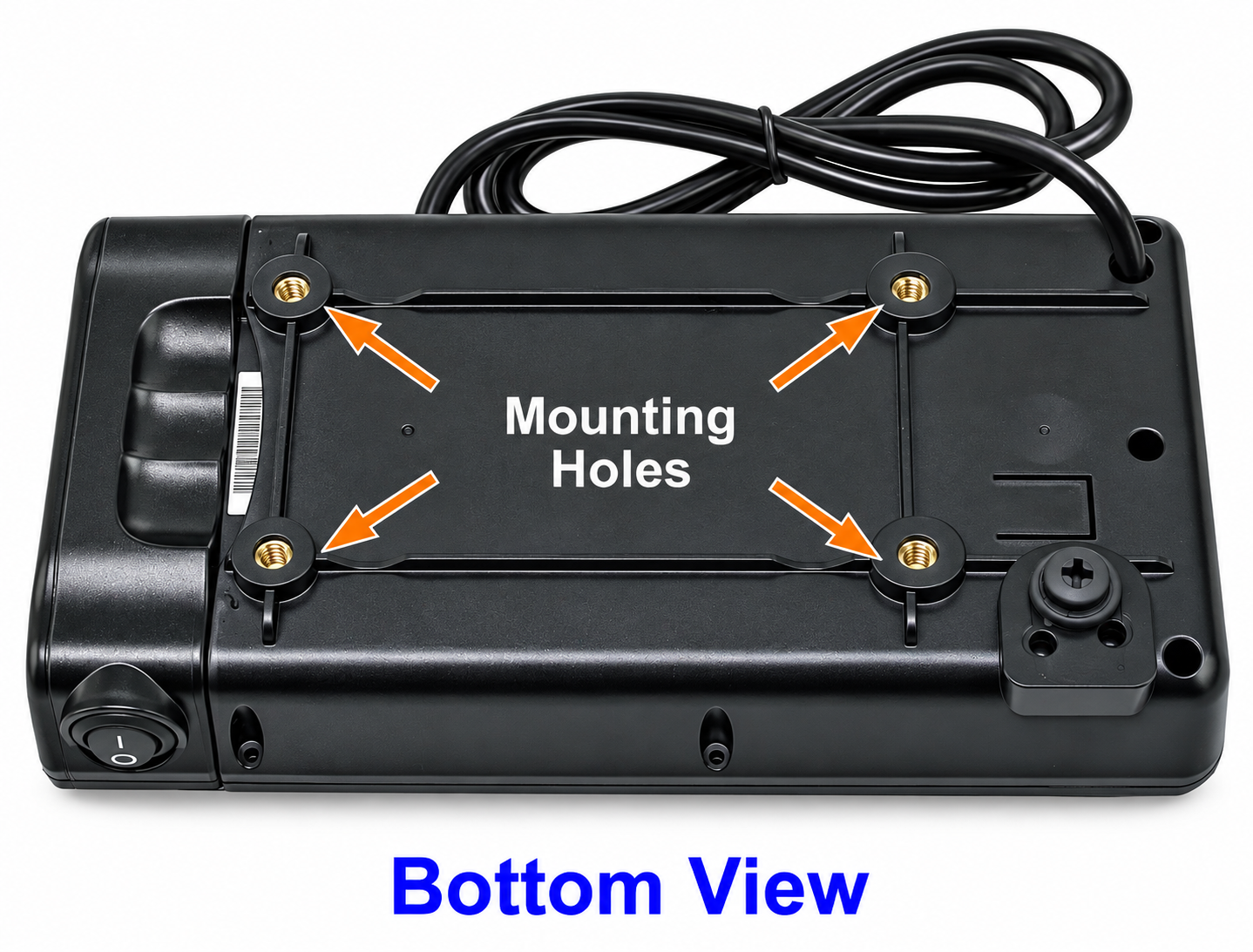

The holder can be securely mounted to a desk, equipment frame, cabinet,
cart, vehicle platform, or other suitable surface. Once the holder is installed,
the battery can be conveniently inserted and removed without having to
permanently mount the battery itself.

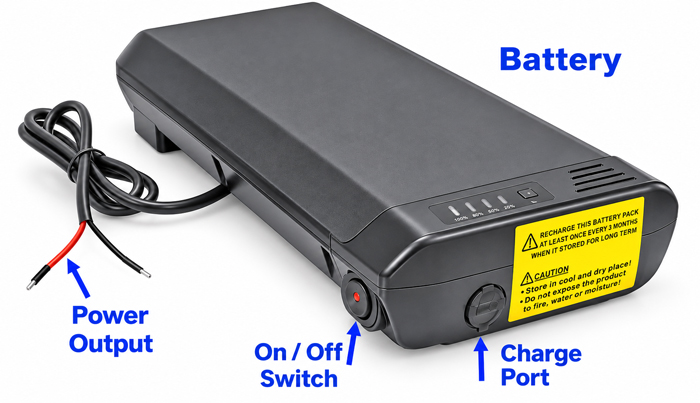

Easy-to-Use Battery Controls
The battery includes a convenient
power ON/OFF switch,
an
LED battery-level indicator, and a dedicated
charging input port. These features make it easy to operate
the battery and quickly check the remaining battery level
High-Power 24V Output
The BX2494B has a
24V nominal output and supports up to
10A continuous discharge current. It can also provide up to
15A burst discharge current for up to 10 minutes, making it
suitable for many applications that require considerably more power than
conventional small portable battery packs.
Please note: This is a lithium-ion battery with a
variable output voltage. The battery voltage changes according
to its state of charge. The specified output voltage range is approximately
20V to 29.7V.
Understanding the Battery Output Voltage
When fully charged, the battery voltage is approximately 29.5V. As energy is
consumed, the voltage gradually decreases. During much of the discharge cycle,
the battery operates around the 24V to 26V range, and the internal protection
system eventually disconnects the output as the battery approaches its
low-voltage limit.
Built-In Battery Protection
The BX2494B incorporates an internal battery management and protection system
designed to protect the lithium-ion cells during normal charging and operation.
- Cell balancing
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Temperature protection
- Secondary protection
Easy AC Charging
A dedicated AC battery charger is included with the BX2494B. The charger
accepts
100–240V AC input, allowing the battery to be
recharged from standard AC power outlets in many countries and regions.
Specifications
|
Battery Type
|
Lithium-Ion
|
|
Battery Cells
|
Premium-Brand Lithium-Ion Cells
|
|
Nominal Output Voltage
|
24V
|
|
Output Voltage Range
|
20V–29.7V
|
|
Capacity
|
300Wh (12.5Ah @ 24V)
|
|
Maximum Continuous Discharge
|
10A
|
|
Maximum Burst Discharge
|
15A, up to 10 minutes
|
|

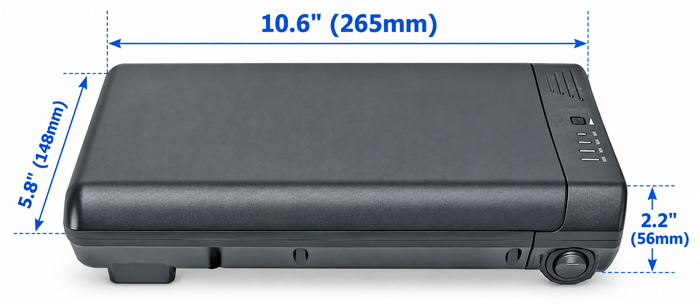

Dimensions
|
268 × 150 × 56 mm (10.5" × 6" × 2.2")
|
|
Weight — Battery Only
|
Approx. 1.8 kg / 4.2 lb
|
|
Weight — With Holder
|
Approx. 2.2 kg / 5 lb
|
|
Charging Temperature
|
0°C to 45°C
|
|
Discharge Temperature
|
-20°C to 60°C
|
|
Storage Temperature
|
-20°C to 40°C
|
|
Rated Cycle Life
|
Approx. 500 cycles
|
Why Choose the BX2494B?
- Made with premium-brand lithium-ion battery cells
- 300Wh high energy capacity
- 24V / 12.5Ah battery capacity
- Only approximately 4.2 lb for the battery itself
- 10A maximum continuous discharge current
- Up to 15A burst discharge current
- Compact 10.5" × 6" × 2.2" design
- Removable battery with mountable holder

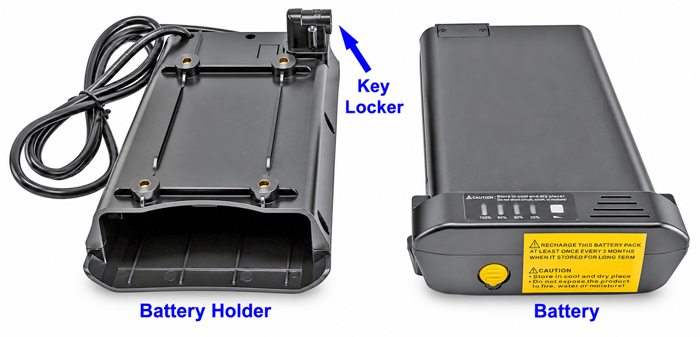

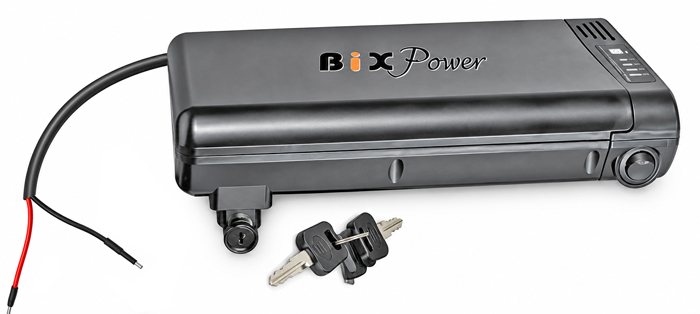

- Optional key-lock holder
- LED battery-level indicator
- Built-in lithium-ion battery protection system
- 100–240V AC charger included

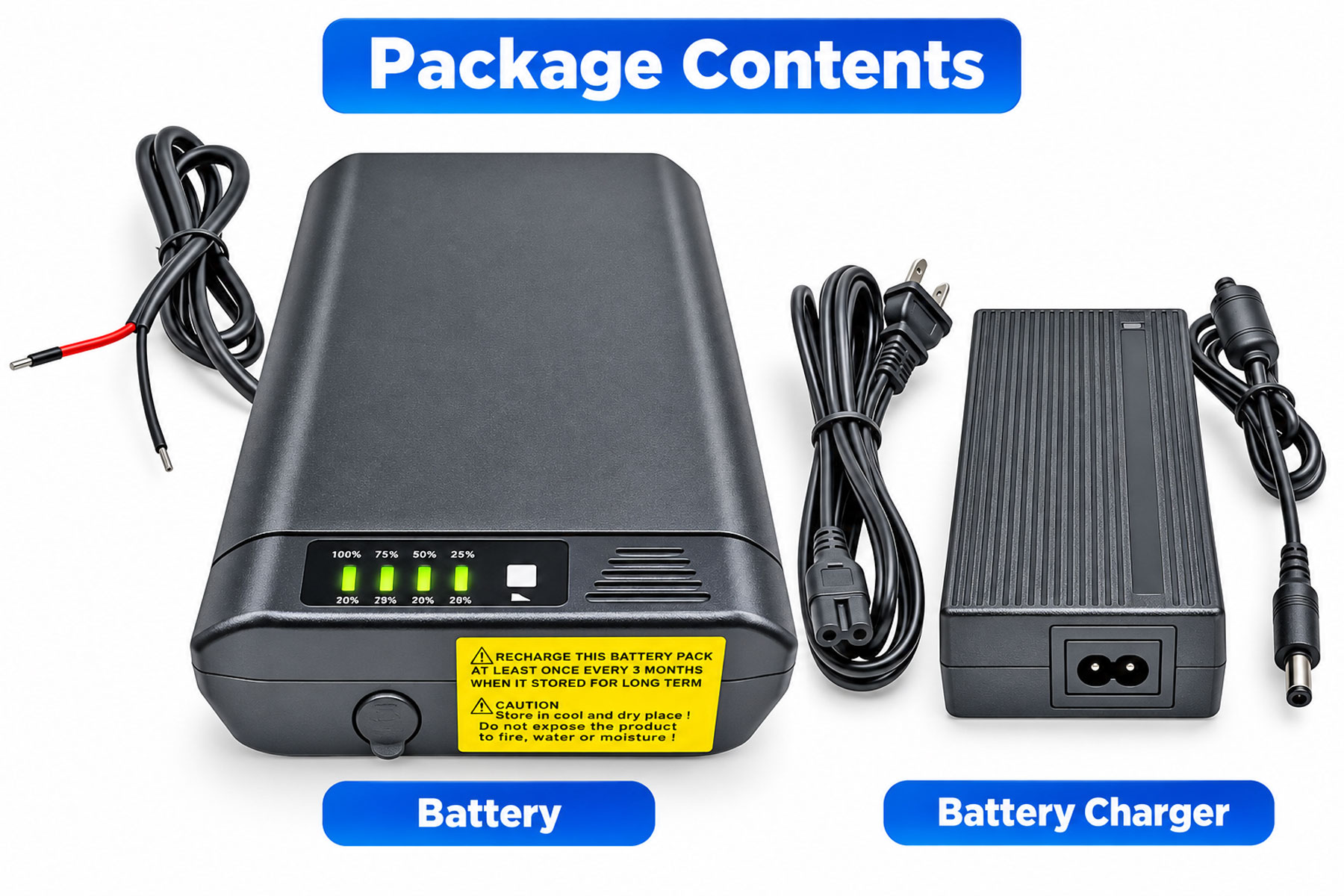

Package Contents
- One BX2494B 24V battery with mountable battery holder
- One AC battery charger with power cord
One-Year Limited Warranty
The BX2494B is covered by a
one-year limited warranty against
manufacturing and quality defects. As with all rechargeable batteries,
available capacity gradually decreases with normal use and aging. Normal
capacity loss from battery wear is not considered a manufacturing defect.
High Capacity. Premium Cells. Easy to Mount and Remove.
With
300Wh of energy, premium-brand lithium-ion cells,
approximately 4.2 lb battery weight, 10A continuous output, and a
convenient removable mounting system
, the BX2494B is an excellent
choice for applications that need dependable 24V portable power without
the bulk and weight of traditional battery systems.
