24V ( Variable range 21V ~ 30V) High Capacity Rechargeable Lithium Ion Battery CP330
24V  ( Variable range 21V ~ 30V) High Capacity  Rechargeable Lithium Ion Battery  CP330

Alternative Views:


Regular Price: US$699.00
Discount Price US$349.95

Price with Selected Options: US$349.95
Condition: Brand New
Warranty: 1 Year Warranty

Stock Status:In Stock

Product Code: BAT-CP330


Battery Options*:
Regular Bare Wires
with 5.5 x 2.5mm Barrel Connector
with Anderson Power Pole Connectors [Add US$8.95]

Qty:


Description

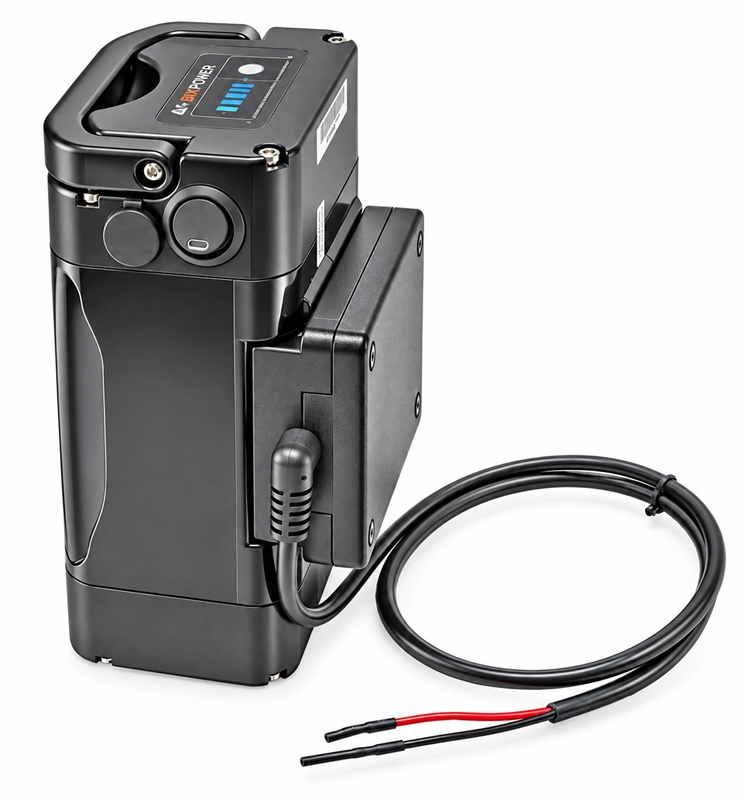

High Capacity (320 Watt-Hour) Light Weight Lithium Ion Battery with 21V to 30V DC output. Made with Panasonic Lithium ion battery cells.









The output cable length is 800mm when you select bare wires option.




Small Size and Light Weight:

This battery only weighs about 4.3 pounds (same capacity Lead-Acid battery will be around 20 pounds).




Optional 5.5 x 2.5mm Male Barrel Connector as Power Output Connector:
The default output connections are two bare wires. We also offer optional 5.5 x 2.5mm Male Barrel connector as power output connector.



You can select this option and we will assemble it for you. It will looks like this:



The output cable length is around 8" ( or 200mm) when you select 5.5x2.5mm barrel connector option.


Optional Anderson Power Pole Output Connectors:
The default output connections are two bare wires. We also offer optional Anderson Power Pole connectors as output. You can select this option and we will install them for you.




Battery with optional Anderson Power Pole as power output connection


This battery output voltage range is 21V ~ 29.5V. Nominal output voltage is 25.2V. When the battery is fully charged, its output voltage is 29.5V. The output voltage will drop gradually during the discharge process, and the final cut off voltage is 21V:





Safety Features
  • Water-resistant and firm ABS plastic casing.
  • Built-in PCB protection.
  • Prevents short circuit, over-current, over-heat, over-charge, and over-discharge.
  • The internal pack is stabilized by braces, thereby avoiding mechanical accidents caused by vibration.


1 4-Level LED indicator
2 Handlebar
3 Charging Input Jack
4 Power On/Off Switch
5 Battery Power Output Contact Socket

Specifications:

odel No.
  • BX24H99
Chemistry
  • Lithium-ion
Voltage
  • Nominal Voltage: 25.2 V
  • Minimum Voltage: 20.5V
  • Maximum Voltage: 29.75V
Capacity
  • 12.72Ah @ 25.2V
Rate
  • 320 Watt-hour
Configuration
  • 7S4P
Inner Resistance
  • ≤75 mΩ
Charge Voltage Limit
  • 29.75 V
Max. Charge Current
  • 3 A
Continuous Discharge Current
  • 15 A
Burst Discharge Current
(up to 10 minutes)
  • 18 A
Size
  • 175.00 x 110.00 x 75.00 mm
  • ( or 6.8" x 4.3" X 3")
Weight
  • 4.3 pound
Operate Temp. Charge
  • 0~45 ℃
Operate Temp. Discharge
  • -20~60 ℃
Storage Temp.
  • -20~40 ℃
Cycle Life
  • 500 Times
PCB Safety Function
  • Cell balancing
  • Over-discharge
  • Over-current protection
  • Over-charge
  • Temperature protection
  • Secondary protection



Package Contents:



BX2499 Battery with Flat Cover Output Box
Battery AC Charger with Power Cord


Safety Guide

  • Do not disassemble the battery pack..
  • Do not puncture, drop, crush, throw, hit, open, or modify the battery.
  • Do not let water getting inside the battery.
  • Do not insert any foreign object into the Output and In port.
  • Do not expose the battery to heat above 60°C (140°F) or incinerate the battery.
  • Keep the battery away from children.
  • Always dispose of used batteries in accordance with local regulations.
  • If this battery is misused or abused, it can result in personal injury from heat, smoke, fire or explosion.
  • Obtain approval of airlines or courier companies before traveling with or shipping this battery pack.

    Charging: Only use the chargers supplied with the battery or BiXPower authorized chargers to charge the battery. Chargers with incorrect voltage, current, or polarity settings may damage the battery. Please monitor the charging process and react to potential problems that may occur. If you cannot, please make sure to leave it on an isolated fireproof area, away from other flammable materials.

    Storage & Handling: DO NOT leave a fully exhausted battery on a shelf. Charge it to least at 50% or more if you do not need to use it for a long time. Do not leave the battery dormant for long periods of time. We recommend using the battery at least once a month. If a battery has not been used for a long period of time, please perform the new battery exercise. Fully discharge and then fully charge the battery at least once every 3 months. Always store the battery in a cool and dry place between 0°C (32 F) and 20°C (70°F), and away from flammable materials.

    Fire/Smoke Emission: Batteries contain flammable/combustible material that can be ignited, explode, release toxic materials, cause burns or give off gases when heated or in contact with sparks or flames. In the event of fire, vapor releases, and/or smoke emissions, evacuate the immediate area of all unnecessary personnel.
