6 Ft DC Power Extension Cable – 5.5 x 2.5mm Male to Female, 16AWG
Extend Your DC Power Connection with Heavy-Duty 16AWG Wire
The BiXPower CAB-Y6 DC Power Extension Cable provides approximately 6 feet of additional reach for compatible DC-powered equipment. Featuring a standard 5.5mm outer diameter x 2.5mm inner diameter barrel connector, this male-to-female extension cable makes it easier to position electronic devices farther away from their DC power sources.
Constructed with 16AWG power wire, the CAB-Y6 offers a heavier wire gauge than many standard DC extension cables. It is a convenient solution for extending compatible rechargeable battery output cables, DC power adapters, portable power systems, and other electronic power connections.
Key Features and Benefits
- Extra Cable Length: Approximately 6 feet of additional reach.
- Standard 5.5 x 2.5mm Connectors: One female DC jack and one male DC barrel plug.
- Heavy-Duty 16AWG Wire: Larger conductor size helps reduce wire resistance and voltage drop compared with thinner wire of the same material and length.
- Easy Plug-and-Play Connection: Extend an existing compatible DC power cable without soldering or rewiring.
- Flexible Installation: Position your equipment and power supply more conveniently.
- Extendable Design: Two or more compatible extension cables can be connected together when the electrical requirements allow.
- Versatile Applications: Suitable for compatible batteries, power adapters, DC power supplies, and electronic equipment.

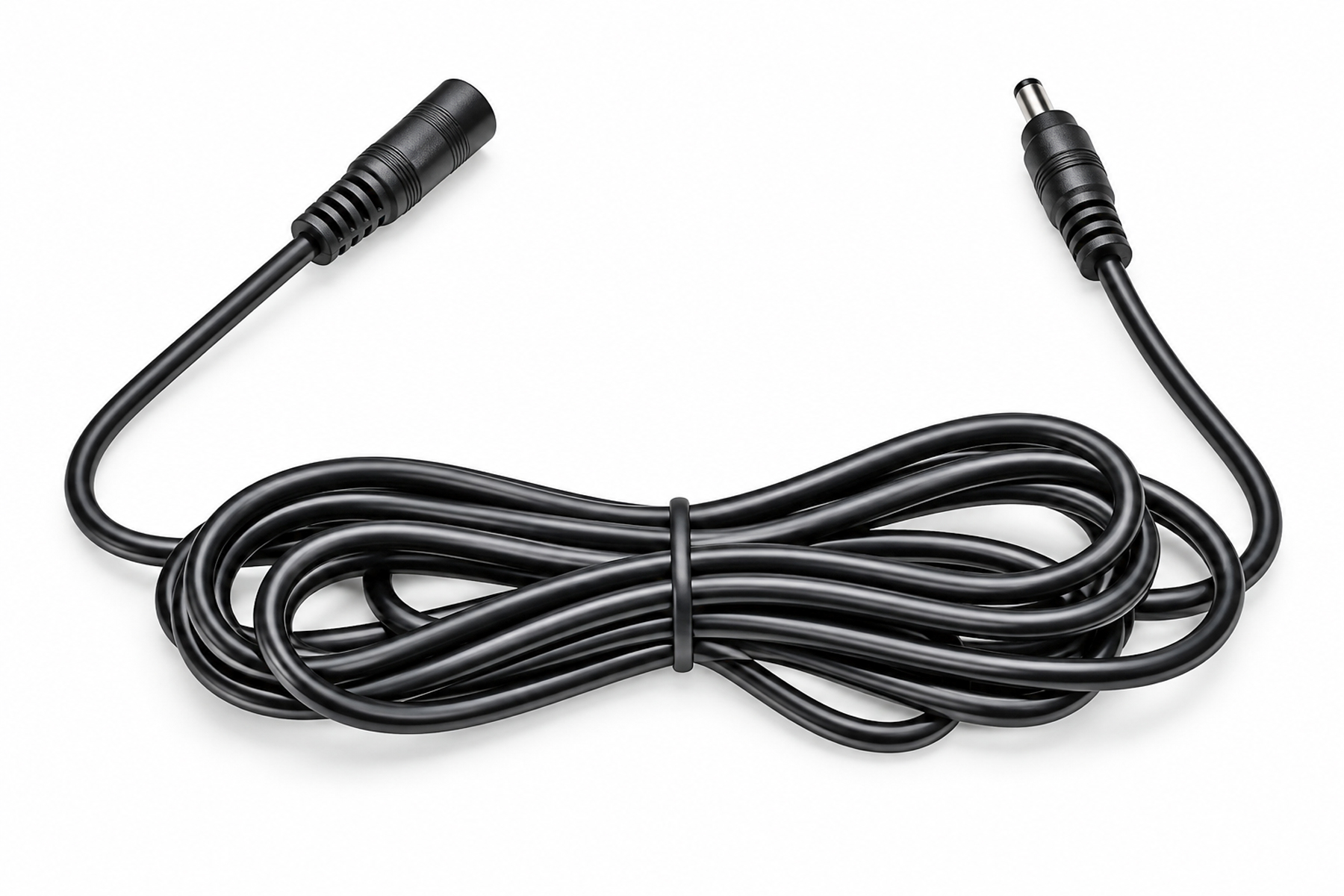

Product Overview

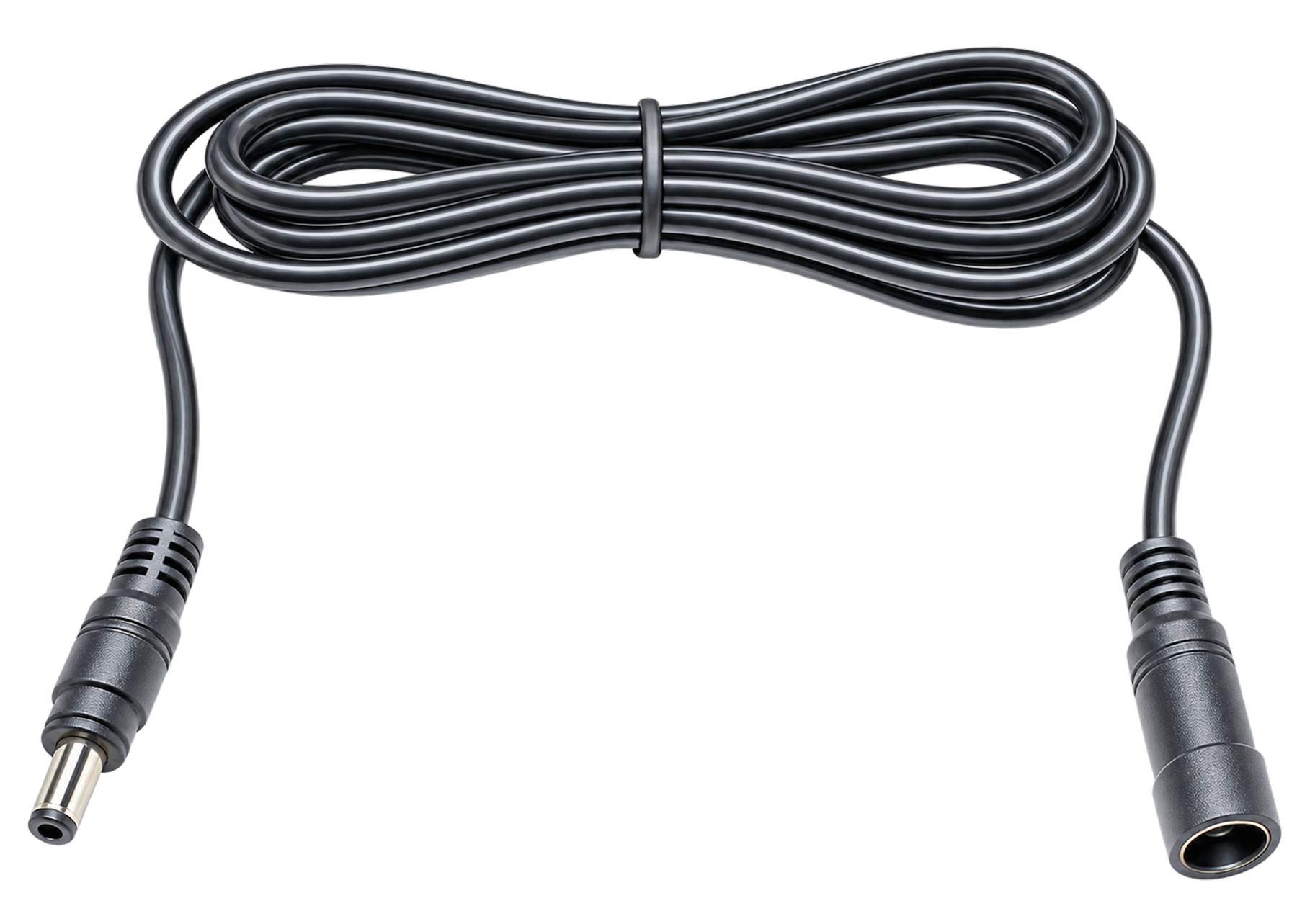

BiXPower CAB-Y6 DC Power Extension Cable

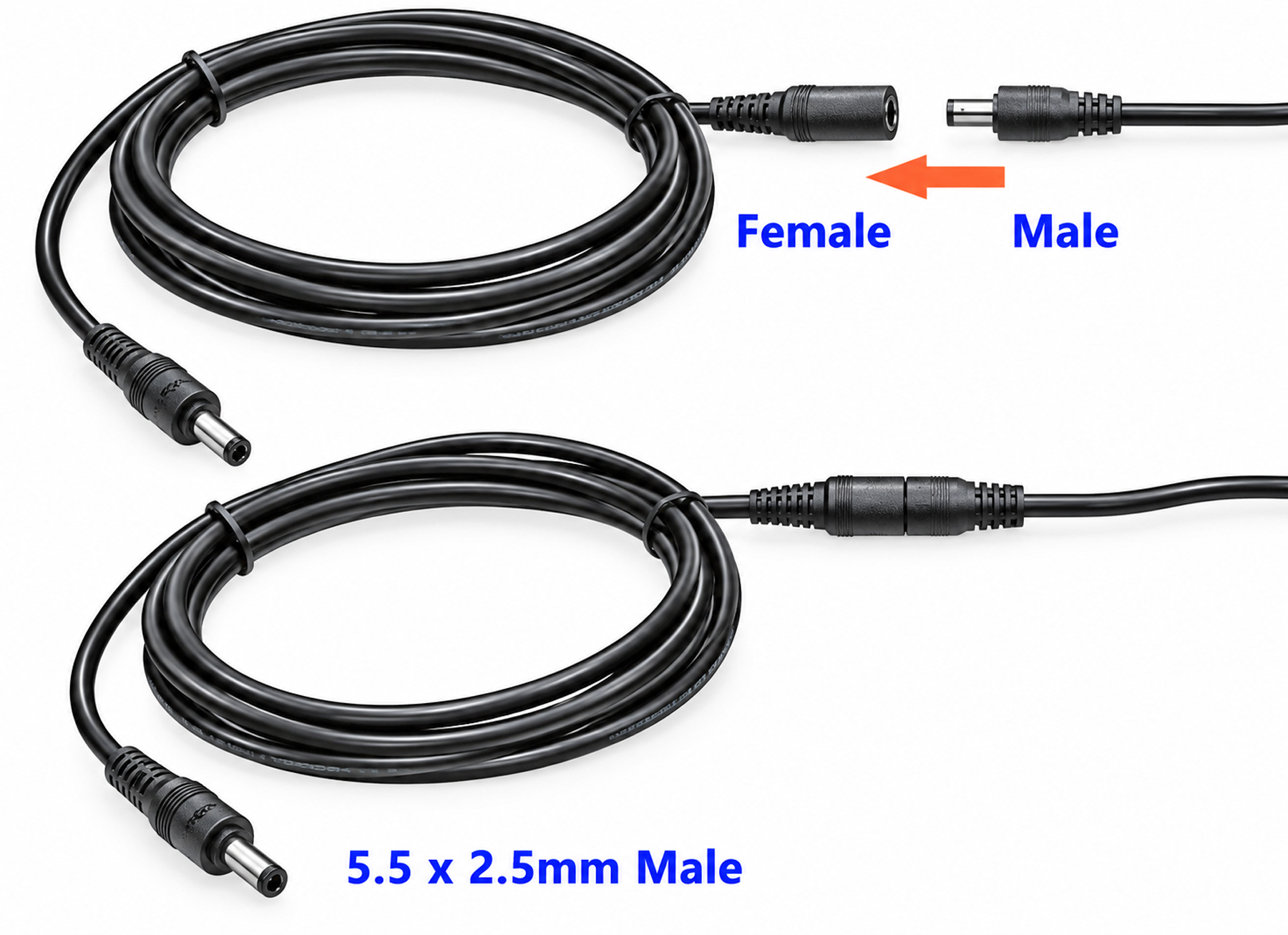

The CAB-Y6 is designed to extend an existing DC power connection while maintaining the same connector configuration and polarity through the cable.
Simply connect the female end to your existing 5.5 x 2.5mm male power plug, then connect the male end to your compatible device.

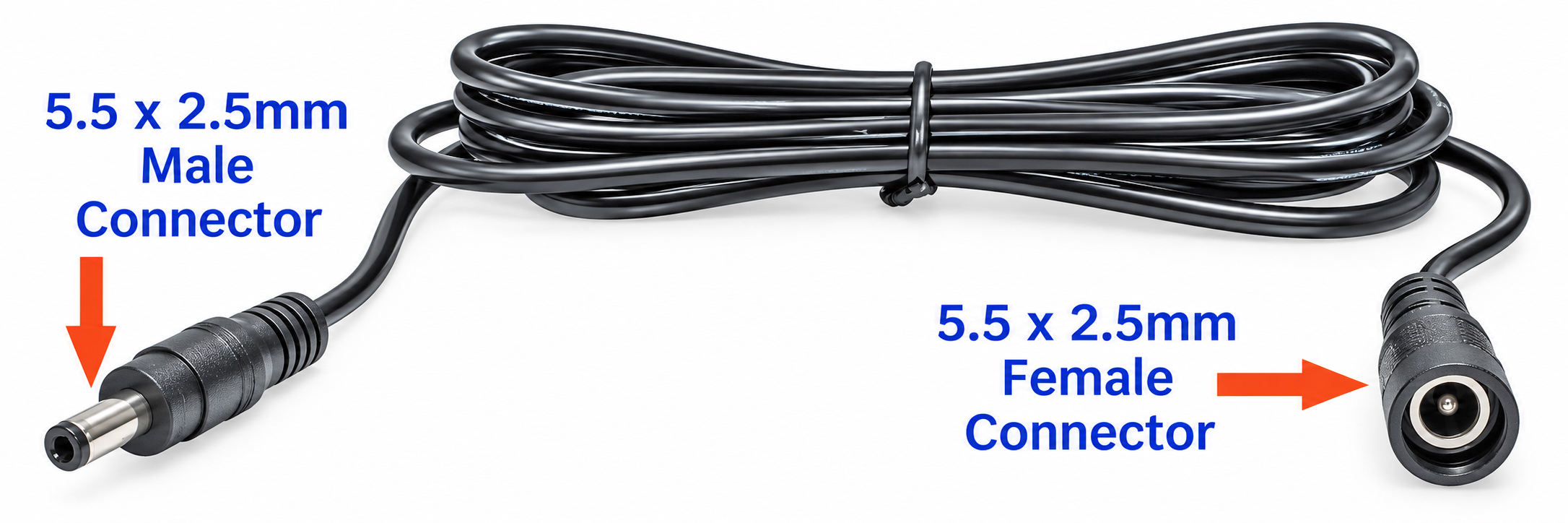

5.5 x 2.5mm Male and Female DC Connectors
Matching 5.5 x 2.5mm DC connectors for convenient cable extension
Connector Specifications
- Male Connector: 5.5mm outside diameter x 2.5mm inside diameter DC barrel plug.
- Female Connector: 5.5mm x 2.5mm DC barrel jack.
- Male Plug Length: Approximately 11mm.
- Configuration: Straight-through male-to-female DC extension.
Compatibility Reminder: The 5.5 x 2.5mm connector is different from the 5.5 x 2.1mm connector. Check the dimensions of your existing power connector before ordering.

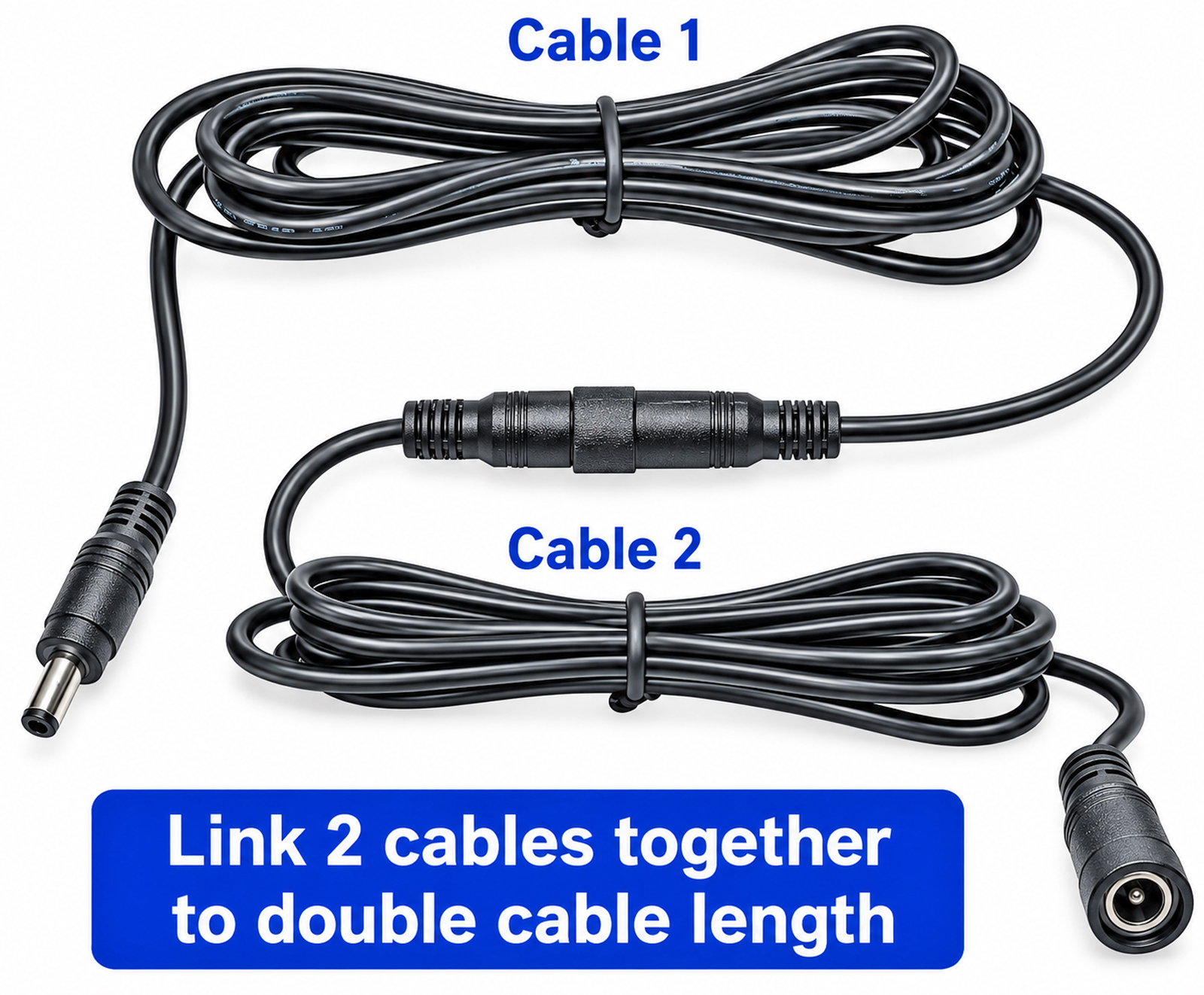

Connect Multiple Cables for Additional Length
Connect two or more Y6 cables together when additional length is required
Need a longer DC power cable? The CAB-Y6 features matching male and female connectors, allowing two or more cables to be joined together.
For example, connecting two 6-foot extension cables provides approximately 12 feet of additional cable length.
Important: Longer cable runs increase electrical resistance and voltage drop. Verify that the connected device receives sufficient voltage under operating load. For higher-current equipment, use the shortest practical cable length.
Common Applications
The BiXPower CAB-Y6 can be used with compatible DC-powered equipment, including:
- Rechargeable Battery Systems: Extend the output cable from a compatible portable battery or DC power pack.
- DC Power Adapters: Increase the distance between a power adapter and electronic equipment.
- Laptop Power Connections: Extend compatible DC barrel power connections when connector size and electrical requirements match.
- Portable Electronics: Provide additional cable reach for devices using 5.5 x 2.5mm DC power inputs.
- Custom DC Power Installations: Add cable length to compatible low-voltage DC power systems.
This cable is an extension accessory only. It does not generate, convert, regulate, or increase electrical power.
Technical Specifications
| Brand | BiXPower |
| Product Code | CAB-Y6 |
| Product Type | DC Power Extension Cable |
| Advertised Cable Length | 6 ft (approximately 1.83m) |
| Wire Gauge | 16AWG |
| Wire Designation | UL1185 |
| Female Connector | 5.5 x 2.5mm DC Jack |
| Male Connector | 5.5 x 2.5mm DC Barrel Plug |
| Male Plug Length | Approximately 11mm |
| Connector Configuration | Male to Female |
| Wiring Function | Straight-through DC extension |
| Color | Black |
| Warranty | 1 Year |
How to Use the Extension Cable
Check Connector Compatibility: Confirm that your existing power cable and device use 5.5 x 2.5mm DC connectors.
- Disconnect Power: Turn off the power source before connecting the extension cable.
- Connect the Female End: Insert your existing male DC power plug into the CAB-Y6 female jack.
- Connect the Male End: Insert the CAB-Y6 male plug into your device's matching DC power input.
- Verify the Connection: Check that the connectors fit securely, then restore power and confirm normal operation.
Important Compatibility and Safety Information
- Connector Size: Designed for 5.5 x 2.5mm DC barrel connections. Do not assume compatibility with 5.5 x 2.1mm connectors.
- Voltage: This cable does not convert or regulate voltage. Use a power source with the correct output voltage for your equipment.
- Polarity: Confirm that the power source polarity matches the device requirements.
- Current Capacity: The 16AWG wire specification alone does not establish the current rating of the complete cable assembly. Connectors and operating conditions may limit safe current.
- Voltage Drop: Longer cable runs can reduce the voltage delivered to the device, particularly at higher currents.
- Connection Safety: Keep connectors dry and avoid loose connections, excessive bending, or damaged insulation.
Package Contents
1 x BiXPower CAB-Y6 DC Power Extension Cable with 5.5 x 2.5mm male and female connectors.
Frequently Asked Questions
What is the difference between 5.5 x 2.5mm and 5.5 x 2.1mm connectors?
Both connectors have a 5.5mm outer diameter, but their inner diameters differ. The CAB-Y6 uses 2.5mm inner-diameter connectors. For a secure electrical connection, use the connector size specified for your equipment.
Can I connect two CAB-Y6 cables together?
Yes. The male connector of one cable fits the matching female connector of another CAB-Y6 cable. However, adding length increases voltage drop, so check your device's electrical requirements before using multiple extensions.
Why use 16AWG wire?
16AWG wire has a larger conductor cross-section than 18AWG or 20AWG wire. When conductor material and cable length are the same, the larger wire helps reduce resistance and voltage drop.
Can this cable extend a rechargeable battery output?
Yes, provided the battery output cable uses a compatible 5.5 x 2.5mm male connector and the complete power connection meets the device's electrical requirements.
Does this extension cable change the output voltage?
No. The CAB-Y6 is a passive DC power extension cable. It does not contain a voltage converter or regulator.
Can I use this cable with my laptop?
It may be used with a laptop power adapter that has a matching 5.5 x 2.5mm barrel connection, provided the electrical requirements are compatible. Many laptops use other connector sizes or proprietary power connectors, so verify compatibility first.
Extend Your Power Connection with Confidence
The BiXPower CAB-Y6 combines durable 16AWG wire, matching 5.5 x 2.5mm barrel connectors, and a convenient extension design for compatible DC power applications.
