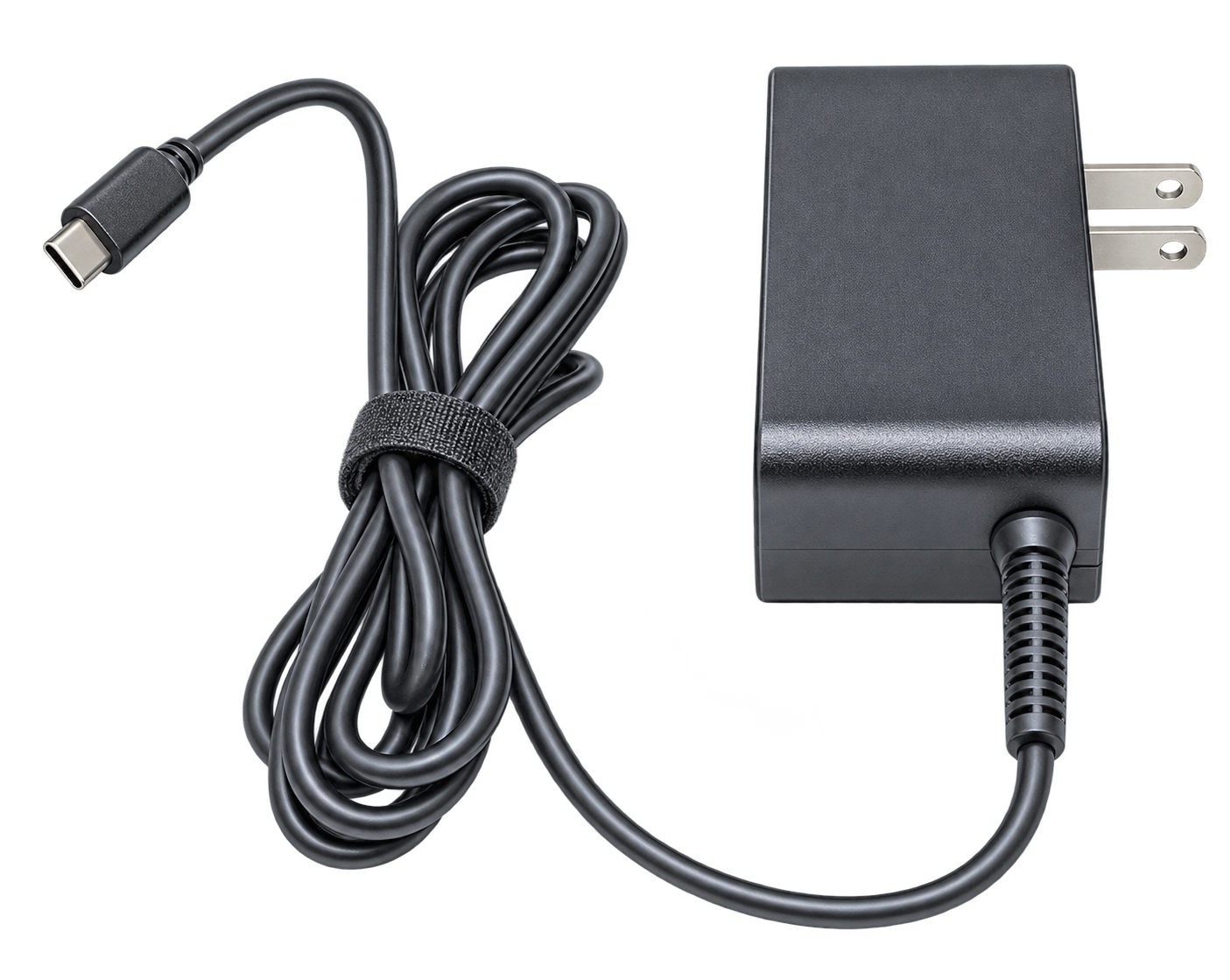

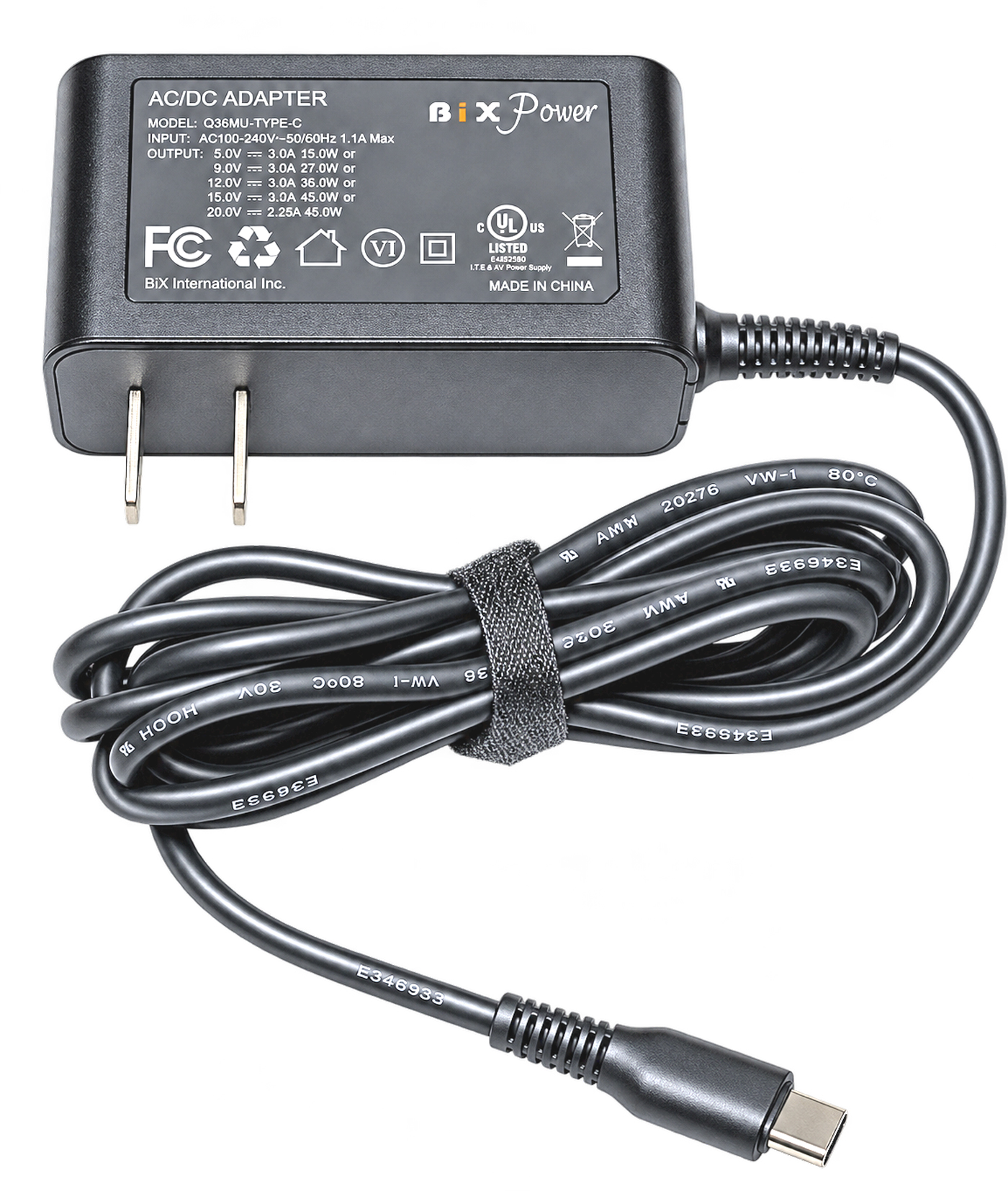

BiXPower Compact 45W USB-C PD AC Power Adapter
Power your compatible USB-C devices with a compact 45W Power Delivery adapter featuring built-in US wall prongs and an attached 1.7-meter USB-C cable.
The BiXPower ACUC-PD45 is a compact AC-to-USB-C power adapter designed to provide convenient USB Power Delivery (PD) power from a standard AC wall outlet. It converts 100V–240V AC input into selectable USB-C PD output voltages of 5V, 9V, 12V, 15V, and 20V, delivering up to 45W maximum output power.
With its small 3 x 1.6 x 1.2-inch housing, integrated US two-prong wall plug, and attached USB-C output cable, this adapter is convenient for home, office, travel, and portable electronic equipment.
The adapter also features listed UL, GS, CE, and TUV safety approvals, making it a practical choice for customers seeking a compact USB-C PD power supply.
Key Features & Benefits
- 45W USB-C Power Delivery: Provides up to 45W output for compatible USB-C PD devices.
- Multiple PD Voltage Profiles: Supports 5V, 9V, 12V, 15V, and 20V output.
- Universal AC Input: Accepts 100V–240V AC power.
- Built-In US Wall Plug: Integrated two-prong AC plug eliminates the need for a separate AC input cord.
- Attached USB-C Cable: Includes a 1.7-meter (67-inch) output cable with USB-C male connector.
- Compact Housing: Measures approximately 3 x 1.6 x 1.2 inches (76 x 40 x 30mm).
- Lightweight Design: Approximately 5.2 oz (150g).
- USB-C PD Negotiation: Compatible devices request an appropriate supported voltage profile.
- Safety Approvals: UL, GS, CE, and TUV, as listed for this model.
- Convenient for Travel: Compact size, attached cable, and no separate AC cord to pack.
USB-C Power Delivery — Up to 45W
USB Power Delivery (USB-C PD) allows compatible electronic devices to negotiate a suitable power level with the connected adapter.
Unlike a conventional fixed-voltage DC power supply, this BiXPower adapter supports several USB-C PD voltage profiles, including:
- 5V DC
- 9V DC
- 12V DC
- 15V DC
- 20V DC
The maximum output rating is 45W, equivalent to 20V at 2.25A. Actual output voltage and power depend on the connected device's USB-C PD requirements and the adapter's supported power profiles.
How USB-C PD Power Works
100V–240V AC Wall Outlet
↓
BiXPower ACUC-PD45 Power Adapter
↓
USB-C PD Voltage Negotiation
↓
5V / 9V / 12V / 15V / 20V
↓
Compatible USB-C Device (Up to 45W)
Important: The adapter does not continuously output 20V to every connected device. USB-C PD-compatible equipment negotiates an appropriate supported voltage. Devices that require proprietary charging protocols or more than 45W may not operate or charge as expected.
Compact Size — Easy to Carry
The BiXPower ACUC-PD45 is designed for customers who prefer a small power adapter instead of a bulky AC power brick.
Its compact housing measures approximately 3 x 1.6 x 1.2 inches (76 x 40 x 30mm) and weighs only 5.2 oz (150g).
The integrated US wall prongs connect directly to a compatible AC outlet, eliminating the need for a separate AC input cable. The attached USB-C output cable also helps simplify setup and reduces the number of accessories you need to carry.

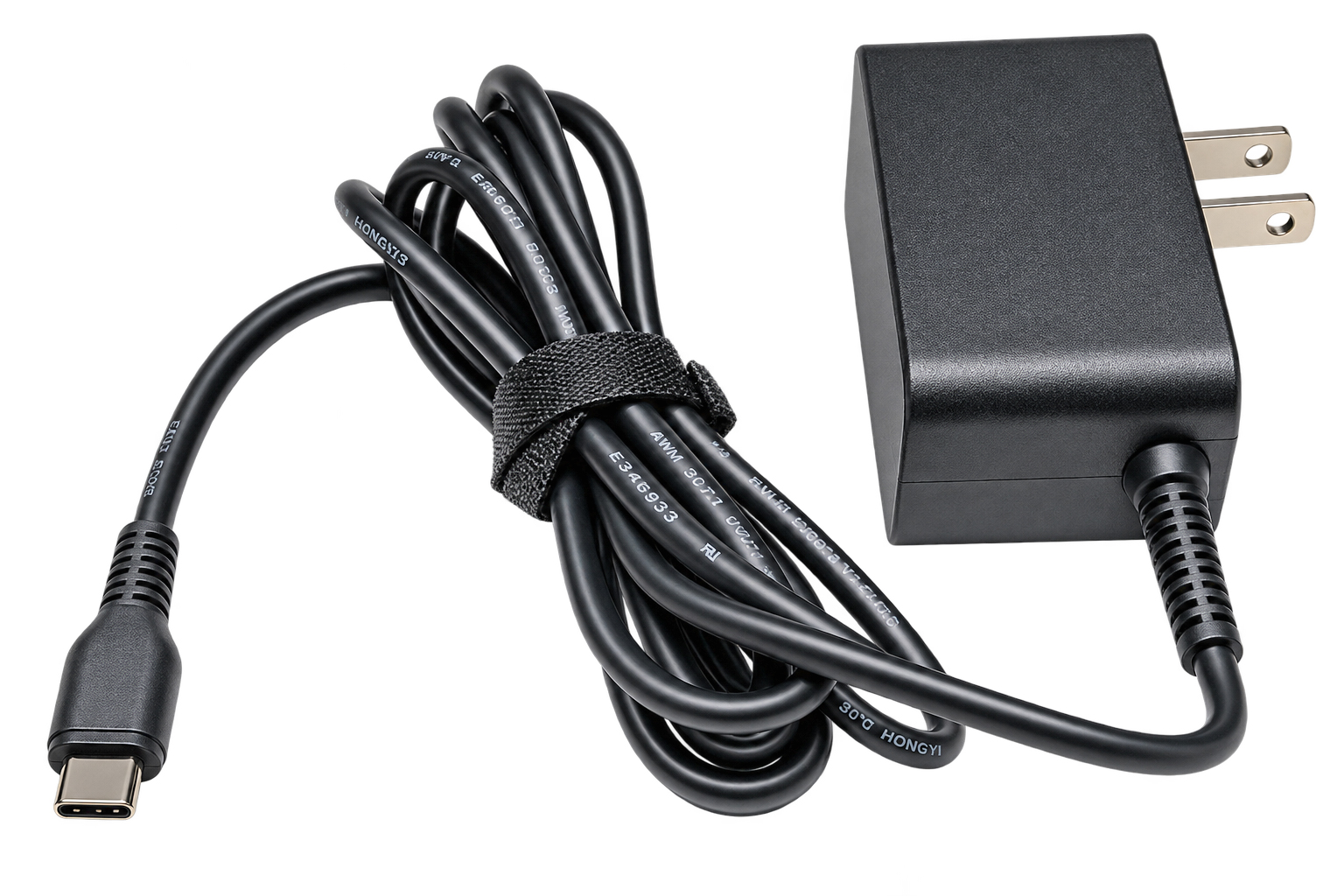

Compact adapter housing shown for size reference.
Universal 100V–240V AC Input
The adapter accepts 100V–240V AC input, making it suitable for use with compatible electrical systems in many countries.
Its integrated US Type A two-prong plug is convenient for standard compatible wall outlets in the United States. When traveling internationally, a suitable plug adapter may be required to fit the destination country's electrical outlets.
Because the adapter supports a wide AC input voltage range, a separate voltage transformer is generally unnecessary when the local AC supply is within the specified input range.
Compatible Applications
The ACUC-PD45 can power or charge USB-C PD-compatible equipment that accepts one of its supported voltage profiles and requires no more than 45W.
Potential applications include compatible:
- USB-C PD laptops and small notebook computers
- Tablets with USB-C charging
- Smartphones supporting USB-C Power Delivery
- Portable monitors with USB-C PD power input
- USB-C PD electronic accessories
- Portable electronic devices requiring USB-C PD power
- USB-C PD-powered converters and accessories within the adapter's power rating
Compatibility depends on the device's supported USB-C charging protocol, voltage, current, and power requirements. These are application categories rather than a list of individually tested models.
Technical Specifications
| BiXPower Product Model |
ACUC-PD45 |
| Product Type |
AC-to-USB-C Power Delivery Adapter |
| AC Input Voltage |
100V–240V AC |
| USB-C Output Voltage |
5V / 9V / 12V / 15V / 20V DC |
| Maximum Output Power |
45W |
| Maximum Output at 20V |
20V / 2.25A (45W) |
| Output Connector |
USB Type-C Male |
| Output Cable Length |
1.7m (67 inches) |
| AC Input Plug |
Integrated US 2-Prong Plug (Type A) |
| Dimensions |
76 x 40 x 30mm (3 x 1.6 x 1.2 inches) |
| Weight |
5.2 oz (Approx. 150g) |
| Color |
Black |
| Operating Temperature |
0°C to +40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Relative Humidity |
5%–95% RH, Non-Condensing |
| Listed Safety Approvals |
UL, GS, CE, TUV |
Safety Approvals and Operating Conditions
The BiXPower ACUC-PD45 features listed UL, GS, CE, and TUV safety and compliance approvals.
The adapter is intended for indoor operation at temperatures from 0°C to +40°C and relative humidity from 5% to 95%, non-condensing.
For safe operation, keep the adapter dry, avoid covering it during use, and do not operate it with damaged cables or connectors.
How to Use
- Verify Compatibility: Confirm that your device supports USB-C PD and requires no more than 45W from a supported voltage profile.
- Connect USB-C: Insert the attached USB-C male connector into the compatible device's USB-C power input.
- Connect AC Power: Plug the built-in US wall prongs into a suitable 100V–240V AC outlet.
- Check Operation: Confirm that the connected device begins charging or operating normally.
Frequently Asked Questions
What is the maximum output power?
The maximum output power is 45W, including a 20V / 2.25A output rating.
Does this charger always output 20V?
No. The adapter supports multiple USB-C PD voltage profiles. A compatible device negotiates an appropriate supported voltage.
Can I charge a USB-C laptop with this adapter?
Yes, if the laptop accepts USB-C PD charging using a supported voltage profile and can operate or charge within the available 45W power limit. Some higher-power laptops may charge slowly, charge only while sleeping, or not charge with a 45W adapter.
Does it work with USB-C smartphones and tablets?
It can work with smartphones and tablets that support compatible USB-C charging. Charging speed depends on the device and its supported power negotiation protocol.
Does the adapter have a built-in AC plug?
Yes. It has integrated US two-prong wall prongs. No separate AC input cord is needed.
Is the USB-C output cable included?
Yes. The adapter has an attached 1.7-meter USB-C output cable.
Can I use it in other countries?
The adapter accepts 100V–240V AC input. A suitable wall plug adapter may be required for electrical outlets outside the United States.
Does this adapter contain a battery?
No. This is an AC-powered USB-C PD adapter and must be connected to a compatible AC power source.
Can this power a 24V DC device directly?
No. Its listed USB-C PD voltage profiles extend up to 20V. Equipment requiring 24V DC needs a compatible 24V power solution or a suitable voltage conversion accessory.
Package Contents
- 1 x BiXPower ACUC-PD45 Compact 45W USB-C PD AC Power Adapter with Integrated US Wall Plug and Attached USB-C Output Cable
No separate AC input cable required. Connected electronic devices are not included.
Compact 45W USB-C PD Power for Home and Travel
The BiXPower ACUC-PD45 combines 45W USB-C Power Delivery, 100V–240V AC input, multiple PD voltage profiles, integrated US wall prongs, and an attached 1.7-meter USB-C cable in a compact, lightweight housing. It is a convenient power solution for compatible USB-C PD laptops, tablets, smartphones, and portable electronic equipment.
