BiXPower BX-DD90M2-24V 90W DC to DC Power Converter
The BiXPower BX-DD90M2-24V is a compact, high-efficiency
DC to DC power converter designed to convert a wide
10V to 30V DC input range into a
stable, regulated 24V DC output.
With up to 90W output power, a very small and lightweight
design, flexible input connections, and an additional USB output port,
this converter is an excellent solution for powering 24V electronics from
batteries, vehicle electrical systems, solar power systems, portable power
sources, and other DC power supplies.
Wide 10V-30V Input → Regulated 24V Output
The converter automatically converts compatible DC input voltage within
its 10V-30V operating range to a stable 24V DC output. This makes it useful
with many different DC power sources instead of limiting it to a single
input voltage.
Compact Size — Easy to Use Almost Anywhere

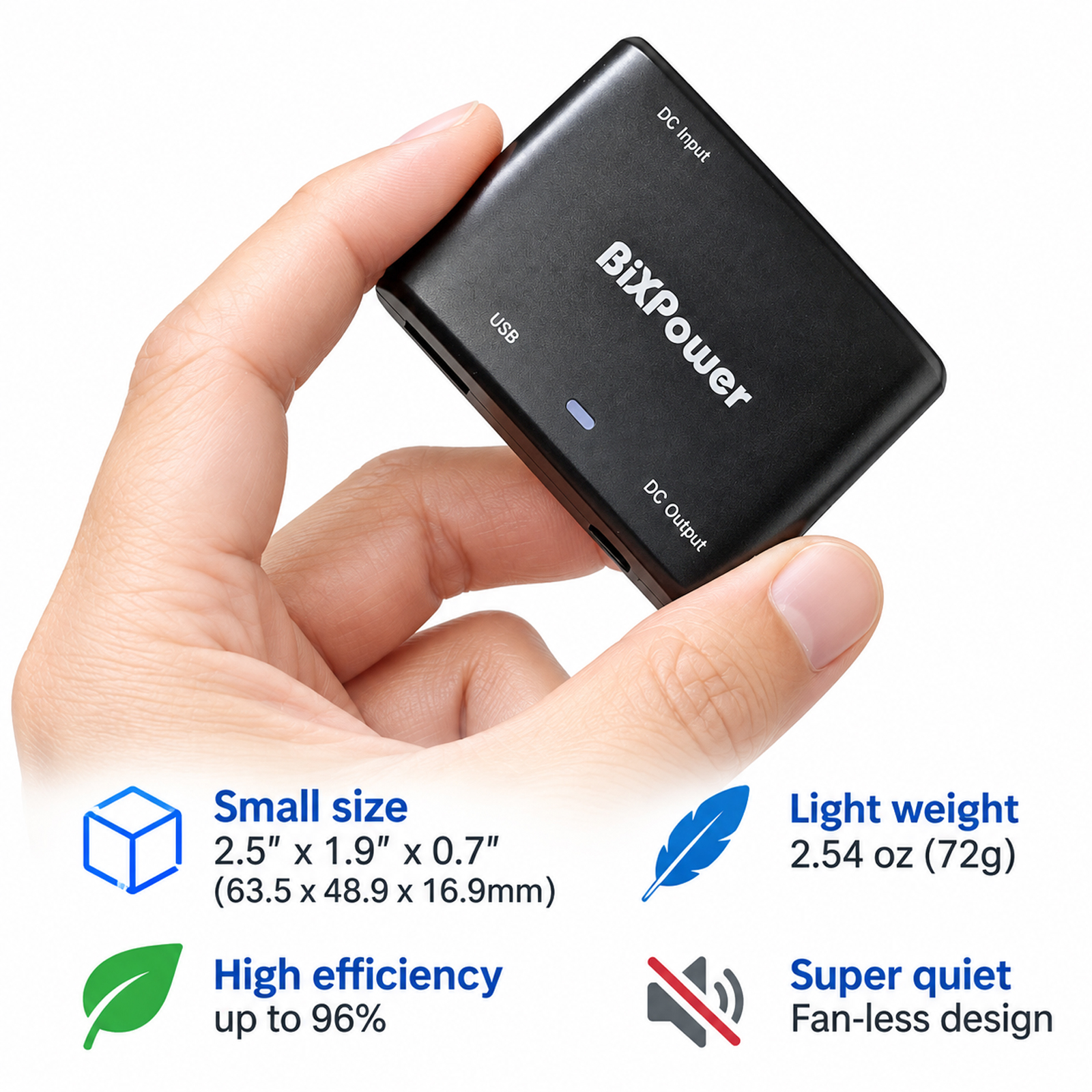

Despite its high output capability, the BX-DD90M2-24V is extremely compact.
The converter measures only approximately
2.5" x 1.9" x 0.7" (63.5 x 48.9 x 16.9 mm)
and weighs only approximately 2.54 oz (72 g).
Its small size makes it especially convenient for portable equipment,
vehicle installations, mobile electronics, robotics, battery-powered
systems, solar applications, field equipment, and projects where installation
space is limited.
Flexible Input Power Connections

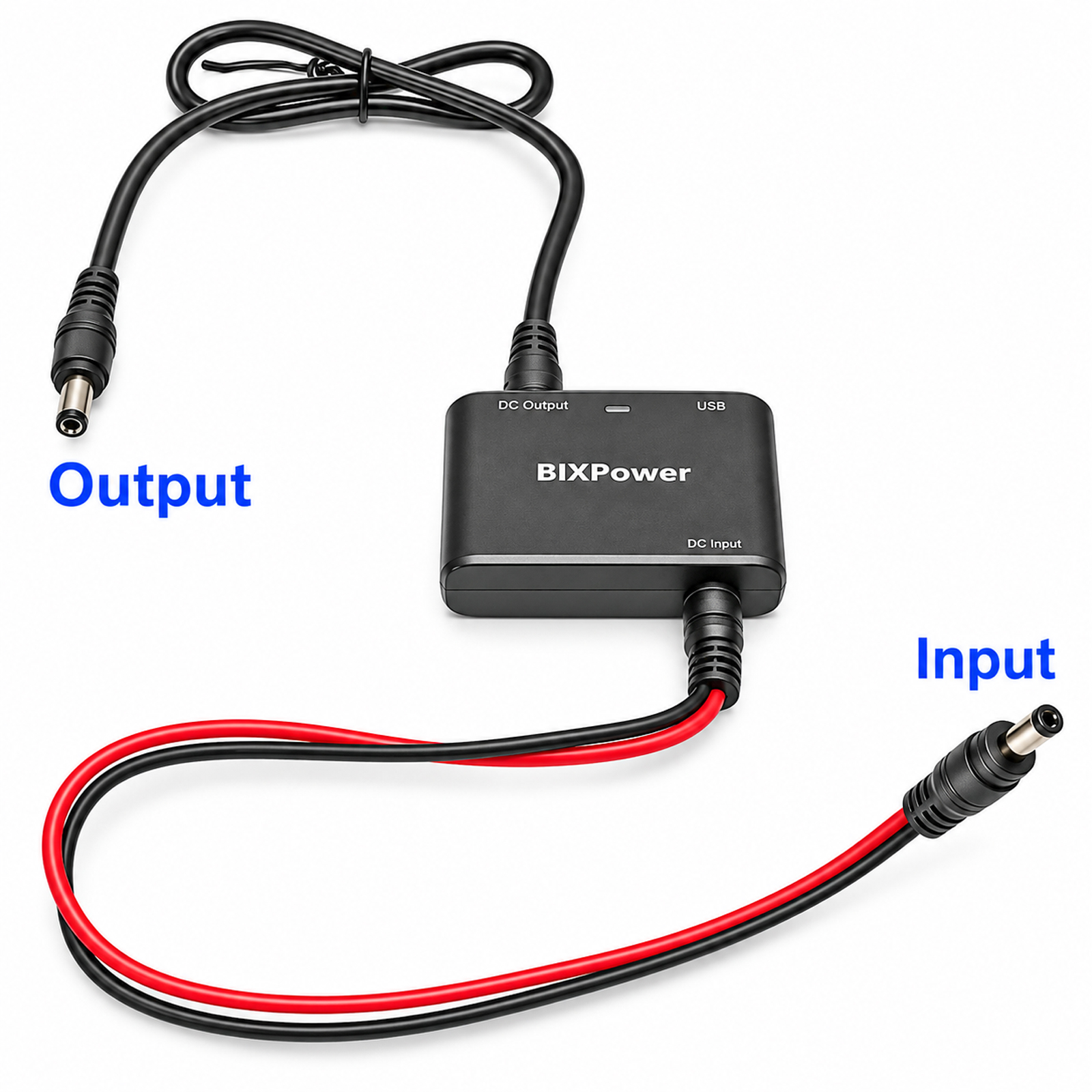

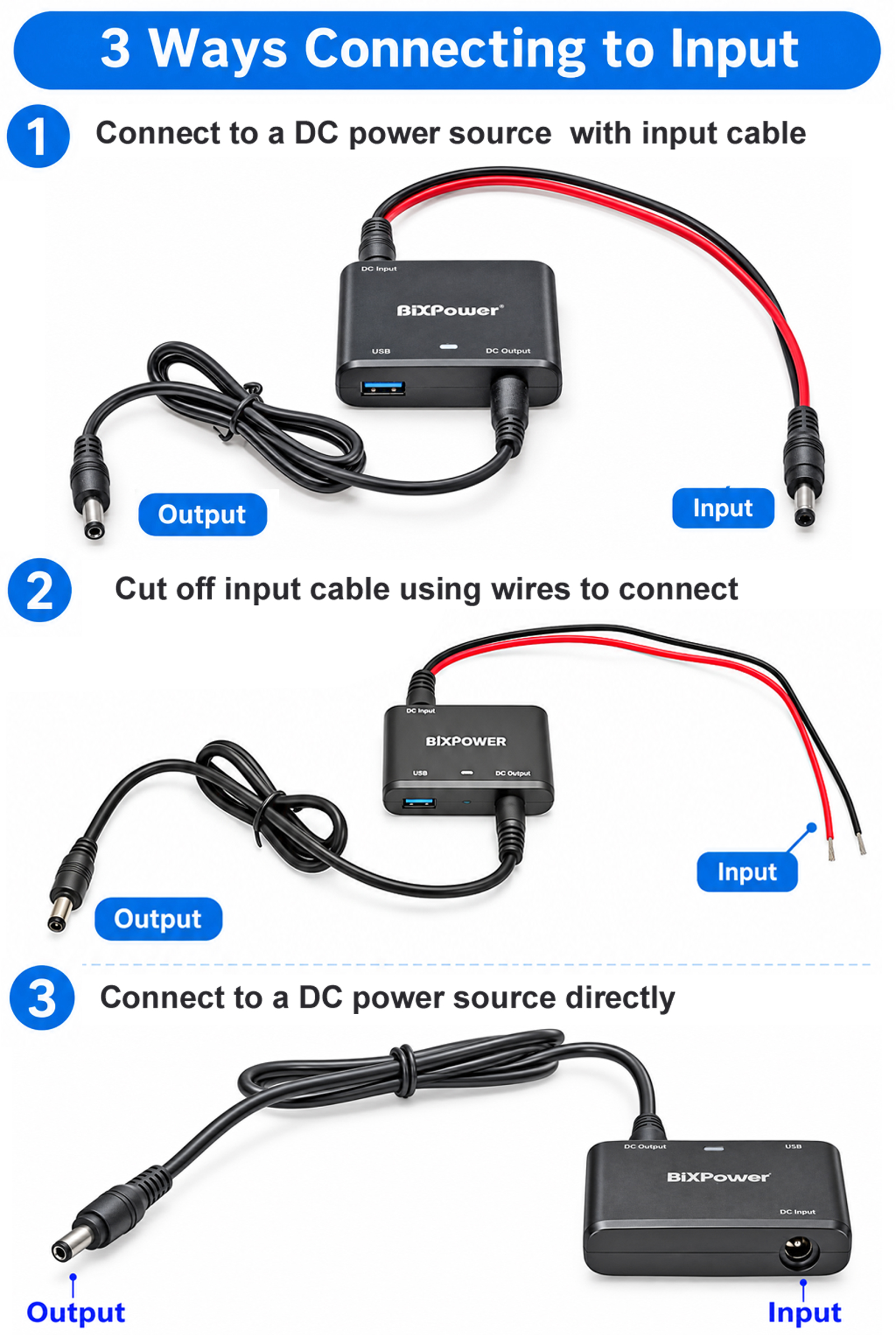

The BX-DD90M2-24V provides several convenient ways to connect your DC power
source. The package includes a 16AWG input cable, giving
users more flexibility for portable or permanent installations.

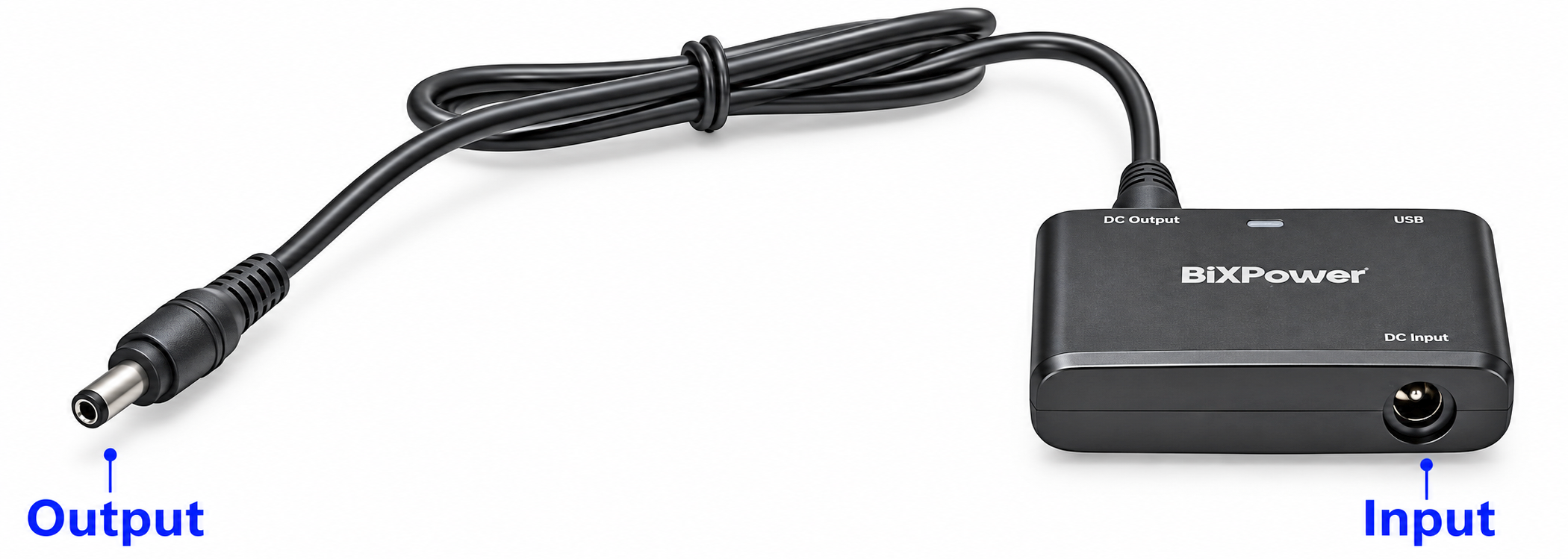

1. Connect Directly to the Converter Input Port

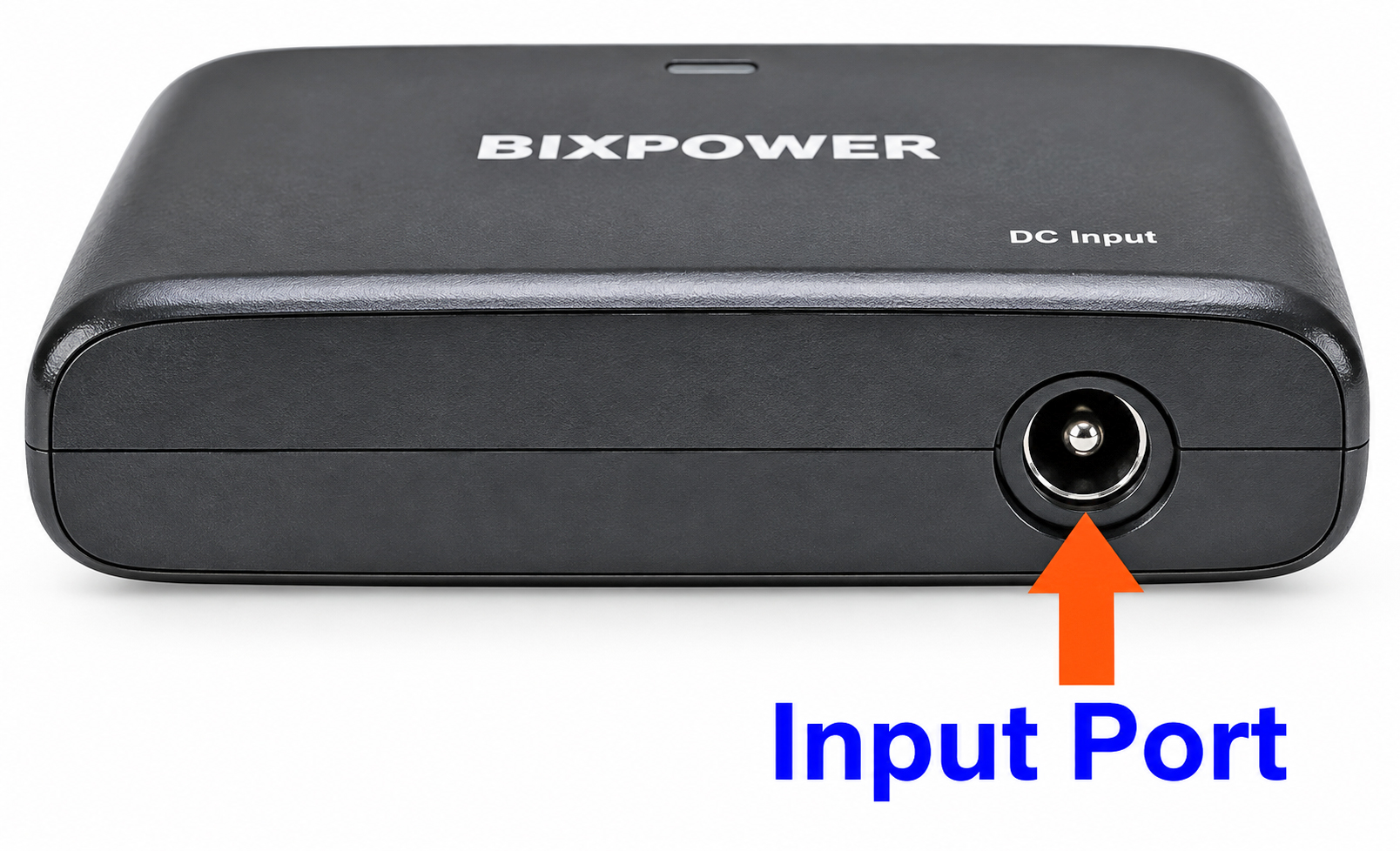

The converter has a 5.5 x 2.5 mm female DC input jack.
A compatible DC power source with a 5.5 x 2.5 mm male connector can plug
directly into the converter.

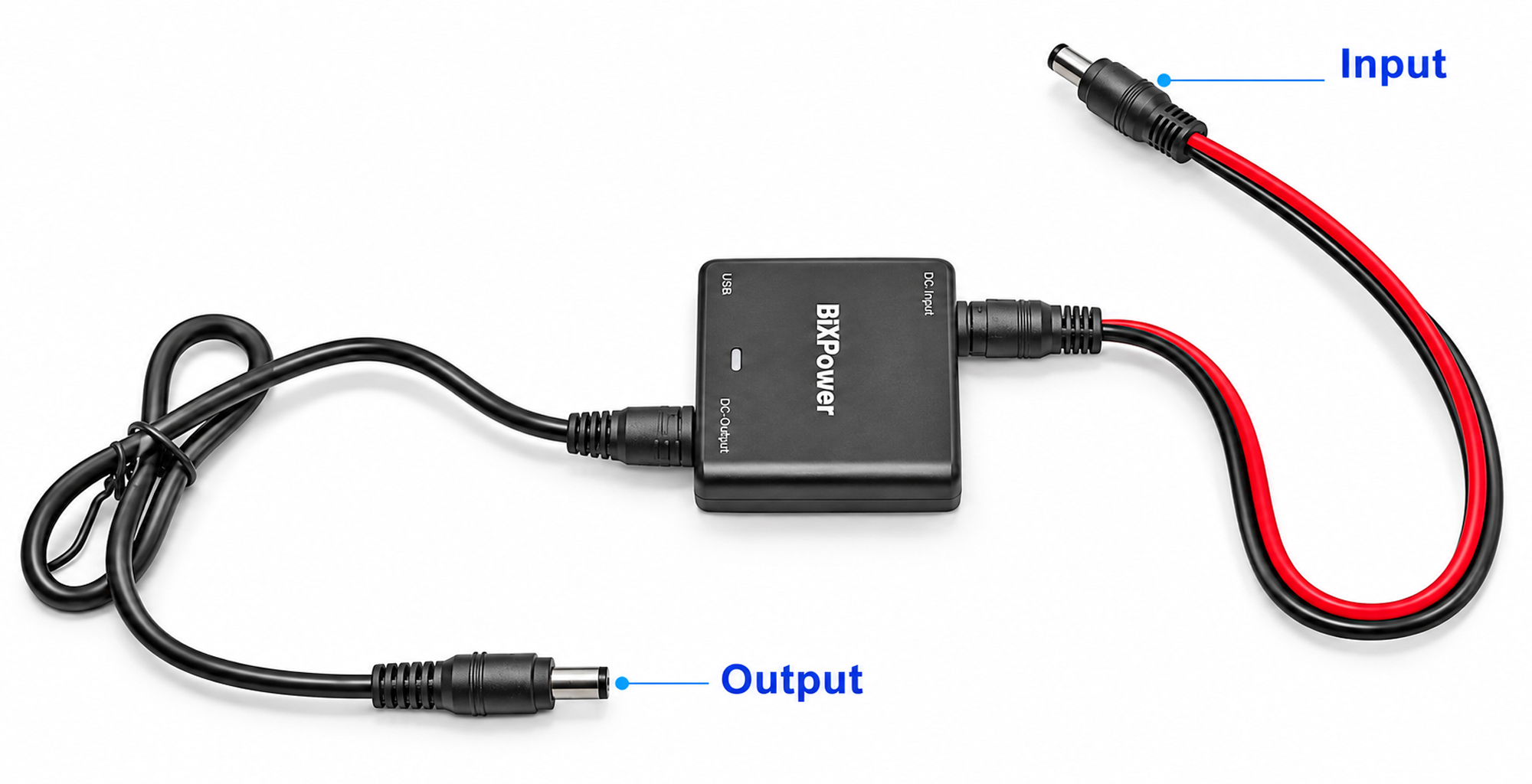

2. Use the Included Input Cable
The included input cable can connect the converter to a DC power source
equipped with a compatible 5.5 x 2.5 mm DC connector.

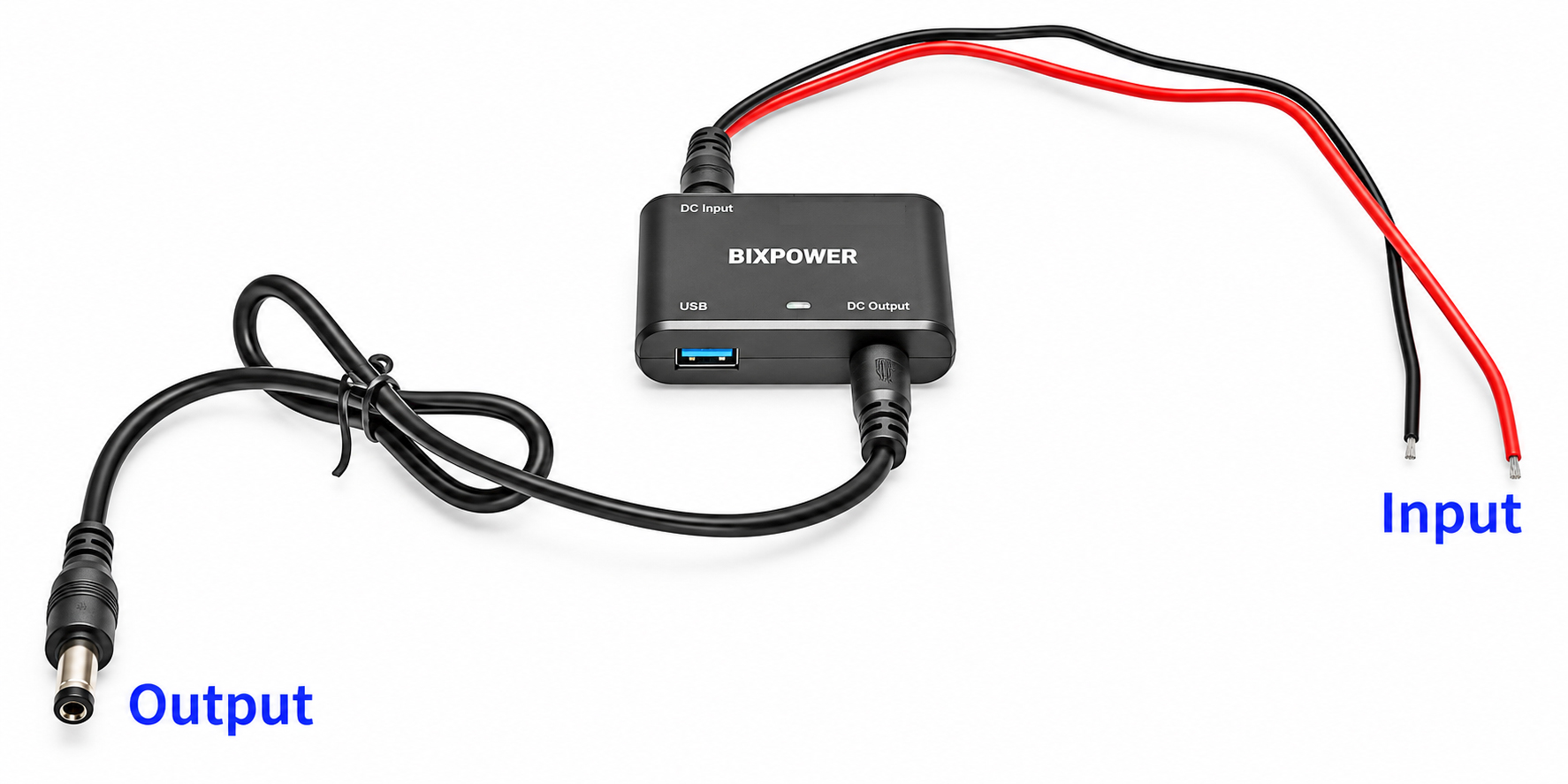

3. Use Bare Wires for a Direct Connection
For applications requiring a direct wired connection, one connector can
be removed from the included input cable so the two wires can be connected
directly to an appropriate DC power source.
he two bare 16AWG wires can handle higher input current more
effectively than the barrel connector input connection, making
the direct-wire method preferable for higher-current applications when
properly installed.
High-Efficiency DC Power Conversion
The BX-DD90M2-24V is designed for high conversion efficiency of up
to approximately 95%. High efficiency reduces the amount of input
power lost as heat and is particularly valuable when the converter is
powered from a battery or other limited-energy power source.
This makes the converter well suited for battery-powered equipment,
portable systems, solar applications, automotive electronics, and other
applications where efficient use of available power is important.

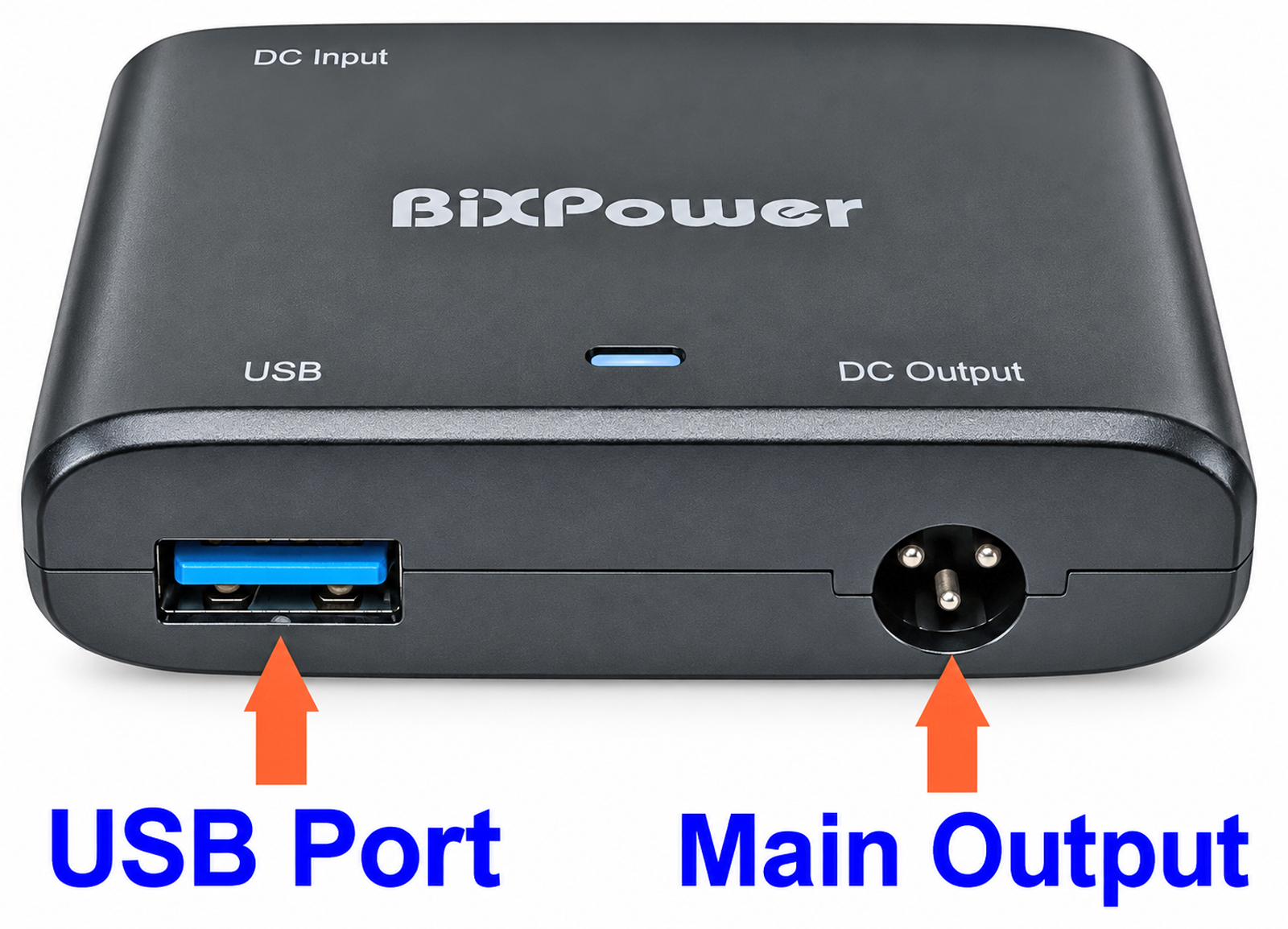

24V Main Output + USB Power Output
The converter provides a regulated 24V DC main output
for compatible 24V equipment. It also includes a convenient USB output
port for powering or charging compatible USB devices.
The USB port supports up to:
5V/3A, 9V/2A, or 12V/1.5A, depending on the connected
USB device and charging protocol.

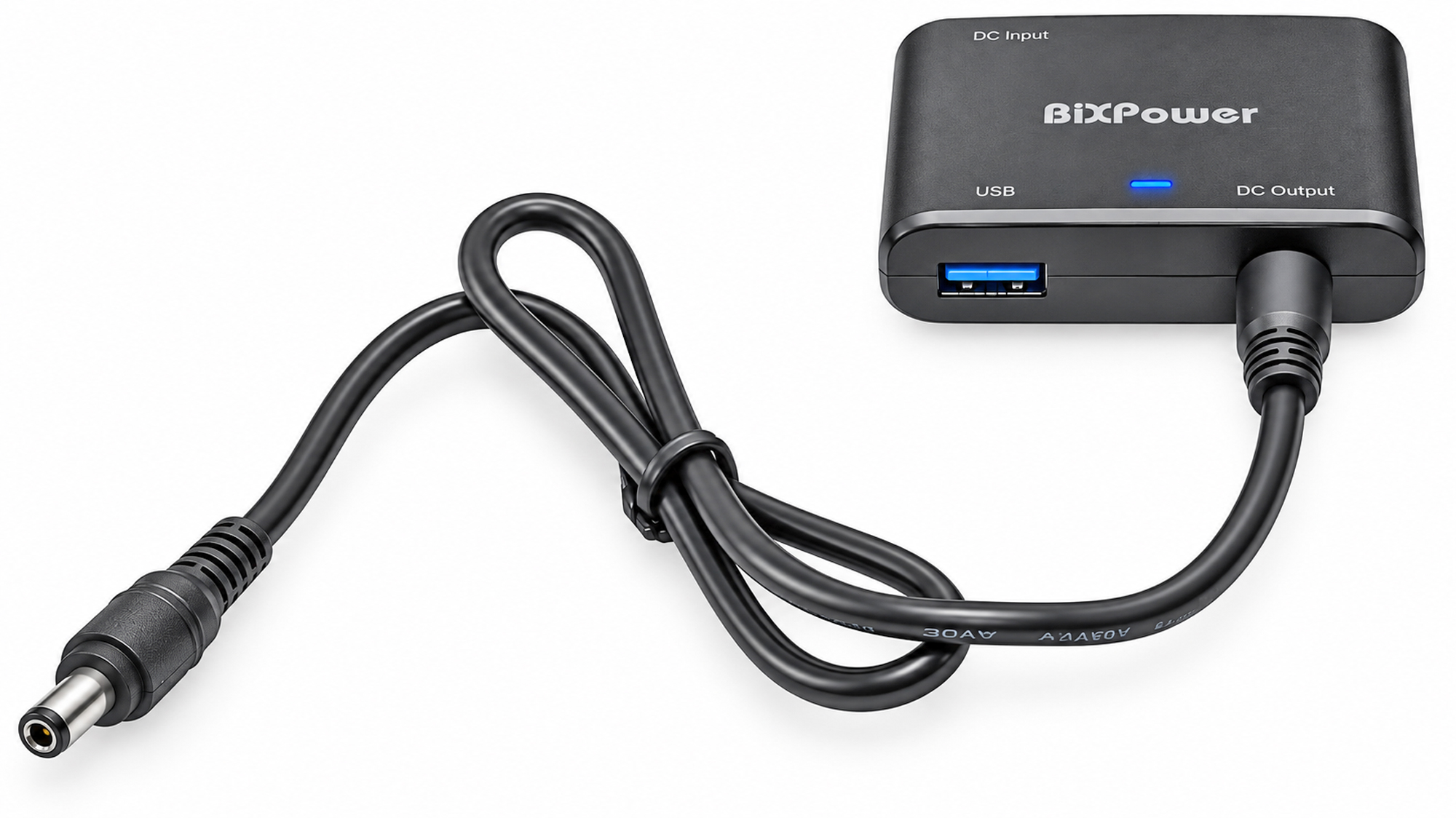

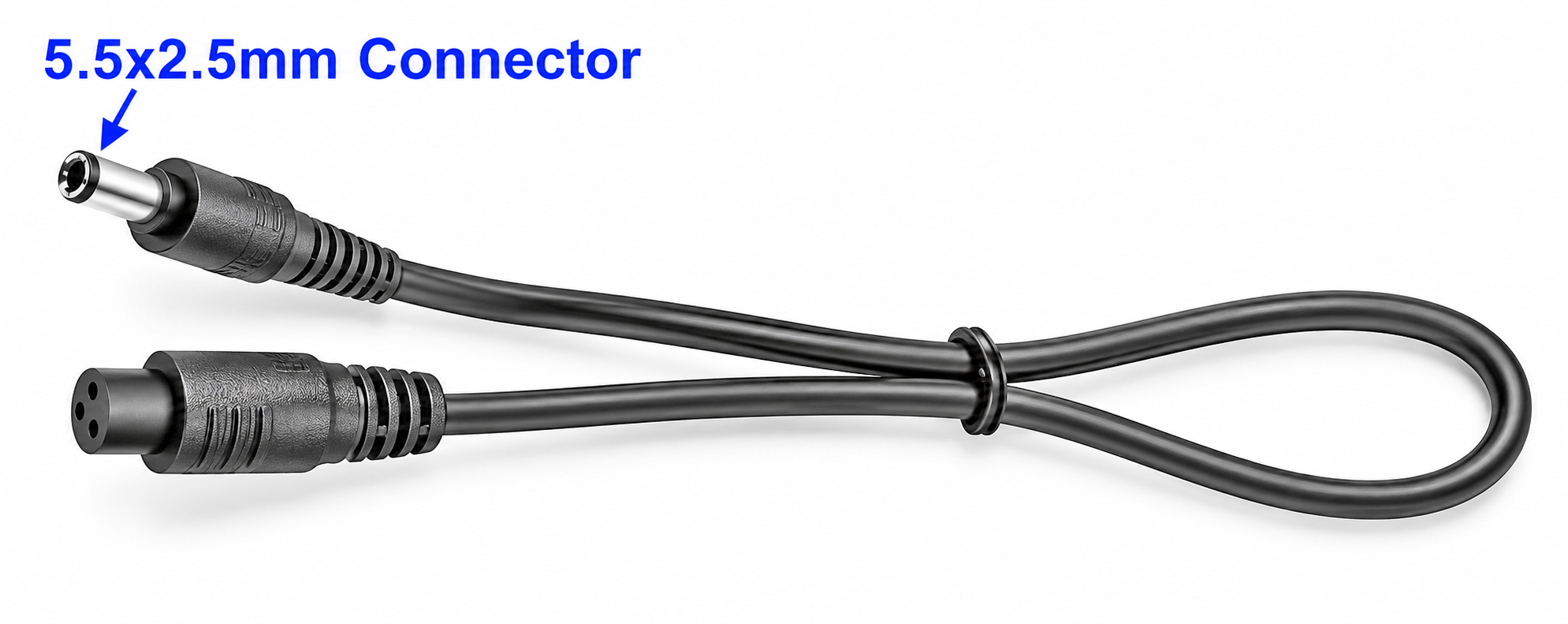

24V Output Cable
The included 24V output cable connects to the converter's dedicated DC
output port. The other end uses a common
5.5 x 2.5 mm male DC connector.
Connecting the Output Cable

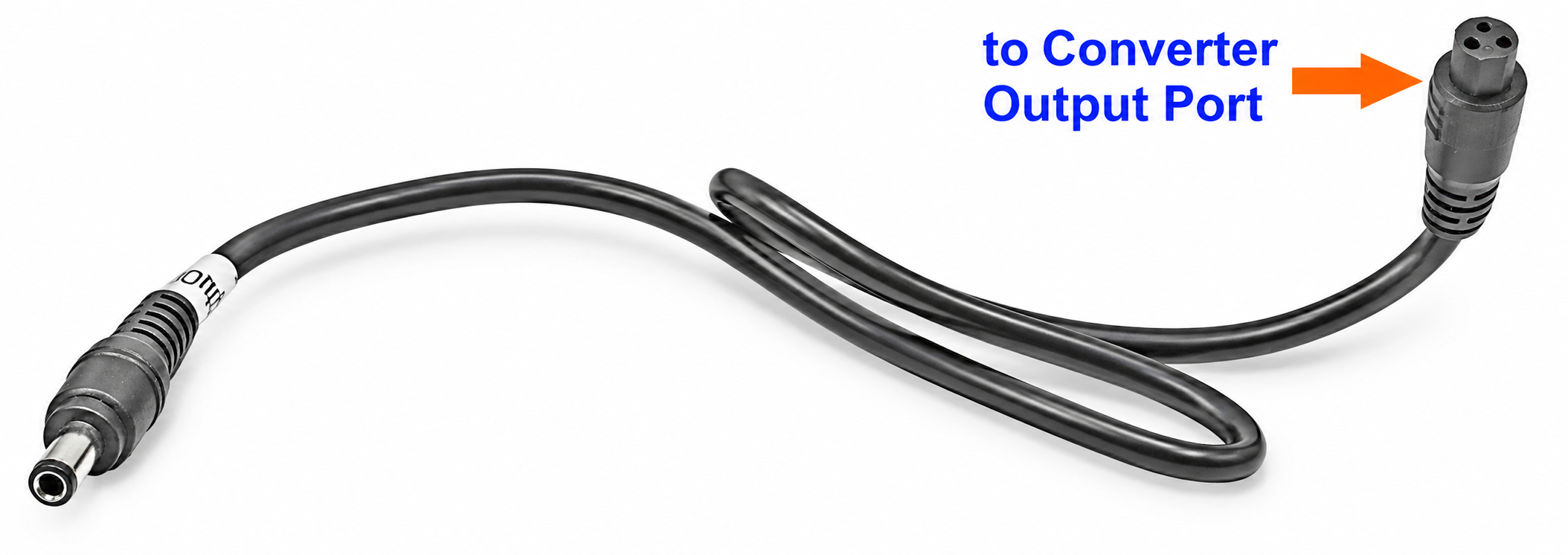

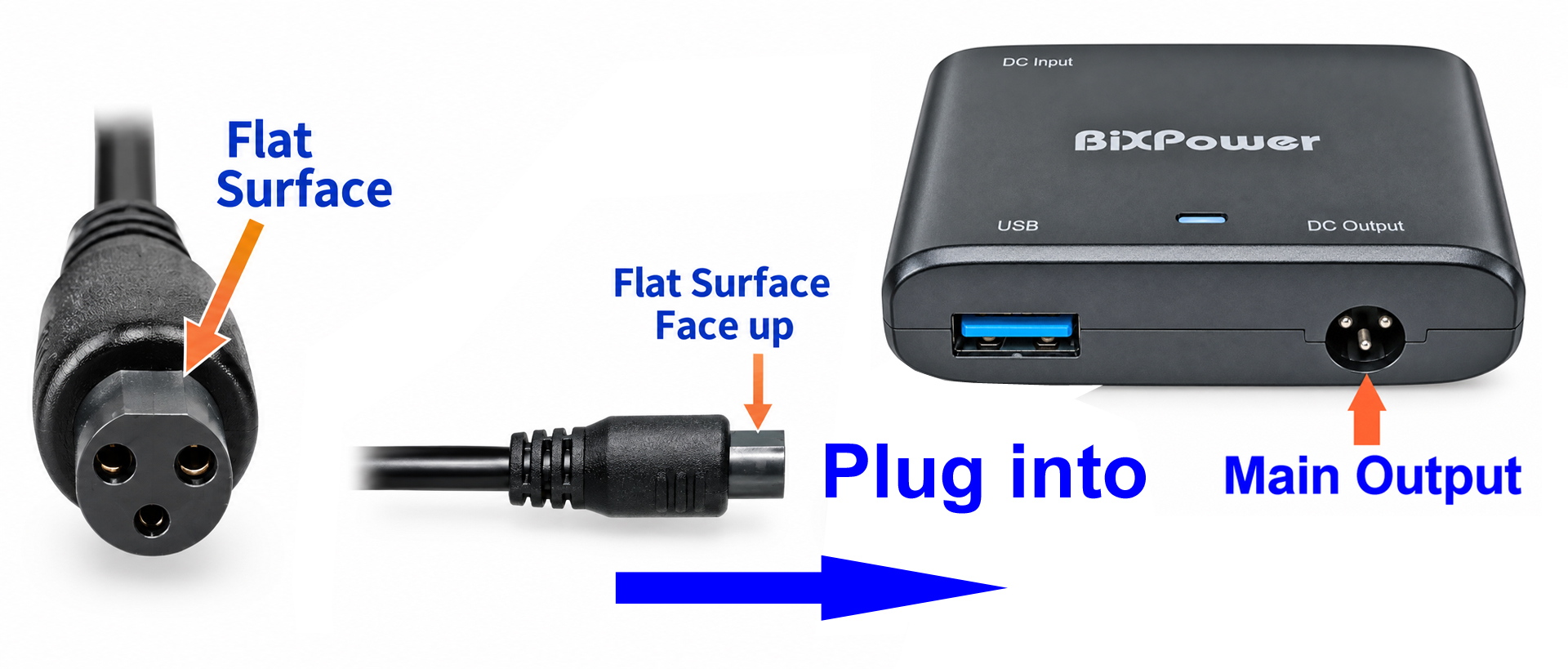

The converter end of the output cable has a small
flat surface and three connection holes. When inserting
the cable into the converter's output port, position the
flat surface facing upward toward the top of the converter.
Key Features
- Wide 10V-30V DC input range
- Stable regulated 24V DC output
- Up to 90W maximum output power
- High conversion efficiency — up to approximately 95%
- Ultra-compact size: approximately 2.5" x 1.9" x 0.7"
- Lightweight: approximately 2.54 oz (72 g)
- USB power output for compatible USB devices
- Multiple input connection options
- Included 16AWG input cable
- Built-in short-circuit protection
- Built-in over-current protection
- Built-in over-voltage protection
- Built-in over-temperature protection
- Suitable for battery, vehicle, solar, portable and off-grid power systems
Typical Applications
The BX-DD90M2-24V can be used with many compatible 24V electronic devices,
including monitors, communication equipment, embedded computers,
LED equipment, portable electronics, robotics, industrial electronics,
and other equipment requiring a stable 24V DC power source.
Its wide input range makes it especially useful when the available source
voltage may vary, such as with batteries, vehicle electrical systems,
solar systems and portable DC power supplies.
Specifications
| Model |
BX-DD90M2-24V |
| Acceptable Input Voltage |
10V-30V DC |
| Main Output Voltage |
24V DC, regulated |
| Maximum Main Output Power |
90W |
| USB Output |
5V/3A Max, 9V/2A Max, or 12V/1.5A Max |
| Efficiency |
Up to approximately 95% |
| Input Port |
5.5 x 2.5 mm female DC jack |
| Output Cable Connector |
5.5 x 2.5 mm male DC connector |
| Dimensions |
Approximately 2.5" x 1.9" x 0.7" (63.5 x 48.9 x 16.9 mm) |
| Weight |
Approximately 2.54 oz (72 g) |
| Operating Temperature |
0°C to +40°C ambient |
| Storage Temperature |
-20°C to +70°C |
| Operating Humidity |
20% RH to 80% RH |
| Storage Humidity |
10% RH to 90% RH, non-condensing |
| Ripple & Noise |
≤300mV |
| Protection |
Short circuit, over-current, over-voltage and over-temperature protection |
Important: Before connecting equipment, verify that your
device requires 24V DC, that its power requirement does
not exceed the converter's rated output, and that the connector size and
polarity are correct.
Optional Output Cables
The BX-DD90M2 converter platform uses a special output cable to determine
the main DC output voltage. In addition to the included
24V output cable, compatible output cables for
12V, 16V and 19V are available separately.
Important: Always verify the required voltage of your
equipment before changing output cables.
Optional DC Connector Tips
The output cable uses a 5.5 x 2.5 mm male DC connector.
For equipment requiring a different connector size, compatible BiXPower
C-series connector tips can be attached to the output cable.

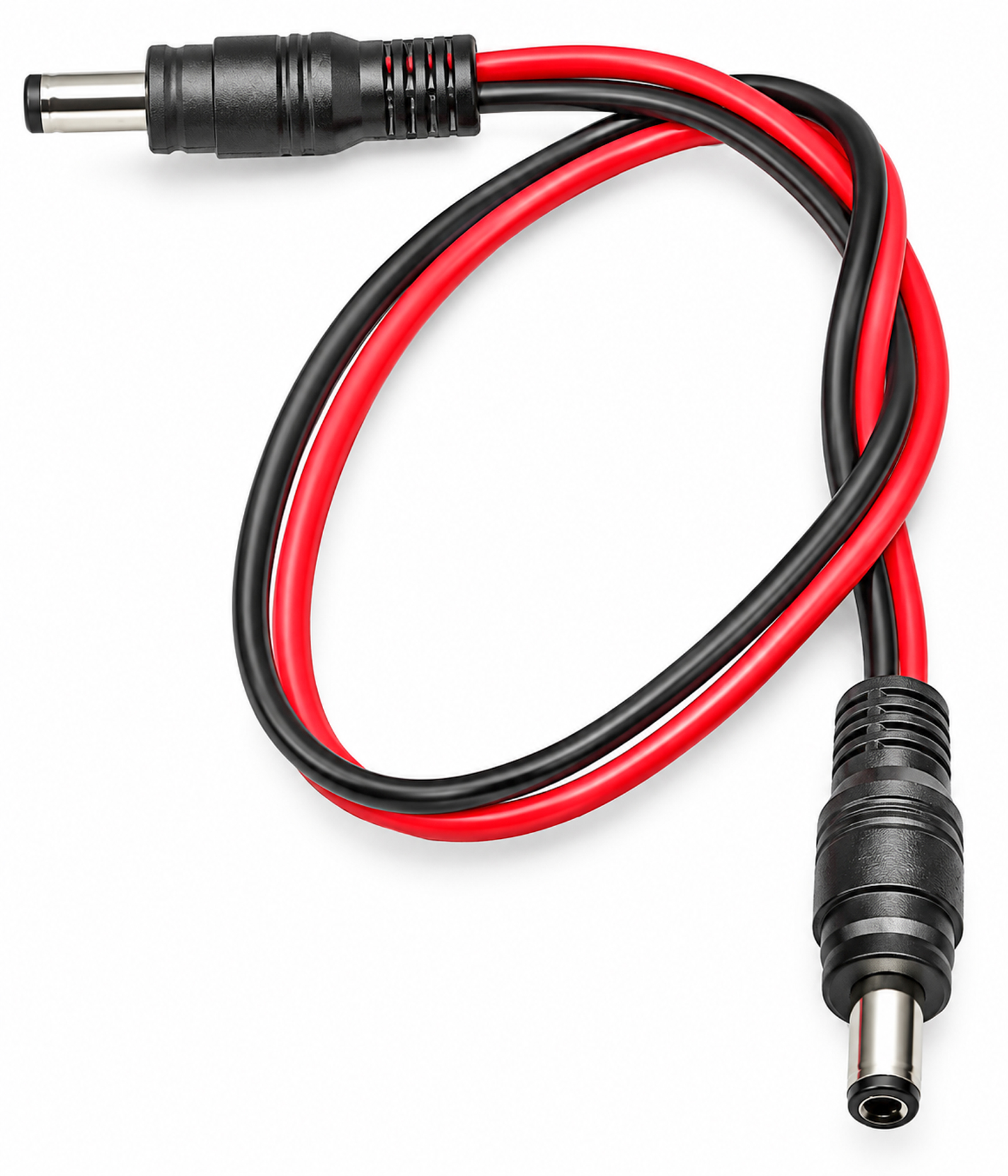

Input Cable
The included input power cable uses 5.5 x 2.5 mm male connectors
and can be used to connect a compatible DC power source to the converter.
For direct-wire installations, one connector may be removed to expose the
two 16AWG input wires.
The converter input uses a 5.5 x 2.5 mm female DC jack.
Make sure the power-source polarity is correct before connection.
Package Contents

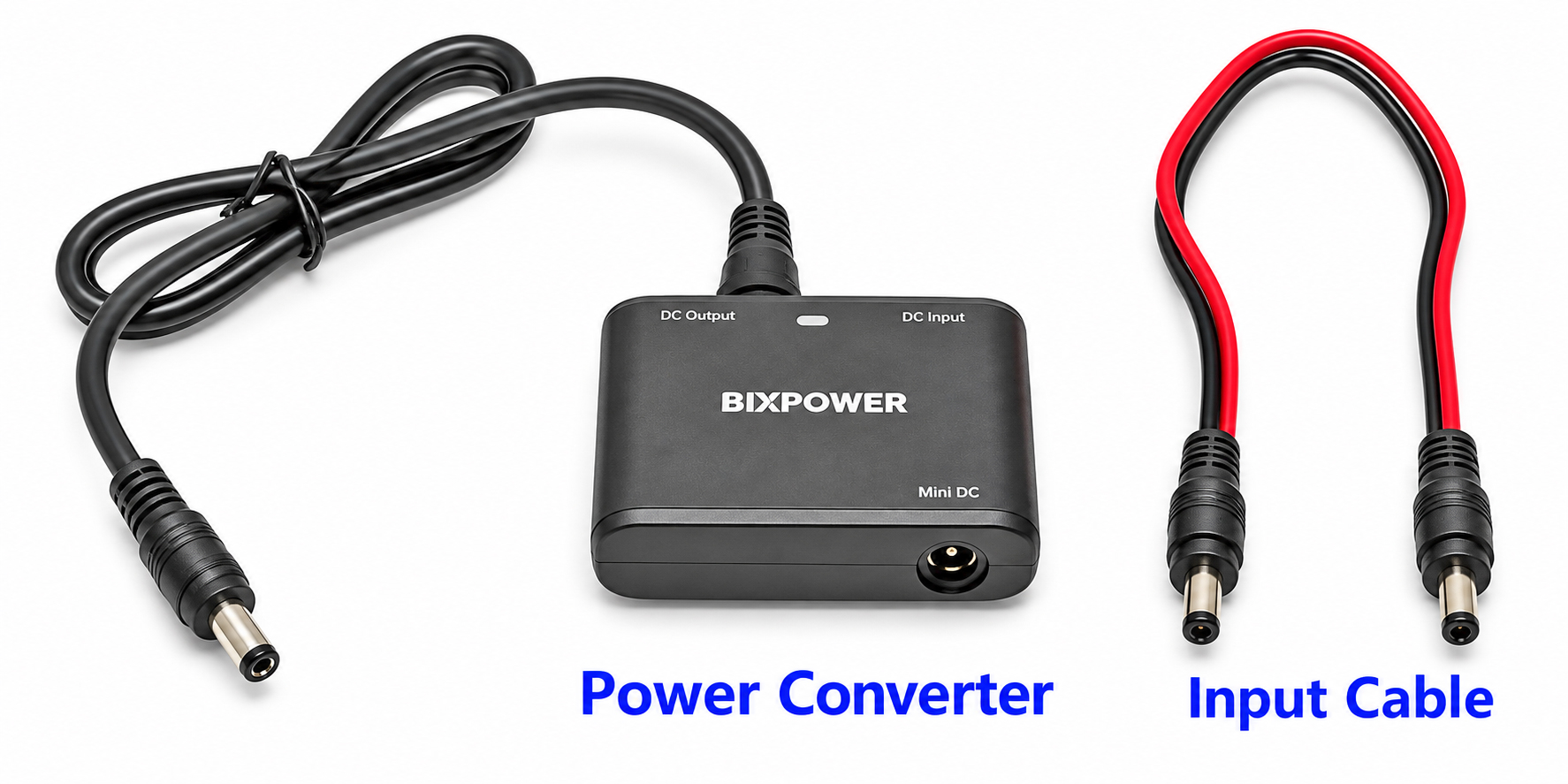

- BiXPower BX-DD90M2 90W Mini DC to DC Power Converter × 1
- 24V Output Cable × 1
- 16AWG Input Cable × 1
Why Choose the BX-DD90M2-24V?
The BX-DD90M2-24V combines a wide 10V-30V input range,
regulated 24V output, up to 90W power,
high conversion efficiency and multiple connection options in an unusually
small package.
Whether you need to run 24V electronics from a 12V battery, a vehicle
electrical system, a solar-powered DC source, or another compatible DC
power supply, the BX-DD90M2-24V provides a compact and flexible way to
obtain stable 24V DC power.
