BAT-BX3691-Bare

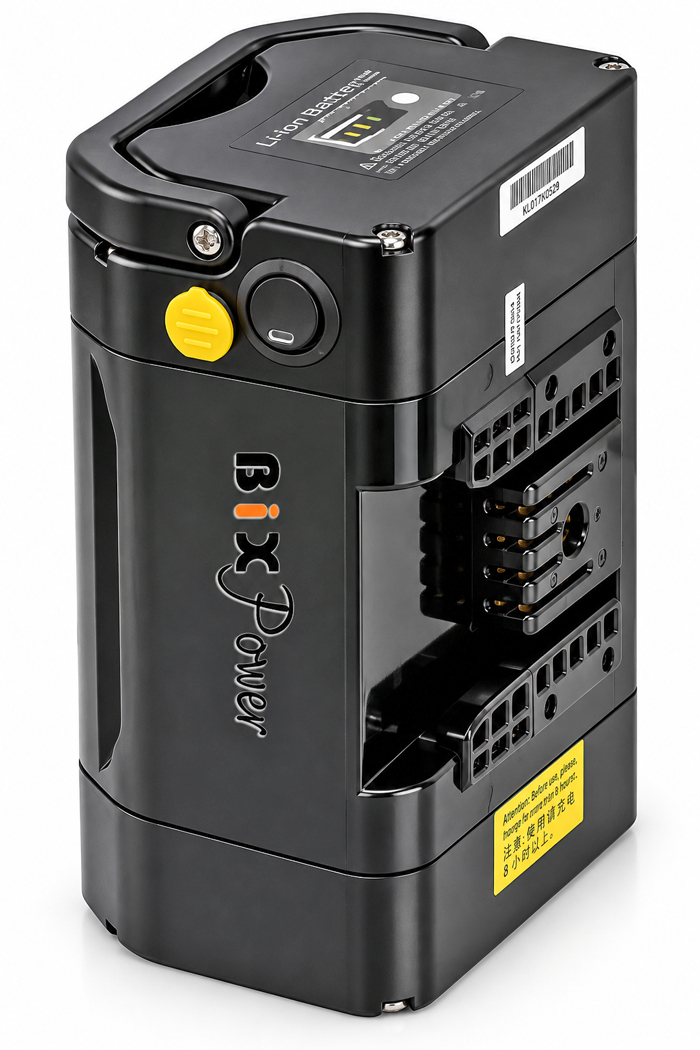

36V 11.6 Ah (418Wh) BX3691 Lithium Ion Bare Battery. Battery only, AC charger and output connection box are not included.

Note: This battery is for using with 500W or less power motors. If your e-bike motor needs more than 500W power, this battery may not work because it can not supply enough power.

High Capacity: 11.6Ah (418 Watt-hour)

Light Weight: weighs only ~5 pounds. (same capacity Lead-Acid battery would be around 30 pounds).

Small Size: 7" x 5" X 3.8", can fit in many different places.

Very Powerful: continuous output up to 400-500W, maximum burst output up to 500W.

High Quality: Made with high quality Panasonic Lithium Ion cells.

High Durability: Water-resistant and firm ABS plastic casing. The internal pack is stabilized by braces that can avoiding mechanical accidents caused by vibration.

High Safety: Built-in PCB protection to prevent short circuit, over-current, over-heat, over-charge, over-discharge.

1	4-Level LED indicator
2	15A Fuse
3	Power on/off
4	Handlebar
5	Battery contact socket
6	Charging input jack

Output Voltage: 30V ~ 42V, Nominal Voltage: 36V;
Maximum Continuous Output Current: 15A (Maximum Continuous Output Power: 450W ~ 500W);
Maximum Burst Output Power ( up to 10 minutes) Current: 18A

Safety Features

Water-resistant and firm ABS plastic casing.
Built-in PCB protection.
Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
The internal pack is stabilized by braces, thereby avoiding mechanical accidents caused by vibration.

Specifications:

Model No.	BX3691B
Cell Brand	Panasonic
Chemistry	Lithium-ion
Voltage	Nominal Voltage: 36 V Minimum Voltage: 30V Maximum Voltage: 42.55V

Capacity Rate	36V 11.6Ah (or 418 Watt-hour)

Charge Voltage Limit	42.5V
Max. Charge Current	2.5 A
Continuous Discharge Current	15 A
Burst Discharge Current (up to 10 minutes)	18 A

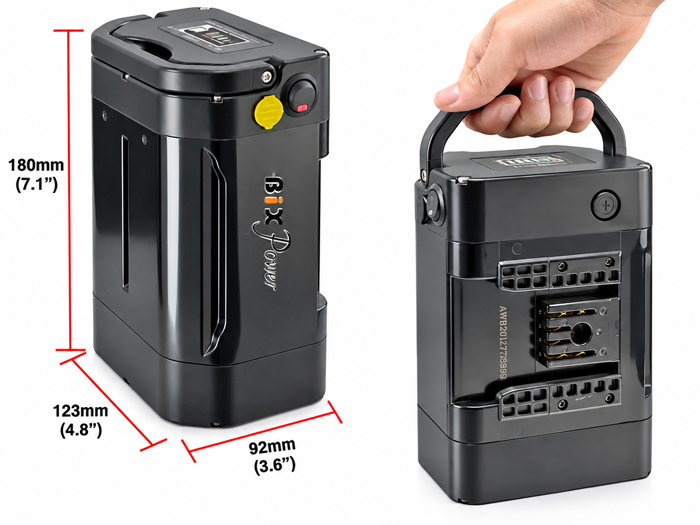

Size	180.00 x 123.00 x 92.00 mm ( or 7" x 5" X 3.8")
Weight	2.33 kg ( or 5.1 pound)
Operate Temp. Charge	0～45 ℃
Operate Temp. Discharge	-20～60 ℃
Storage Temp.	-20～40 ℃
Cycle Life	500 Times
PCB Safety Function	Cell balancing Over-discharge Over-current protection Over-charge Temperature protection Secondary protection

Package Contents:

Battery only. No AC charger, no output connection box.
