This package comes with Two BiXPower BP90 16V high capacity lithium ion rechargeable batteries and one AC charger, one ResMed AirSense 10 DC Converter.
Each battery capacity is 96Wh, two batteries combined capacity is 192 Watt-hour.
Special 24V DC Power Converter for ResMed Airsense 10 devices:
A 24V DC converter specially designed for a ResMed AirSense 10 CPAP machine. It can power ResMed AirSense 10 CPAP machines for 2 ~ 3nights with the humidifier turned off.
This power adapter can convert 12V DC (Range 10V ~ 21V) power to 24V DC power. Its 24v output has a special connector for ResMed Airsense 10 device
A single battery Port III (16V port) may not supply enough Amps surge current to start a CPAP machine. It is better to use Output Port II ( 9 ~ 12V Port) when use one battery alone to power a CPAP
machine . Just connect S10 converter
to battery Port II with enclosed C37 connector tip like this:

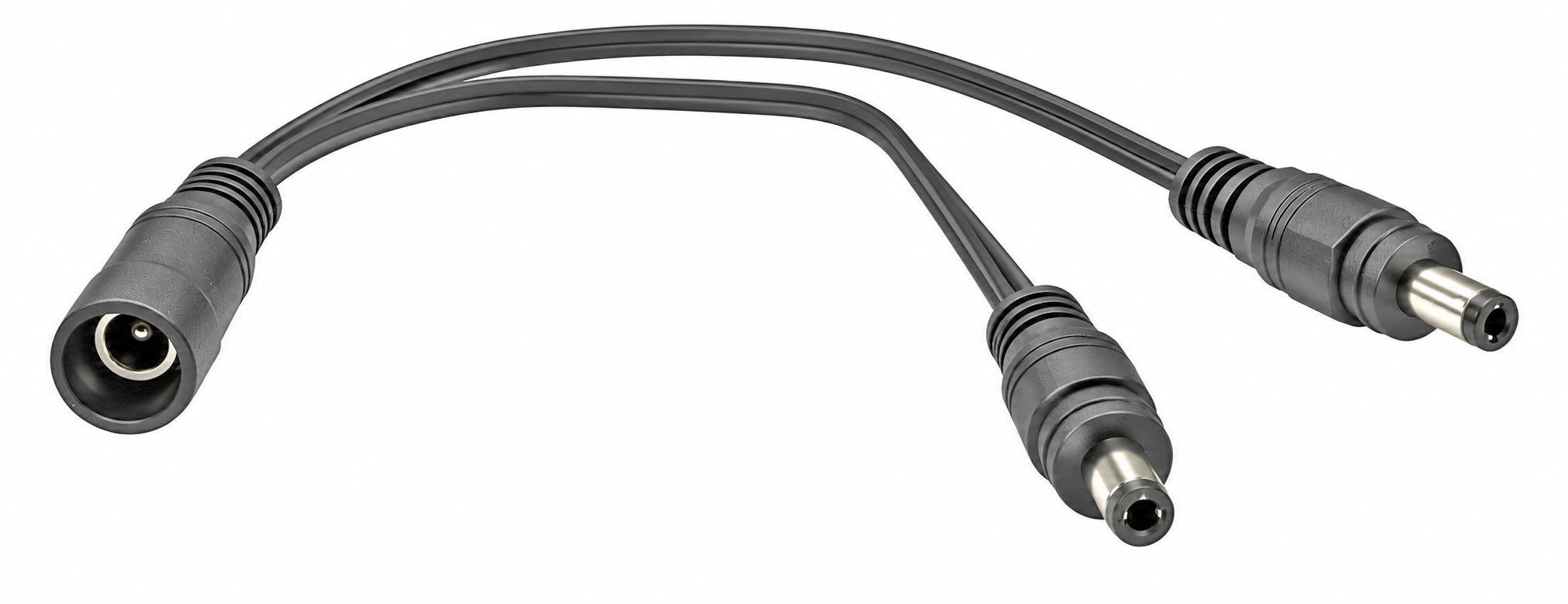

Or use Y 25 Split Dongle to connect two batteries together
Then plug S10 DC converter to Y25 split dongle port like this:
Wide range input voltage: This DC converter can accept input voltage from 10V up to 21V.
Small size, light weight, easy to carry. Weight: 6 oz, Dimension: 3" x 2" x 1"
Input Voltage: 10V ~ 21V DC
Input Connector: 5.5 x 2.5mm Barrel
Connector Input Polarity: Positive
Output voltage: 24V DC
Maximum output: 90W ( 3.75 Amps @ 24V)
Output connector: Special connector for ResMed S10
Output cord length: 70" with ferrite
Adapter Dimension: 3" x 2" x 1"
Adapter weight: 6 oz

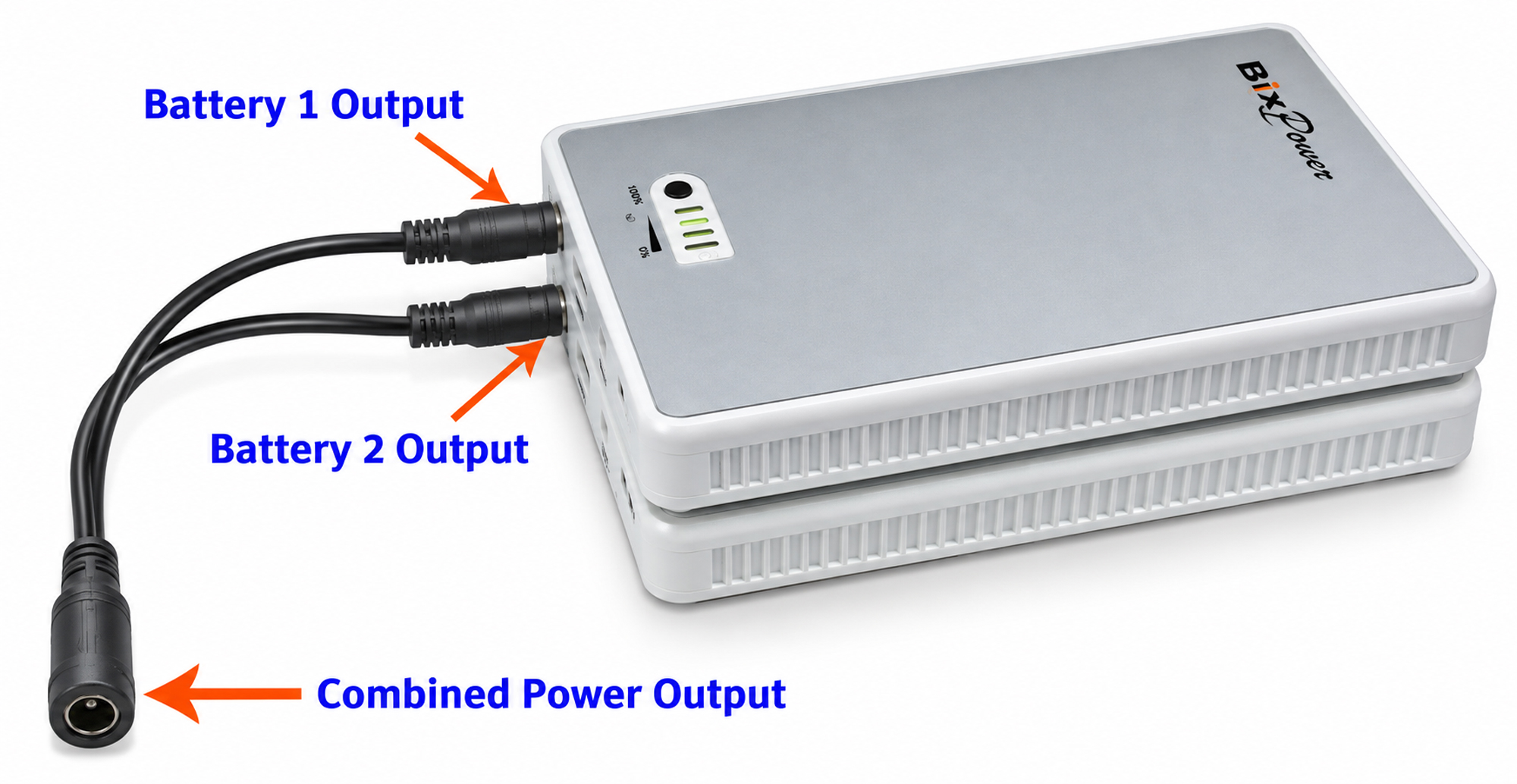

To use two batteries together with ResMed S10 converter, plug Y25 split cable male ends to Battery 1 and Battery 2 output port then plug S10 DC converter to Y25 split cable female end, just like this:
Please connect this converter to battery & CPAP Machine
Exactly in this order:
Step 1: First, connect Y25 split dongle two male connectors to two battery 16V output ports, then plug S10 DC power converter to Y25 female jack
Sept 2: Then connect powered S10 DC power converter to CPAP Machine.
If you do not follow this order, DC converter may turn to protection mode and does not power CPAP machine. In this case, just unplug the DC converter from CPAP machine, make sure the DC converter has power ( the LED light is on), then plug it to CPAP machine again.
When stop using this battery for CPAP machine: Turn off battery and Unplug DC converter from CPAP machine. If you need to use battery for CPAP machine again: Following above Step 1 and Step 2 again to connect battery to CPAP machine.
You may use each battery separately by plug ResMed S10 converter to battery Output Port II ( 9 ~ 12V) with BiXPower C37 connector tip (included with package)like this:
A single battery Port III (16V port) may not supply enough Amps surge current to start a CPAP machine. It is better to use Output Port II ( 9 ~ 12V Port) when use one battery alone to power a CPAP machine . Just connect S10 converter to battery Port II with enclosed C37 connector tip.
BP90 Battery Features:
BP90battery compact size allows it to easily fit into a laptop/notebook carry bag.

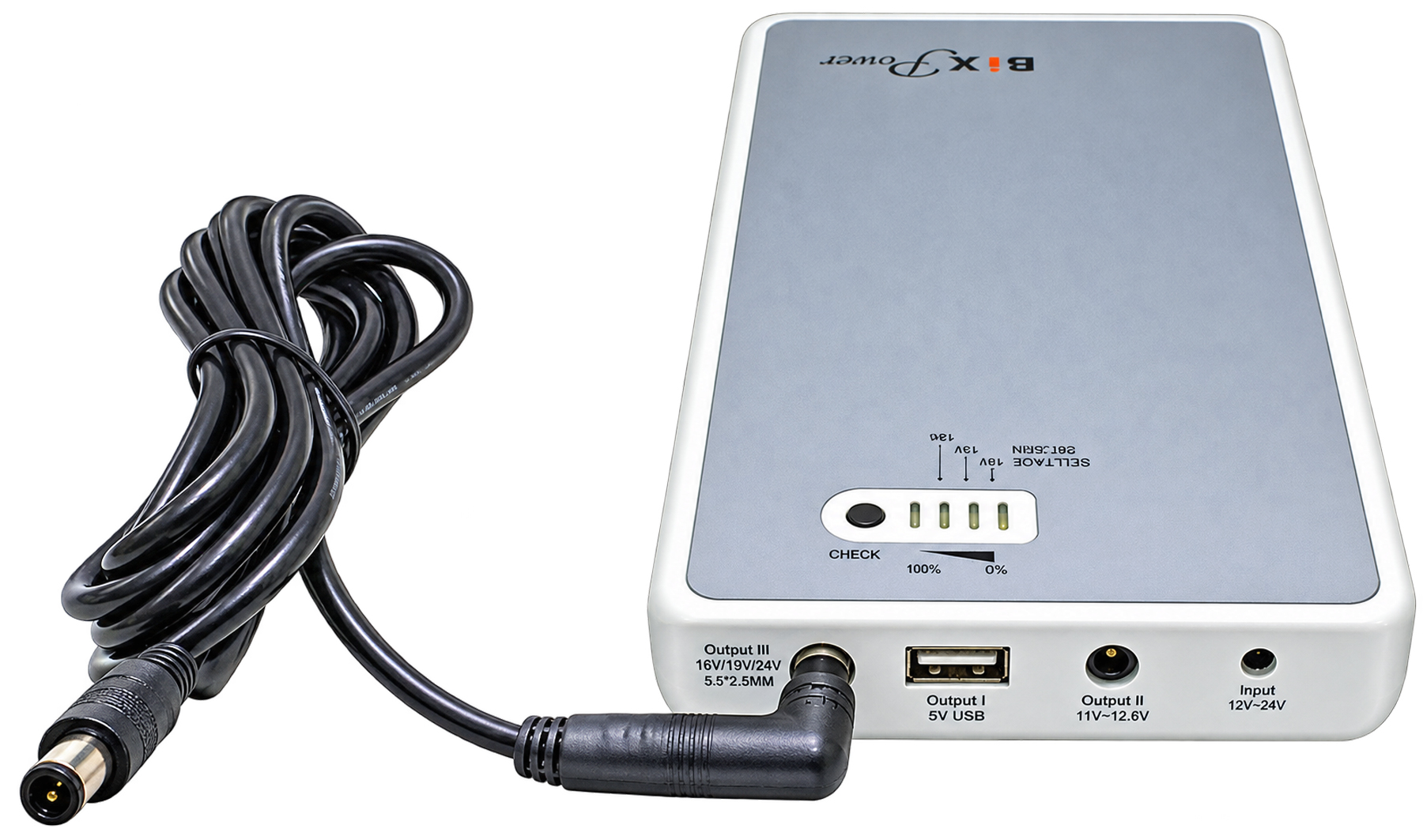

1. 3 Output Ports:
Output I is a 5V USB port that can be used to power or charge cell phones,
iPhone/iPod/iPod Touch, MP3/MP4 players, PDAs and any other device that can be charged
from a USB port (USB power cable not included).
Output II has a nominal voltage of 10.8V (Range from 9V ~ 12.6V). This port's power comes directly from battery cells without voltage regulation. When the battery is fully charged, its voltage is 12.6V. Output voltage will then decrease gradually. Most of the time, the output voltage will be around 10V ~ 11V ( nominal voltage is 10.8V). When the voltage drops to 9V, the port will shut off and stop providing power. This port can be used to power portable DVD players and digital photo frames.
Output III is a 16V port. This port can be used to power many different electronic devices that require 16V stable voltage. You may use BiXPower Z6 cable connect to battery 16V output port.
A single battery has a capacity of 96 Watt-hour (or 26100 mAh). Two batteries capacity will be 192 Watt-hour.
3. Wide range input
This battery can be charged from any 12-24V DC power source. It can also use your current laptop AC power adapter as a charger if it has a 5.5 x 2.1mm
96 Watt-Hour Per Battery
Input Charging Port:
Input Voltage Range: DC 12 ~ 24V. Connector Size: 5.5 x 2.1mm
Port I: 5V USB Port; Maximum Output Current: 2.1A
Port II: Nominal Output Voltage 10.8V
Voltage Range 9V ~ 12.6V
Size: 3.5 x 1.35mm;
Output Voltage: 16V
Output Connector Size: 5.5 x 2.5mm
Charging time /Temperature
4-6 hours / 0～45 ℃
186 x 114 x 22.5mm ( or 7.5" x 4.5" x 0.9")
621g ( or 1.4 lb)
4 level LED indicator
Built-in Protection Circuit:
-Short circuit protection
- 20～ 60 ℃
- 20～40 ℃
Output Port I & Port II
Port II's output voltage range is 9V to 12.6V. Nominal voltage is 11.1V. When the battery is fully charged, its voltage is 12.6V. Output voltage will then decrease gradually. Most of the time, the output voltage will be around 10V ~ 11V ( nominal voltage is 11.1V). When the voltage drops to 9V, the port will shut off and stop providing power. This port can be used to power portable DVD players and digital photo frames.
Output Iis a 5V USB port. Its maximum output current is 2.1A, which can be used to power or charge iPad, tablet computers and any other device that can be charged from a USB port (USB power cable not included).
Charge the battery: This battery can be charged from any 100V ~ 240V, 50Hz/60Hz AC power source with the battery AC charger.
You may charge each battery separately:
You may also use one charger to charge two batteries together with a 5.5x2.1mmsplit dongle cable.
Using a split Dongle to charge two batteries at same time.
You may also charge battery from a car cigarette socket with optional Car Charge Cable CH160.

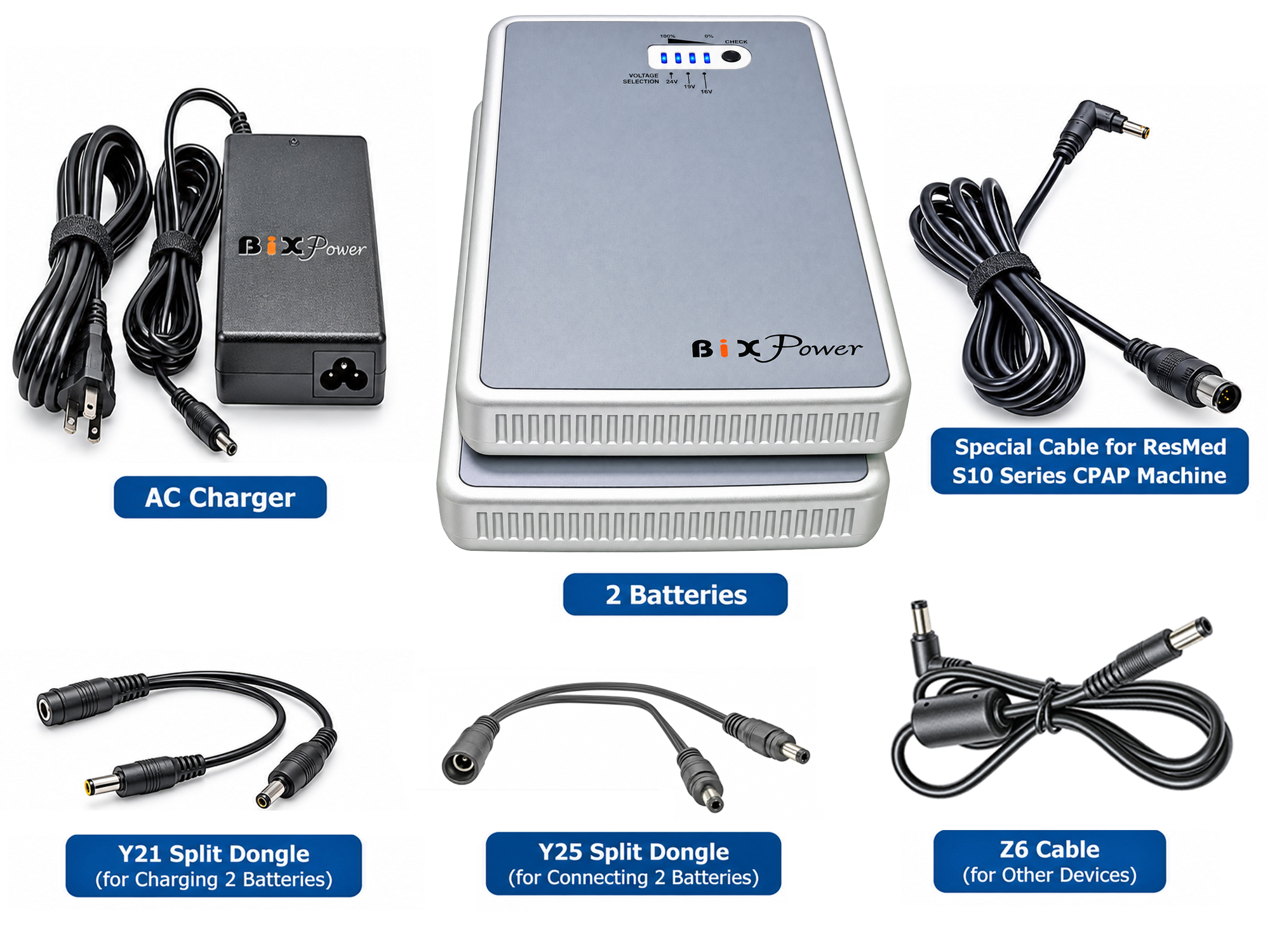

Two BP90-16V Batteries
One ResMed S10 DC Converter
One Y25 Split Dongle for Output
One AC Charger with Power Cord
One 5.5 x 2.1mm Split Dongle for Charger
One C37 Connector Tip
