BiXPower BP100X2 – 192Wh Dual Rechargeable Battery Pack
with 16V, 19V & 24V Selectable Output

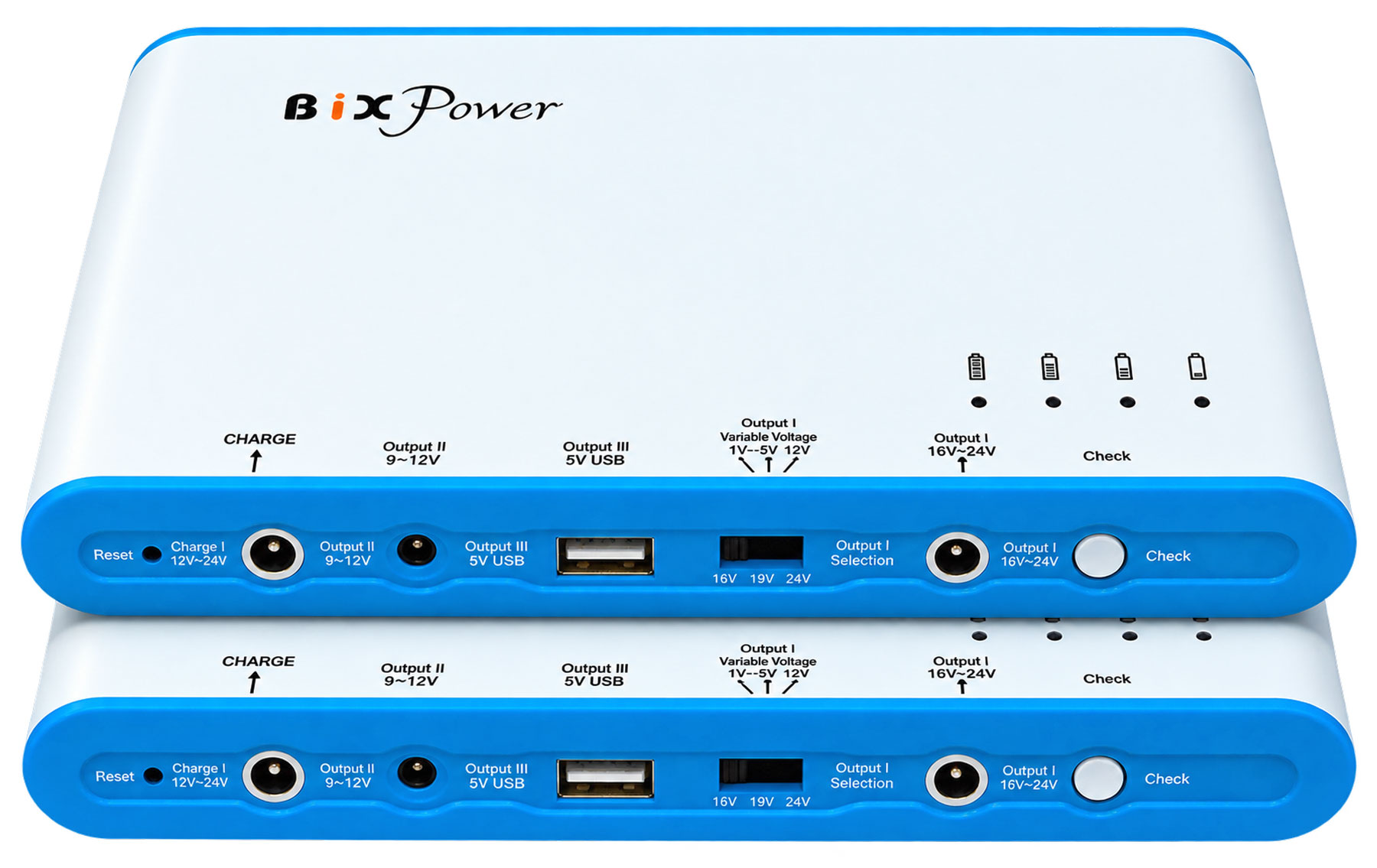

The BiXPower BP100X2
is a high-capacity
192Wh rechargeable battery system
designed to extend operating time
for compatible laptop computers,
portable electronics and DC-powered equipment.
This package includes
two BiXPower BP100 rechargeable batteries,
each with a capacity of 96Wh,
and a special
Y25 power splitter cable
that allows both batteries to work together
through their regulated DC output ports.
The system offers selectable
16V, 19V or 24V DC output,
making it suitable for a variety of
compatible laptop computers
and electronic devices.
By combining the energy capacity
of two BP100 batteries,
the BP100X2 provides longer
operating time than a single
BP100 battery, without requiring
frequent battery changes.
Key Features
-
192Wh total energy capacity:
Two 96Wh rechargeable batteries.
-
Selectable regulated output:
16V, 19V or 24V DC.
-
Longer runtime:
Two batteries work together
through the included Y25 splitter.
-
Three output ports per battery:
Regulated DC, unregulated DC and USB.
-
USB output:
5V, up to 2.1A per battery.
-
Flexible charging:
12–24V DC charging input.
-
Compact design:
Each battery weighs approximately 1.4 lb.
-
Included accessories:
Y25 splitter, Port I output cable
and AC charger.
-
Optional connector tips:
Available for compatible laptops
and DC-powered devices.
What's Included in the BP100X2 Package?
Standard package: Two BP100 batteries,
one AC charger, one Y25 splitter
and one DC output cable.
- 2 × BiXPower BP100 96Wh rechargeable batteries
- 1 × BiXPower Y25 power splitter cable
- 1 × Port I DC output cable (Z6)
- 1 × Compatible AC battery charger
Optional connector tips and other
accessories are sold separately
unless specifically selected
when ordering.
192Wh Total Capacity for Longer Runtime
Each BP100 battery stores
96 watt-hours (Wh)
of rechargeable energy.
Together, the two batteries
provide a combined nominal capacity
of 192Wh.
When connected using the included
Y25 splitter, the batteries
can provide extended operating
time for compatible equipment.
This is particularly useful for
laptop computers and other devices
that need portable DC power
for extended periods.
Important:
Combining two batteries increases
available energy capacity and
potential runtime.
It does not mean the system
can safely power a device
that exceeds the output
capability of a single BP100.
Estimated Operating Time
Actual runtime depends on
device power consumption,
battery condition,
selected output voltage,
and conversion efficiency.
| Device Power Consumption |
Estimated Runtime* |
| 10W | 15.4 hours |
| 15W | 10.2 hours |
| 20W | 7.7 hours |
| 30W | 5.1 hours |
| 40W | 3.8 hours |
| 50W | 3.1 hours |
| 60W | 2.6 hours |
*Estimates assume approximately
80% usable energy
(153.6Wh from the combined 192Wh).
Actual runtime may vary.
These examples are not guaranteed results.
How the Dual-Battery System Works
The included
BiXPower Y25 splitter
connects the regulated
Port I outputs of both
BP100 batteries into
one common DC output.
Both batteries must be set
to the same output voltage
before connecting them.
The Y25 cable allows both
batteries to contribute
power to the connected device.
The batteries do not have
an active current-balancing
system between them.
One battery may provide
more current than the other
and may discharge earlier.
For this reason,
each individual battery
must be capable of powering
the connected device independently.
Dual-Battery Connection with Output Cable
The standard Z6 output cable
connects to the female output
of the Y25 splitter.
The combined output can then
power compatible laptop computers
or other electronic devices.
Optional Output Cable with On/Off Switch
An optional special output
cable with an integrated
On/Off switch is available.
This cable can be used
instead of the standard
Z6 output cable
in compatible configurations.
Note:
The special On/Off switch cable
is not included in the
standard BP100X2 package.
Important Instructions for Connecting Two Batteries
Before Connecting the Batteries
-
Fully charge both batteries.
-
Set both Port I voltage
selectors to exactly the
same output voltage:
16V, 19V or 24V.
-
Confirm that the connected
device can operate from
one BP100 battery alone.
-
Connect the two regulated
Port I outputs through
the included Y25 splitter.
-
Connect the appropriate
output cable and
compatible device.
-
Do not connect batteries
with different voltage settings.
-
Do not connect the unregulated
Port II outputs or USB outputs
together in parallel.
Only BiXPower battery models
specifically designed for
parallel operation should
be connected using this method.
Do not assume that unrelated
rechargeable batteries can
be safely connected in parallel.
Three Power Output Ports on Each BP100 Battery
Each BP100 battery features
three different power output
ports, allowing it to
power a variety of
compatible devices.
Output Port I – Regulated 16V, 19V or 24V DC
Port I provides selectable
regulated DC output
for compatible laptop
computers and other
electronic equipment.
The output voltage is
selected using the
built-in hardware switch.
| Selected Output Voltage |
Maximum Current per Battery |
| 16V DC | 4A |
| 19V DC | 3.5A |
| 24V DC | 2.5A |
The maximum combined output
of all three ports on
each BP100 battery is 65W.
The BP100X2 parallel
configuration is intended
to extend operating time
rather than support a
higher-power device.
Port I Output Cable
Port I uses a
5.5 x 2.5mm
barrel connector.
The included Z6 cable
can connect directly
to compatible devices
or through an optional
C-series connector tip.
Output Port II – 9V to 12.6V DC
Port II provides
unregulated battery
voltage ranging from
approximately
9V to 12.6V.
Its nominal output
voltage is 11.1V.
When the battery is
fully charged,
the voltage is approximately
12.6V and gradually
decreases during discharge.
Port II is suitable
only for devices that
can accept the full
9–12.6V voltage range.
It is not a constant
regulated 12V output.
An optional compatible
Port II output cable
is available separately.
Output Port III – 5V USB
Each BP100 battery
includes a 5V USB
output rated up
to 2.1A.
The USB port can power
or charge compatible
phones, tablets,
and other USB-powered
electronic devices.
USB charging cables
are not included.
Compact and Portable Battery Design
Each BP100 battery
measures approximately
180 x 110 x 22.5mm
and weighs approximately
621g (1.4 lb).
The two-battery design
offers flexibility:
use the batteries
together for longer
runtime or individually
for separate compatible
applications.
Charging the BP100X2 Battery System
Each BP100 battery
has a built-in
charging controller.
The charging input
accepts compatible
12–24V DC power
through a 5.5 x 2.5mm
charging connector.
The supplied AC charger
accepts 100–240V AC,
50/60Hz input.
Option 1 – Charge Each Battery Separately
Connect the included
AC charger to one
BP100 battery.
After charging is
complete, disconnect
the charger and
charge the second battery.
Option 2 – Charge Two Batteries Together
The included Y25
splitter can also
be used in the
charging configuration
illustrated above.
When charging two
batteries from one
charger, the available
charging power is shared.
Charging both batteries
together may take
longer than charging
one battery.
Charging Reminder:
Use only the supplied
or BiXPower-approved
compatible charger.
Do not connect two
independent chargers
to the same Y25
splitter arrangement.
How to Select the Correct Laptop Voltage
Before connecting
your laptop,
check its required
DC input voltage.
You can normally find
this information on
the laptop's original
AC power adapter
or on the laptop itself.
Set both BP100
batteries to the
same voltage that
matches your device:
16V, 19V or 24V.
Important:
Voltage compatibility
alone is not sufficient.
Also verify power demand,
connector dimensions,
polarity and any
manufacturer-specific
laptop identification
requirements.
Optional C-Series Connector Tips
The included Port I
output cable uses
a 5.5 x 2.5mm
male barrel connector.
Optional BiXPower
C-series connector
tips can adapt this
connector to other
compatible DC power
jack sizes.
Connector tips change
the physical connector
configuration only.
They do not change
the selected output
voltage.
The optional connector
tip kit is not included
unless selected when ordering.
Technical Specifications
| Brand |
BiXPower |
| Product Model |
BP100X2 |
| Product Code |
BAT-BP100X2 |
| Battery Configuration |
Two BP100 rechargeable batteries |
| Battery Chemistry |
Rechargeable lithium-ion |
| Capacity per Battery |
96Wh |
| Total Battery Capacity |
192Wh nominal |
| Port I Output Voltage |
16V, 19V or 24V regulated, selectable |
| Port I Maximum Current per Battery |
4A at 16V; 3.5A at 19V; 2.5A at 24V, subject to 65W combined output limit per battery |
| Port I Connector |
5.5 x 2.5mm barrel connector |
| Port II Output Voltage |
9–12.6V DC, unregulated |
| Port II Nominal Voltage |
11.1V |
| Port II Maximum Current |
5A per battery, subject to combined output limit |
| Port III Output |
5V USB, up to 2.1A per battery |
| Maximum Combined Output |
65W across all three ports per battery |
| Charging Input |
12–24V DC |
| Charging Connector |
5.5 x 2.5mm |
| Typical Charging Time |
Approximately 4–6 hours per battery, depending on charging conditions |
| Dimensions per Battery |
180 x 110 x 22.5mm |
| Weight per Battery |
Approximately 621g (1.4 lb) |
| Total Battery Weight |
Approximately 1.24kg (2.8 lb), excluding cables and charger |
| Battery Indicators |
Four-level LED charge indicators |
| Protection |
Overcharge, overdischarge, overcurrent, overtemperature and short-circuit protection |
| Warranty |
One-year limited warranty |
Typical Applications
The BP100X2 is designed
for compatible electronic
equipment that benefits
from extended portable
battery runtime.
- Compatible laptop and notebook computers
- Portable electronic instruments
- Communications equipment
- Compatible monitoring devices
- Portable DC electronic systems
- Compatible digital media equipment
- USB-powered electronic devices
Battery Safety and Care
-
Do not disassemble,
puncture, crush,
or modify the batteries.
-
Do not expose batteries
to excessive heat,
water or fire.
-
Do not short-circuit
battery output terminals.
-
Use only compatible
chargers and accessories.
-
Stop using any battery
that is damaged,
swollen or overheating.
-
Store batteries in
a cool, dry location.
-
For extended storage,
maintain approximately
40–60% charge and
check periodically.
-
Do not leave batteries
fully discharged
for long periods.
-
Recycle used batteries
through appropriate
battery recycling programs.
Air Travel and Transportation
Each BP100 battery
has a capacity of 96Wh,
below the standard
100Wh threshold
commonly used for
spare lithium-ion
batteries on passenger aircraft.
However, airline
and security restrictions
still apply.
Spare batteries must
generally be transported
in carry-on baggage
with terminals protected
against short circuits.
The BP100X2 package
contains two separate
96Wh batteries,
not one integrated
192Wh battery.
Always confirm current
airline rules and
transport requirements
before traveling.
Frequently Asked Questions
How much battery capacity does the BP100X2 provide?
The package includes
two 96Wh BP100 batteries
for a total nominal
energy capacity of 192Wh.
Can I connect both batteries to one laptop?
Yes, using the included
Y25 splitter through
the regulated Port I
outputs, provided both
batteries are set to
the same voltage and
each battery can power
the laptop independently.
Does connecting two batteries double the output power?
No. The purpose of
connecting the batteries
is to extend runtime.
Do not use this arrangement
to power equipment
that exceeds the output
capability of one BP100.
Can the batteries be used separately?
Yes. Each BP100
is an independent
96Wh rechargeable
battery with its own
DC and USB output ports.
Can I select 16V, 19V or 24V output?
Yes. Each battery's
regulated Port I
provides selectable
16V, 19V or 24V output.
Both batteries must
use the same voltage
when connected together.
Can I charge both batteries with one charger?
Yes. The original
BP100X2 charging
configuration supports
using the included
Y25 splitter to
connect both batteries
to one compatible charger.
Charging time may
increase when charging
two batteries together.
Does the package include optional laptop connector tips?
No. The standard package
includes the Z6 output
cable. Optional C-series
connector tips may be
selected or purchased
separately.
Can I use the BP100X2 with a 19V laptop?
Yes, if the laptop
accepts 19V DC,
its power consumption
is within the battery
rating, and the connector,
polarity and any
identification requirements
are compatible.
Can I take the BP100X2 on an airplane?
The package contains
two separate 96Wh
lithium-ion batteries.
They may qualify
under standard airline
rules for spare batteries
up to 100Wh each,
subject to airline
restrictions and
carry-on requirements.
Confirm before travel.
One-Year Limited Warranty
The BiXPower BP100X2
includes a
one-year limited
warranty
covering qualifying
manufacturing and
material defects.
Rechargeable batteries
naturally lose capacity
over time due to use
and aging.
Normal capacity
reduction is not
considered a manufacturing
defect and is not
covered by the
limited warranty.
Extend Your Portable Power with BP100X2
With two 96Wh rechargeable
batteries, a combined
192Wh nominal energy
capacity, selectable
16V, 19V and 24V
regulated outputs,
and the included
Y25 splitter,
the BiXPower BP100X2
provides a flexible
portable power solution
for compatible laptops
and DC electronic equipment.
BiXPower – Professional Portable Power Solutions.
