BiXPower 12-Piece DC Power Connector Tip Kit
The
BiXPower CNT-C12Kit includes 12
interchangeable DC power connector tips for adapting
a standard
5.5 x 2.5mm male DC power plug
to different connector sizes used by compatible laptops,
rechargeable battery systems, DC power adapters,
and other electronic equipment.
Each connector tip has a device-specific male plug
on one end and a common 5.5 x 2.5mm female barrel
jack on the other end. Select the connector that
matches your device and attach it to a compatible
power cable.

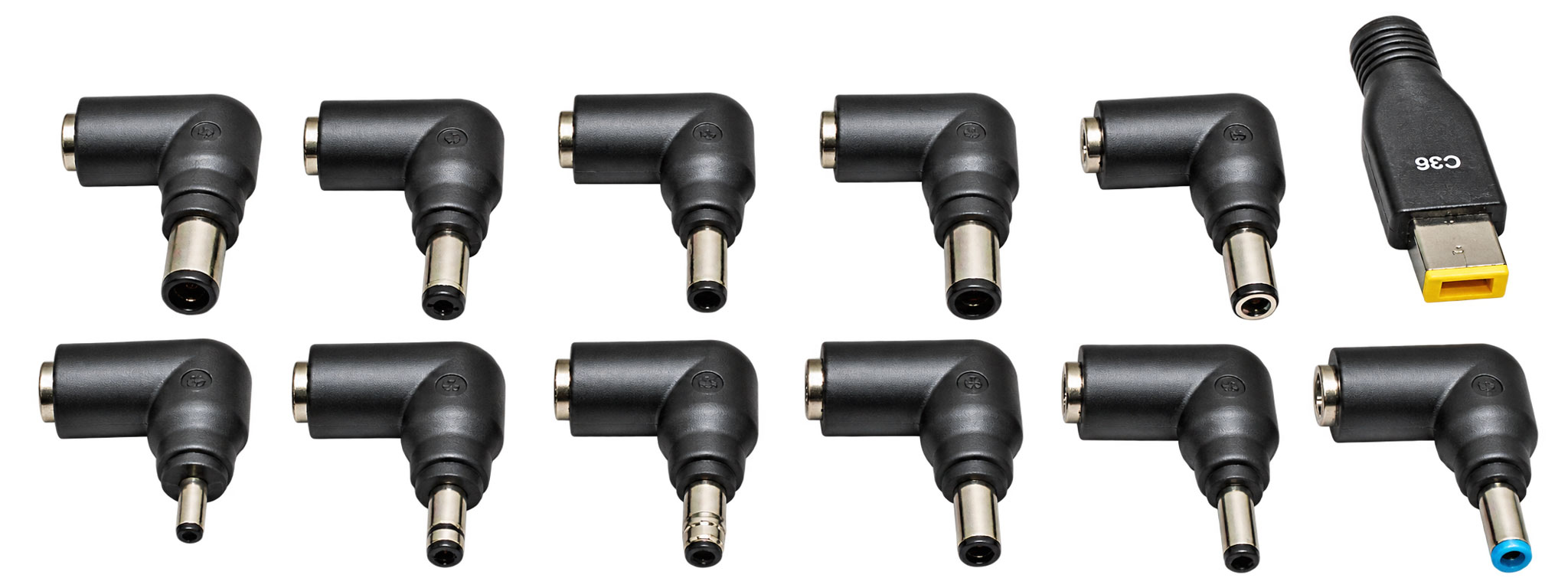

BiXPower C12Kit - 12 DC connector tips with
different plug sizes.
Product Features
12 Connector Tips
A selection of commonly used DC barrel
and laptop-style power connectors.
Standard Female Input
Every tip accepts a 5.5 x 2.5mm male
DC barrel plug.
Right-Angle Connector Design
L-shaped connectors provide a convenient
connection orientation for compatible devices.
Interchangeable Design
Use different tips with a compatible
5.5 x 2.5mm DC power cable.
How the Connector Tips Work
The front end of each adapter provides a specific
male connector size. The rear end uses a common
5.5 x 2.5mm female jack.
Example of an interchangeable C-series
DC power connector tip.
Important Connector Requirement
The original plug on your power cable must be
5.5mm outside diameter x 2.5mm inside diameter.
This kit is not designed to connect directly to
5.5 x 2.1mm plugs or other incompatible sizes.
Package Contents - 12 Connector Tips
The following connector models are listed for
the CNT-C12Kit. Click an individual connector
model to view its product information.
|
Model
|
Male Connector Size
|
Application / Description
|
|
C1
|
4.75 x 1.75mm
|
DC barrel connector tip
|
|
C2
|
5.5 x 3.3mm
|
With center pin
|
|
C3
|
5.5 x 2.1mm
|
DC barrel connector tip
|
|
C6
|
6.5 x 4.5mm
|
With center pin
|
|
C23
|
5.5 x 2.5mm
|
DC barrel connector tip
|
|
C24
|
7.4 x 5.08mm
|
HP-style connector with center pin
|
|
C25
|
4.0 x 1.7mm
|
DC barrel connector tip
|
|
C27
|
7.4 x 5.08mm
|
Dell-style connector with center pin
|
|
C31
|
3.0 x 1.1mm
|
Small DC barrel connector tip
|
|
C32
|
4.5 x 3.0mm
|
Dell-style connector with center pin
|
|
C33
|
4.0 x 1.35mm
|
DC barrel connector tip
|
|
C39
|
See individual product
|
HP-style connector tip
|
Package quantity: 12 connector tips.
Connector models may be updated as older tips
are discontinued and new models become available.
Refer to the current package configuration.
Additional view of the C-series connector assortment.

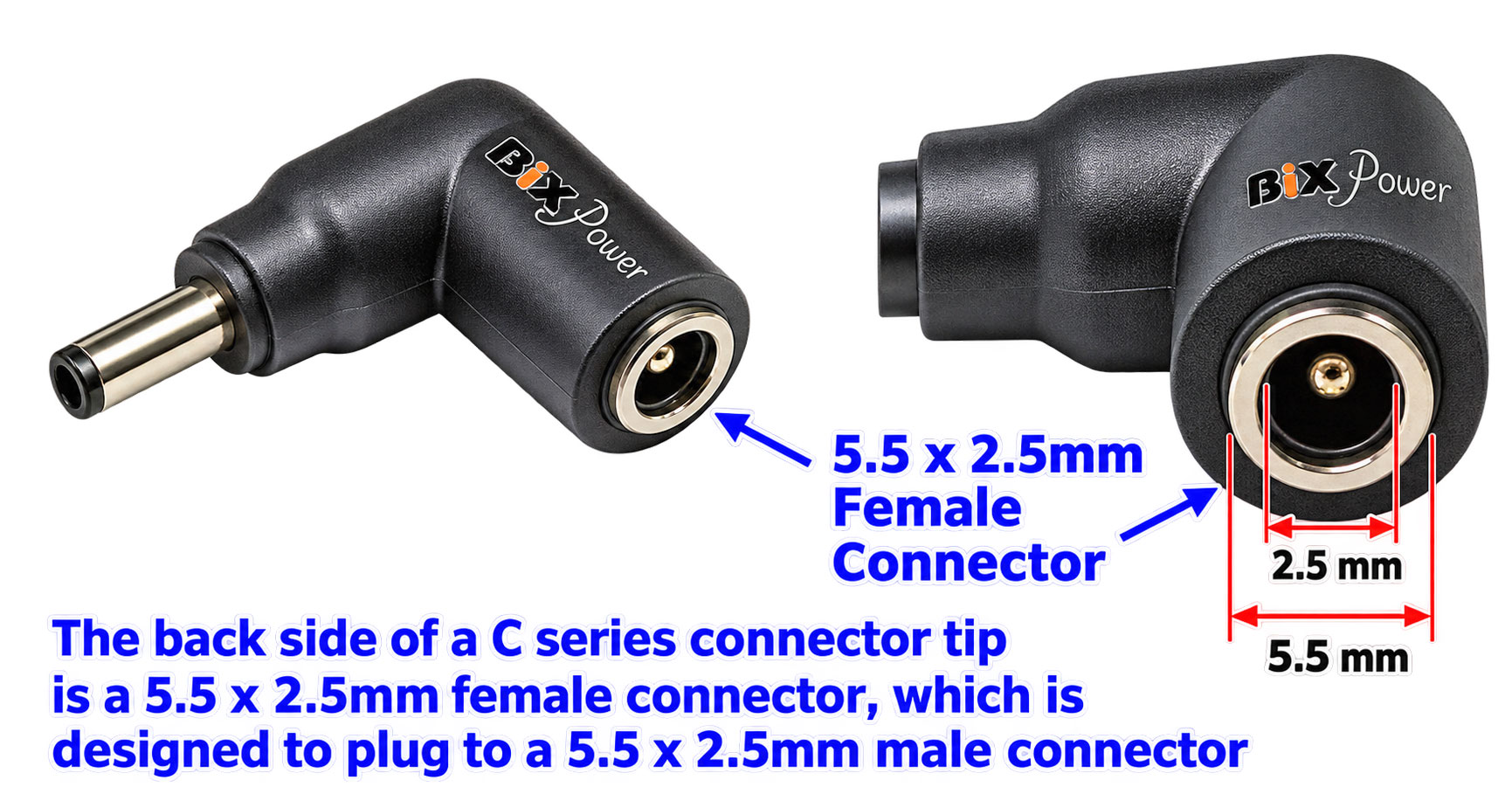

Standard 5.5 x 2.5mm Female Connection
Every C-series connector tip in this kit has a
5.5 x 2.5mm female DC jack
on its rear side.
The female jack accepts a matching 5.5 x 2.5mm
male barrel connector from a compatible DC
power cable or power source.
Rear connector dimensions: 5.5mm outer diameter
and 2.5mm inner diameter.
Connecting a Tip to Your Power Cable
-
Check the original cable connector.
Confirm that it has a 5.5 x 2.5mm male DC plug.
-
Select the matching connector tip.
Compare your device's required connector size,
shape, and center-pin arrangement.
-
Check electrical compatibility.
Verify the voltage, polarity, and available
current before connecting your equipment.
-
Attach the connector tip.
Insert the 5.5 x 2.5mm male cable plug
into the female socket on the rear
of the selected adapter.
-
Connect to the device.
Ensure the connector fits correctly
without forcing it into the power jack.
Example of a C-series connector tip attached
to a compatible DC power cable.
Important: Connector Tips Do Not Convert Voltage
These are passive connector adapters only.
They do not increase, decrease, convert,
or regulate DC voltage.
The connected device receives power from
the original battery or DC power supply.
Before use, confirm that the supplied
voltage, polarity, and available current
meet the device's electrical requirements.
A connector that physically fits does not
necessarily mean that the power source
is electrically compatible.
Some laptops also require identification
signals or special center-pin communication
to recognize a compatible power adapter.
Connector size alone does not guarantee
laptop compatibility.
Technical Specifications
|
Product
|
DC Power Connector Tip Kit
|
|
Brand
|
BiXPower
|
|
Model
|
CNT-C12Kit
|
|
Quantity
|
12 connector tips
|
|
Rear Connector
|
5.5 x 2.5mm female DC jack
|
|
Device Connector
|
Various male connector sizes
|
|
Connector Design
|
Interchangeable, right-angle
|
|
Voltage Conversion
|
None
|
|
Voltage Regulation
|
None
|
|
Required Cable Plug
|
5.5 x 2.5mm male DC barrel connector
|
Frequently Asked Questions
Will these connector tips work with any DC power adapter?
No. The power adapter or cable must have
a compatible 5.5 x 2.5mm male barrel plug.
The output voltage, polarity, and current
must also be suitable for your device.
Can I use these tips with a 5.5 x 2.1mm plug?
No. The female connector on these tips
is designed for a 5.5 x 2.5mm male plug.
A 5.5 x 2.1mm plug is not the specified
mating connector.
Can these tips convert 12V to 19V or 24V?
No. These tips only adapt the physical
connector size. They do not change voltage.
A suitable DC-to-DC converter is required
when voltage conversion is needed.
Will these connectors work with HP and Dell laptops?
The kit includes certain HP-style and
Dell-style connector tips. However,
compatibility depends on the specific
laptop model, connector dimensions,
electrical requirements, and any
adapter-identification functions.
Are all 12 connector models always the same?
The listed kit contains 12 C-series
connector tips. Individual models
may be updated when older tips
are discontinued or replaced.
Does the kit include a battery or power adapter?
No. The kit contains connector tips only.
Batteries, power supplies, and power
cables are not included.
Choose the Right Connector for Your Device
The
BiXPower CNT-C12Kit provides
a convenient selection of 12 interchangeable
DC power connector tips for use with
compatible 5.5 x 2.5mm male power plugs.
Before ordering, check your original
connector dimensions and the power
requirements of your device.
