BiXPower 16.8V 3A Smart Lithium-Ion Battery Charger
For Compatible 14.4V / 14.8V Battery Packs | 5.5 x 2.5mm DC Connector | 4 LED Charge-Level Indicators
Charge compatible 14.4V and 14.8V lithium-ion battery packs with the
BiXPower ACC-17V3A-LED Smart Battery Charger.
Featuring up to 3A charging current, an
MCU-controlled three-stage charging process, and
four LED charge-level indicators, this charger offers
a convenient higher-current charging solution for compatible portable
lithium-ion batteries.
Its standard 5.5mm outer diameter x 2.5mm inner diameter DC barrel connector
makes it suitable for a variety of compatible rechargeable battery packs,
including batteries used with portable electronics, professional video equipment,
field equipment, and other specialized DC power systems.
Compared with lower-current 1.8A chargers, this model can reduce charging
time for batteries that support the higher charging current.

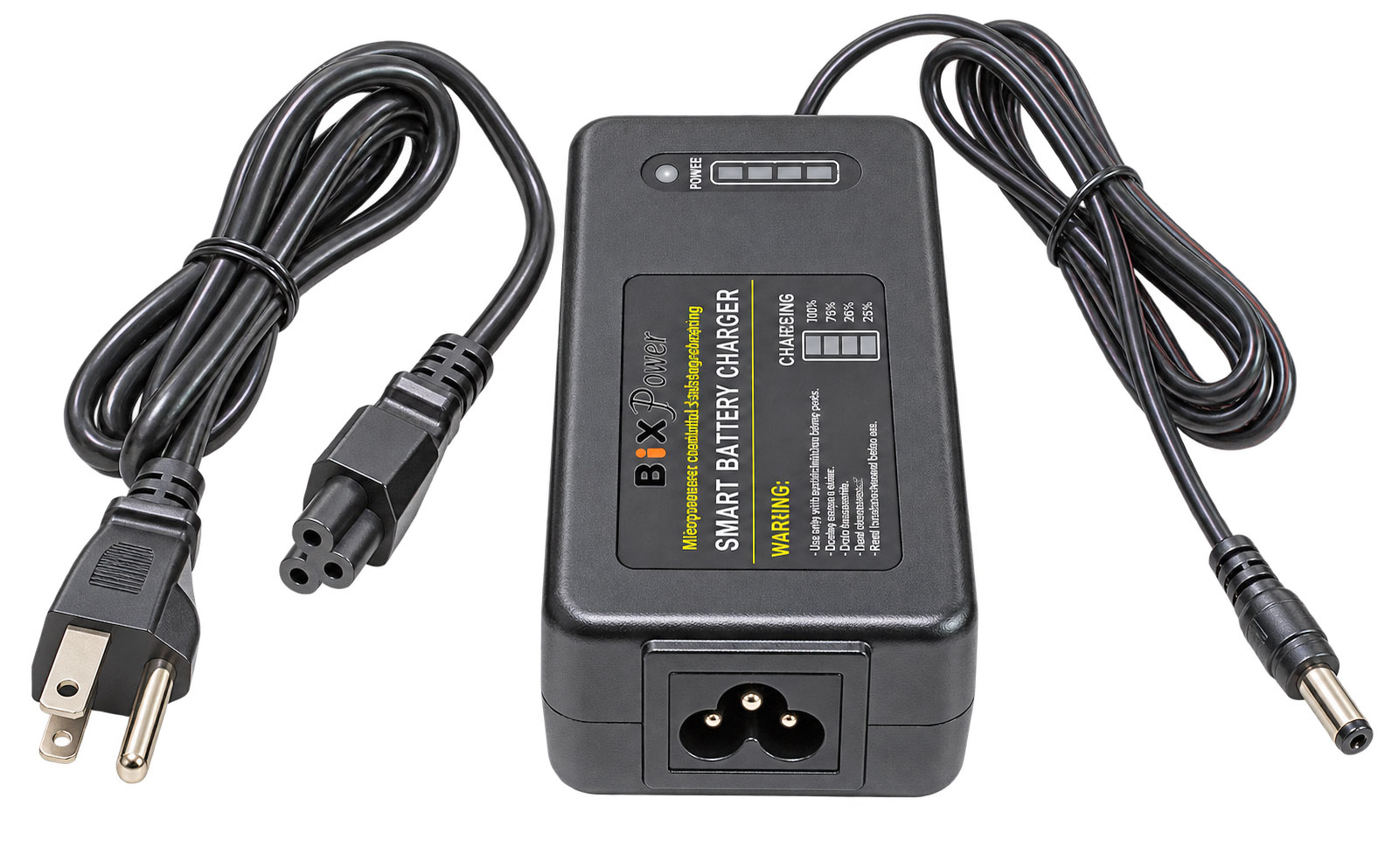

BiXPower ACC-17V3A-LED Smart Lithium-Ion Battery Charger
Key Features & Benefits
- Up to 3A Charging Current: Higher-current charging for compatible lithium-ion batteries.
- For 14.4V / 14.8V Batteries: Designed for compatible 4S lithium-ion battery packs.
- MCU-Controlled Three-Stage Charging: Automated charging process with controlled pre-charge, main charging, and charge termination.
- Four LED Charge-Level Indicators: Convenient approximate charging-progress display from 25% to 100%.
- Automatic Charge Termination: Charger stops charging output when its charging cycle is complete.
- 5.5 x 2.5mm DC Barrel Connector: Common connector format for portable battery packs.
- Worldwide AC Input: 100-240V AC, 50/60Hz.
- Built-In Protections: Overvoltage, short-circuit, polarity-error, and overpower protection.
- Portable Design: Approximately 350g, convenient for portable equipment and backup charging.
- One-Year Warranty: Backed by BiXPower's limited warranty.
Higher-Current Charging — Up to 3A
The ACC-17V3A-LED provides a maximum output current of approximately
2.8A to 3.0A, making it a useful charging option
for compatible medium- and larger-capacity lithium-ion battery packs.
A higher available charging current can shorten charging time compared
with a lower-current charger, provided the battery is designed to accept
that charging current.
For example, a compatible 10Ah battery may charge faster using a 3A charger
than using a 1.8A charger, although actual charging time depends on
battery condition, starting charge level, temperature, and the
battery's charging-current limitations.
Important:
The charger's 3A rating is its maximum available charging current.
It does not mean every battery will charge at 3A.
Use this charger only when the battery manufacturer permits the
specified charging voltage and current.
Smart MCU-Controlled Three-Stage Charging
The ACC-17V3A-LED uses a microcontroller (MCU) to manage
an automated three-stage charging process.
-
Pre-Charge Stage:
A reduced charging current may be applied when appropriate,
helping manage the initial charging process.
-
Main Charging Stage:
The charger supplies controlled charging current,
up to its rated maximum, while battery voltage increases.
-
Final Charging and Termination:
The charger completes the charging process and automatically
terminates charging output when its completion criteria are met.
This automated process is designed for compatible lithium-ion battery
packs and is different from simply connecting a battery to an ordinary
fixed-voltage AC power adapter.

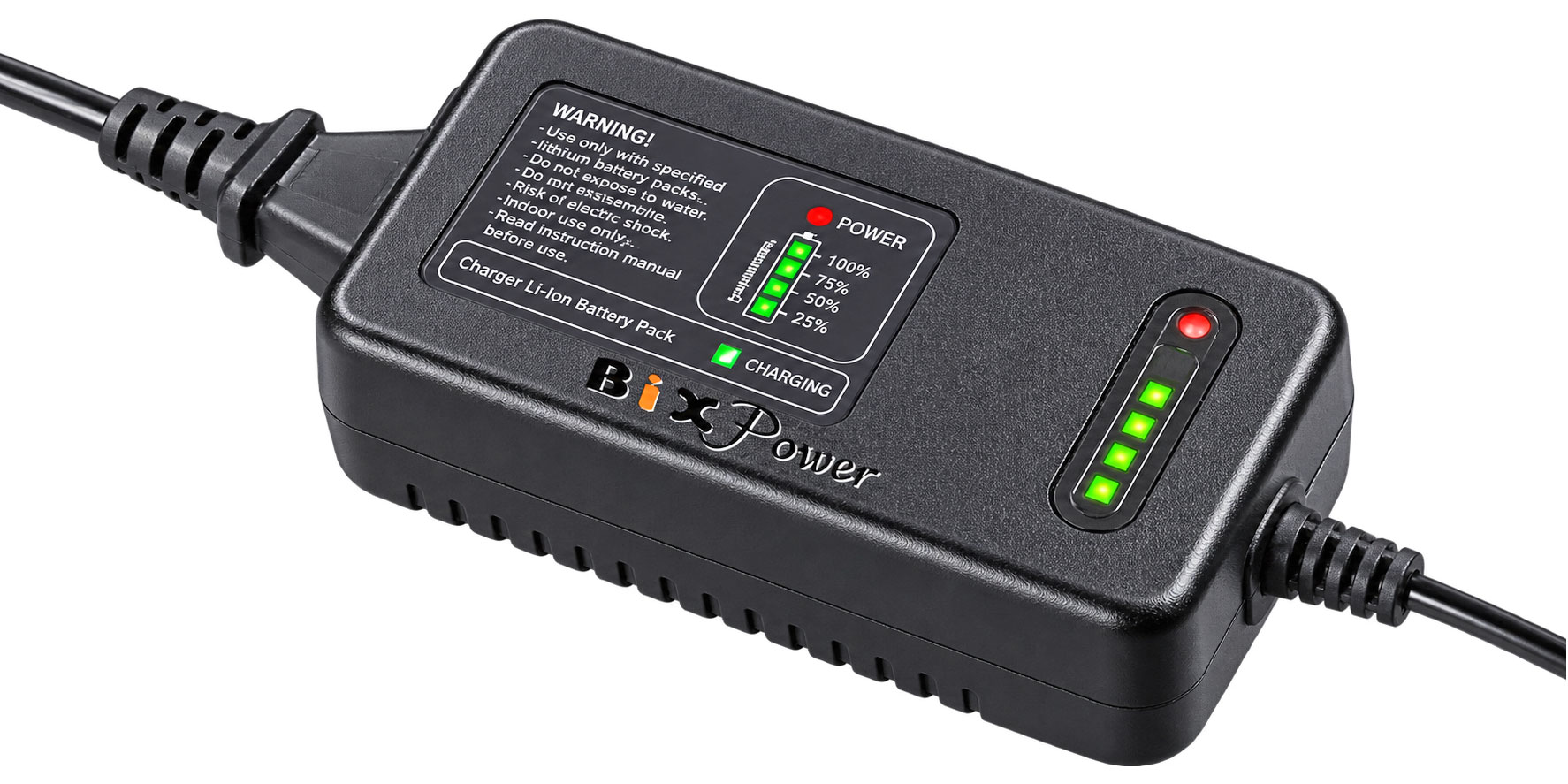

Four LED Charge-Level Indicators
One of the most useful features of this charger is its
four-LED charging-progress display.
Instead of showing only a basic charging or fully charged status,
the LED display provides an approximate indication of charging
progress in 25% increments.
| LED Display |
Approximate Charging Progress |
| 1 LED |
Approximately 25% |
| 2 LEDs |
Approximately 50% |
| 3 LEDs |
Approximately 75% |
| 4 LEDs |
Approximately 100% |
The four LEDs indicate the charger's estimated charging progress;
they are not a precision battery fuel gauge.
Understanding the LED Display
The charger includes a power indicator and four charging-progress LEDs.
The published indicator instructions identify these conditions:
- Power Indicator On: AC input power is present.
- Charging LEDs: Show approximate charging progress.
- All Charging LEDs Flashing: May indicate reversed battery polarity or a shorted output.
- All Charging LEDs Off: May indicate no battery is connected.
If an abnormal LED pattern appears, disconnect the charger
and verify battery polarity, connector compatibility, and battery condition
before attempting to charge again.
Compatible 14.4V / 14.8V Lithium-Ion Batteries
This charger is intended for compatible lithium-ion battery packs
with four series-connected cell groups, commonly described as
4S lithium-ion batteries.
Typical compatible battery configurations may include:
- 4S2P lithium-ion battery packs
- 4S3P lithium-ion battery packs
- 4S4P lithium-ion battery packs
- Other compatible 4S lithium-ion battery configurations
The original product specifications describe a battery capacity
range of approximately 3Ah to 20Ah, or roughly
50Wh to 300Wh, depending on battery voltage
and configuration.
Battery capacity alone does not establish compatibility.
The battery must accept the charger's charging-voltage range,
charging current, connector dimensions, and polarity.
Charging Voltage Compatibility
The published charger output is 16.8V-17V DC.
A standard 4S lithium-ion battery generally has a maximum
charging voltage of 16.8V.
Use this charger only with batteries whose manufacturer
permits the charger's actual regulated output voltage.
Do not assume compatibility with every battery labeled
14.4V or 14.8V.
5.5 x 2.5mm DC Barrel Charging Connector
The charger includes a male DC barrel connector with:
- Outer Diameter: 5.5mm
- Inner Diameter: 2.5mm
- Barrel Length: Approximately 12mm
The male barrel connector has a hollow center with internal
spring contacts designed to grip the center pin of the
corresponding female DC jack.
It does not have a projecting center pin.
Before connecting the charger, confirm that the battery uses
a matching 5.5 x 2.5mm female charging jack
and the correct connector polarity.
Optional Connector Tips for Other Barrel Sizes
BiXPower offers optional C-series connector tips that can adapt
the charger's 5.5 x 2.5mm barrel plug to certain other DC
connector sizes.
Examples include:
Connector tips change physical connector dimensions only.
They do not change the charger's output voltage or charging current.
Always verify battery charging requirements and polarity.
Optional tips are sold separately unless expressly included
in the selected product package.
Built-In Charging Safety Protections
The ACC-17V3A-LED includes the following published protections:
- Overvoltage Protection: Helps protect against abnormal voltage conditions.
- Short-Circuit Protection: Helps protect the charger during output short-circuit conditions.
- Polarity-Error Protection: Helps protect against incorrect output polarity connections.
- Overpower Protection: Helps protect against excessive power demand.
These protections do not make an incompatible battery safe to charge.
Use only batteries with suitable internal battery protection
and charging provisions.
Worldwide 100-240V AC Input
The charger supports 100-240V AC, 50/60Hz,
allowing use with compatible electrical supplies in the United States
and many international locations.
Its portable design makes it convenient for workshops,
professional video production, field equipment, and
other applications requiring rechargeable lithium-ion batteries.
A suitable plug adapter may be required outside North America.
Technical Specifications
| Brand |
BiXPower |
| Model |
ACC-17V3A-LED |
| Product Type |
Smart Lithium-Ion Battery Charger |
| AC Input |
100-240V AC, 50/60Hz |
| Published Output Voltage |
16.8V-17V DC |
| Maximum Charging Current |
2.8A-3.0A |
| Maximum Rated Output Power |
Approximately 51W |
| Battery Chemistry |
Compatible 4S Lithium-Ion |
| Nominal Battery Voltage |
14.4V / 14.8V |
| Published Battery Capacity Range |
Approximately 3Ah-20Ah |
| Output Connector |
5.5 x 2.5mm Male DC Barrel |
| Charging Control |
MCU-Controlled Three-Stage Charging |
| Charge-Level Display |
4 LEDs |
| Weight |
Approximately 350g / 12.3 oz |
| Warranty |
1 Year |
Estimated Charging Times
Actual charging time depends on battery capacity,
starting charge level, battery condition, and the
battery's maximum permitted charging current.
| Battery Capacity |
Approximate Charging Time |
| 5Ah |
2-2.5 hours |
| 10Ah |
4-5 hours |
| 15Ah |
6-7 hours |
| 20Ah |
8-10 hours |
Illustrative estimates for compatible batteries starting near empty
and able to accept approximately 3A charging current.
Actual charging times are not guaranteed.
How to Use the Charger
- Verify that your battery is compatible with the charger's actual regulated output voltage and charging current.
- Confirm the battery's charging connector size and polarity.
- Inspect the battery, charger, and cables for damage.
- Connect the DC barrel plug to the battery's designated charging input.
- Connect the charger to a suitable AC outlet.
- Verify the power indicator and charging-progress LEDs operate normally.
- Monitor the battery and charger for unusual heat, odor, or fault indications.
- Allow the automated charging process to complete.
- Disconnect the charger after charging.
Frequently Asked Questions
Q: What is the advantage of this charger over a 1.8A model?
A: The ACC-17V3A-LED provides up to 3A charging current
and includes four charging-progress LEDs. It can charge
compatible batteries faster when those batteries support
the higher charging current.
Q: Can it charge any 14.4V or 14.8V lithium-ion battery?
A: No. The battery must support the charger's actual charging
voltage, charging current, connector dimensions, and polarity.
Q: What do the four LED indicators show?
A: They provide approximate charging-progress information
in 25% increments.
Q: Can I use it with a 5.5 x 2.1mm battery charging port?
A: A compatible connector adapter, such as the optional
BiXPower C3 connector tip, may provide the correct physical
connection. The battery's electrical charging requirements
must also match.
Q: Can this charger be used as a regular 17V power adapter?
A: No. It is designed as a lithium-ion battery charger,
not a general-purpose DC power supply.
Q: Does the charger include a battery?
A: No. Batteries are sold separately.
Related BiXPower Battery Chargers
Smart Charging with Higher Current and Clear LED Feedback
The BiXPower ACC-17V3A-LED combines up to 3A charging current,
MCU-controlled three-stage charging, four LED charging-progress
indicators, worldwide AC input, and built-in protection features.
It is an excellent option for customers who need a higher-current
charger for compatible 14.4V / 14.8V lithium-ion battery packs.
Choose the correct charger for your battery and enjoy
convenient, automated lithium-ion charging.
Important: Use only with compatible lithium-ion batteries
whose manufacturer permits the charger's actual regulated
output voltage and charging current. Verify connector
dimensions and polarity before use. Do not use with
incompatible lithium-ion configurations, LiFePO4,
lead-acid, or other battery chemistries requiring
different charging characteristics.
