BiXPower HL2454B 24V 1774Wh High-Capacity Rechargeable Lithium-Ion Battery
Power more with less weight. The BiXPower BX-HL2454B is a high-capacity 24V rechargeable lithium-ion battery designed for compatible 24V DC equipment, backup power systems, portable power applications, mobility equipment, and off-grid projects.
With 1774Wh of energy capacity, a nominal voltage of 25.2V, and a rated capacity of 70.4Ah, this battery provides substantial stored energy in a compact package weighing approximately 18.7 lb (8.5 kg).
1774WhEnergy Capacity
70.4AhRated Capacity
25.2VNominal Voltage
18.7 lbBattery Weight
Key Features and Benefits
- High energy capacity: 1774Wh of rechargeable battery capacity for extended operation of compatible devices.
- Lightweight construction: Approximately 18.7 lb, considerably lighter than many lead-acid battery systems offering comparable usable energy.
- Built-in battery protection: Internal protection circuitry supports cell balancing, overcharge protection, over-discharge protection, overcurrent protection, and temperature protection.
- High-current capability: Published specifications list up to 60A continuous discharge current and 80A burst discharge current. Actual equipment compatibility must also account for wiring, connections, startup current, and the recommended application power limit.
- Low self-discharge: Suitable for applications requiring intermittent operation or extended storage, provided proper battery storage and periodic charge maintenance procedures are followed.
- Long service life: Rechargeable lithium-ion technology can offer longer cycle life and improved usable energy compared with conventional lead-acid batteries under suitable operating conditions.
- Dedicated charging connection: Separate charging port and output terminals help simplify connection to the correct charger.
- Flexible applications: Can be used with compatible 24V DC equipment, DC-to-DC converters, and appropriately rated 24V DC-to-AC inverters.
Battery Design and Connections
The HL2454B has dedicated output terminals for powering equipment and a separate charging port for connecting a compatible lithium-ion battery charger.Important: This battery is designed for independent operation only. Do not directly connect it in series or parallel with another battery. Doing so may damage the battery management and protection circuitry. Charge only through the dedicated charging port, never through the output terminals.
Technical Specifications
| Model | BiXPower BX-HL2454B |
|---|
| Battery Chemistry | Lithium-Ion |
|---|
| Nominal Voltage | 25.2V DC (24V Class) |
|---|
| Operating Output Voltage | 21V–29.4V DC |
|---|
| Rated Capacity | 70.4Ah |
|---|
| Rated Energy | 1774Wh (70.4Ah × 25.2V, rounded) |
|---|
| Maximum Charging Voltage | 29.4V DC |
|---|
| Maximum Charging Current | 10A |
|---|
| Published Continuous Discharge Current | 60A |
|---|
| Published Burst Discharge Current | 80A (burst duration not specified) |
|---|
| Recommended Application Load | Up to 1000W continuous, subject to device compatibility and startup-current requirements |
|---|

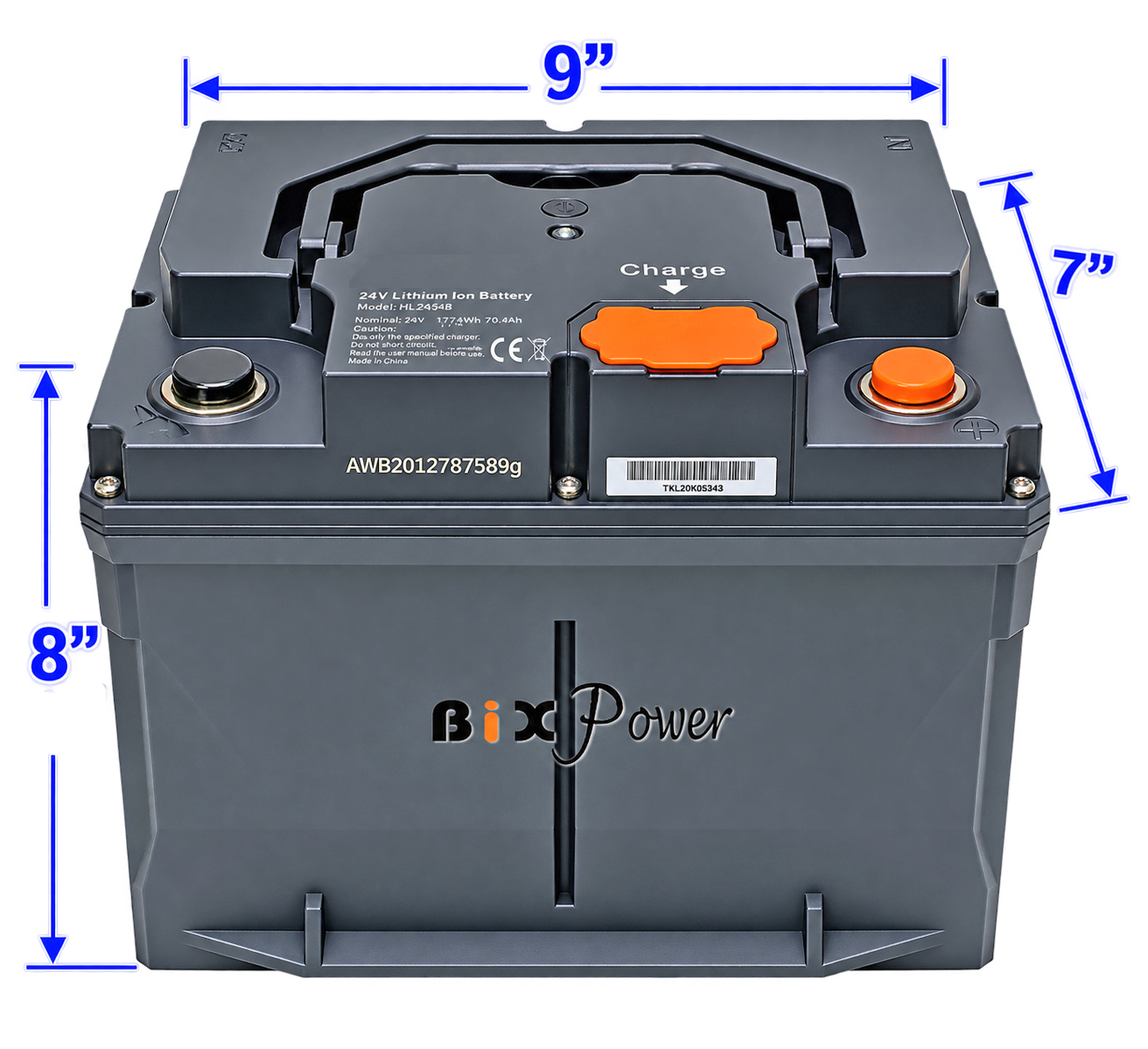

| Dimensions | Approximately 9 × 8 × 7 inches |
|---|
| Weight | Approximately 8.5 kg / 18.7 lb |
|---|
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
|---|
| Discharging Temperature | -20°C to 60°C (-4°F to 140°F) |
|---|
| Storage Temperature | -20°C to 40°C (-4°F to 104°F) |
|---|
| Battery Protection | Cell balancing, overcharge, over-discharge, overcurrent, and temperature protection |
|---|
| Warranty | One-Year Limited Warranty |
|---|
Note: Output voltage varies with the battery's state of charge and operating conditions. The battery does not provide a constant 24V output. Use a suitable DC-to-DC converter if your equipment requires constant voltage.
Package Contents
The package contents depend on the selected purchasing option.
- BiXPower HL2454B Battery × 1
- 29.4V 10A AC Battery Charger × 1 (when charger option is selected)
- AC Power Cord × 1 (with charger option)
- Battery Terminal Screws × 2
Charger option: We recommend purchasing the battery with its compatible AC charger. If you already own an authorized compatible charger, you may select the battery-only option where available.
Optional M8 Battery Terminal Posts
Optional red and black M8 terminal posts can be used with this battery for compatible power connections.
Compatible accessories: M8 Red Terminal Post and M8 Black Terminal Post.
How to Charge the HL2454B Battery
Use the dedicated battery charging port and an approved charger designed for this battery. The compatible 29.4V 10A AC charger can recharge the battery in approximately 8–10 hours under typical conditions.

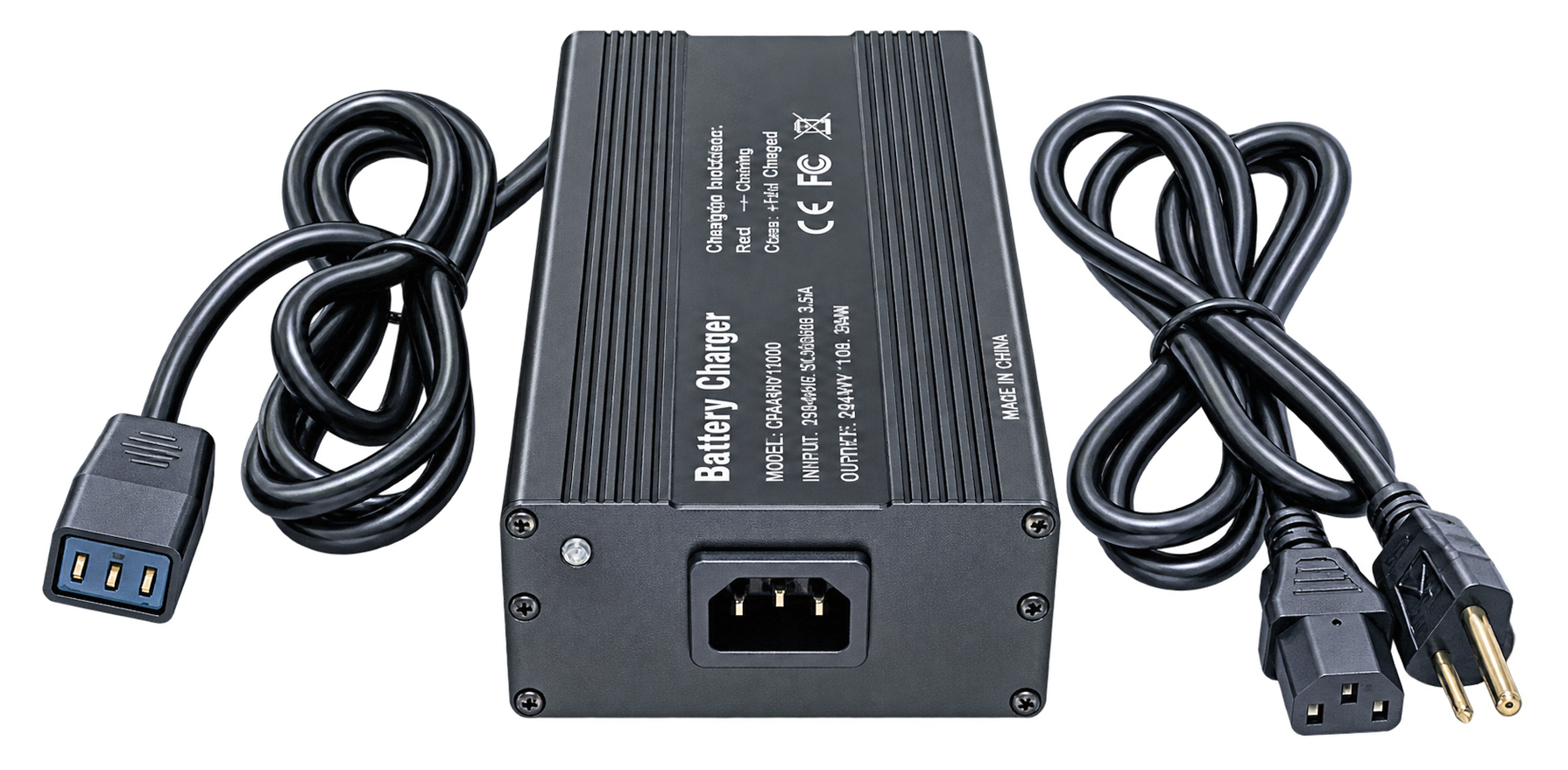

Compatible 29.4V 10A AC Charger
| AC Input | 100–240V AC, 47–63Hz |
|---|
| DC Output Voltage | 29.4V |
|---|
| Maximum Charging Current | 10A |
|---|
| Maximum Nominal DC Output Power | 294W |
|---|
| Charger Dimensions | 8.4 × 4 × 2.3 inches |
|---|
| Charger Weight | 4.3 lb |
|---|
| Connector | Special battery charging connector |
|---|
Charging Instructions
- Turn off the connected equipment before charging when practical.
- Confirm that the charger is compatible with the HL2454B battery.
- Connect the charger's DC output connector to the dedicated battery charging port.
- Connect the charger to a suitable 100–240V AC power outlet.
- Allow the charger to complete its charging cycle according to the charger's status indicators.
- Disconnect the charger after charging is complete when appropriate for your application.
Charging Safety: Never charge the battery through its power output terminals. Do not use a regular laptop AC adapter or a charger designed for lead-acid batteries. A suitable lithium-ion charger must control charging voltage and current. Do not charge outside the specified 0°C–45°C temperature range.
The battery's internal protection circuit provides additional safety functions but is not a substitute for a properly matched battery charger.

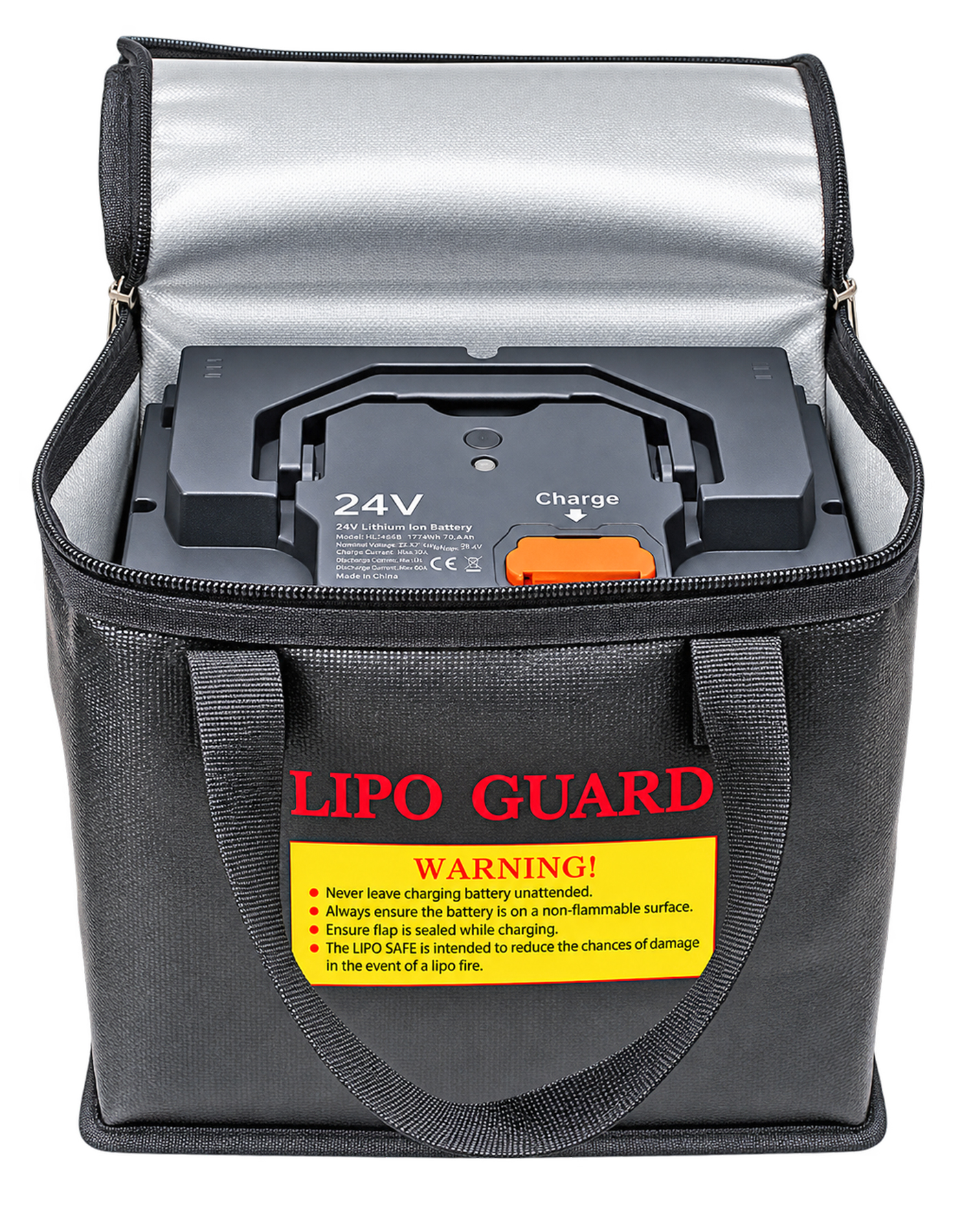

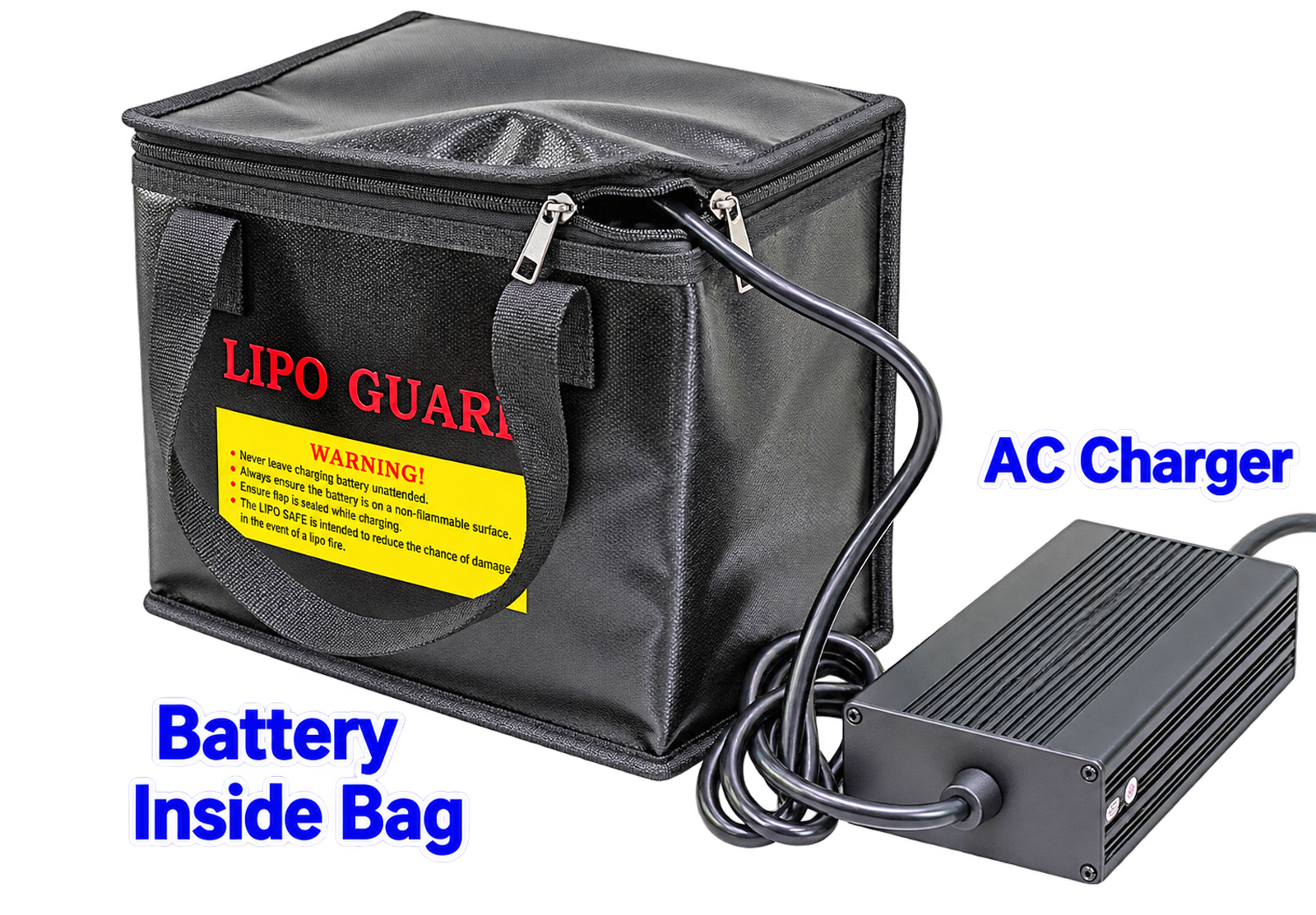

Optional Battery Safety Guard Bag
For additional protection during transportation, charging, or storage, consider the BiXPower SH54 Battery Safety Guard Bag.

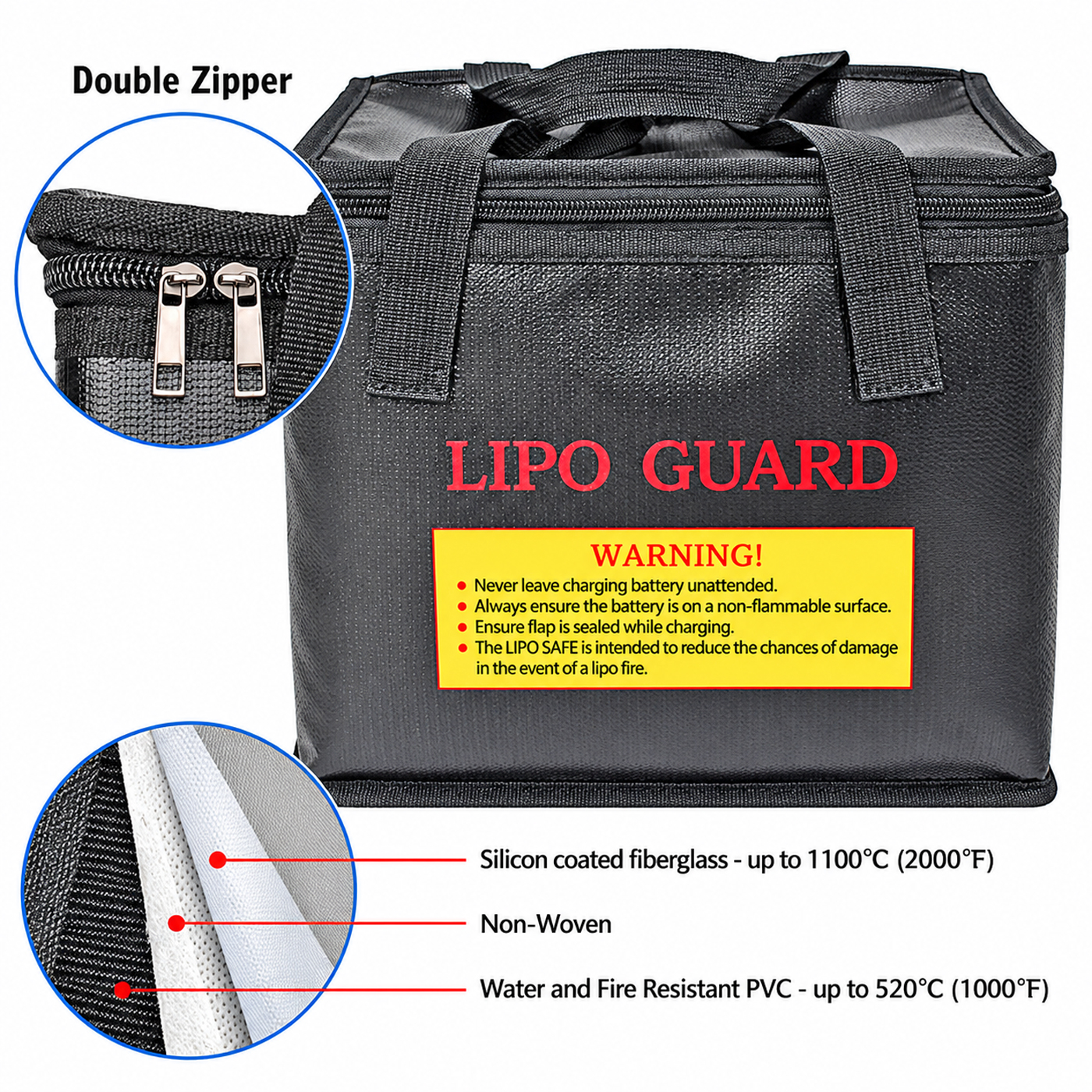

The optional bag uses silicone-coated fiberglass fabric designed for heat resistance and water resistance. It may help provide an additional protective barrier but cannot eliminate the risk of battery fire, thermal runaway, or other battery hazards.
Important: Follow the bag manufacturer's instructions, maintain adequate ventilation, and never obstruct charger cooling vents. The safety bag is optional and sold separately.
Applications: Power Compatible 24V Equipment
The HL2454B can provide DC power directly to compatible 24V equipment, including selected motors, lighting systems, electronics, and other DC-powered devices.
The battery's output voltage varies from approximately 29.4V when fully charged to approximately 21V near its discharge cutoff. Connected equipment must be compatible with this entire operating voltage range.
Illustration of battery voltage behavior during discharge.
Check compatibility: Do not connect equipment that requires a constant 24V input unless it can tolerate the battery's full voltage range or a suitable DC-to-DC converter is used. For application planning, use a conservative continuous load limit of 1000W until the exact operating rating has been confirmed.
Use with a DC-to-DC Converter
A compatible DC-to-DC converter can transform the battery's varying output voltage into a different constant output voltage required by your equipment.
For example, an appropriate converter can provide constant voltage to equipment that requires a specific DC input. Confirm that the converter accepts the entire battery voltage range and supports the device's power requirements.
DC-to-DC converter is optional and not included. View BiXPower DC-to-DC Converter.
Use with a DC-to-AC Power Inverter
Connect the battery to a compatible 24V DC-to-AC inverter to supply AC power for selected equipment where utility power is unavailable.
A suitable inverter converts the battery's DC power into AC power, such as 110V/120V AC, depending on the inverter model.
Choose an inverter with an input voltage range compatible with the HL2454B, and account for inverter efficiency, continuous load, and startup surge current. Some appliances require substantially more power during startup than during normal operation.
DC-to-AC inverter is optional and not included. View Compatible Inverter Option.
Replace Two 12V Lead-Acid Batteries in Suitable 24V Systems
In some applications, one HL2454B battery may replace a 24V lead-acid battery system consisting of two 12V batteries connected in series.
Potential applications include compatible mobility scooters, electric scooters, powered carts, and other 24V equipment. However, this is not a universal drop-in replacement.
Before Replacing Lead-Acid Batteries
- Confirm that the equipment supports the HL2454B output voltage range of 21V–29.4V.
- Verify operating current, motor startup current, and peak power requirements.
- Check battery compartment dimensions, mounting requirements, terminal connections, and wiring.
- Confirm that the equipment does not require a specific lead-acid battery charging or battery monitoring system.
- Use the compatible HL2454B lithium-ion charger rather than the original lead-acid charger.
- Do not connect this battery directly in series or parallel with other batteries.
Some scooters and mobility equipment use 24V lead-acid battery systems, but compatibility with specific makes and models has not been verified by BiXPower. Please confirm electrical and mechanical requirements before purchasing or modifying your equipment. For mobility equipment, consult a qualified technician or the equipment manufacturer before conversion.
Lithium-Ion vs. Traditional Lead-Acid Batteries
| Feature | HL2454B Lithium-Ion | Traditional Lead-Acid |
|---|
| Weight | Approximately 18.7 lb | Typically heavier for comparable usable energy |
| Usable Energy | High usable capacity within specified operating limits | Usable capacity often decreases at higher discharge rates |
| Cycle Life | Can provide longer cycle life under suitable conditions | Typically shorter cycle life with deep cycling |
| Self-Discharge | Relatively low self-discharge | Varies by lead-acid chemistry and storage conditions |
| Charging | Requires compatible 29.4V lithium-ion charger | Requires charger matched to lead-acid chemistry |
| Maintenance | No electrolyte refilling | Flooded types may require electrolyte maintenance |
| Protection | Built-in electronic battery protection | Protection depends on system design |
| Recycling | Requires proper lithium-ion battery recycling | Requires appropriate lead-acid battery recycling |
Actual performance depends on battery chemistry, system design, discharge rate, operating temperature, and charging practices.
Estimated Battery Runtime
The HL2454B stores approximately 1774Wh of rated energy. Actual runtime depends on device power consumption, battery condition, temperature, conversion losses, and operating conditions.
| Average Device Load | Ideal Calculation | Illustrative Runtime at 85% Usable Energy |
|---|
| 50W | 35.5 hours | 30.2 hours |
| 100W | 17.7 hours | 15.1 hours |
| 200W | 8.9 hours | 7.5 hours |
| 500W | 3.5 hours | 3.0 hours |
| 1000W | 1.8 hours | 1.5 hours |
Runtime estimates are illustrative calculations, not guaranteed test results. The 85% usable-energy assumption accounts for potential operating losses and reserves. Actual results may differ substantially, particularly when using an inverter or high-current equipment.
Storage, Care, and Safety
- Store in a dry, cool, well-ventilated location within the specified storage temperature range.
- Avoid prolonged exposure to excessive heat, direct sunlight, moisture, and physical damage.
- For long-term storage, follow the manufacturer's recommended storage charge level and periodically inspect and recharge the battery as necessary.
- Do not short-circuit, puncture, crush, disassemble, or expose the battery to fire.
- Use properly sized wires, connectors, and suitable external circuit protection for your application.
- Do not charge a damaged, swollen, overheated, or otherwise abnormal battery.
- Recycle used lithium-ion batteries through an appropriate battery recycling facility. Do not place them in household trash or ordinary recycling bins.
Frequently Asked Questions
Is this a 24V battery?
Yes. The HL2454B is designed for compatible 24V-class systems. Its nominal voltage is 25.2V and its actual output voltage varies from approximately 21V to 29.4V.
Does the battery provide constant 24V output?
No. Its voltage changes as the battery discharges. A compatible DC-to-DC converter is needed when equipment requires a constant output voltage.
Can I charge this battery using a regular 24V power adapter?
No. Use a compatible lithium-ion battery charger with the correct 29.4V charging voltage, appropriate current control, and matching connector.
Can I connect two HL2454B batteries together?
No. This model is designed for independent use and must not be connected directly in series or parallel with another battery.
Can this battery replace two 12V lead-acid batteries?
Possibly, in a compatible 24V system. Verify the voltage range, current demand, wiring, physical dimensions, charging method, and equipment requirements before making the replacement.
Is the charger included?
The charger is included when the battery-with-charger package option is selected. A battery-only option may also be available.
Can this battery power household AC equipment?
Yes, when used with a properly matched 24V DC-to-AC inverter. The inverter is sold separately. Always check power requirements and startup surge current.
How long does charging take?
Approximately 8–10 hours with the compatible 29.4V 10A charger under typical conditions. Actual charging time depends on remaining battery capacity and operating conditions.
Warranty
The BiXPower HL2454B battery includes a One-Year Limited Warranty covering qualifying manufacturing and quality defects.
Rechargeable batteries gradually lose capacity with use and aging. Normal capacity reduction due to ordinary wear is not considered a manufacturing defect and is not covered by the limited warranty.
