9V–32V DC to USB-C PD 100W Power Converter
12V / 24V DC Input • USB-C Power Delivery • Up to 100W Output
The
BiXPower PD100W USB C Converter converts a wide range of
9V–32V DC power into intelligent
USB Type-C Power Delivery (PD) output.
It provides a convenient way to power or charge compatible USB-C devices
directly from 12V or 24V batteries and other DC power sources.
With output maximum up to
100W at 20V / 5A, this compact
converter is suitable for many USB-C PD laptops, tablets, phones, and
other compatible electronics. It is particularly useful with portable
battery systems, vehicle power systems, RVs, boats, and other DC-powered
applications.
Key Features
-
Wide 9V–32V DC Input:
Compatible with many 12V and 24V DC power systems.
-
USB-C Power Delivery:
Automatically negotiates a supported output voltage with compatible USB-C PD devices.
-
Up to 100W Output:
Maximum output of 20V / 5A.
-
Multiple PD Voltages:
Supports 5V, 9V, 12V, 15V, and 20V output profiles.
-
5.5 × 2.5mm Male DC Input:
Connects directly to compatible female DC power jacks.
-
Built-In USB-C Output Cable:
Convenient direct connection to compatible USB-C devices.
-
Compact & Lightweight:
Easy to carry with a portable battery or install in a vehicle or DC power system.
-
Smart Power Negotiation:
The connected USB-C PD device requests the appropriate supported voltage.

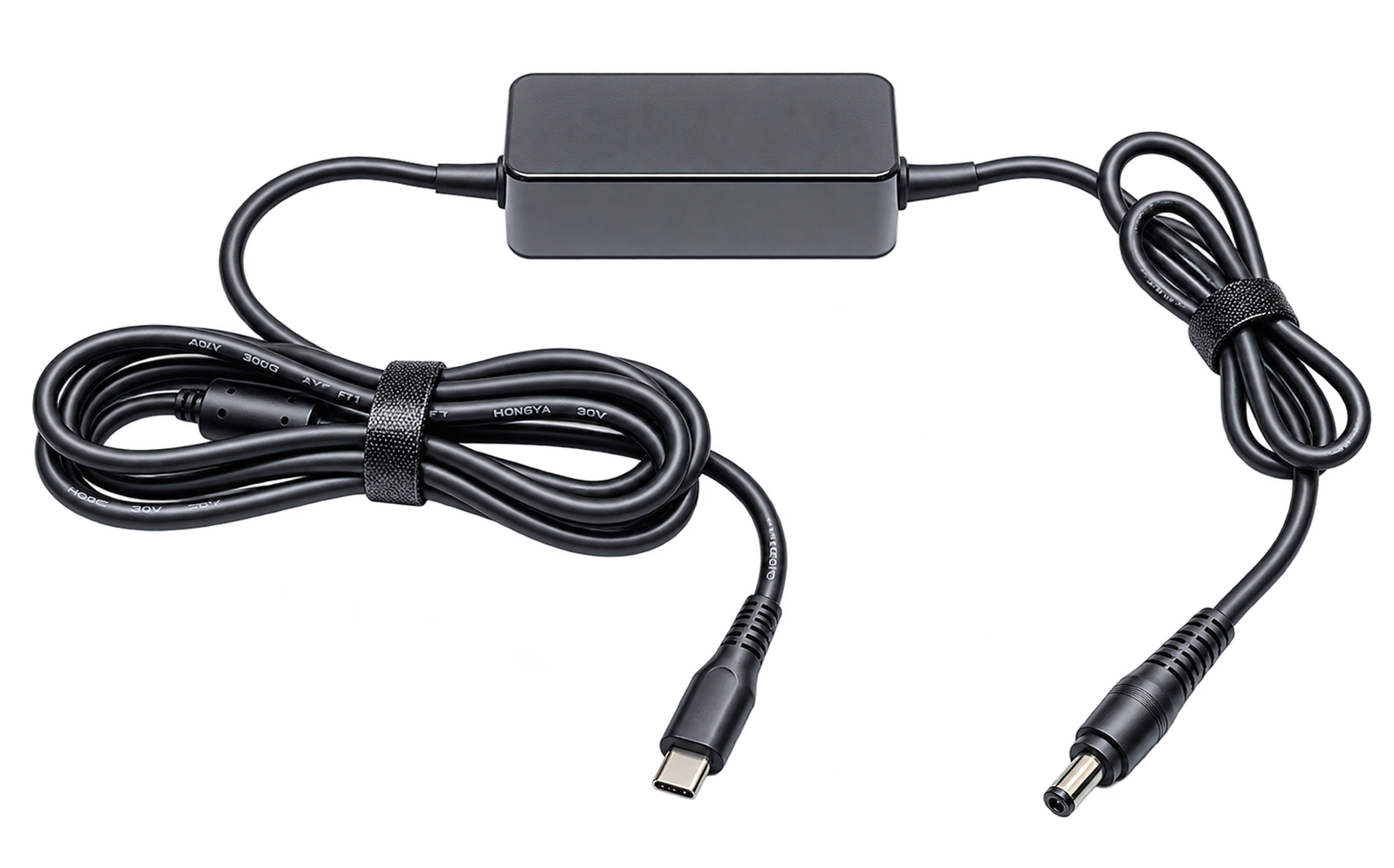

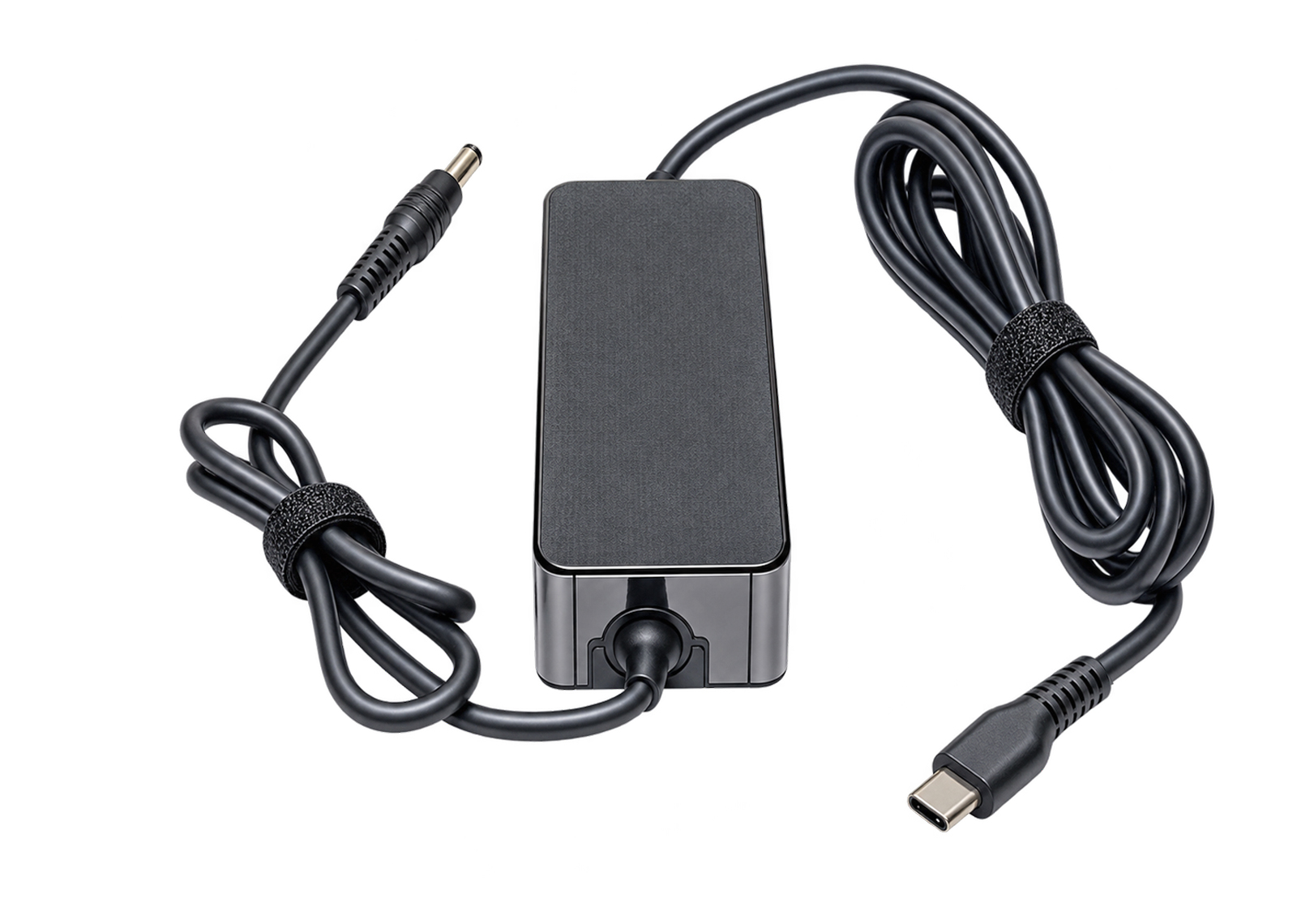

Compact Size — Up to 100W USB-C PD Power
The BX-DD65PD-B combines high USB-C charging capability with a compact
converter body measuring approximately
90 × 36 × 26 mm (3.5" × 1.5" × 1").
Its small size makes it easy to carry with a portable battery or integrate
into a vehicle or other DC-powered system.
Intelligent USB-C Power Delivery
USB Power Delivery allows the converter and a compatible USB-C device
to communicate and select an appropriate supported voltage. Instead of
providing only one fixed output voltage, the BX-DD65PD-B can provide
several USB-C PD voltage levels.
The converter supports
5V, 9V, 12V, 15V, and 20V.
The connected USB-C PD device determines which supported voltage it requests.
|
USB-C PD Output
|
Maximum Current
|
Maximum Power
|
|
5V
|
3A
|
15W
|
|
9V
|
3A
|
27W
|
|
12V
|
3A
|
36W
|
|
15V
|
3A
|
45W
|
|
20V
|
5A
|
100W
|

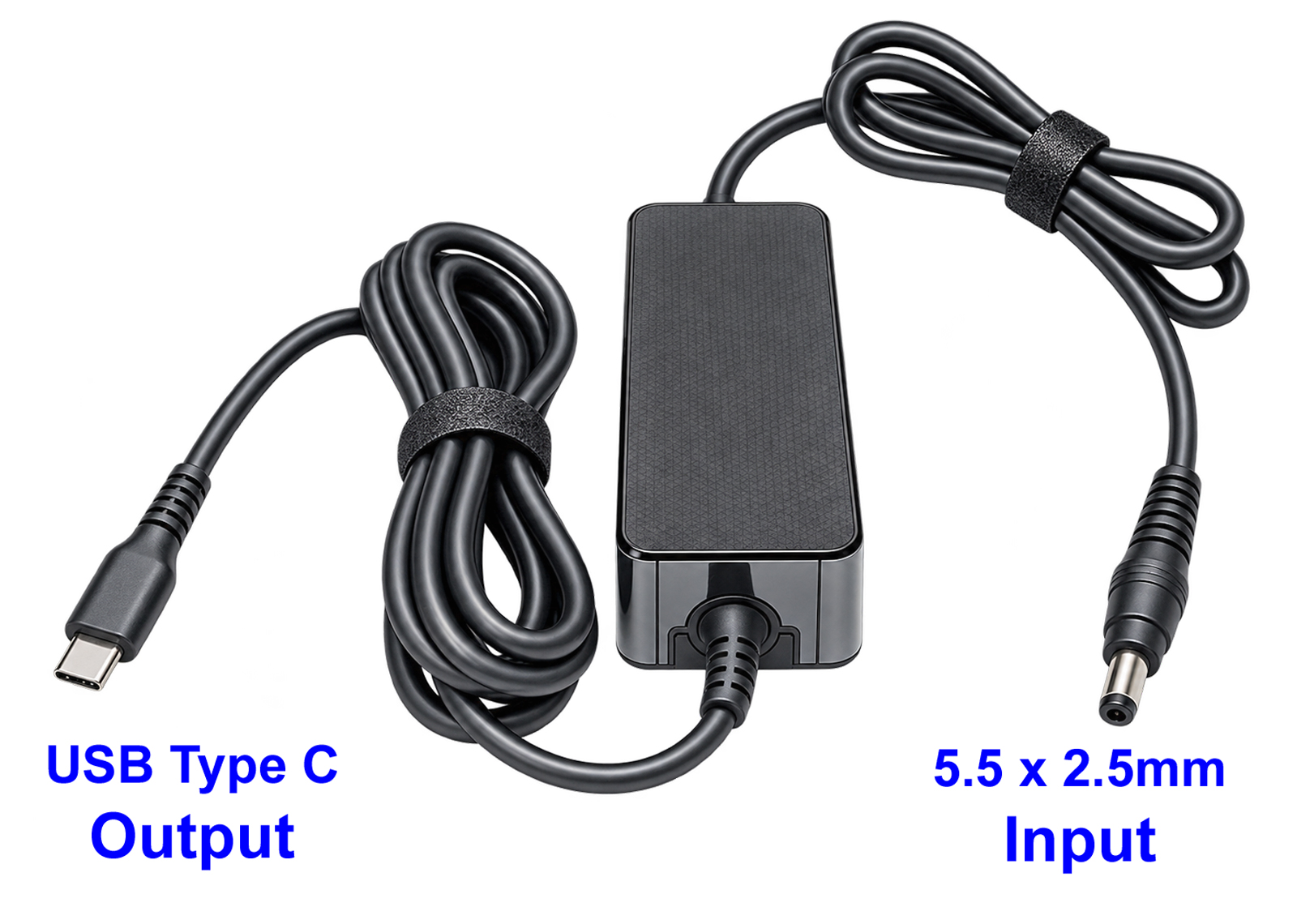

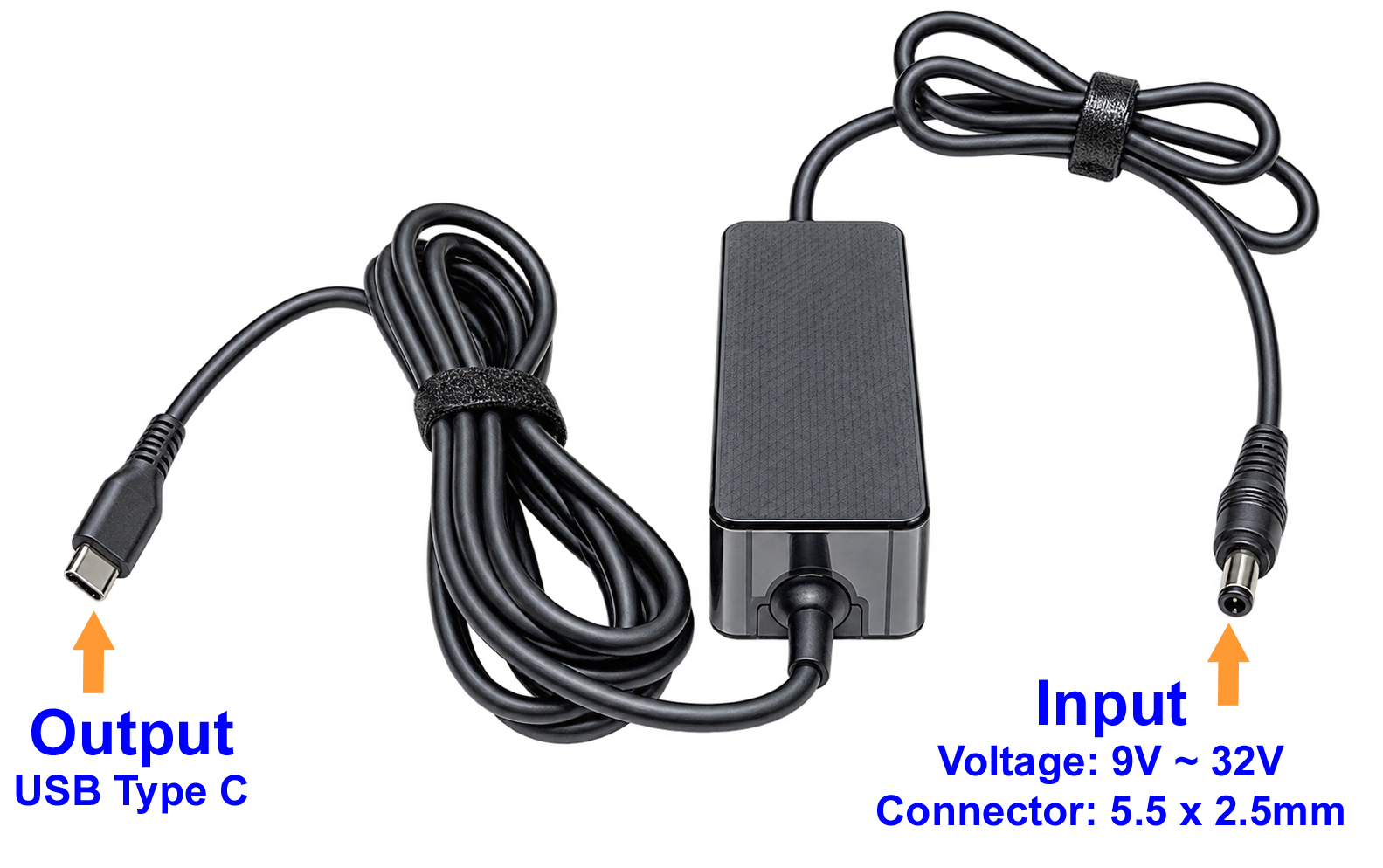

DC Input → USB-C PD Output
This product converts
9V–32V regular DC power into USB-C PD
power
. It is designed to let a compatible battery or other DC
source power a USB-C PD device. It does not convert USB-C input power
into regular DC output.
Use USB-C Devices with Compatible DC Batteries
The BX-DD65PD-B is especially useful with portable batteries that provide
regular DC output. The converter changes the battery's DC power into the
USB-C PD power required by compatible laptops, tablets, phones, and other
USB-C devices.

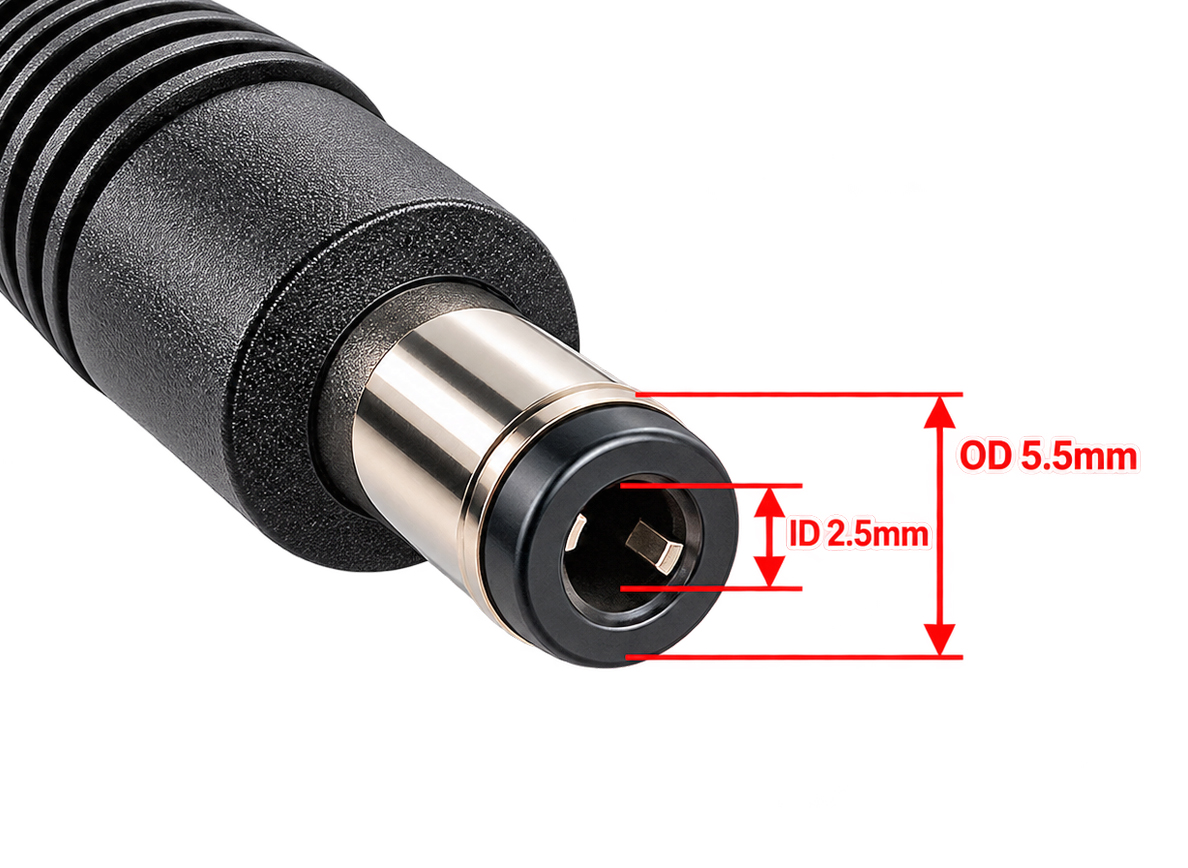

5.5 × 2.5mm Male DC Input Connector
The converter's DC input cable terminates in a
5.5mm outer diameter × 2.5mm inner diameter male barrel
connector
. Make sure your DC power source has a compatible
female output jack before connecting the converter.
Your DC Power Source Must Supply Enough Power
The BX-DD65PD-B is a power converter; it does not generate power by itself.
The connected battery or DC source must be capable of providing enough
input power for the USB-C device.
For full 100W output: We recommend using a DC power source
capable of supplying at least
115W. A weak battery,
undersized wiring, excessive voltage drop, or an inadequate DC power
source may prevent the converter from reaching its full output.
USB-C Power Delivery Compatibility
This converter is designed for devices that support
USB-C Power Delivery (PD). A USB-C connector alone does
not necessarily mean that a device supports USB-C PD charging.
Before purchasing, check your device specifications to confirm that it
supports USB-C PD and that its required charging power is within the
converter's
65W maximum output.
Ideal for Many DC Power Applications
- Portable DC battery packs
- 12V vehicle electrical systems
- 24V vehicle and truck electrical systems
- RV battery systems
- Marine and boat DC systems
- Solar battery systems
- Off-grid DC power systems
- Other compatible 9V–32V DC power sources
Technical Specifications
|
Product Code |
BX-PD100W-USBC
|
|
Product Type
|
DC to USB-C Power Delivery Converter
|
|
Input Voltage
|
DC 9V–32V
|
|
Input Connector
|
5.5 × 2.5mm Male DC Barrel Connector
|
|
Input Cable Length
|
Approx. 600 mm / 23"
|
|
Output Connector
|
USB Type-C
|
|
USB-C PD Output
|
5V / 9V / 12V / 15V / 20V
|
|
Maximum Output Current
|
3.25A
|
|
Maximum Output Power
|
100W at 20V / 5A
|
|
USB-C Output Cable Length
|
Approx. 1650 mm / 65"
|
|
Converter Dimensions
|
Approx. 90 × 36 × 26 mm
(3.5" × 1.5" × 1")
|
|
Weight
|
Approx. 150 g / 7.5 oz
|
Important — Input Current & Full 100W Output
The input barrel connector can handle up to approximately
8A for short periods. For continuous operation,
6A or less is recommended.
For full
100W output, a higher-voltage DC input source,
such as
18V–30V, is recommended.
Lower input voltage requires higher input current to produce the same
output power. When using a lower-voltage source such as
12V
for high-power applications, monitor the input connection. If the input
connector becomes excessively hot,
stop using it and use
a converter/input connection designed for higher current, such as an
appropriately rated direct-wire or cigarette-lighter connection.
Why Higher Input Voltage Is Better for High-Power Applications
This converter accepts a wide input-voltage range of
10V–32V DC. For higher-power applications, using a higher
input voltage is recommended whenever possible.
A lower input voltage requires more input current to produce the same
output wattage. For example, producing close to 100W from a 12V source
requires considerably more current than producing the same output from
a 24V source. Higher current can create more heat at connectors and wiring.
Important Compatibility Information
Before connecting the converter, verify the
DC input voltage, connector size, connector polarity, USB-C PD
compatibility, and power requirement
of your equipment.
Do not use the converter with equipment requiring more than its rated
output capability.
One-Year Limited Warranty
The converter includes a
one-year limited warranty against manufacturing defects.
Turn 12V or 24V DC Power into USB-C PD Power
With a wide
9V–32V DC input range,
intelligent
USB-C Power Delivery, and up to 100W output, it provides a compact and convenient solution for powering compatible
USB-C laptops and other PD devices directly from batteries and other
DC power systems.
