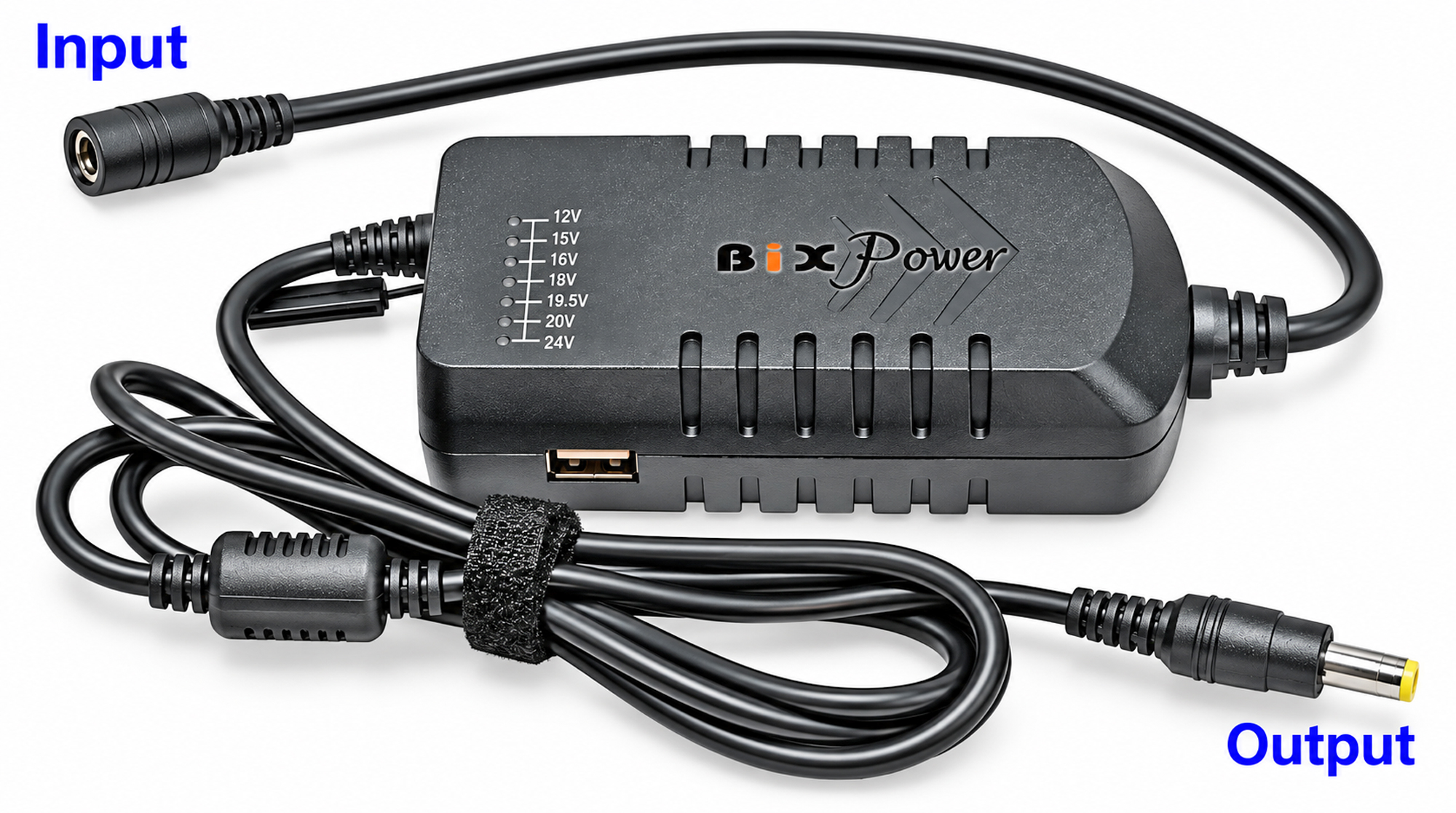

BiXPower DD90X-TB Wide-Range 10V–30V DC to DC Power Converter — Up to 90W
The BiXPower DD90X-TB is a versatile
DC-to-DC power converter designed to convert a wide
10V–30V DC input into multiple regulated DC output voltages.
Select from 12V, 15V, 16V, 18.5V, 19.5V, 20V, or 24V
to power many laptops, portable electronics, and other DC-powered equipment.
With up to 90W maximum output power, a wide input-voltage
range, selectable output voltage, built-in protection, and multiple ways
to connect to a DC power source, the DD90X-TB is a convenient solution for
battery-powered, mobile, automotive, and portable DC applications.
Key Features
- Wide 10V–30V DC input range
- Selectable regulated DC output: 12V, 15V, 16V, 18.5V, 19.5V, 20V, or 24V
- Up to 90W maximum output power
- Built-in 5V USB port for compatible USB-powered devices
- Works with many 12V, 16V, 19V, and 24V DC batteries and power sources
- Compact and portable design
- Over-current, over-voltage, overload, and short-circuit protection
- 5.5 × 2.5mm DC output connector
- Optional connector-tip kit available for additional device compatibility
Wide 10V–30V DC Input
Unlike fixed-input DC adapters, the DD90X-TB accepts a wide
10V to 30V DC input range. This makes it useful with
many different DC power sources, including compatible battery packs and
12V, 16V, 19V, and 24V power systems.

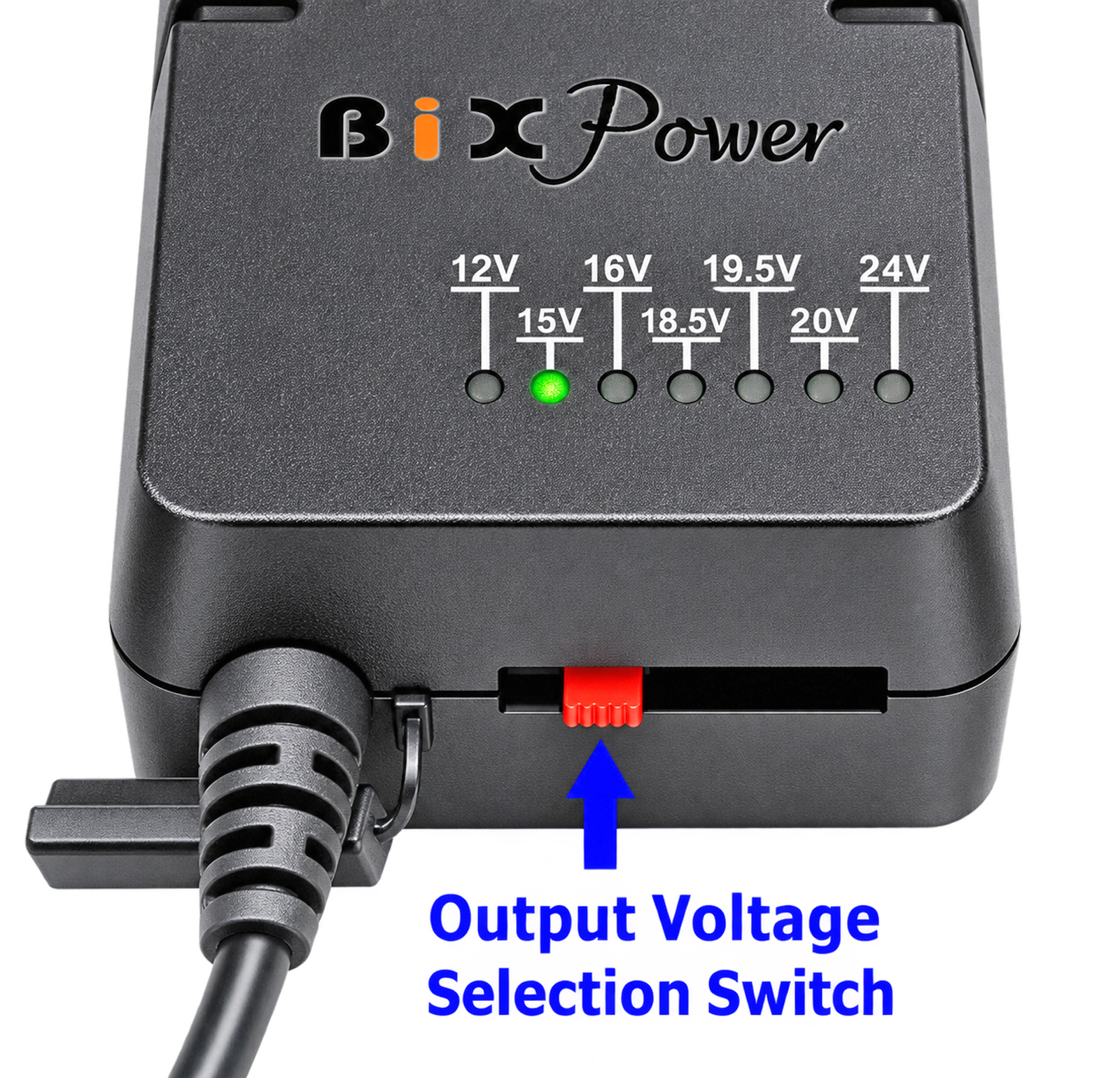

elect the Output Voltage You Need

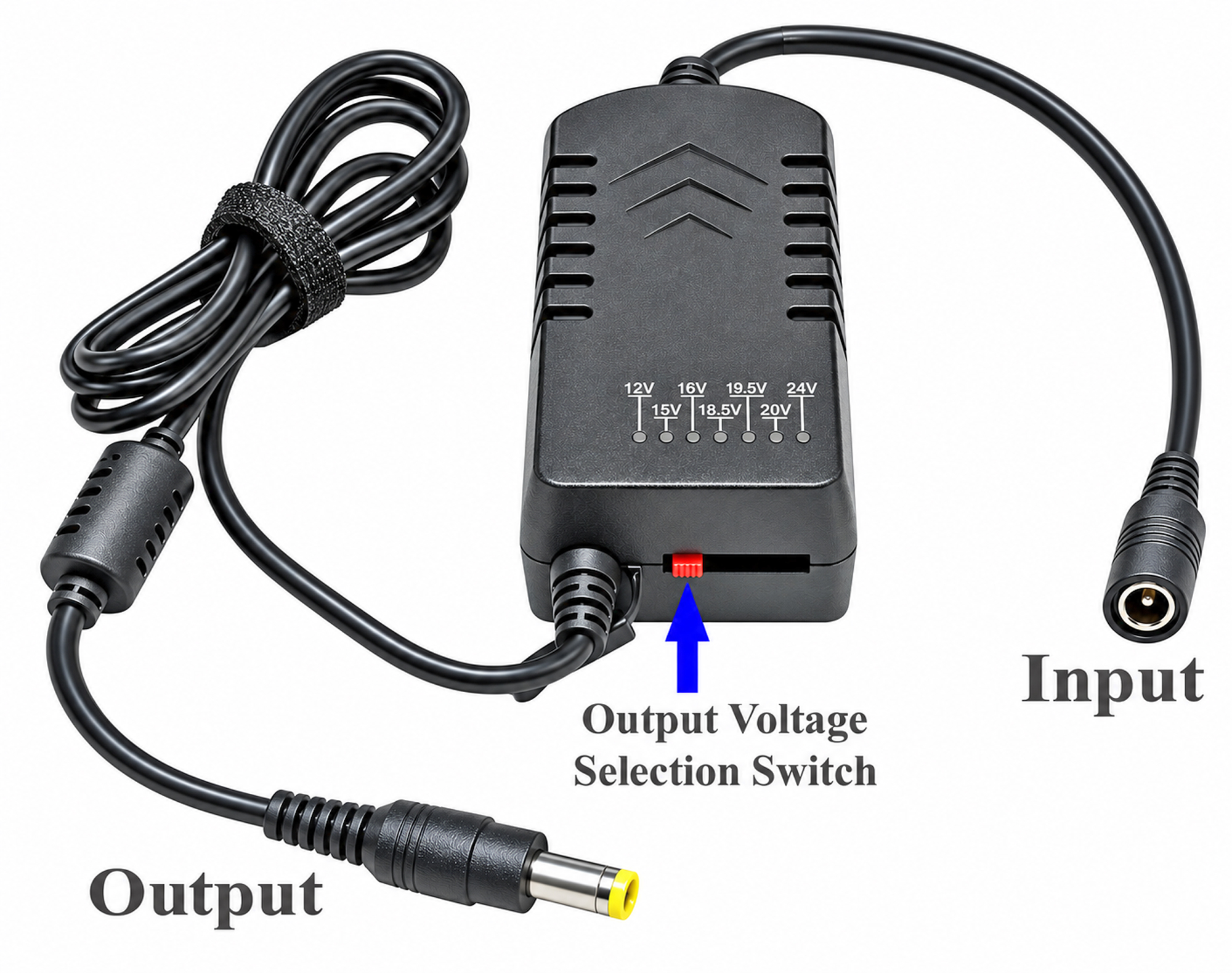

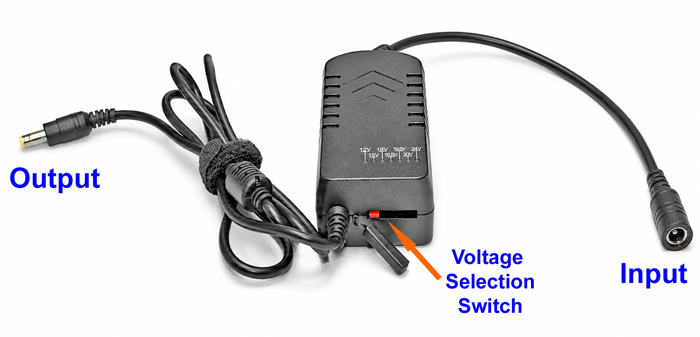

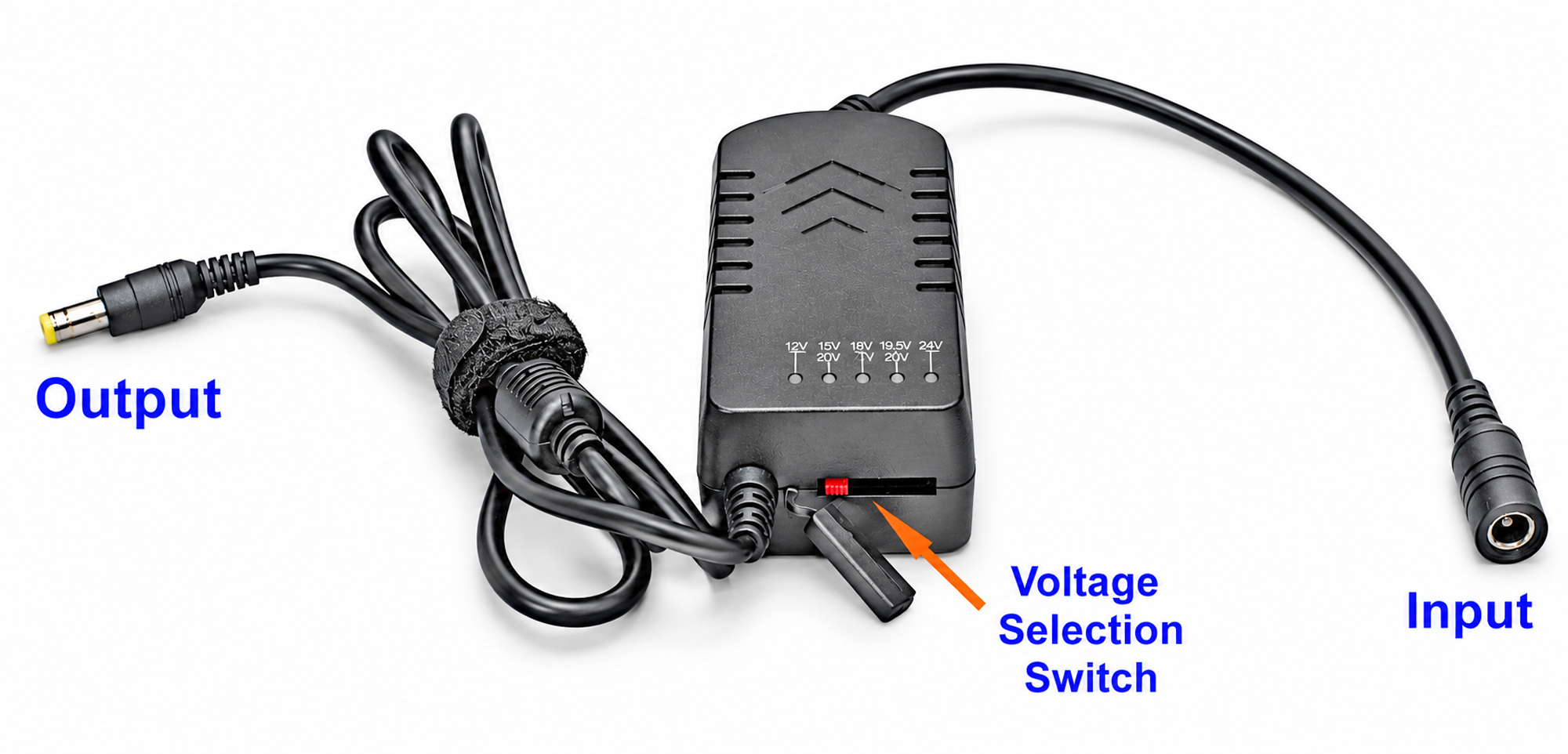

A voltage-selection switch on the converter allows you to select the
appropriate output voltage for your equipment. Available settings include
12V, 15V, 16V, 18.5V, 19.5V, 20V, and 24V.
Important — Set the Output Voltage Before Connecting Your Device
Select the correct output voltage before connecting the
converter to the input power source and your device. If you need to change
the output voltage, disconnect the converter from both the input power
source and output device first.
Do not change the voltage setting while the converter is connected
to a power source or powered device.
Always check the voltage requirement printed on your device or its original
power adapter before selecting the converter output voltage. Using an
incorrect voltage may damage your equipment.
Up to 90W DC Output
The DD90X-TB provides up to 90W maximum output power,
making it suitable for many laptops and other medium- to high-power
DC devices.

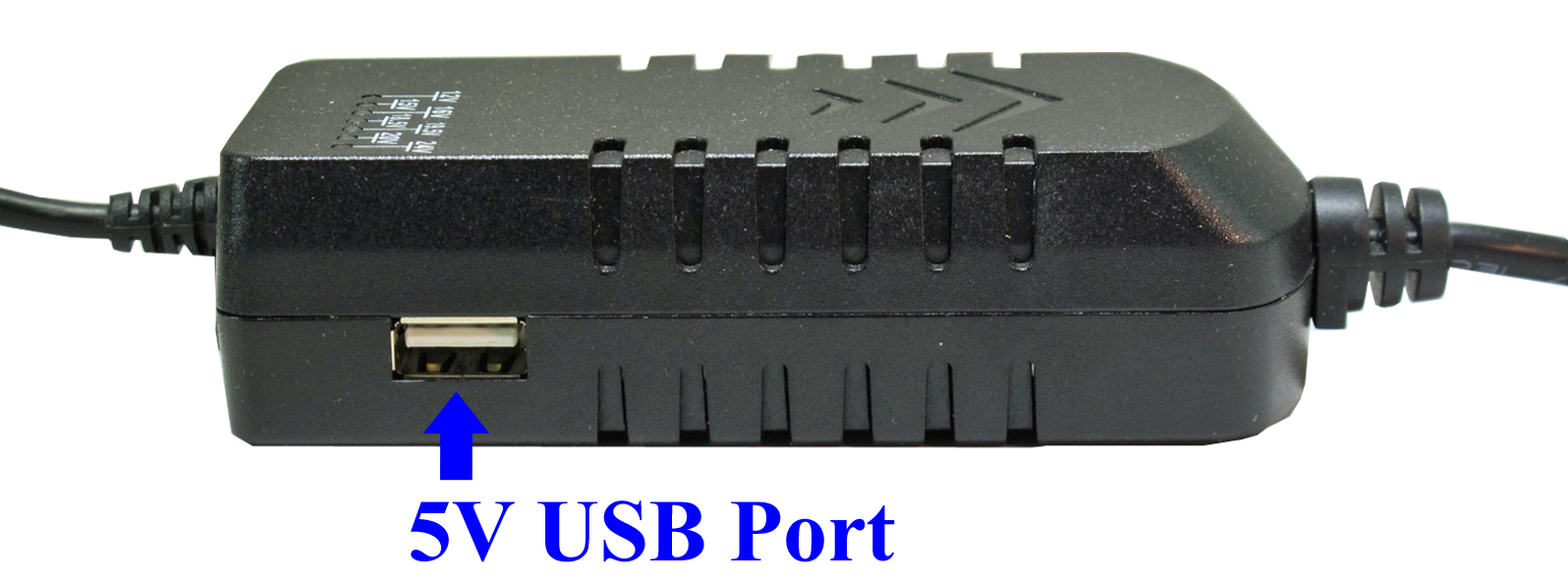

Built-In 5V USB Power Port
In addition to the selectable DC output, the DD90X-TB includes a
5V USB port for powering or charging compatible
USB devices. USB charging cable is not included.

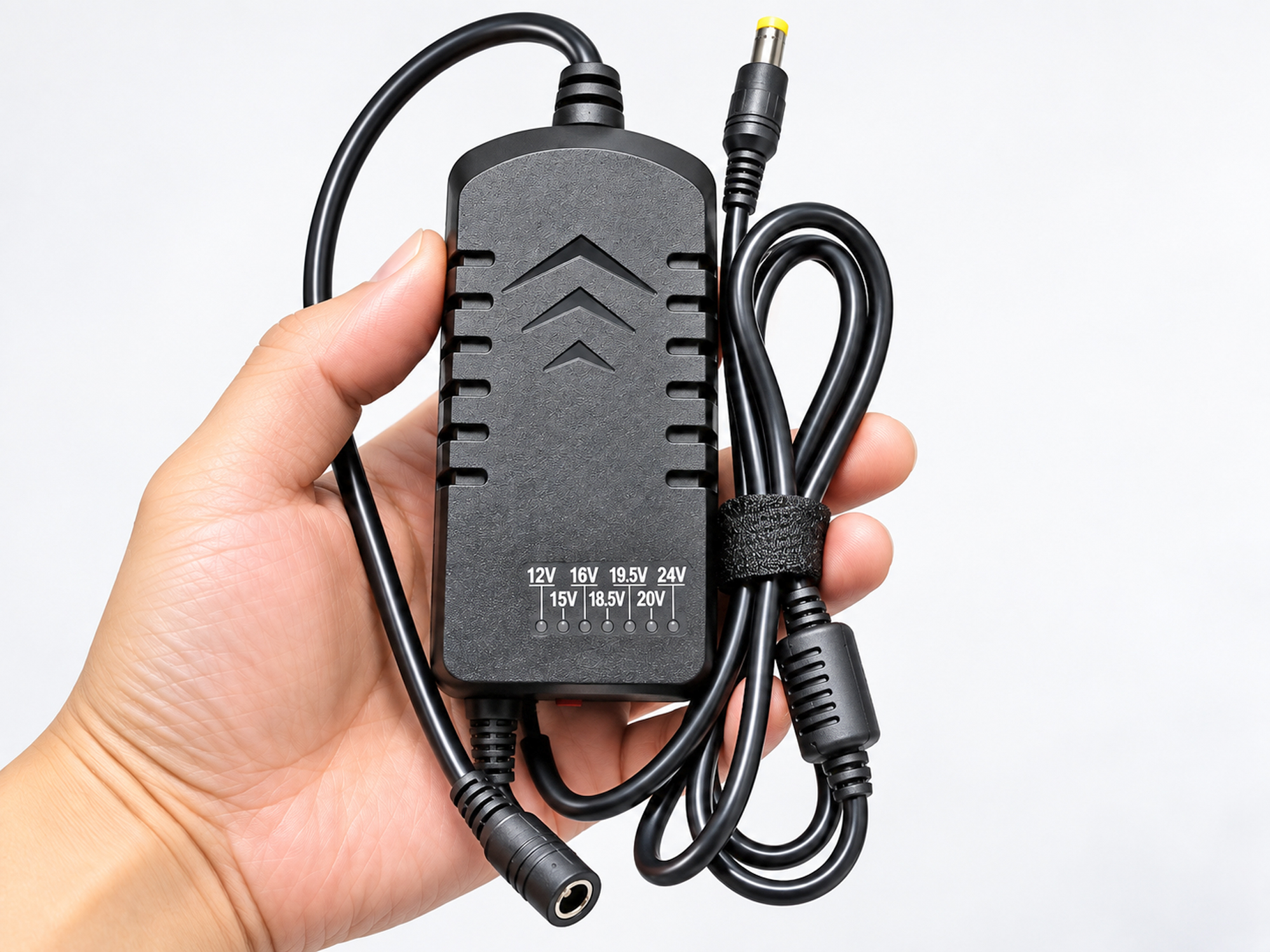

Compact and Portable
The DD90X-TB measures approximately
4.5 × 2 × 1.2 inches and weighs approximately
0.55 lb (260 g). Its compact design makes it easy to
carry with a laptop, portable battery, mobile workstation, or other
DC-powered equipment.

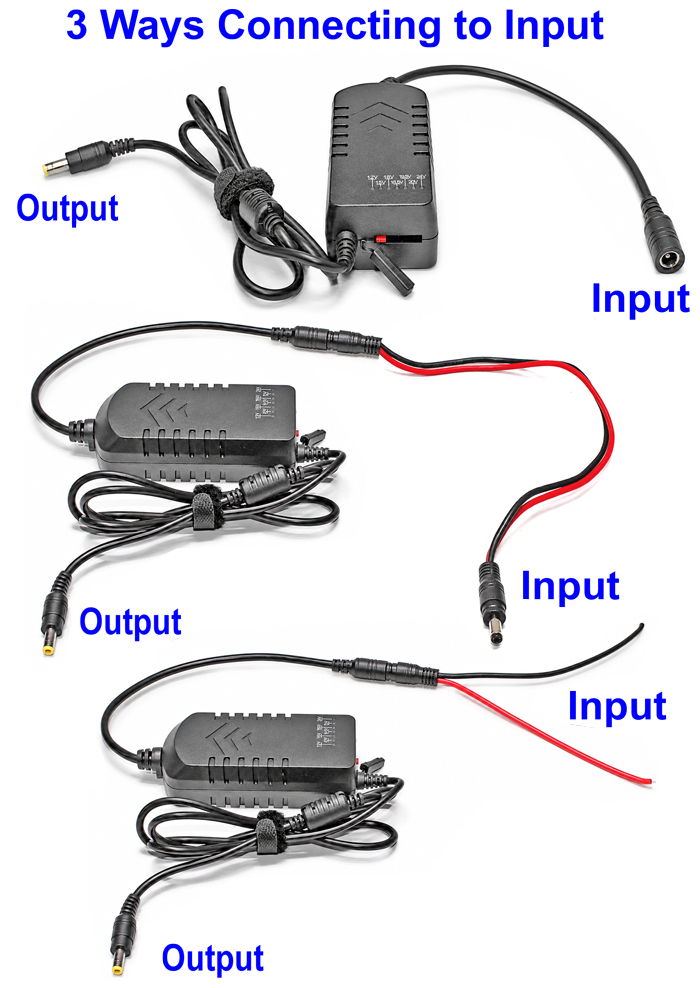

Three Ways to Connect to Your DC Power Source
The DD90X-TB uses a 5.5 × 2.5mm female DC input.
The included input cable provides flexible connection options for
different DC power sources.

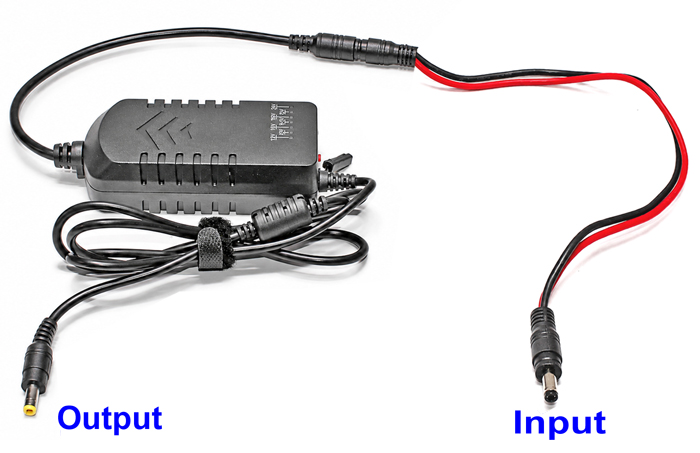

1. Direct DC Plug Connection
Connect a compatible 5.5 × 2.5mm male DC plug from
your DC power source directly to the converter's female input connector.
2. Male-to-Male DC Cable Connection
When your battery or power source has a 5.5 × 2.5mm female output port,
use a compatible 5.5 × 2.5mm male-to-male DC cable
to make the connection.

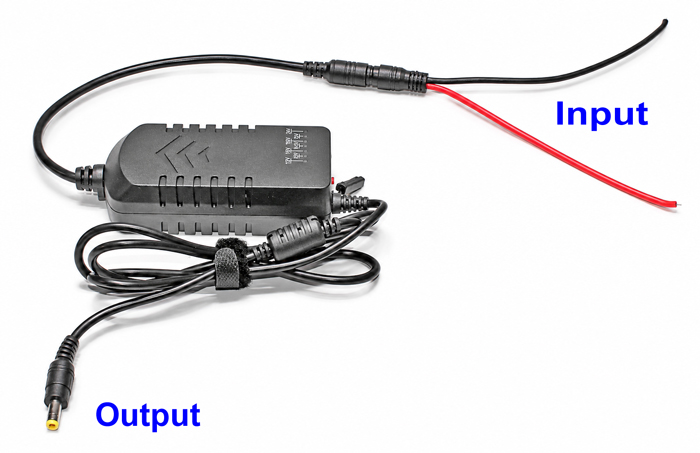

3. Direct-Wire Connection
For applications requiring a direct connection to a suitable DC power
source, the connector on one end of the input cable may be removed and
the wires connected directly to the power source.
Red wire = Positive (+)
Black wire = Negative (–) / Ground
IMPORTANT — Observe Correct Polarity
Positive (+) on the converter must connect to Positive (+) on the
power source.
Negative (–) on the converter must connect to Negative (–) on the
power source.
Reversing the polarity may damage the converter and/or connected equipment.
Important Information for High Output Power Use:
This converter accepts a wide input voltage range of 10V–30V DC, providing flexibility for use with a variety of DC power sources. For high-power applications that require high output power from the converter, it is recommended to use a higher-voltage input power source whenever possible. A lower input voltage requires higher input current to produce the same output power.
When using a lower-voltage power source, such as 12V, high-power output may require a very high input current, which can cause the input connector and connection point to become hot. Please monitor the input connection during high-power operation. If the input connector becomes excessively hot, stop using the device immediately.

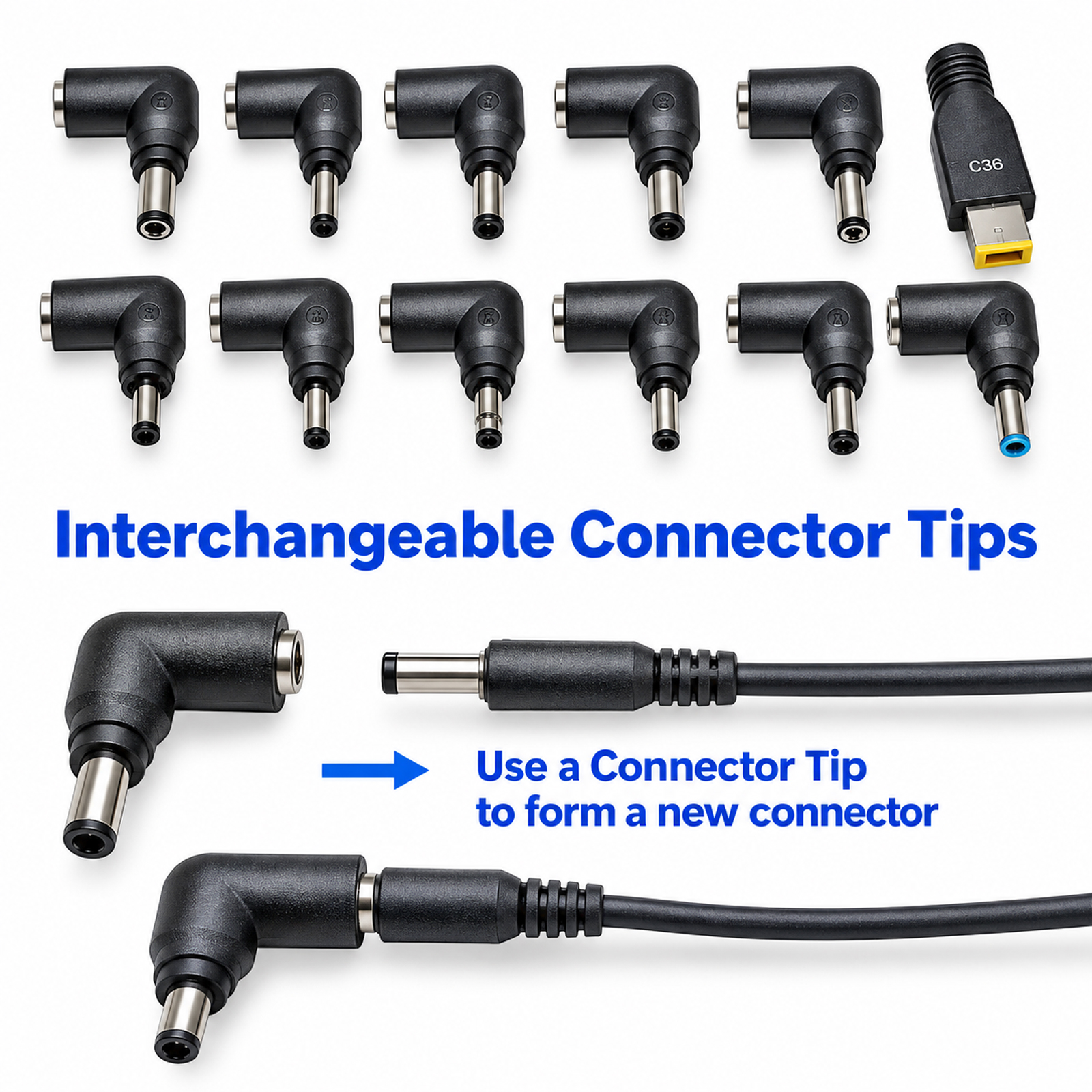

Optional Connector Tips for More Devices
The standard DD90X-TB output cable uses a
5.5 × 2.5mm male barrel connector. For equipment
requiring a different DC connector size, an optional
12-piece connector-tip kit and other BiXPower
C-series connector tips are available.
Technical Specifications
| Specification |
DD90X-TB |
| Input Voltage |
10V–30V DC |
| Selectable DC Output |
12V / 15V / 16V / 18.5V / 19.5V / 20V / 24V |
| Maximum Output Power |
90W |
| Efficiency |
>88% typical |
| USB Output |
5V USB |
| DC Input Connector |
5.5 × 2.5mm female |
| DC Output Connector |
5.5 × 2.5mm male |
| Overload Protection |
Yes — over-current and over-voltage protection |
| Short-Circuit Protection |
Yes |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-10°C to 60°C |
| Operating Humidity |
20%–80% |
| Storage Humidity |
10%–90% |
| Dimensions |
Approx. 4.5 × 2 × 1.2 in (110 × 50 × 30 mm) |
| Weight |
Approx. 0.55 lb (260 g) |
| Color |
Black |

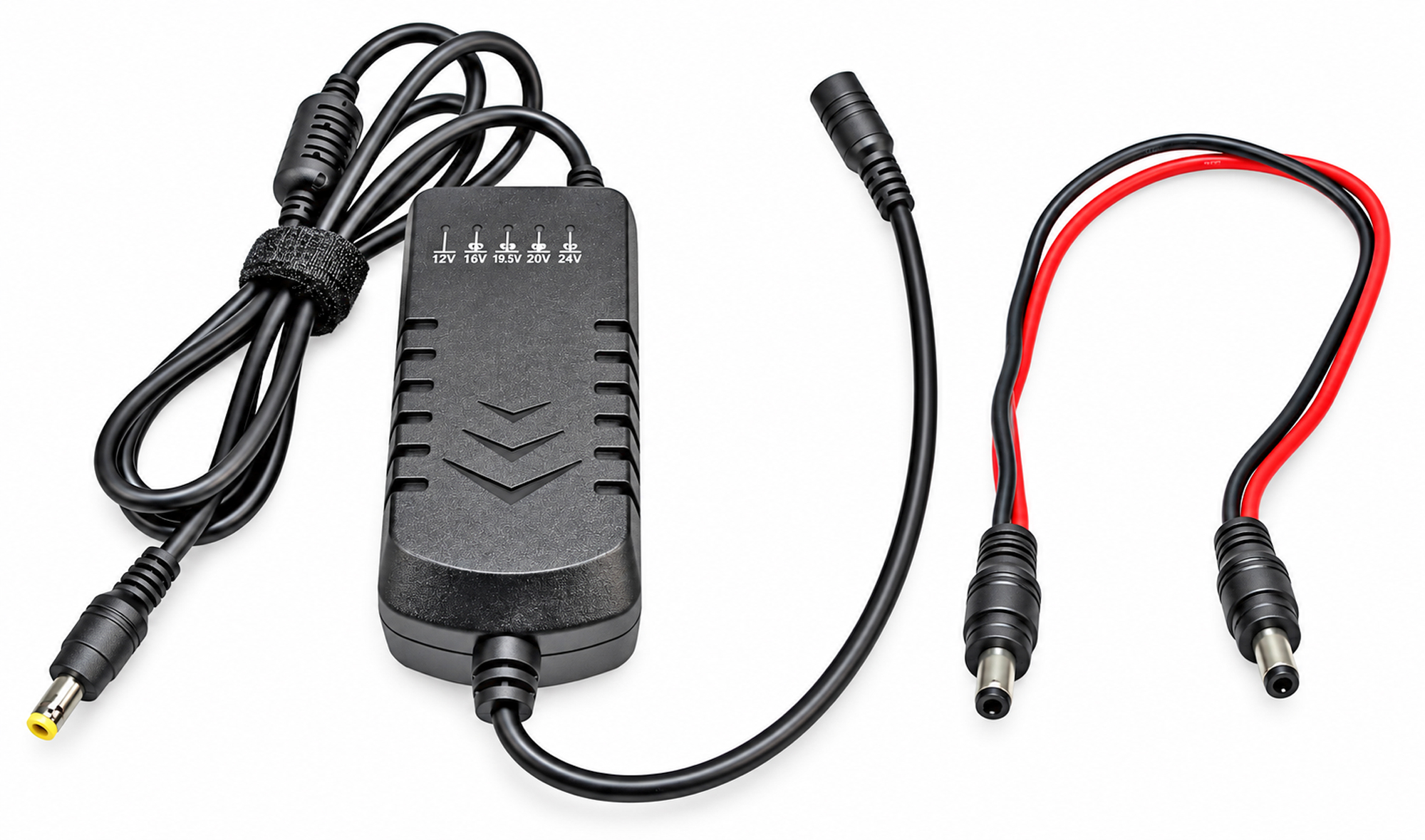

Package Contents
- BiXPower DD90X-TB DC-to-DC Power Converter × 1
- Input Cable × 1
Applications
The DD90X-TB is designed for users who need to convert variable DC power
into a stable, selectable output voltage. Typical applications include
powering compatible laptops, portable electronics, DC equipment,
battery-powered systems, mobile workstations, and other devices requiring
12V to 24V regulated DC power.
Before use, always verify your device's required
voltage, polarity, connector size, and power requirement.
