This battery has a capacity of 98 Watt-hours (26400 mAh). This is equivalent to a 12-cell lithium-ion battery. In most case, it can double or even triple a laptop running time when used together with the laptop internal battery. It can also add 30-40 hours of extra running time for an iPad and can even charge an iPad's internal battery. (iPad USB power cable not included).Specifications:
Maximum Output: 24V Port: 2.5A; USB Port 2.1A
Capacity: 98 Wh
Weight: 1.8 Lbs. (0.8 kg)
Dimensions: 8.5" x 5.5" x 1" (220 x 145 x 25mm)

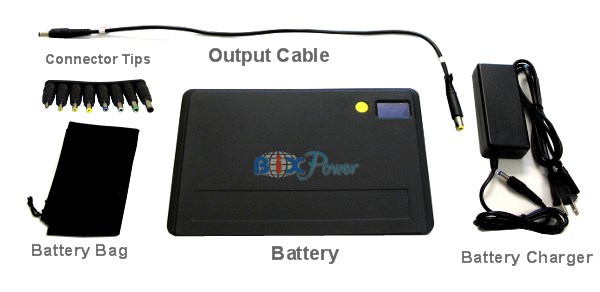

Standard package:The battery pack
comes with one MP100 battery + one 24V Output cable + 1 AC charger + 8 Connector tips.
How
to use the battery:
1. Charge the battery: This battery can be charged from any 100-240V 50Hz/60Hz AC power source with the included battery AC charger
Note: Please only use the included AC charger to charge the battery.
2. Connect Output Cable:
The battery package includes a 24V output cable with built-in voltage control chip.
3.Select connector tip and plug it over the output cable:
The original connector on the output cable is a 5.5x2.5mm connector. If it does not fit your device, please use one of the extra connector tips that fits your device, then plug it over the original connector.
8 Optional different size DC power straight connector tips kit - All with 5.5 x 2.5mm Female Jack which can plug over the connector on output cable.
Optional Connector Tips Size:
#1: 6.5mm (O.D) X 4.5mm (I.D) with Center Pin.This connectors works for a lot of Fujitsu, Panasonic and Sony laptop computers.
#2 : 6.3mm (O.D) X 3.0mm (I.D). This connector works for a lot of Toshiba laptop computers.
#3 : 5.5mm (O.D) X 2.5mm (I.D). Works for a lot of electronic devices.
#4 : 5.5mm (O.D) X 1.7mm (I.D).Works for a lot of Acer laptop computers
#5 : 5.5mm (O.D) x 3.3mm (I.D) with Center Pin.Works for a lot of Samsung laptop computers and other devices.
#6 : 4.75mm (O.D) X 1.75mm (I.D) .Works for a lot of electronic devices.
#7 : 4.00mm (O.D) X 1.70mm (I.D) . Works for a lot of electronic devices.
#8: 3.50mm (O.D.) x 1.35mm (I.D.) Works for a lot of electronic devices.

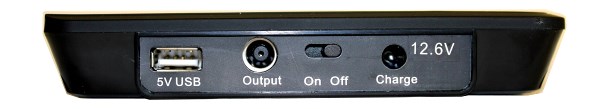

4. On/Off: Use the on/off switch on the front to turn on the battery before using it. Please turn off the battery when not in use. Leaving the battery “on” may build up static inside the battery cells and damage the battery.
Polarity
The default battery
output cable and connectors are configured as positive polarity, which meet the
needs of most of devices.
Compatibility: This battery works any device an long as:
1. The battery output voltage and polarity meet the device input voltage and polarity requirement.
2. The device needs equal or less rated current at given voltage.
3. One of the connector tips fit the device.
