BiXPower HL3633B – 36V 29Ah (1044Wh)
High-Power Rechargeable Battery
The BiXPower HL3633B
is a high-capacity
36V 29Ah rechargeable
lithium-ion battery
designed to provide powerful,
portable DC energy for
compatible 36V motors,
electric scooters,
industrial equipment,
power inverters and
other high-power applications.
With a total energy capacity of
1044 watt-hours (Wh),
the HL3633B combines
substantial energy storage
with a compact and lightweight
design.
The battery delivers a nominal
36V DC output
with an actual operating
voltage range of
30V to 42V.
Its built-in battery
management and protection
circuit provides cell
balancing and protection
against several common
electrical fault conditions.
Key Features
-
High capacity:
36V, 29Ah, 1044Wh.
-
Wide DC output range:
30–42V, nominal 36V.
-
High continuous current:
Up to 40A.
-
Burst discharge:
Up to 60A for a maximum
of 10 minutes, subject
to operating conditions.
-
Lightweight:
Approximately 13 lb (6 kg).
-
Compact dimensions:
Approximately 8.8 x 7 x 4.5 inches.
-
Built-in protection:
Cell balancing, overcharge,
overdischarge, overcurrent
and temperature protection.
-
Optional AC charger:
200W charger available separately.
-
Rechargeable design:
An alternative to bulky
lead-acid battery systems.
High-Capacity 36V Rechargeable Battery
The HL3633B stores
1044Wh of energy,
providing a high-capacity
power source for compatible
DC-powered equipment.
The battery uses
rechargeable lithium-ion
cells, offering high
energy density and
lower weight compared
with many traditional
lead-acid battery systems.

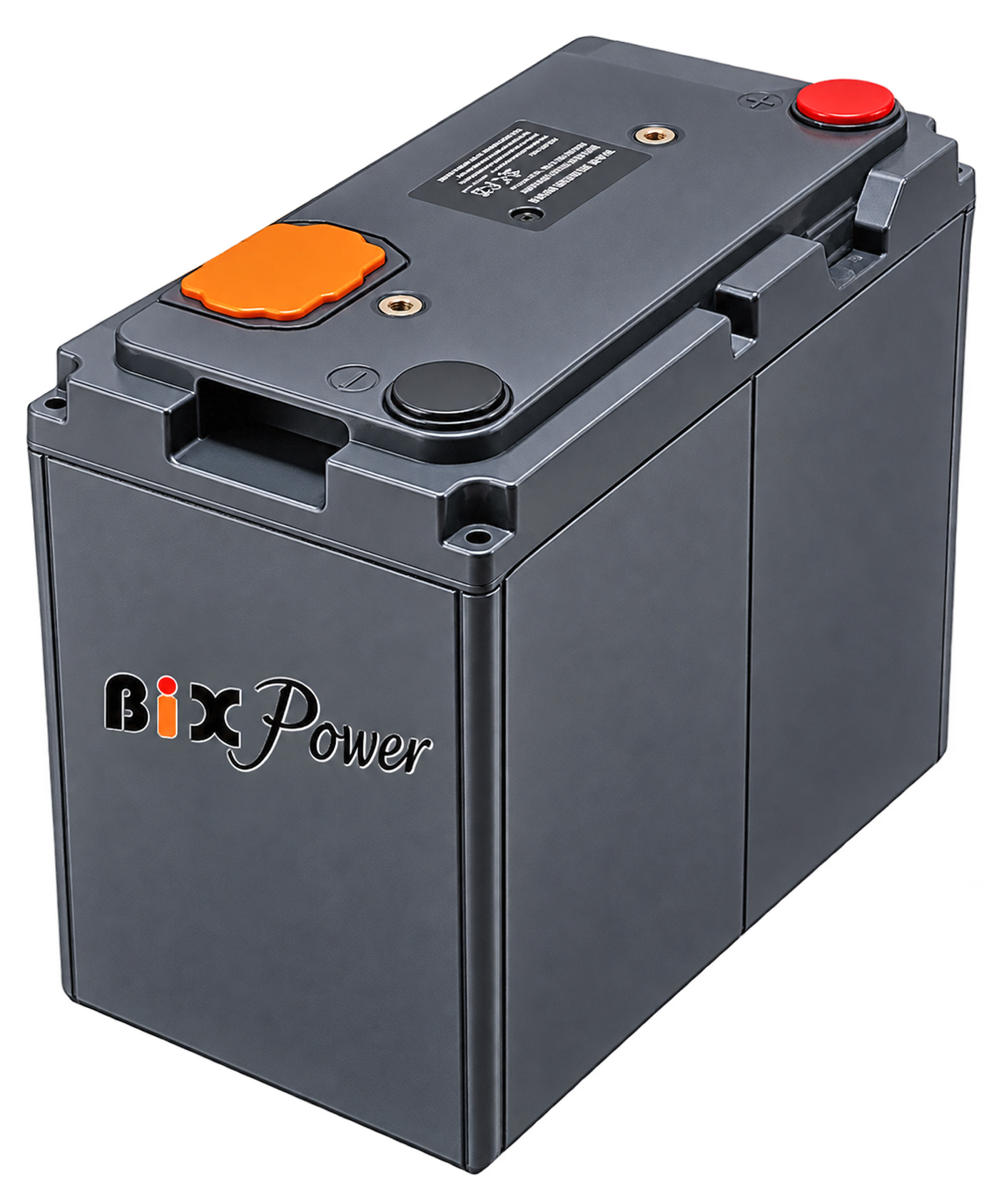

BiXPower HL3633B 36V high-power rechargeable battery.
The battery is designed
for applications requiring
substantial DC power
without the size and
weight of multiple
traditional lead-acid batteries.
36V Nominal Output – Actual Voltage Range 30V to 42V
The HL3633B is classified
as a 36V battery,
but its output voltage
changes as the battery
charges and discharges.
When fully charged,
the battery output
is approximately
42V DC.
During discharge,
the output voltage
gradually decreases
until reaching the
battery's lower
operating limit
of approximately
30V DC.
Typical 36V battery voltage
change during discharge.
Important Voltage Information:
The HL3633B does not provide
a constant regulated 36V output.
Only connect equipment designed
to accept the complete
30–42V DC
operating range.
High-Power DC Output
The HL3633B is designed
for high-current DC
power applications.
Its maximum continuous
discharge current is
40A.
The battery also supports
a maximum burst discharge
current of 60A
for up to 10 minutes,
subject to battery
condition and temperature.
Maximum usable power
depends on battery voltage,
current draw, wiring,
connectors, and the
connected equipment.
| Operating Condition |
Calculated DC Power |
| 30V at 40A |
1200W |
| 36V at 40A |
1440W |
| 42V at 40A |
1680W |
The values above are
voltage-times-current
calculations, not separate
guaranteed equipment ratings.
The original product guidance
recommends connected equipment
requiring 1200W or less.
Application Recommendation:
For direct-use applications,
choose equipment with a
power requirement of
1200W or less
and compatible with
the full 30–42V range.
Also consider motor startup
surges, wiring and connector
current ratings.

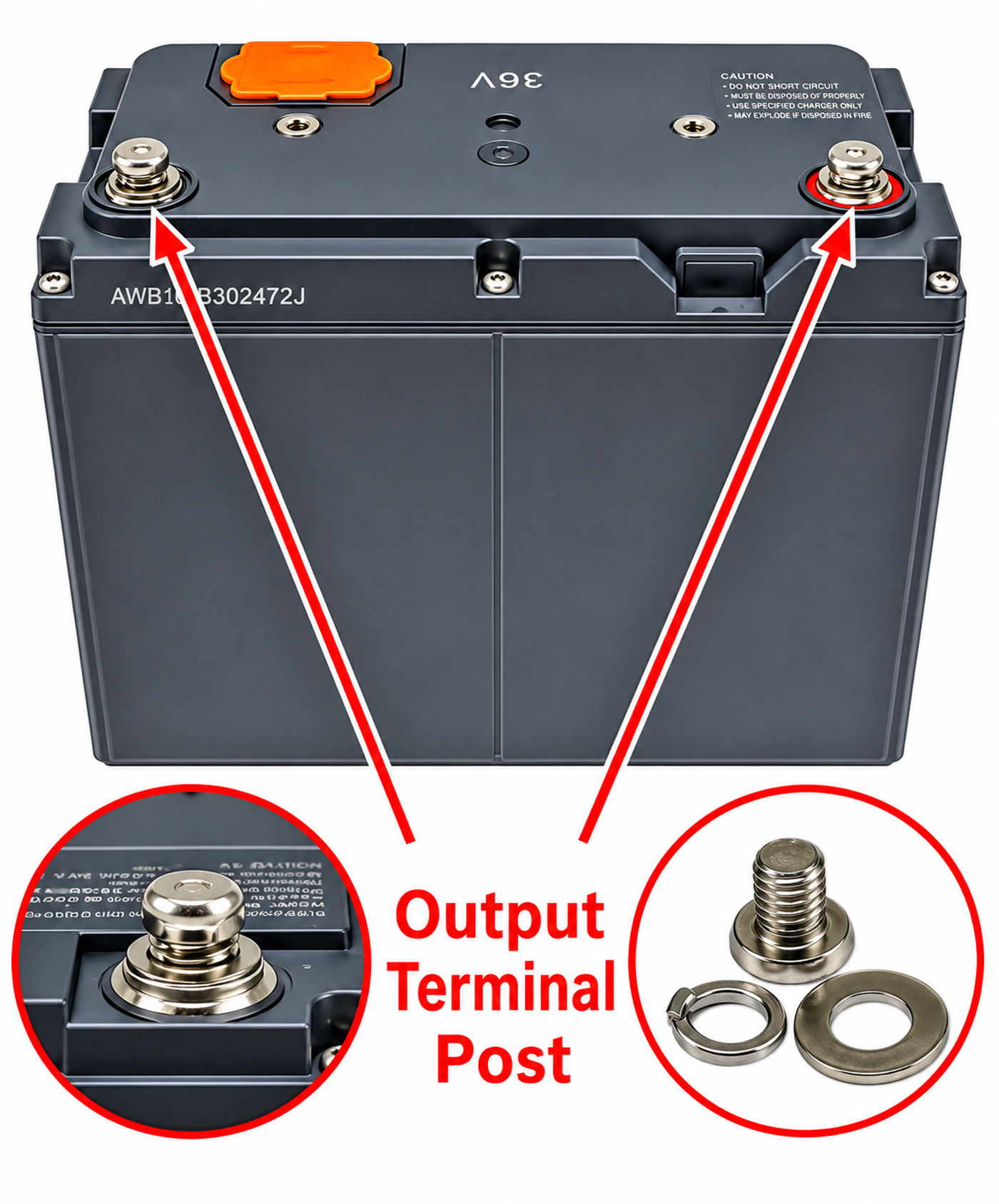

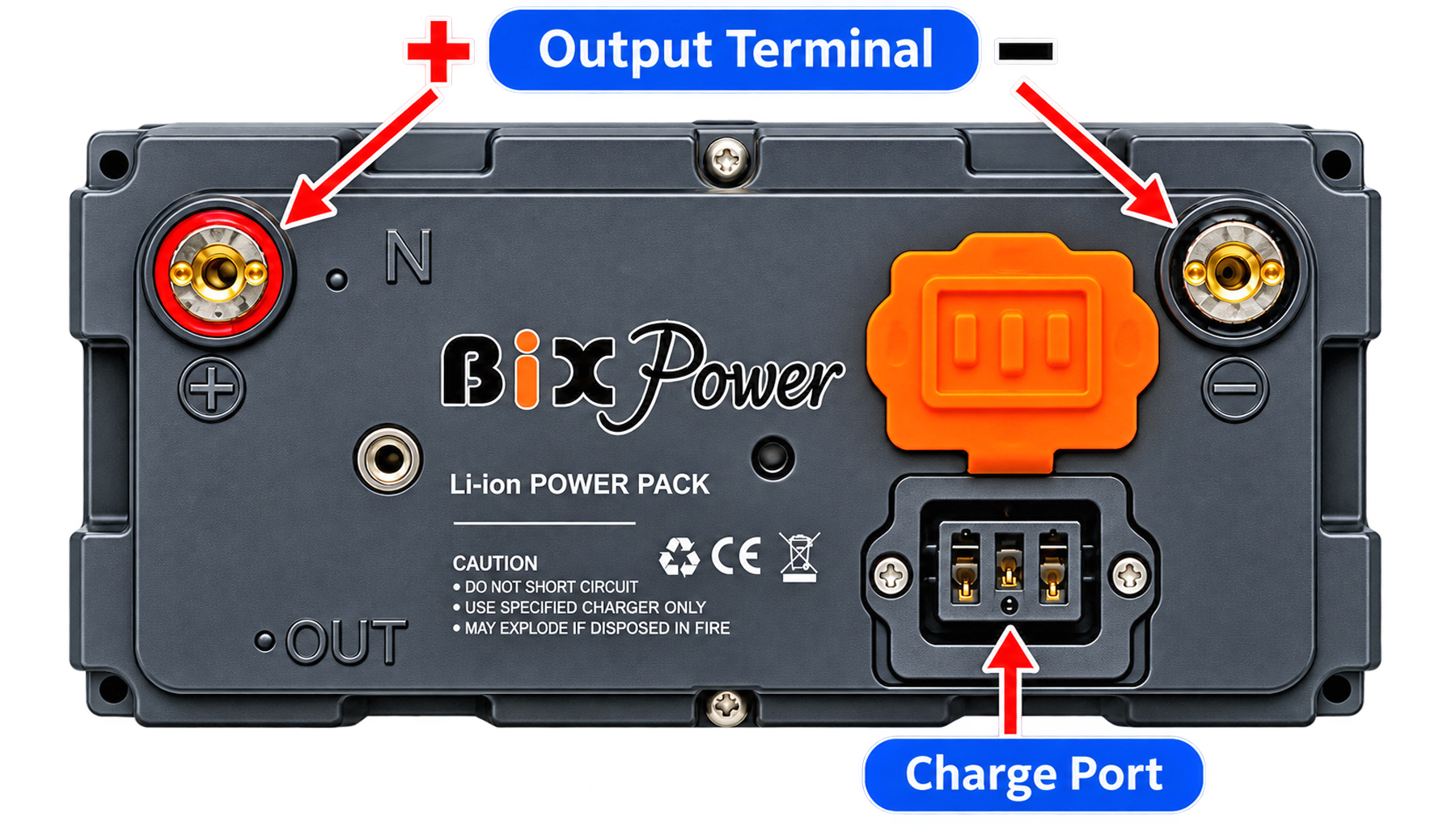

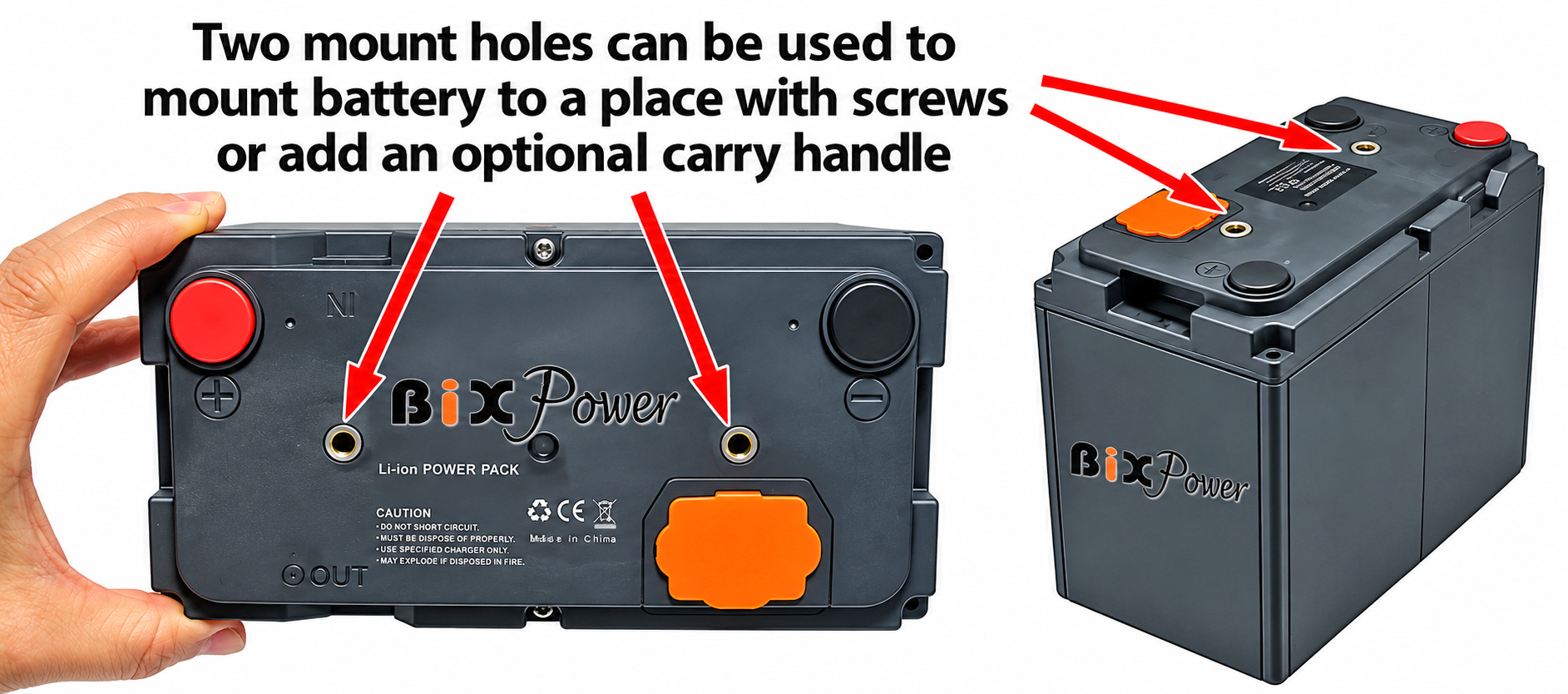

Battery Terminals and Connections
The HL3633B features
heavy-duty DC output
terminals and a separate,
specially designed
battery charging port.
The output terminals
provide direct access
to the battery's
30–42V DC output.
Always verify positive
and negative terminal
polarity before
connecting equipment.
Use appropriately rated
cables, connectors,
overcurrent protection,
and secure terminal
connections for the
intended application.
Important:
The battery output
terminals are for
discharging only.
Do not attempt to
charge the battery
through the output
terminals.
Always use the
designated charging port.

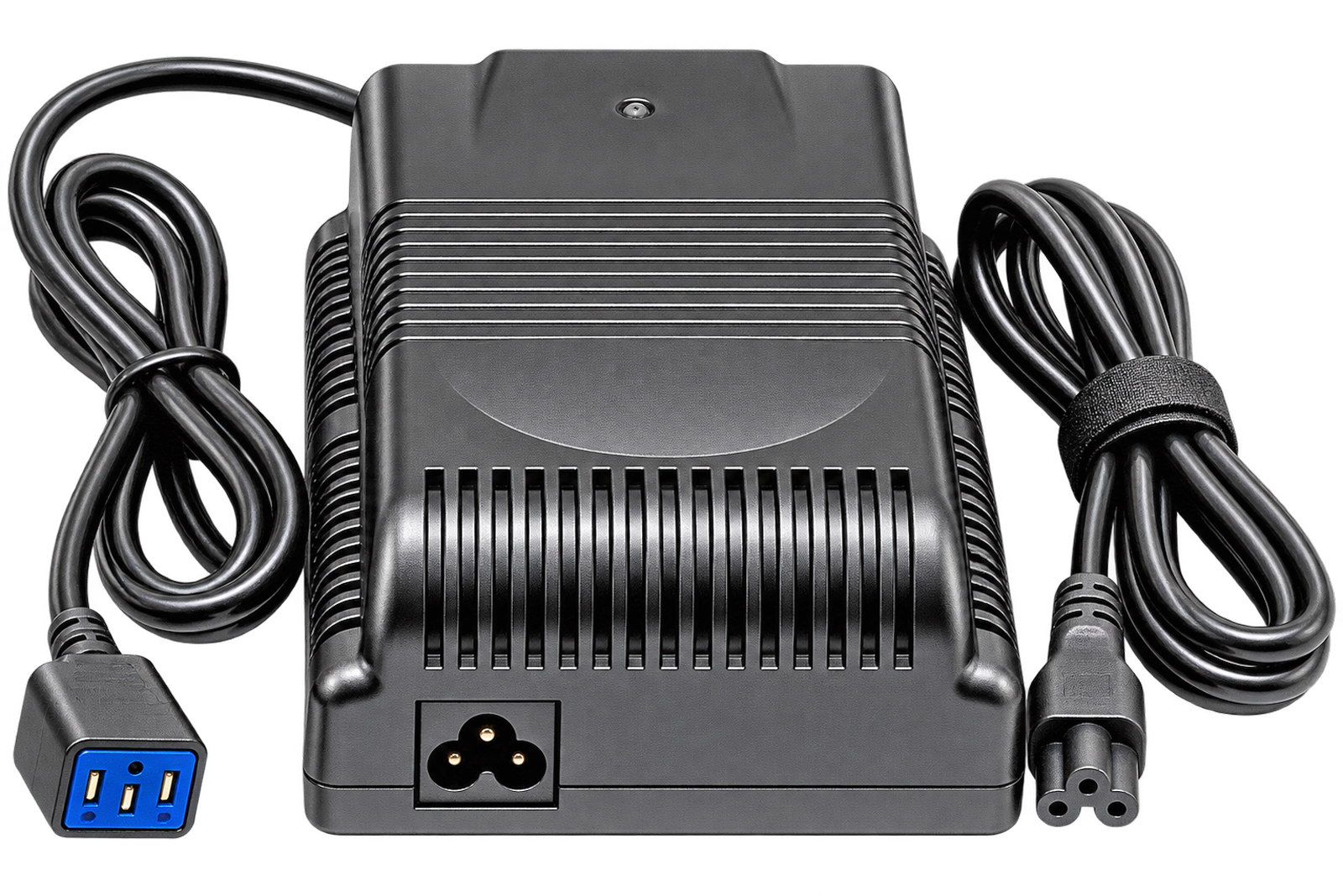

200W AC Battery Charger
The HL3633B uses a
specially designed
charging port.
The charger
regulates charging
voltage and current
for the battery.
The battery's internal
protection circuitry
is not a substitute
for a properly regulated
external charger.
Typical charging time:
Approximately 5–6 hours
with the compatible
200W AC charger,
depending on battery
condition and
charging circumstances.
Charger dimensions:
Approximately 8 x 5.5 x 3 inches.
Charger weight:
Approximately 2.5 lb.

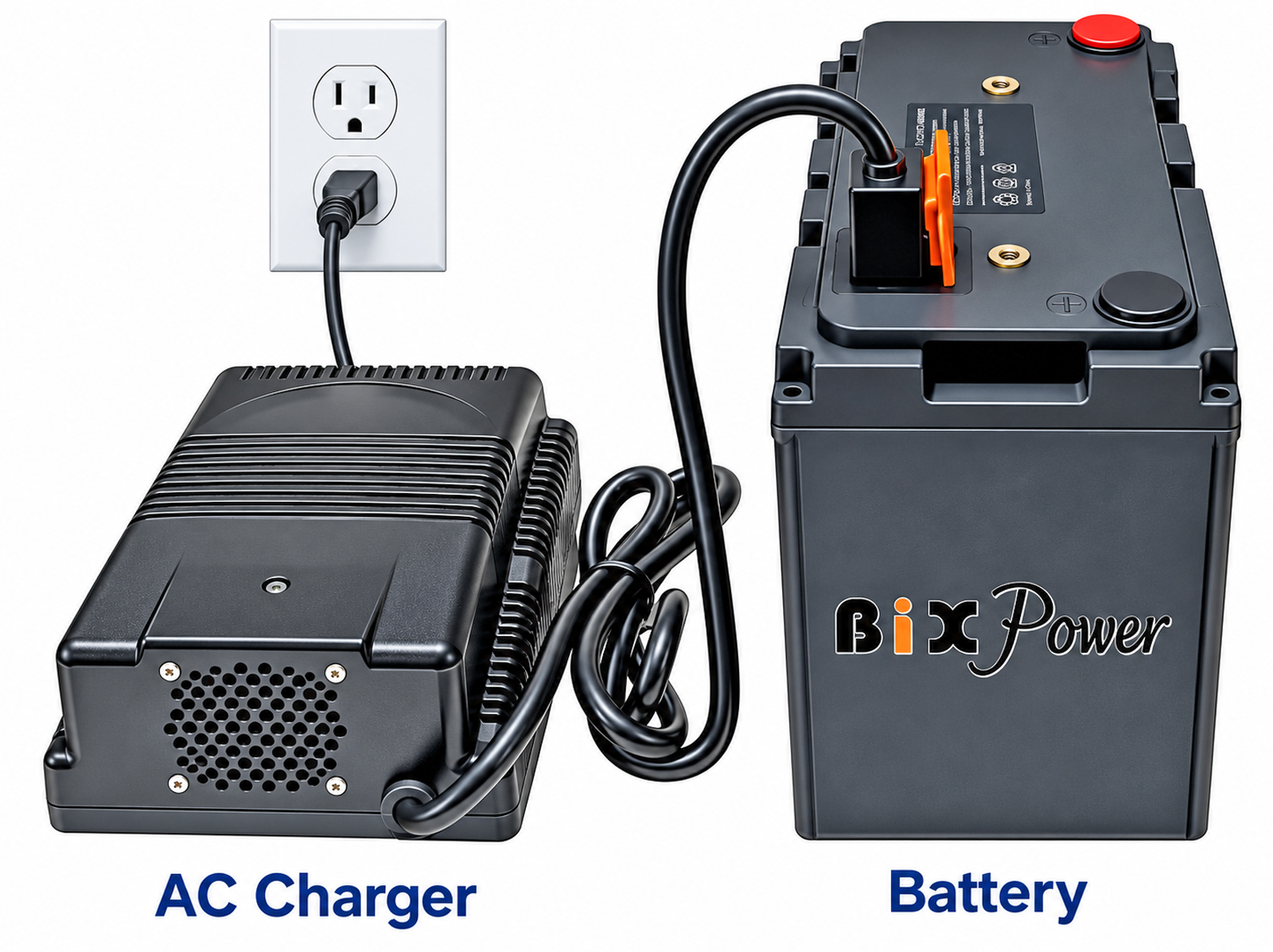

Battery Connected to Optional AC Charger
Charger Sold Separately:
When ordering, select
the battery with
the optional AC charger
if you do not already
have a compatible
BiXPower charger.

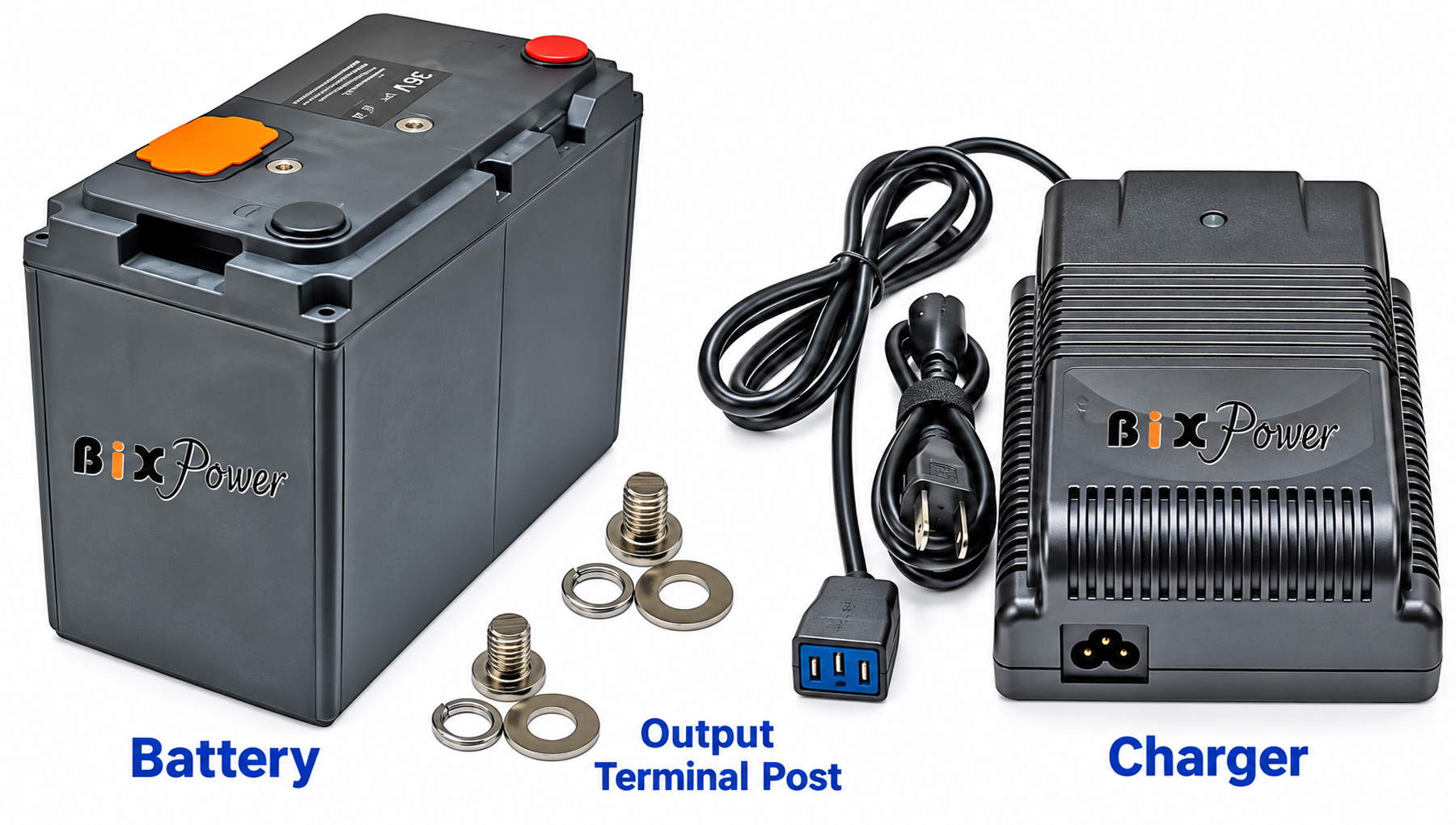

Battery Package and Charger
The standard battery
purchase includes
the HL3633B rechargeable
battery.
Always confirm the
selected package
configuration before
placing your order.
Application 1 – Direct 36V DC Power
The HL3633B can directly
power compatible
36V DC equipment
that accepts the
battery's actual
30–42V output range.
Potential applications include:
- Compatible 36V DC motors
- Electric scooters with suitable electrical specifications
- Portable DC-powered equipment
- Compatible industrial devices
- 36V electronic power systems
- Custom DC power applications
Before connecting a device,
confirm its voltage range,
continuous power requirements,
startup current, and
connector compatibility.
Application 2 – Power Other Voltages with a DC-DC Converter
The battery's 30–42V
output can be converted
to other DC voltages
using a suitable
DC-to-DC power converter.
This makes the HL3633B
a flexible power source
for systems that need
a different regulated
DC voltage.
For example, a properly
selected converter may
provide regulated 12V,
24V, or other DC outputs.
Converter Compatibility:
Select a DC-DC converter
that accepts the full
30–42V battery input
range and is rated
for the required
output power.
Allow for conversion
losses and startup
current requirements.
Application 3 – AC Power with an Optional Inverter
The HL3633B can also
be used with a compatible
36V DC-to-AC
power inverter
to supply AC power
for suitable equipment.
A compatible inverter
converts the battery's
DC output into
AC electricity.

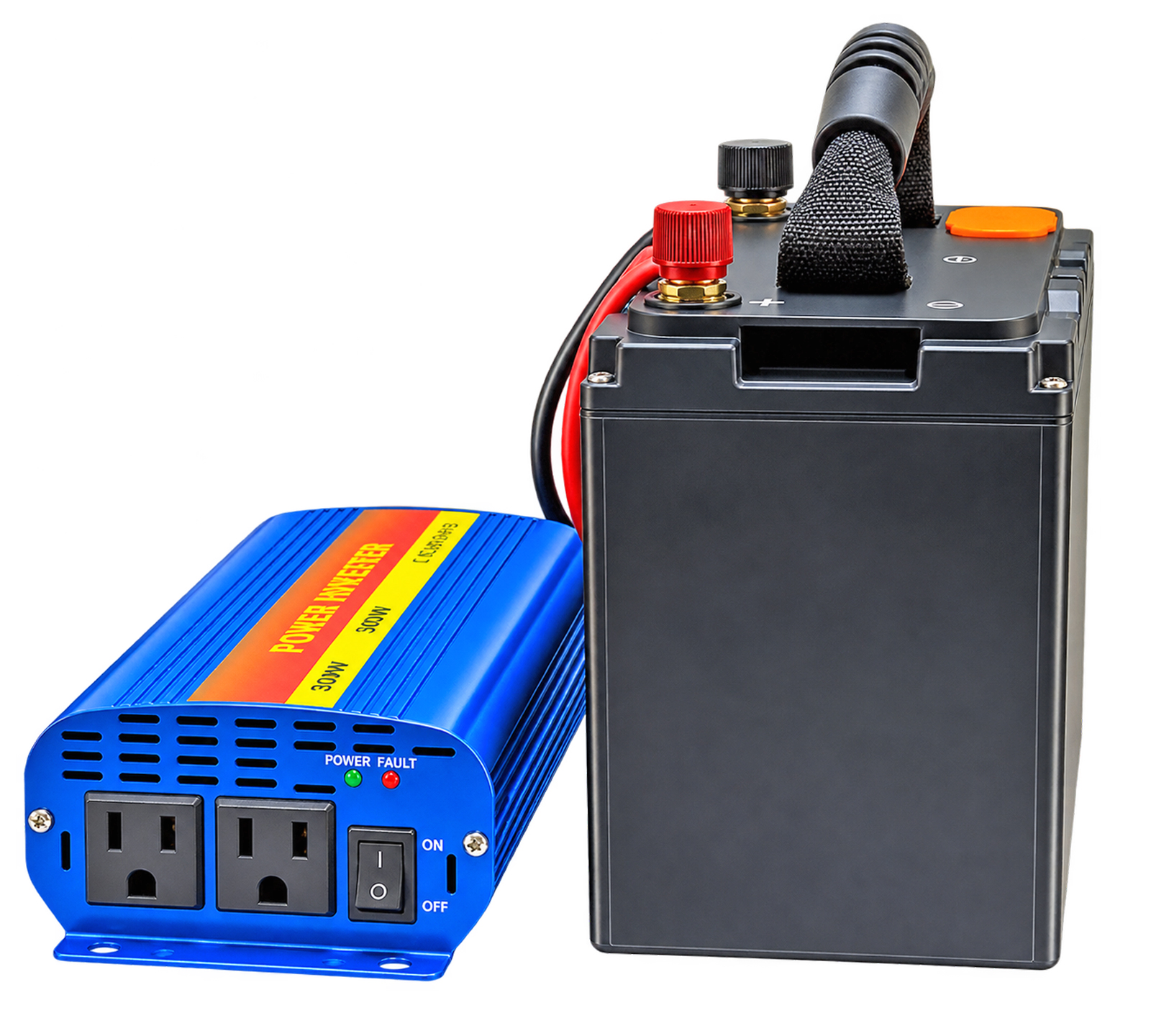

Example battery and AC inverter setup.
Inverter and battery carry handle
are not included.
Choose an inverter
that accepts the
complete 30–42V
battery voltage range.
The inverter's output
power must also be
compatible with
the battery's discharge
capability and
recommended application
power limits.
Inverters and their
connecting cables
are sold separately.

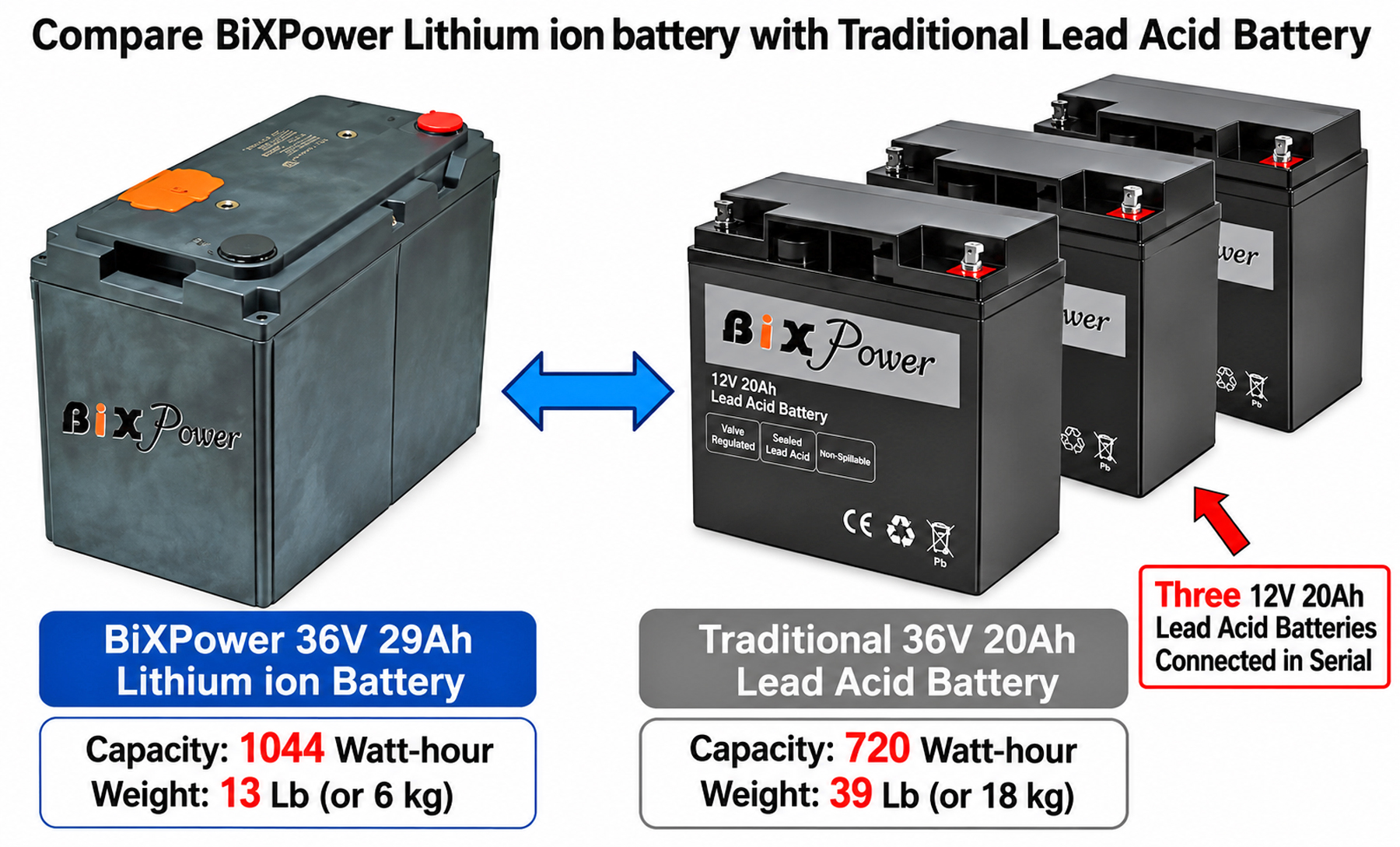

Application 4 – Alternative to Three 12V Lead-Acid Batteries
The HL3633B may be
considered as a
lighter-weight
alternative to
three 12V lead-acid
batteries connected
in series in a
compatible 36V system.
Its high energy density
allows a substantial
amount of energy
to be stored in
a smaller package.
The HL3633B weighs
approximately 13 lb,
compared with substantially
heavier lead-acid
battery arrangements.
It also eliminates
the need for
three separate
12V batteries and
their series
interconnection cables.
Replacement Compatibility:
Do not assume every
36V lead-acid system
can accept a lithium-ion
replacement directly.
Check the motor controller,
voltage limits,
charging system,
current demand,
mounting arrangement,
and wiring.
Use the lithium-ion
battery's approved charger.
Rechargeable Lithium-Ion vs. Lead-Acid Batteries
Rechargeable lithium-ion
technology offers several
advantages compared
with traditional
sealed lead-acid
battery systems.
| Feature |
HL3633B Lithium-Ion |
Traditional Lead-Acid |
| Energy Density |
Higher |
Lower |
| Weight |
Approximately 13 lb for this battery |
Typically heavier for comparable usable energy |
| Maintenance |
No electrolyte refilling |
Depends on battery type |
| Self-Discharge |
Generally lower |
Generally higher |
| Charging |
Requires compatible lithium-ion charger |
Requires compatible lead-acid charger |
| Protection |
Built-in battery protection circuit |
Depends on system design |
| Installation |
Compact enclosed design |
Depends on battery type |
Actual battery life,
weight savings,
charging performance,
and maintenance
requirements depend
on the specific
battery models
being compared.
Technical Specifications
| Brand |
BiXPower |
| Model |
HL3633B |
| Product Code |
BAT-HL3633B |
| Battery Chemistry |
Rechargeable lithium-ion |
| Nominal Voltage |
36V DC |
| Output Voltage Range |
30–42V DC, unregulated |
| Capacity |
29Ah at 36V nominal |
| Energy Capacity |
1044Wh |
| Maximum Continuous Discharge Current |
40A |
| Maximum Burst Discharge Current |
60A, up to 10 minutes |
| Recommended Application Power |
1200W or less, per original product guidance |

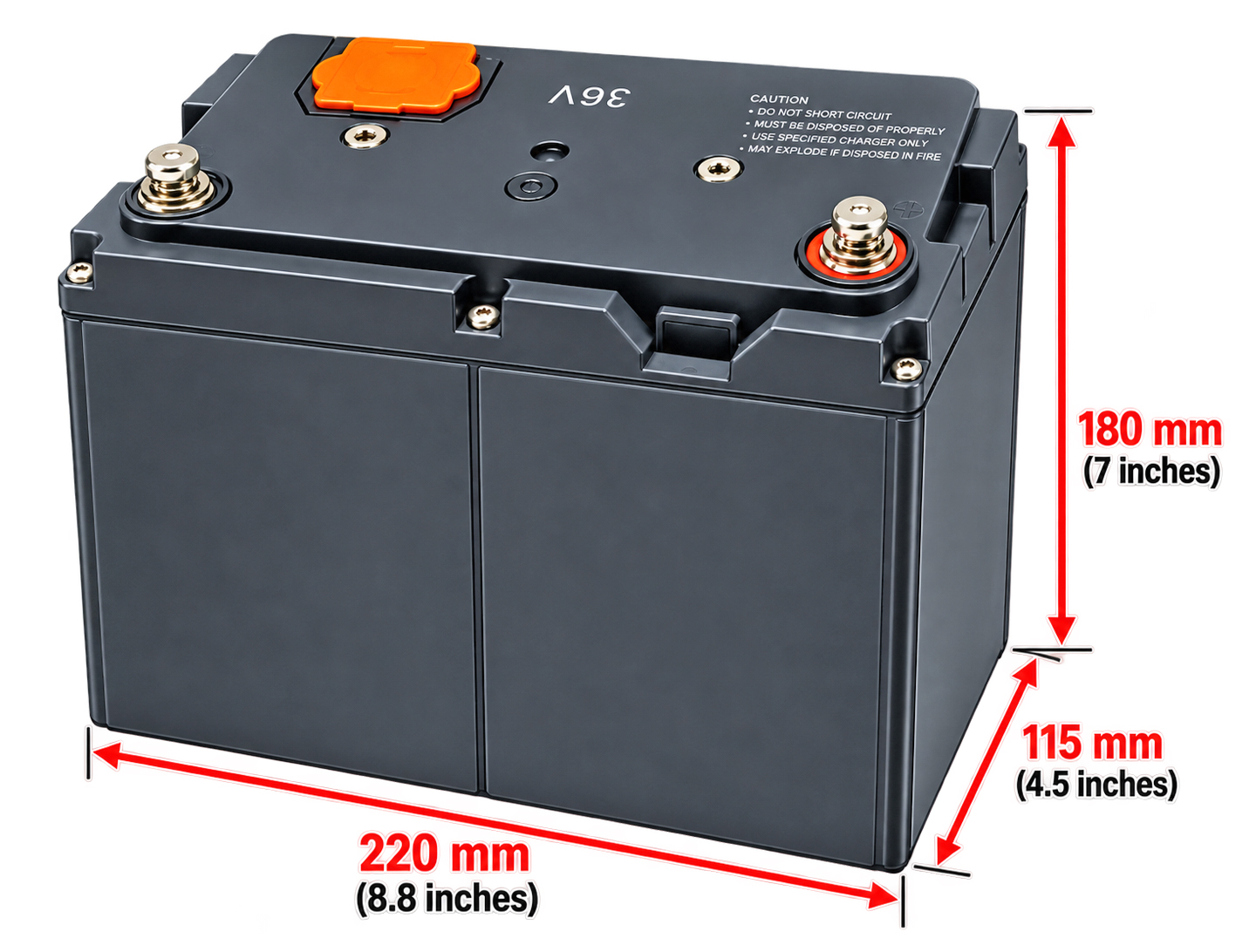

| Dimensions |
220 x 180 x 115mm (approximately 8.8 x 7 x 4.5 inches) |
| Weight |
Approximately 6kg (13 lb) |
| Charging Temperature |
0°C to 45°C |
| Discharge Temperature |
-20°C to 60°C |
| Storage Temperature |
-20°C to 40°C |
| Cycle Life |
Approximately 500 cycles, depending on use |
| Battery Protection |
Cell balancing, overcharge, overdischarge, overcurrent, temperature and secondary protection |
| Charging Port |
Dedicated special connector |
| Optional Charger |
Compatible 200W AC charger |
| Typical Charging Time |
Approximately 5–6 hours with optional 200W charger |
| Battery Configuration |
Independent use only; do not connect batteries directly in series or parallel |
| Warranty |
One-year limited warranty |
Important: Do Not Connect Batteries in Series or Parallel
Critical Battery Connection Warning
The HL3633B is designed
for independent
operation only.
Do not directly connect
this battery in series
or parallel with another
battery.
Improper battery
interconnection can
damage the internal
battery management
and protection circuitry,
potentially creating
a serious safety hazard.
Battery Charging and Safety Instructions
-
Only use a compatible
BiXPower-authorized charger.
-
Always charge through
the dedicated charging port.
-
Never charge through
the output terminals.
-
Do not disassemble,
puncture, crush,
or modify the battery.
-
Do not short-circuit
the output terminals.
-
Do not expose the
battery to water,
fire or excessive heat.
-
Do not charge a damaged,
swollen or overheating battery.
-
Charge in a cool,
dry and ventilated area.
-
Use properly rated
cables and protective
devices for high-current
connections.
-
Keep the battery away
from children.
-
Recycle used batteries
through appropriate
battery recycling programs.
Battery Storage and Maintenance
For long-term storage,
keep the battery
in a cool, dry
environment away
from excessive heat
and direct sunlight.
Store the battery
partially charged
rather than fully
discharged.
Check its condition
and remaining charge
periodically during
extended storage.
Avoid leaving the
battery fully discharged
for long periods,
which may cause
permanent battery damage.
Frequently Asked Questions
What is the battery capacity of the HL3633B?
The HL3633B has
a nominal capacity
of 36V, 29Ah,
equivalent to
1044Wh of energy.
Does the battery provide constant 36V output?
No. The battery's
output voltage varies
from approximately
42V when fully charged
to 30V near discharge
cutoff.
What is the maximum continuous discharge current?
The battery is rated
for up to 40A
continuous discharge,
subject to proper
operating conditions.
Can I use the battery for a 36V electric scooter?
Possibly, if the scooter's
controller accepts the
full 30–42V range
and its power, current,
charging and mechanical
requirements are compatible.
Can I use the battery with a DC-to-AC inverter?
Yes, with a compatible
inverter designed
to accept the battery's
30–42V DC input range.
The inverter is sold
separately.
Does the battery include an AC charger?
The compatible 200W
AC charger is optional.
Select the charger
option when ordering
if you need one.
How long does it take to charge the battery?
The original product
specification lists
approximately 5–6 hours
using the compatible
200W AC charger.
Can I connect two HL3633B batteries together?
No. The HL3633B is
designed for independent
use only. Do not connect
multiple batteries
directly in series
or parallel.
Can the HL3633B replace three 12V lead-acid batteries?
It may be suitable
for certain compatible
36V systems, but
voltage, current,
controller, charger,
mounting and wiring
compatibility must
be verified first.
How long will the battery last?
Battery runtime
depends on connected
device power consumption,
conversion losses,
temperature and
battery condition.
For example, at
a constant 200W load,
1044Wh represents
approximately 5.2 hours
of theoretical energy.
Actual runtime will
be lower and may
vary significantly.
One-Year Limited Warranty
The BiXPower HL3633B
includes a
one-year limited
warranty
covering qualifying
manufacturing and
material defects.
Rechargeable batteries
naturally lose capacity
over time due to
use and aging.
Normal capacity
reduction is not
considered a manufacturing
defect and is not
covered by the
limited warranty.
Reliable High-Capacity 36V Power
With its 1044Wh
energy capacity,
high-current output,
lightweight design,
and built-in battery
protection circuitry,
the BiXPower
HL3633B provides
a powerful rechargeable
energy solution for
compatible 36V DC
equipment and
portable power systems.
BiXPower – Professional
Portable Power Solutions.
