How to use this connector tip?
(* Note: Following pictures are just for understanding how the connector works. It may be a different connector plug tip shown in the following pictures.)

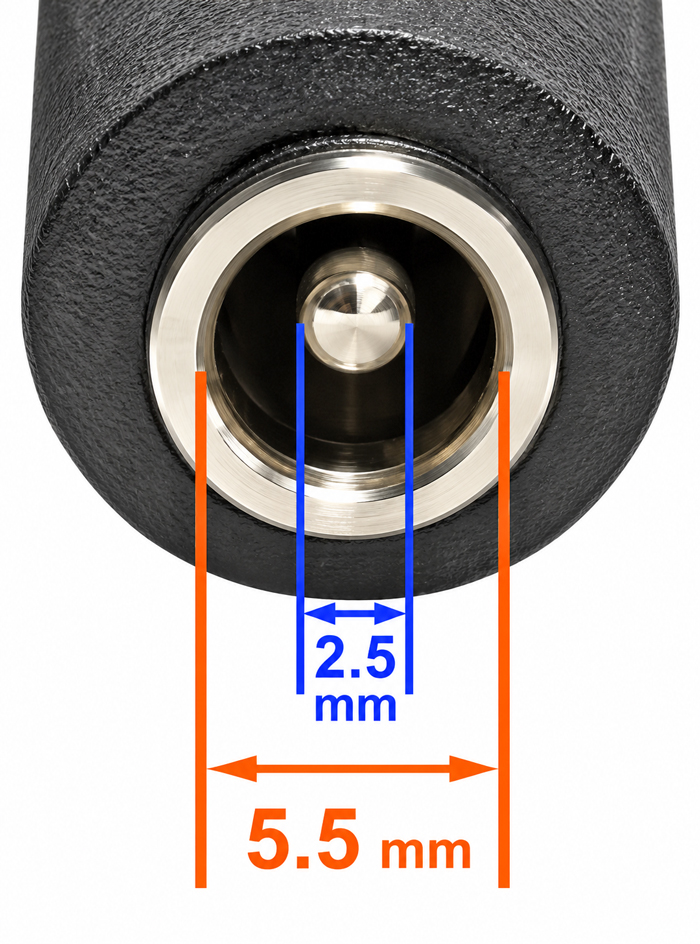

This connector's rear is a 5.5 x 2.5mm female jack, which can plug onto a 5.5 x 2.5mm connector.
Now this tip has converted the 5.5 x 2.5mm connector to a 9.0 x 3.0mm connector .Important Note*: If your original connector is not a 5.5 x 2.5mm connector, you can not use this connector plug tip.
If you are using this special connector tip with some of our universal batteries or power adapters, you first need to find the 5.5 x 2.5mm standard connector tip that comes with the batteries or power adapters and plug it onto the battery or power adapter output cord:

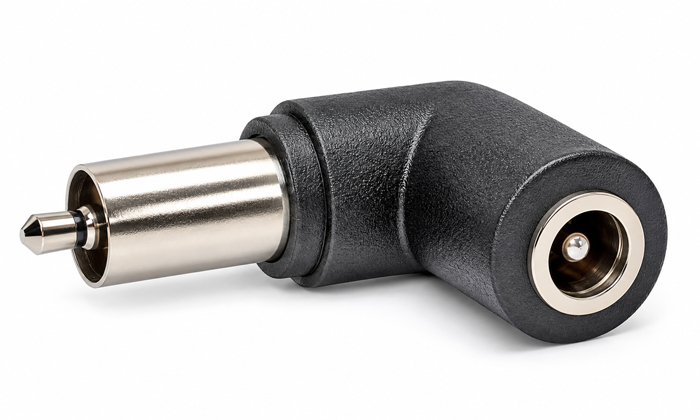

Then plug this special connector tip to the 5.5 x 2.5mm connector.
