BP220 223Wh IEC 62133 Battery for ResMed AirSense 11

BiXPower BP220 223Wh IEC 62133 Certificated Battery for ResMed AirSense 11 CPAP

The BiXPower BP220-AS11DC is a high-capacity 223Wh rechargeable lithium-ion battery system designed to provide portable DC power for ResMed AirSense 11 CPAP machines. The package includes a dedicated 24V DC power converter that converts the battery's 15V output to the power required by the AirSense 11.

IEC 62133 Certificated Lithium-Ion Battery

The BP220 battery is IEC 62133 certificated, providing customers with added confidence in the safety and quality of the rechargeable lithium-ion battery system. It also incorporates multiple built-in protection functions, including over-charge, over-discharge, over-current, over-temperature and short-circuit protection.

High-Capacity Portable Power for AirSense 11

With 223 watt-hours of battery capacity, the BP220 is an excellent solution for powering an AirSense 11 when conventional AC power is unavailable. Depending on CPAP settings and operating conditions, it may provide approximately 2–4 nights of operation when the humidifier and heated features are turned off. Actual runtime varies substantially with pressure settings, humidifier use, heated tubing, operating environment and other factors.

Despite its high capacity, the battery has a slim profile and can fit into many laptop or notebook-style carrying bags, making it convenient for road trips, camping, backup power applications and other situations where portable CPAP power is needed.

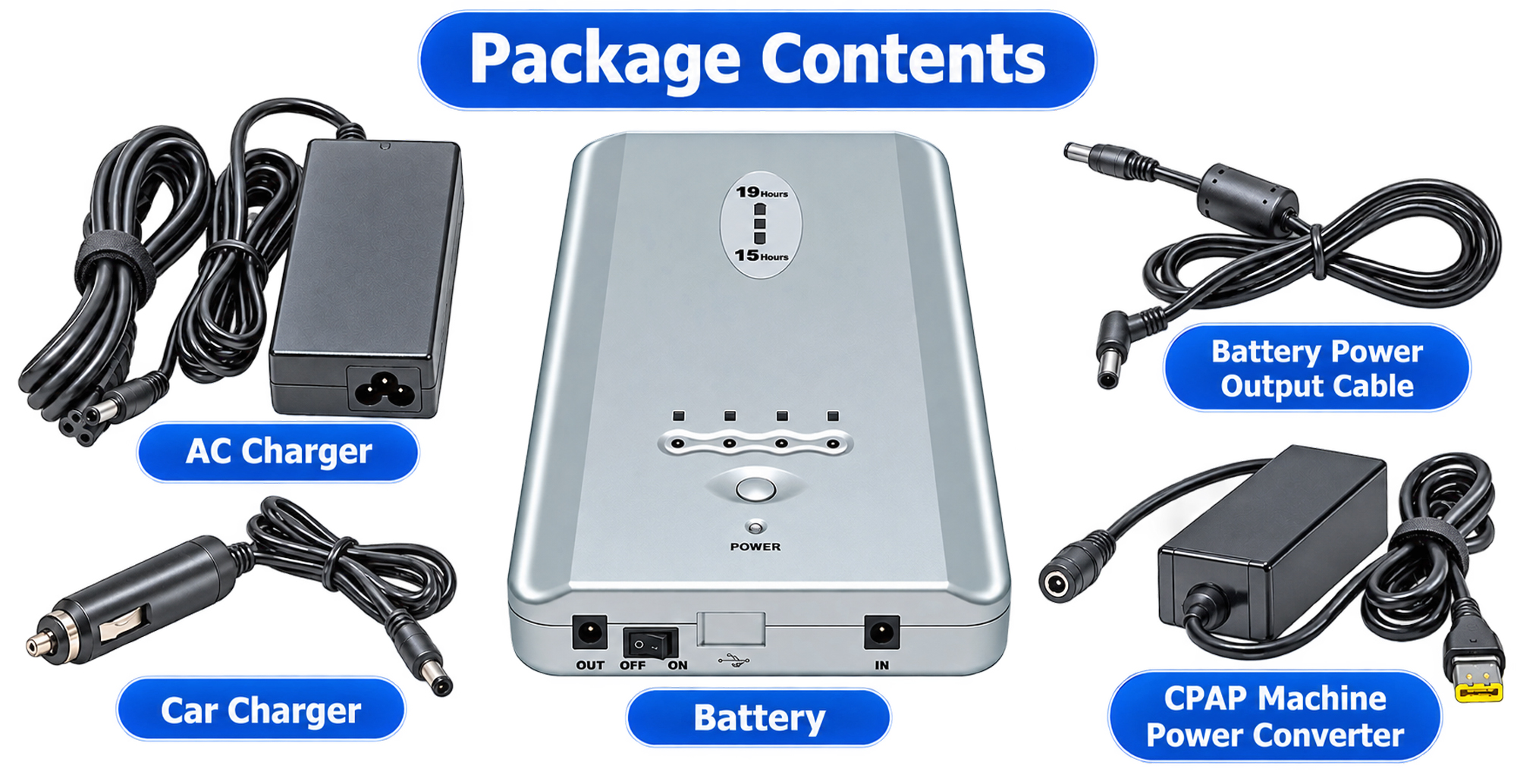

Package Contents

The BP220-AS11DC package provides the essential components needed to charge the battery and connect it to a compatible ResMed AirSense 11 CPAP machine:

BiXPower BP220 223Wh rechargeable battery × 1
AC battery charger and power cord × 1
12V DC car charger × 1
Battery power output cable × 1
24V DC power converter for ResMed AirSense 11 × 1

Why Choose the BP220-AS11DC?

223Wh high capacity for extended CPAP runtime
IEC 62133 certificated rechargeable lithium-ion battery
Dedicated 24V DC converter for ResMed AirSense 11
Rechargeable from 100–240V AC power with the included AC charger
Rechargeable from a 12V vehicle cigarette-lighter socket with the included car charger
Built-in 5V USB output for compatible small electronic devices
Slim, portable design for easier transportation and storage
4-level LED battery power indicator
Multiple built-in battery protection functions

Battery Technical Specifications

Model	BP220
Battery Capacity	223 Watt-Hours (Wh)
Safety Certification	IEC 62133 Certificated
Battery Chemistry	Lithium-Ion (Li-ion)
Color	Silver
Charging Input Voltage	DC 12–19V
Selectable Battery Output	15V / 19V DC
USB Output	5V USB, up to 2.1A
Maximum Main Output Current	Up to 5A at 15V / 19V
Typical Charging Time	Approximately 4–6 hours
Dimensions	270 × 145 × 32.55 mm
Weight	Approximately 1,340 g (2.95 lb)
Power Indicator	4-level LED indicator

Built-In Battery Protection

The BP220 incorporates an internal protection circuit designed to help protect the battery during normal operation. Protection functions include:

Over-charge protection
Over-discharge protection
Over-current protection
Over-temperature protection
Short-circuit protection

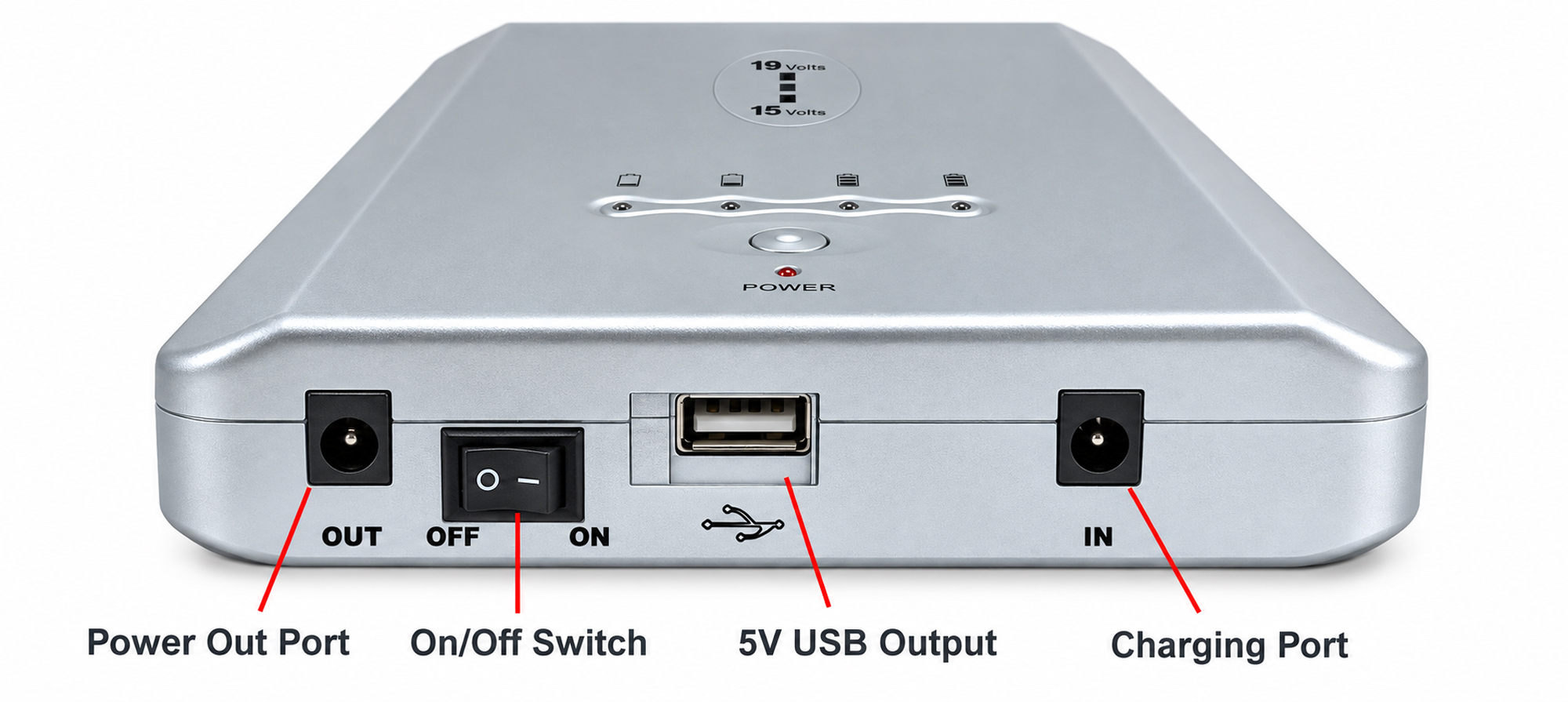

Battery Ports & Controls

IN: Charging input port for connecting the AC charger or 12V car charger.
OUT: Main battery DC power output port.
ON/OFF: Controls power from the main output port.
USB: 5V USB output for compatible phones and other small USB-powered devices.

How to Use the BP220 Battery with a ResMed AirSense 11

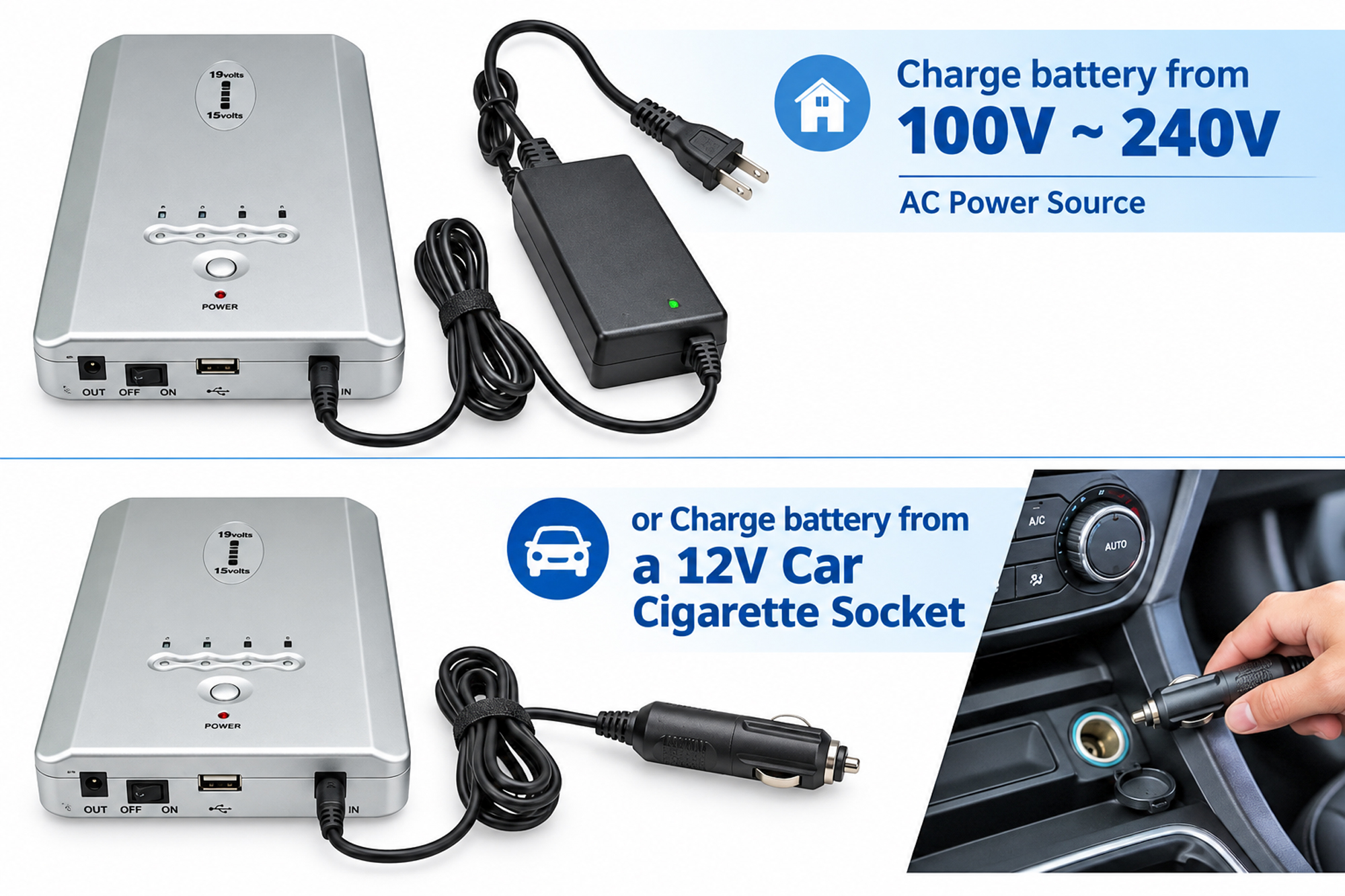

Step 1 — Charge the Battery

Charge the BP220 before use. The package includes both an AC charger and a 12V DC car charger. Connect either charger to the battery's IN charging port.

The AC charger can be used with a compatible 100–240V AC power source. The included car charger allows charging from a standard 12V vehicle cigarette-lighter/accessory socket.

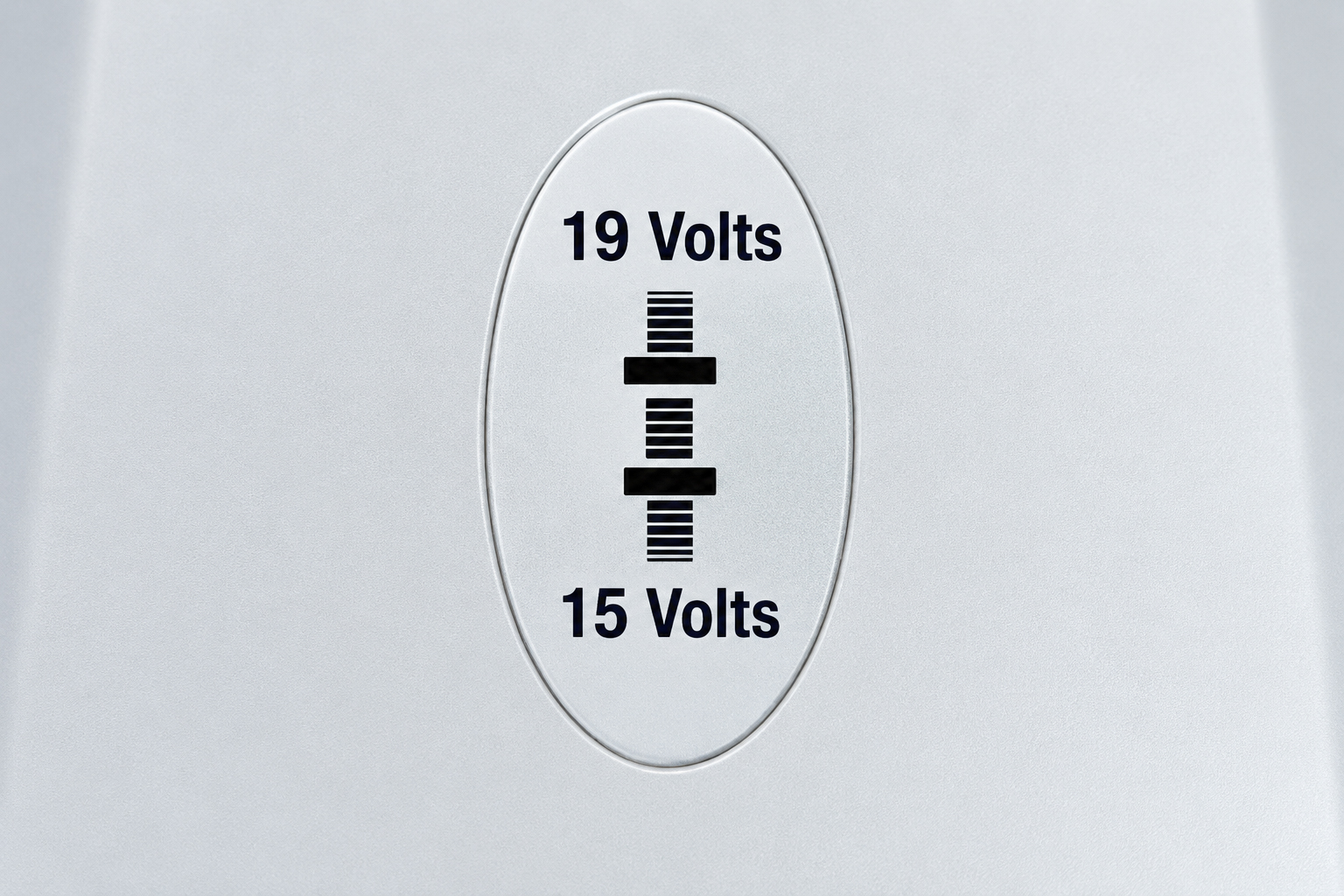

Step 2 — Set the Battery Output to 15V

Before connecting the AirSense 11 converter, set the BP220 battery's selectable output voltage to 15V.

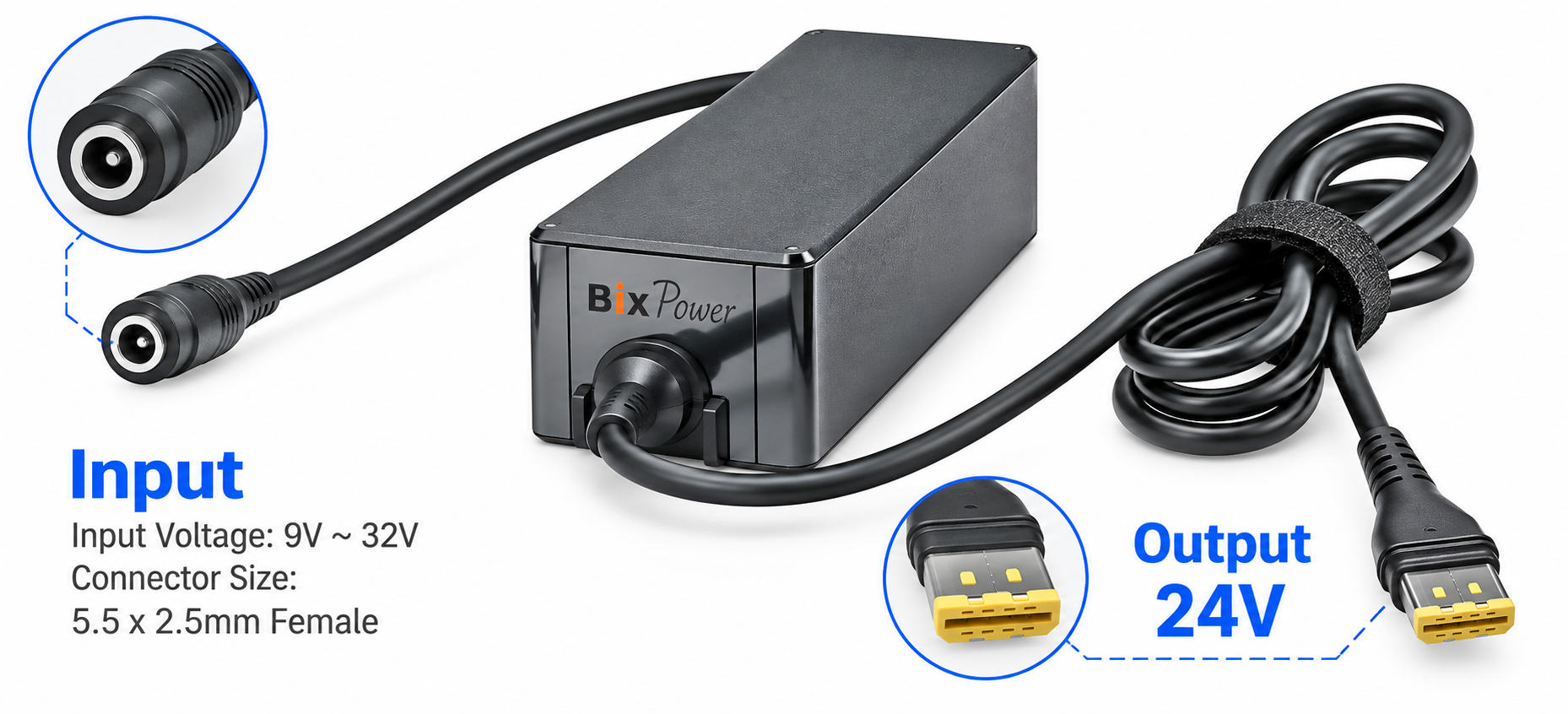

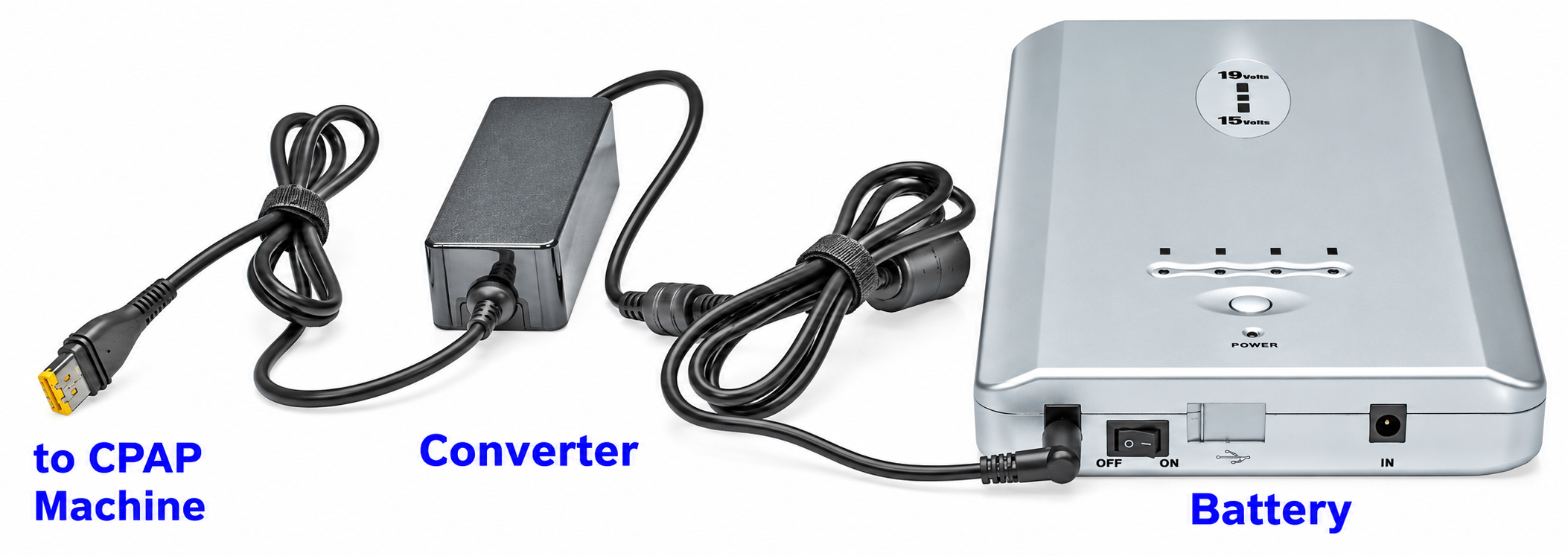

Step 3 — Connect the 24V AirSense 11 DC Converter

Connect the included 24V DC converter to the BP220 battery output. The converter accepts the battery's DC power and provides the 24V output required for the compatible ResMed AirSense 11 CPAP machine.

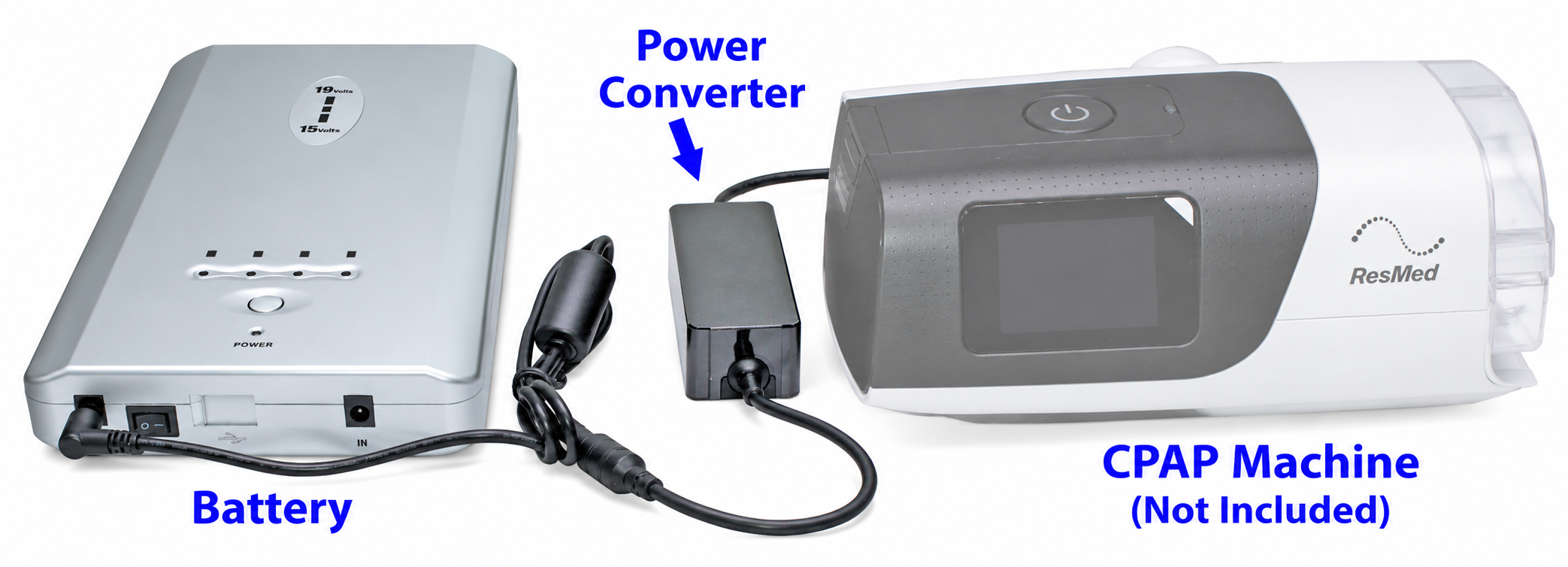

Step 4 — Connect to the AirSense 11

Connect the converter's AirSense 11 power connector to the CPAP machine. After all connections are secure, turn on the BP220 battery and then operate the CPAP machine normally.

CPAP Battery Runtime

CPAP power consumption can vary significantly depending on machine settings and operating conditions. Higher pressure settings, humidification and heated tubing can substantially increase power consumption and reduce battery runtime.

For the longest possible runtime, turn off the humidifier and heated tubing/heater functions when medically appropriate. With the humidifier turned off, the BP220 may power an AirSense 11 for approximately 2–4 nights, depending on settings, usage time and operating conditions. Runtime estimates are approximate and are not guaranteed.

Built-In 5V USB Power

In addition to its main DC output, the BP220 includes a 5V USB port that can be used with compatible USB-powered devices such as smartphones and other small electronics. A USB charging cable for your device is not included.

Important Air Travel Notice

The BP220 has a capacity of 223Wh. This exceeds the battery capacity normally permitted for passenger-carried spare lithium-ion batteries under standard airline passenger rules. Do not assume this battery can be taken aboard a passenger aircraft. Check current airline and applicable transportation regulations before travel.

One-Year Limited Warranty

This product includes a one-year limited warranty covering manufacturing and quality defects. Rechargeable batteries naturally lose some capacity through normal use and aging. Normal capacity reduction caused by battery aging or usage is not considered a manufacturing defect.

Compatibility

This BP220-AS11DC package is configured for use with ResMed AirSense 11 CPAP machines through the included 24V DC converter. Please verify your device model and power requirements before use. The CPAP machine shown in product illustrations is not included.

High-Capacity AirSense 11 Battery Power Solution

For customers who need more runtime than a small travel battery can provide, the BiXPower BP220-AS11DC 223Wh CPAP battery combines high capacity, portable DC power, multiple charging options, built-in battery protection and an IEC 62133 certificated lithium-ion battery with a dedicated 24V converter for the ResMed AirSense 11.

It is well suited for backup power, camping, road trips and other applications where dependable portable power for an AirSense 11 CPAP machine is needed.
