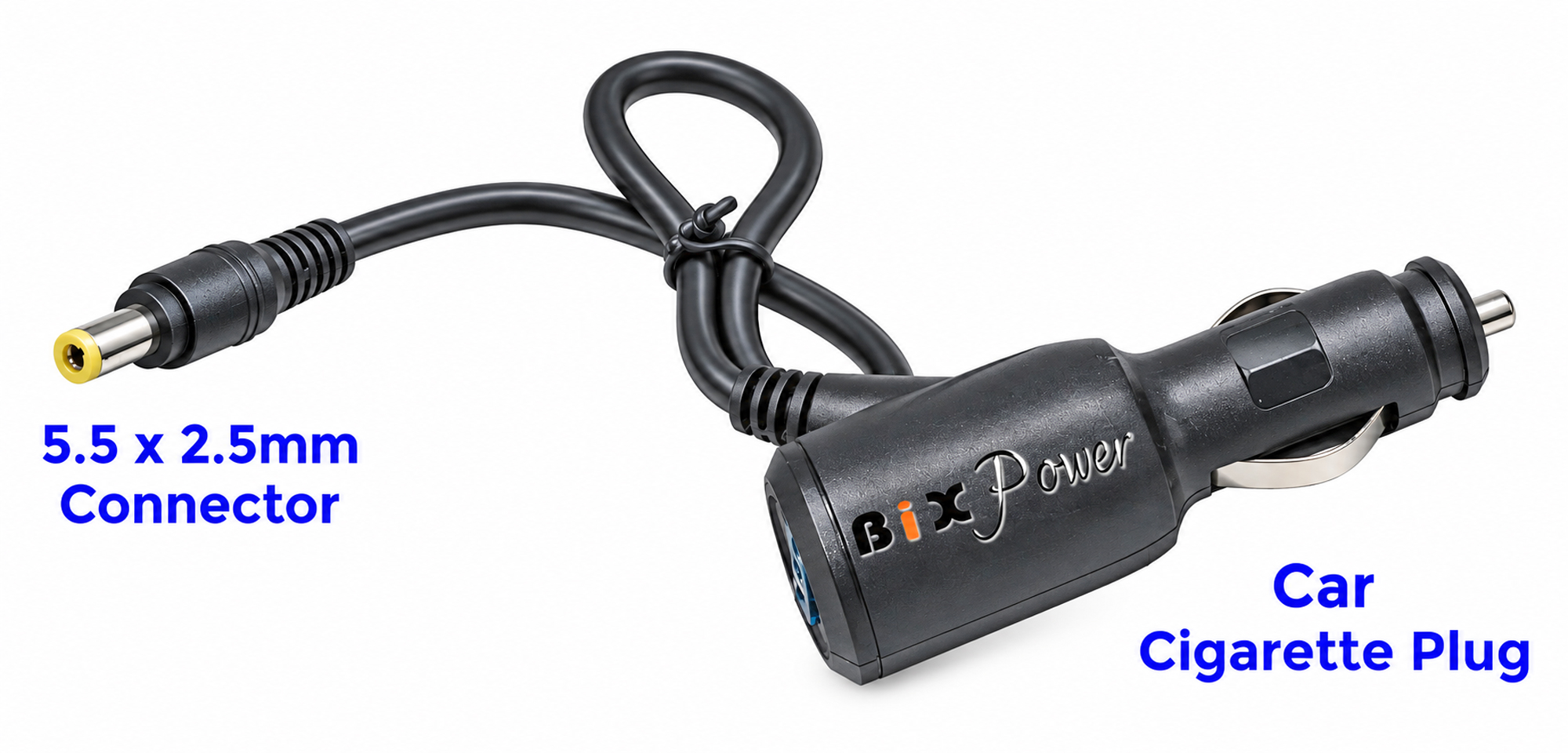

Car Cigarette Lighter Plug to 5.5 × 2.5mm Male DC Power Cable
Heavy-Duty 16AWG Vehicle Power Cable with 15A Fuse – CR525M
The BiXPower CR525M provides a simple and reliable
way to connect a compatible device, DC converter, power adapter or
other equipment with a 5.5 × 2.5mm female DC input
to a vehicle cigarette-lighter / accessory power socket.
One end plugs into a compatible vehicle power socket, while the
other end provides a standard
5.5mm outer diameter × 2.5mm inner diameter male
DC barrel plug.
Key Features
-
✓
Vehicle cigarette-lighter / accessory power plug
-
✓
5.5 × 2.5mm male DC barrel output connector
-
✓
Heavy-duty 16AWG power cable
-
✓
15A fuse for circuit protection
-
✓
Direct DC connection — no voltage-conversion circuit
-
✓
Useful for compatible DC converters, electronics,
batteries and portable power equipment
Power Compatible DC Equipment from a Vehicle Socket
The CR525M changes the physical connection from a vehicle
cigarette-lighter / accessory socket to a
5.5 × 2.5mm male DC barrel plug.
This makes it useful when a compatible DC-powered device or converter
has a 5.5 × 2.5mm female input but your available power source is a
car, truck, RV or other vehicle power socket.
5.5 × 2.5mm Male DC Barrel Connector
The output end uses a
5.5mm OD × 2.5mm ID male barrel connector.
Before ordering, check the DC input connector size required by your
equipment.
Important Connector Size:
This cable has a 5.5 × 2.5mm male plug.
Barrel connectors that look similar can have different inner
diameters. Please confirm that your equipment accepts a
5.5 × 2.5mm male connector before use.

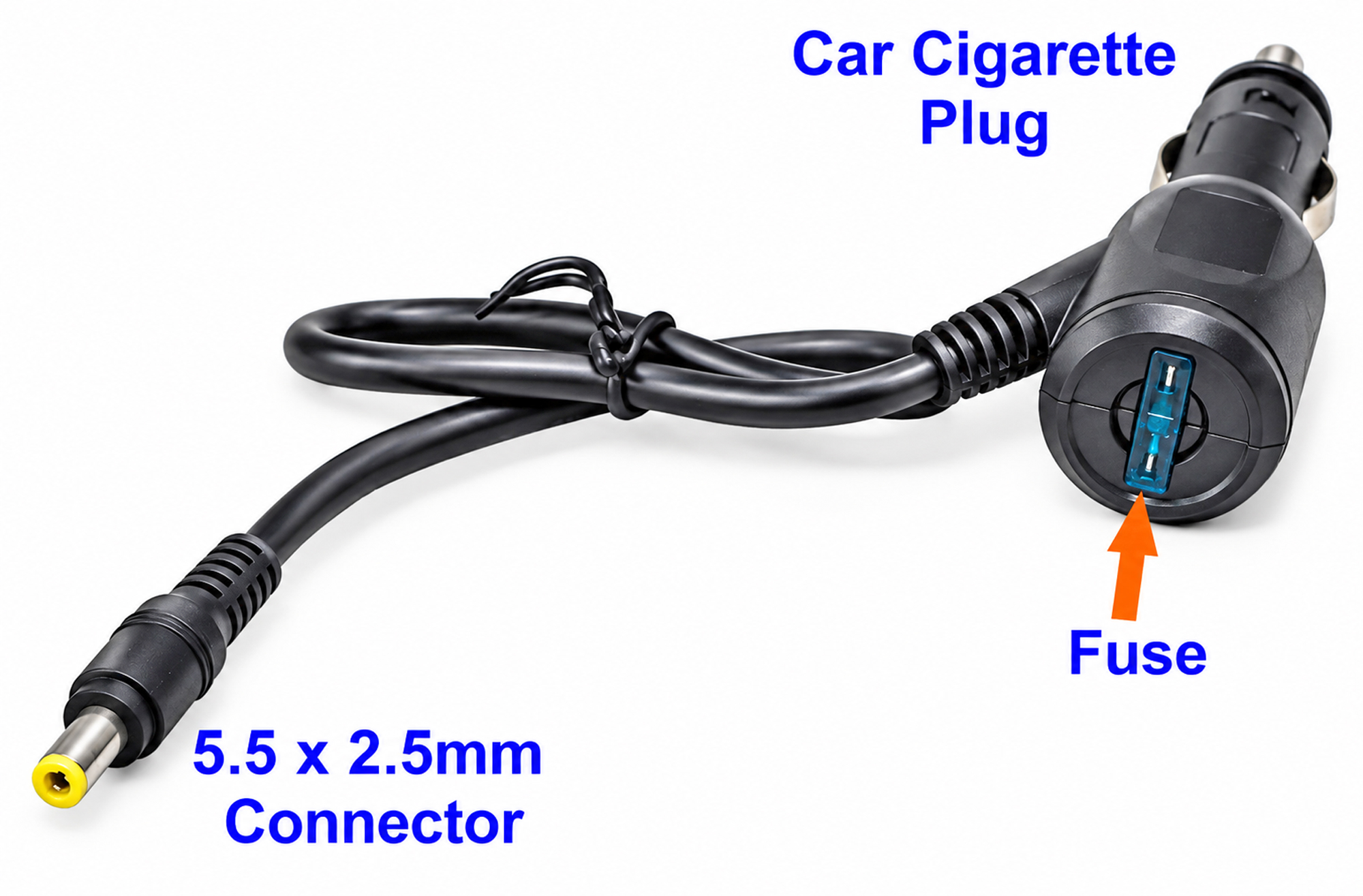

Heavy-Duty 16AWG Cable with 15A Fuse
The CR525M uses 16AWG wire for DC power delivery.
The vehicle plug also incorporates a 15A fuse
to provide circuit protection.
Direct DC Power — No Voltage Conversion
Important:
The CR525M is a power cable / connector adapter.
It is not a DC-to-DC voltage converter.
There is no voltage-regulation circuit inside the cable. The voltage
present at the 5.5 × 2.5mm output follows the voltage supplied by the
vehicle power socket.
For example, connecting the CR525M to a nominal 12V vehicle power
socket does not convert the power to 5V, 9V, 19V,
20V or another voltage.
Always make sure the connected equipment is designed to accept the
voltage supplied by your vehicle or that an appropriate DC-to-DC
converter is connected between the CR525M and the equipment.
Technical Specifications
| Model |
CR525M |
| Product Type |
Vehicle DC power cable / connector adapter |
| Input Connector |
Male cigarette-lighter / vehicle accessory power plug |
| Output Connector |
5.5mm OD × 2.5mm ID male DC barrel plug |
| Voltage Conversion |
None — output follows input voltage |
| Wire Gauge |
16AWG |
| Fuse |
15A |
| Cable Length |
Approx. 400 mm (15.7 in) |
| Warranty |
1 Year Limited Warranty |
Typical Applications
- Vehicle DC power connections
- 12V vehicle accessory power applications
- Compatible 24V vehicle power applications
- DC-to-DC power converters
- Portable power equipment
- Car and truck electronics
- RV and mobile power systems
- Compatible battery and charging equipment
- Field and mobile work equipment
- Devices with compatible 5.5 × 2.5mm DC inputs
Before Connecting Your Equipment
For safe and reliable operation, verify all of the following before
connecting your equipment:
-
Your device or converter accepts a
5.5 × 2.5mm male DC plug.
-
Your equipment can accept the voltage supplied by the vehicle
power socket.
-
The polarity required by your equipment is compatible with the
power connection.
-
The vehicle power socket and its circuit can safely provide the
current required by your equipment.
-
Your application's current requirement is within the safe limits
of the cable, connectors and vehicle socket.
Please Note:
A 15A fuse does not mean that every vehicle socket, barrel connector
or connected device should continuously operate at 15A. The allowable
current depends on the complete power system, including the vehicle
socket, connectors, wiring and connected equipment.
A Simple Vehicle-to-DC Connection
When you already have DC power available from a vehicle, the
BiXPower CR525M provides a convenient way to bring that power to
compatible equipment using a standard
5.5 × 2.5mm DC barrel connection.
With heavy-duty 16AWG wiring, an integrated 15A fuse and a
straightforward pass-through design, the CR525M is a practical
connection cable for vehicle, mobile, RV and portable DC power
applications.
