Cigarette Lighter Female Socket to 5.5 × 2.5mm / 5.5 × 2.1mm Female DC Adapter

The BiXPower CGF525F converts a power source with a 5.5 × 2.5mm or 5.5 × 2.1mm male DC barrel connector to a standard cigarette-lighter-style female power socket.

The main adapter cable has a 5.5 × 2.5mm female DC jack. The included 5.5 × 2.1mm adapter allows the same cable to accept a 5.5 × 2.1mm male power plug, giving you two commonly used DC connector options in one package.

Key Features

Cigarette lighter female socket output
5.5 × 2.5mm female DC jack on the main cable
Includes 5.5 × 2.1mm female to 5.5 × 2.5mm male adapter
Accepts compatible 5.5 × 2.5mm or 5.5 × 2.1mm male power plugs
Compact and easy to use
No electronic conversion circuitry inside
Pass-through electrical connection — output voltage follows input voltage

Convert a DC Barrel Power Connection to a Cigarette Lighter Socket

The CGF525F provides a convenient way to power equipment that uses a cigarette-lighter-style male plug from a compatible DC power source equipped with a barrel connector.

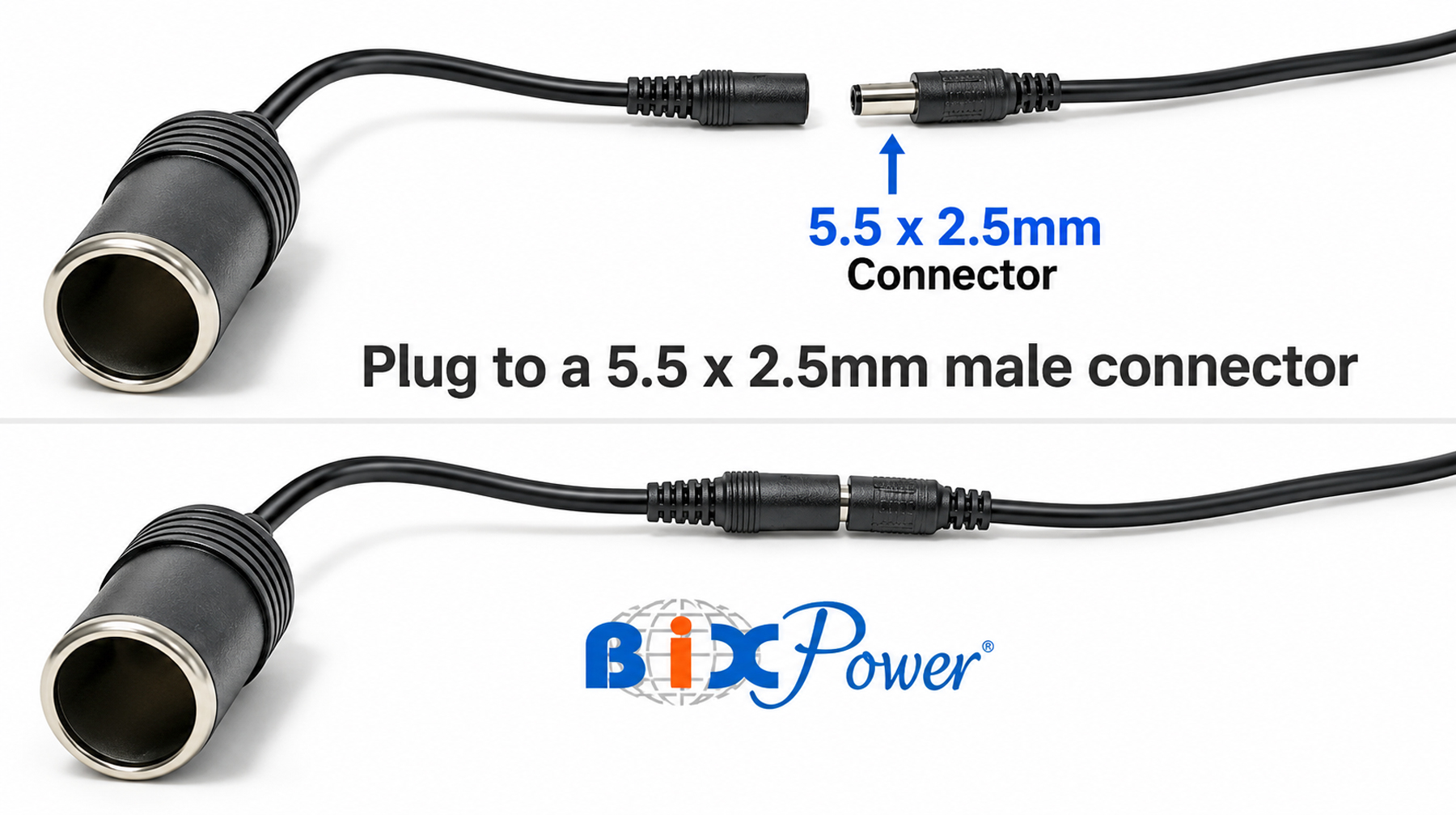

The main cable accepts a 5.5 × 2.5mm male DC connector. Simply plug your compatible DC power cable into the 5.5 × 2.5mm female jack, and the other end provides a standard cigarette lighter female socket.

Connector Configuration

Main Cable Input	5.5 × 2.5mm Female DC Jack
Optional Input with Included Adapter	5.5 × 2.1mm Female DC Jack
Output Connection	Cigarette Lighter Female Socket
Voltage Conversion	None — Pass-Through Connection
Model	CGF525F

5.5 × 2.5mm Female DC Input

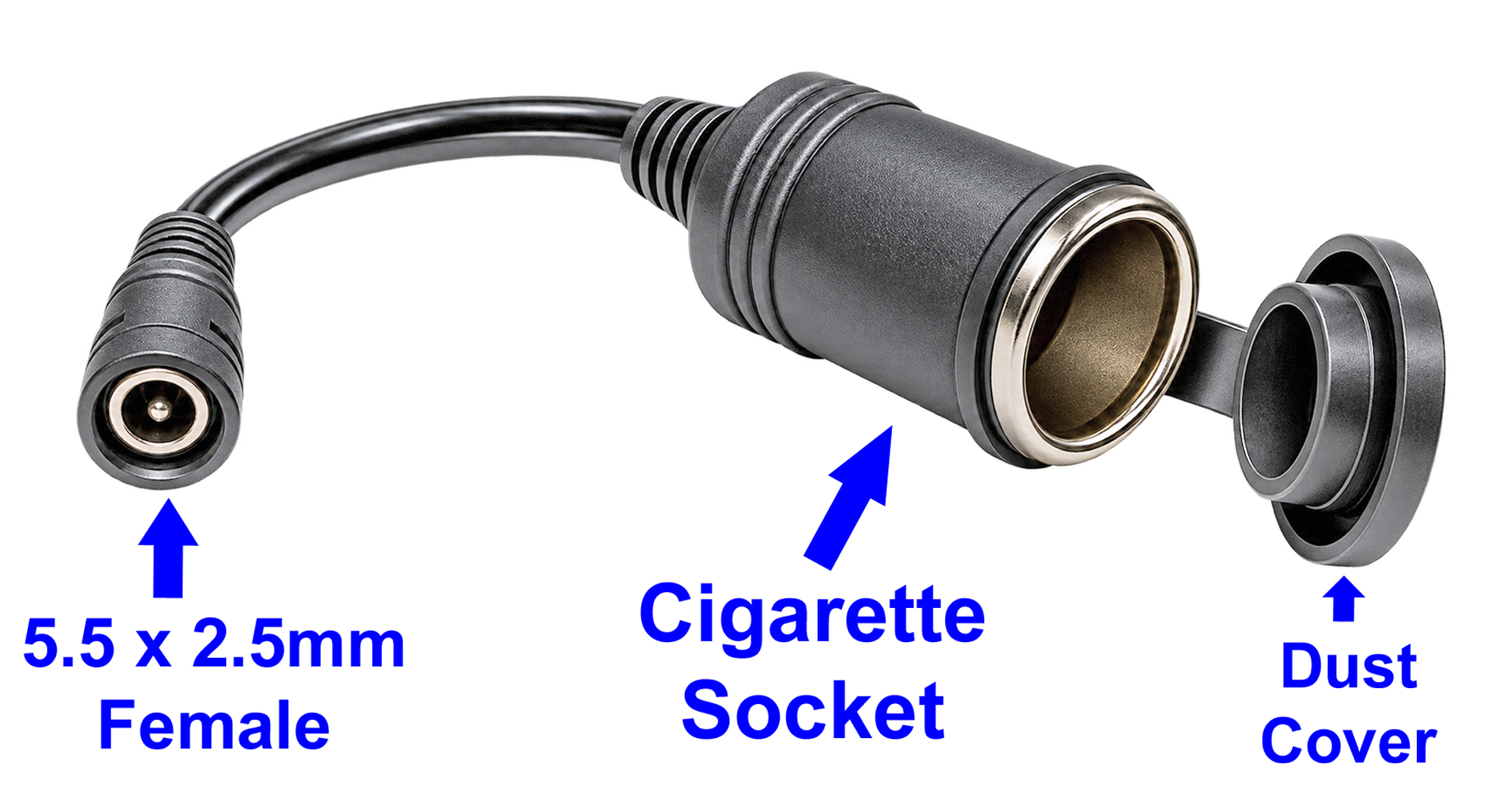

The standard CGF525F cable has a 5.5 × 2.5mm female barrel jack. It can connect directly to a compatible power source or cable equipped with a 5.5 × 2.5mm male DC plug.

Also Works with 5.5 × 2.1mm Male Power Plugs

A 5.5 × 2.1mm female to 5.5 × 2.5mm male adapter is included with the CGF525F.

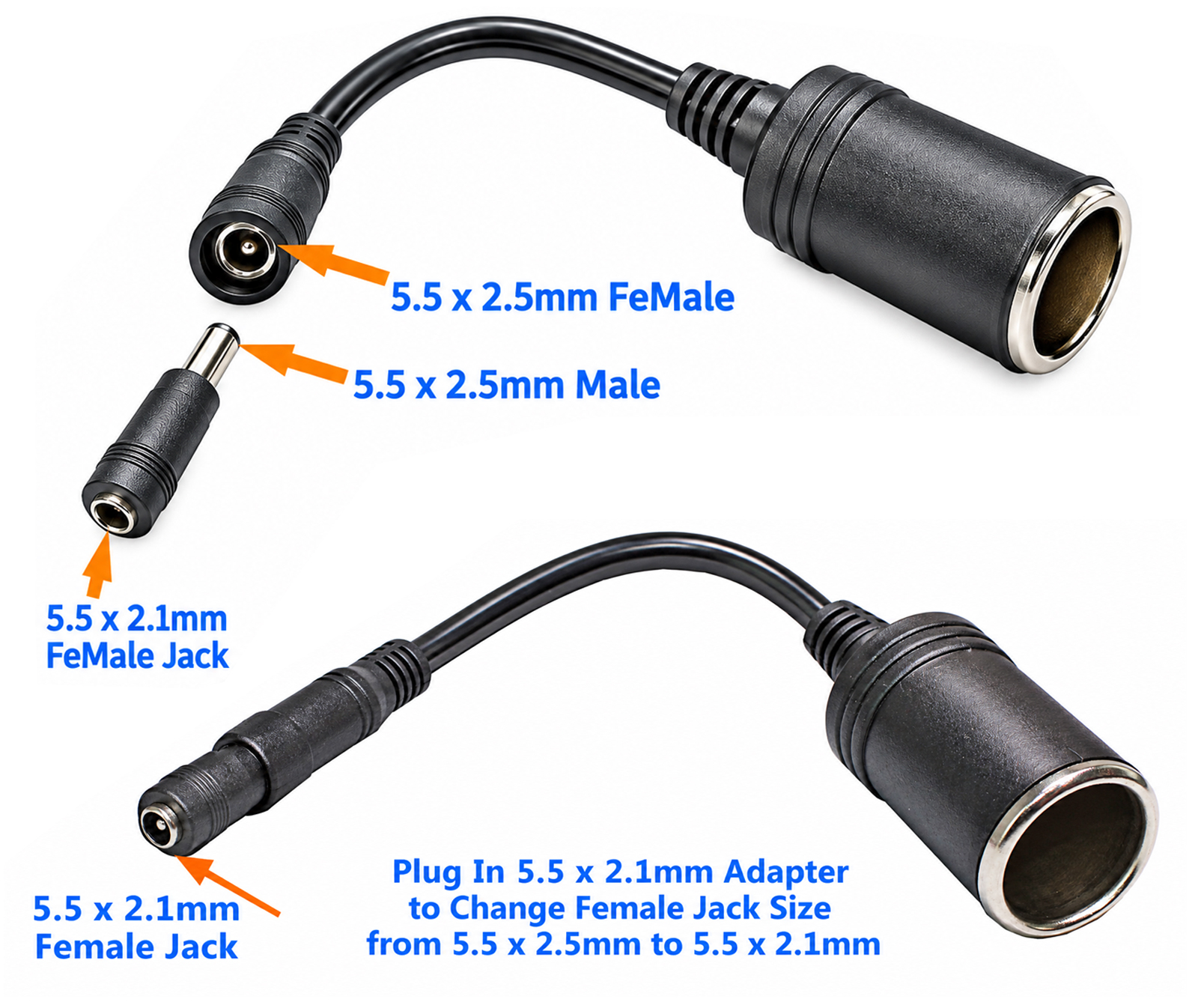

Plug the adapter into the main cable's 5.5 × 2.5mm female jack to change the input connection to a 5.5 × 2.1mm female jack. You can then connect a compatible 5.5 × 2.1mm male DC power plug.

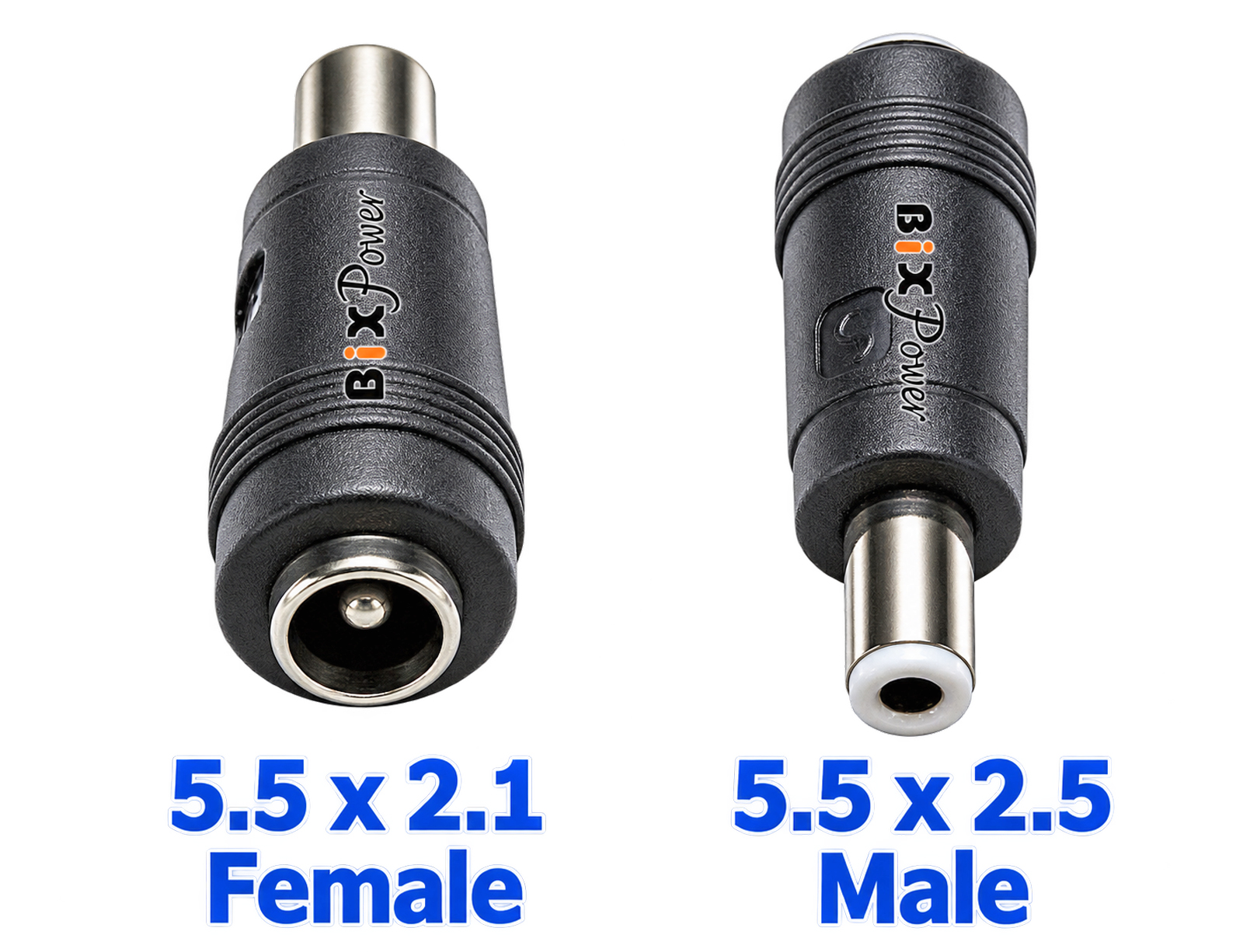

The adapter has a 5.5 × 2.1mm female jack on one side and a 5.5 × 2.5mm male plug on the other side.

Important: This Adapter Does Not Convert Voltage

The CGF525F is a connector adapter only. There is no voltage-conversion or voltage-regulation circuit inside.

The adapter changes the physical connector type only. The voltage, current capability, and polarity supplied to the cigarette lighter socket depend on the connected power source.

For example, connecting this adapter to a 12V DC power source will provide approximately the same 12V DC through the cigarette lighter socket. The adapter itself does not change 12V to another voltage.

Check Electrical Compatibility Before Use

A matching connector does not automatically mean that two devices are electrically compatible. Before connecting your equipment, verify:

Input voltage required by the equipment
Connector size — 5.5 × 2.5mm or 5.5 × 2.1mm
Polarity of the power source and connected equipment
Current / power requirement of the connected device
Current capability of the power source, cable, and connectors

Important: Always confirm the voltage and polarity of your power source before connecting equipment to the cigarette lighter socket. Incorrect voltage or polarity can damage connected equipment.

Typical Applications

The CGF525F can be useful when you already have a compatible DC power source with a barrel connector but need a cigarette lighter female socket for your equipment.

Possible applications include compatible:

Portable battery systems
Rechargeable battery packs
DC power supplies
DC-to-DC converters
Portable electronics
Automotive accessories
Mobile equipment
12V and other compatible DC-powered equipment

Always verify the required voltage, polarity, current, and connector type before use.

Package Contents

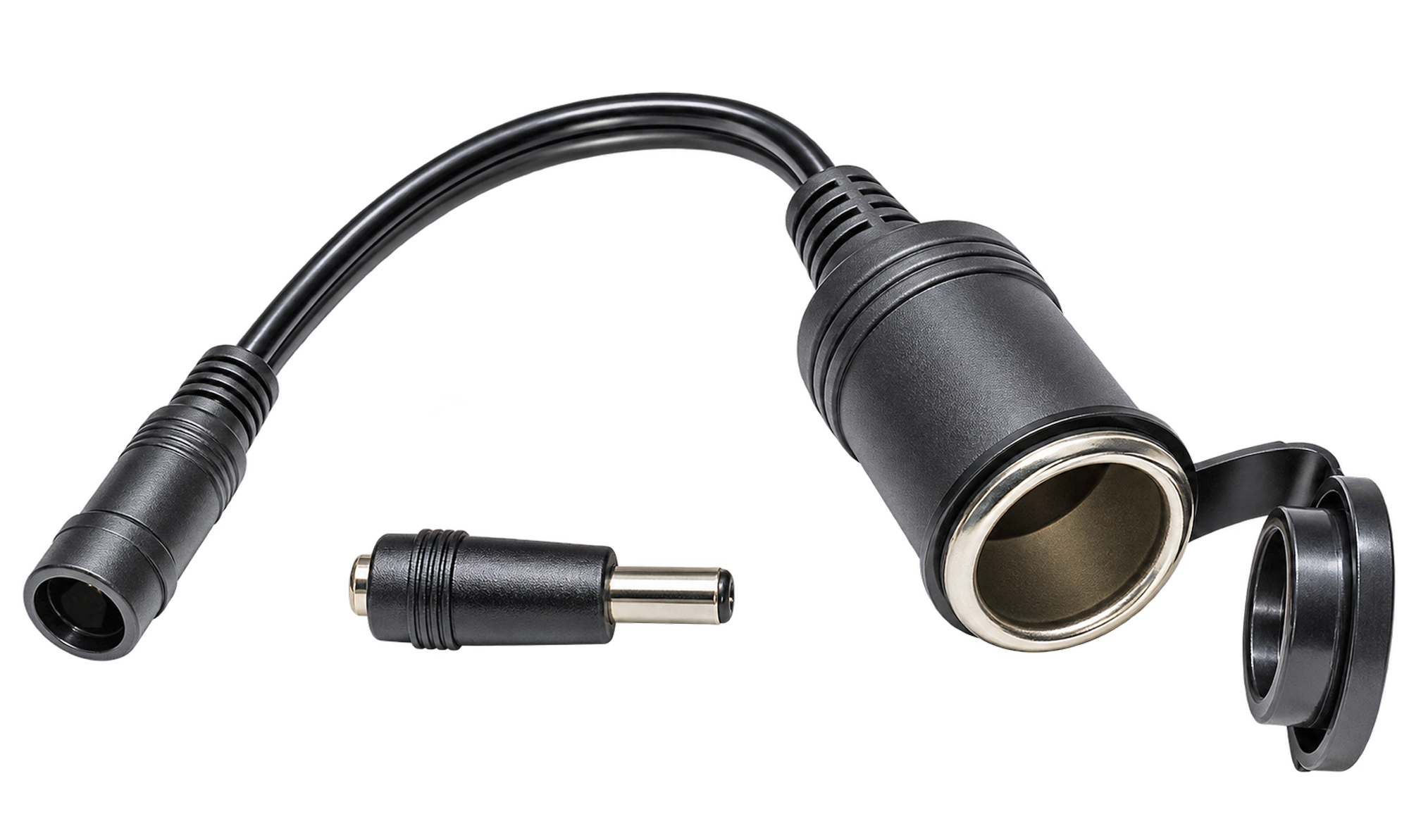

1 × CGF525F Adapter Cable — Cigarette lighter female socket to 5.5 × 2.5mm female DC jack
1 × 5.5 × 2.1mm Adapter — 5.5 × 2.1mm female to 5.5 × 2.5mm male

Flexible Cigarette Lighter Female Socket Adapter for 5.5mm DC Power Connections

The BiXPower CGF525F cigarette lighter female socket adapter provides an easy way to connect cigarette-lighter-powered equipment to a compatible DC power source. The main cable accepts a 5.5 × 2.5mm male DC plug, while the included adapter adds compatibility with 5.5 × 2.1mm male DC plugs. It is a simple pass-through connector adapter with no voltage-conversion circuitry.
