BiXPower 74Wh / 20,000mAh 12V Portable Battery
12V DC Output • 100W USB-C PD • Wireless Charging • AC Charger Included
The BiXPower BAT-UC70B-12V is a compact, high-capacity
portable battery designed to provide 12V DC power for
compatible electronic devices while also functioning as a powerful
USB-C PD power bank.
The included special USB-C to 12V power cable provides
12V DC output up to 3A through a standard
5.5 × 2.5mm center-positive barrel connector.

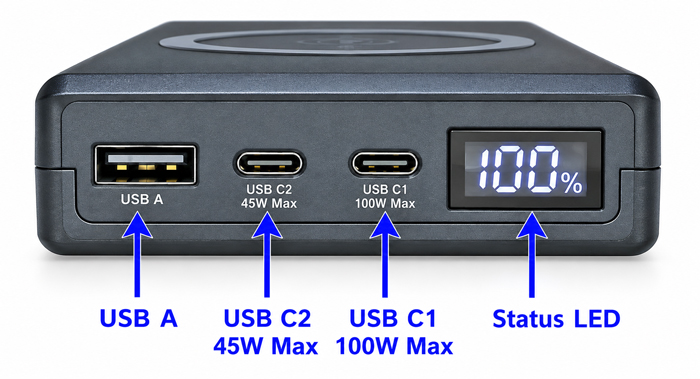

In addition to 12V output, the battery features two USB-C ports,
one USB-A port, wireless charging, and a digital battery gauge.
USB-C1 supports up to 100W Power Delivery, making the
battery suitable for many laptops, tablets, smartphones, cameras,
and other USB-C devices.
Key Features
12V DC Output
The included special USB-C power cable provides
12V DC output up to 3A for compatible 12V devices.

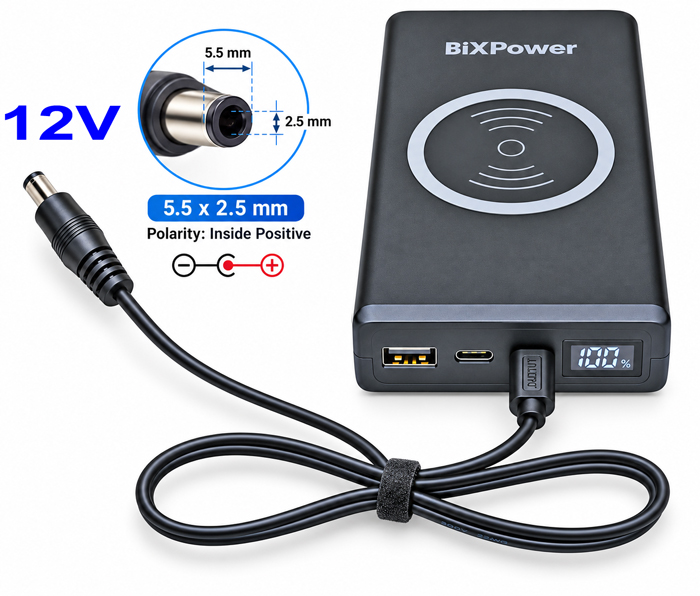

5.5 × 2.5mm Center-Positive Connector
The included 12V power cable uses a standard
5.5mm outer diameter × 2.5mm inner diameter
barrel connector with inside positive (+), outside negative (−)
polarity.
High Capacity — 74Wh / 20,000mAh
Provides substantial portable power in a compact battery that weighs
approximately 1 lb.

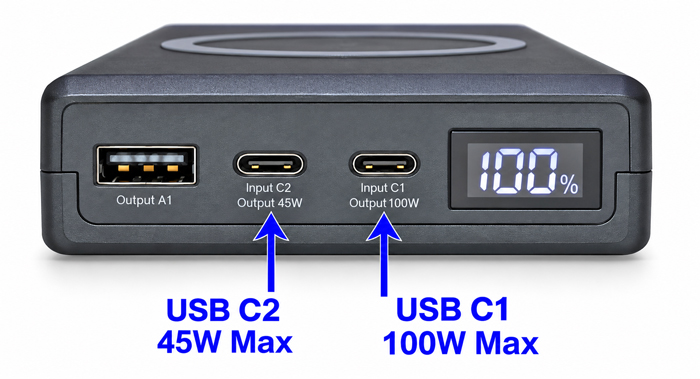

100W USB-C Power Delivery
USB-C1 supports up to 100W output, while USB-C2
supports up to 45W output.
Up to 145W Combined USB Output
The two USB-C ports and USB-A port can be used simultaneously,
with a maximum combined output of up to 145W.
Fast Recharging
An AC charger is included. The battery can be
recharged in less than approximately 2 hours with the included charger.
USB-C1 also supports up to 100W charging input when used with a
compatible 100W USB-C PD charger.
Charge While Using the Battery
The battery supports pass-through operation, allowing you to recharge
the battery through one USB-C port while another port supplies power
to your device.
Wireless Charging
The built-in wireless charging pad provides convenient cable-free
charging for compatible smartphones and other wireless devices.
Digital Battery Gauge
The LED display clearly shows the remaining battery capacity.
Built-In Safety Protection
Integrated protection helps protect against overcharging,
over-discharging, over-current, short circuits, and other abnormal
operating conditions.

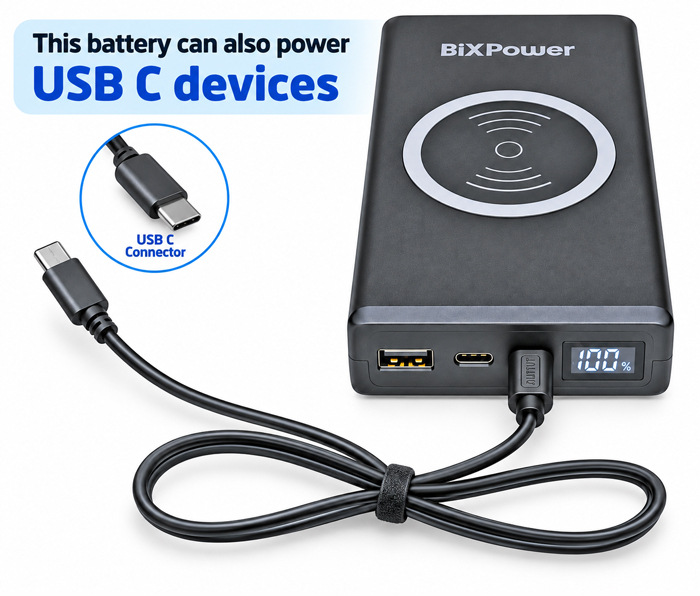

Also Powers USB-C Devices
The BAT-UC70B-12V is more than a 12V battery. It can also be used
as a high-capacity USB-C PD power bank for compatible laptops,
tablets, smartphones, cameras, and other USB-C devices.

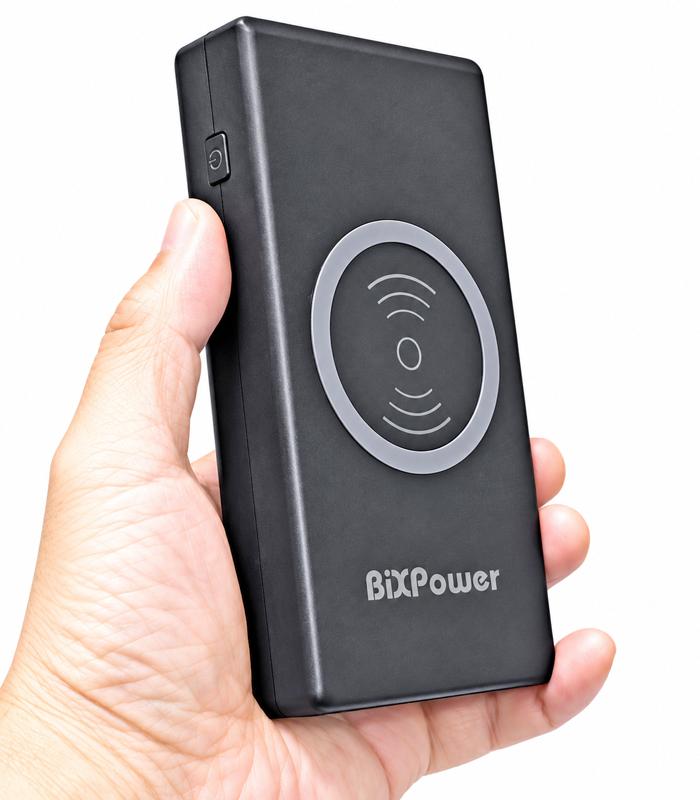

Compact & Portable
Measuring approximately 6 × 3 × 1 inches and weighing
about 1 lb, the BAT-UC70B-12V combines high capacity
with a compact design that is easy to carry, store, or take on the road.
Specifications
| Battery Capacity |
20,000mAh @ 3.7V / 74Wh |
| 12V Output |
12V DC, up to 3A with included special power cable |
| 12V Connector |
5.5 × 2.5mm barrel connector |
| 12V Polarity |
Center Positive — Inside (+), Outside (−) |
| USB Ports |
2 × USB-C + 1 × USB-A |
| USB-C1 Input / Output |
PD up to 100W |
| USB-C2 Input / Output |
PD up to 45W |
| USB-A Output |
QC up to 18W |
| Maximum Combined USB Output |
Up to 145W |
| Wireless Charging |
Supported |
| Dimensions |
Approx. 6 × 3 × 1 in. |
| Weight |
Approx. 1 lb. |
| Housing |
Black ABS |
| Warranty |
1 Year |

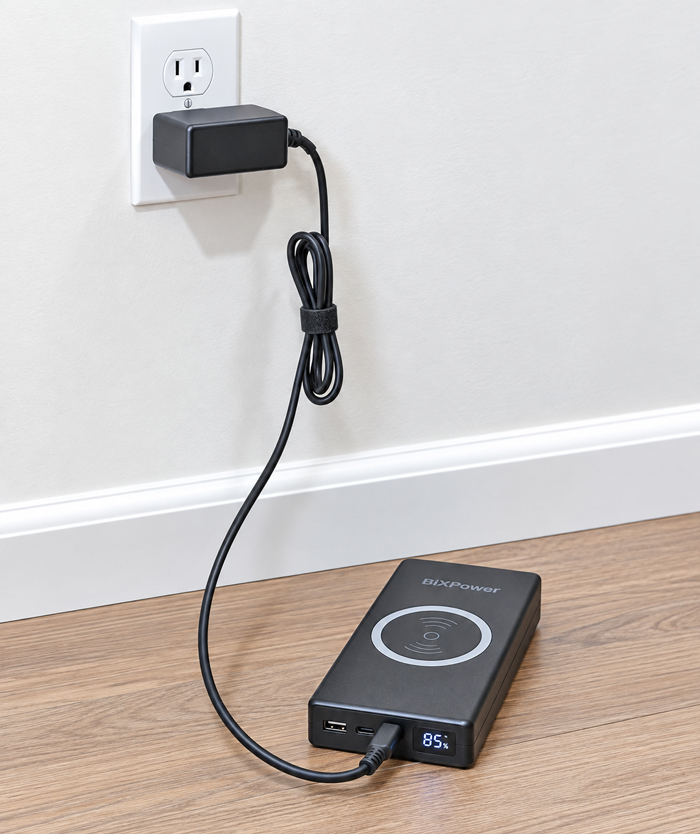

Charging the Battery
A compatible AC charger is included with the standard
package. Connect the charger to the battery's USB-C charging port
to recharge the battery.
The battery can be charged through USB-C1 or USB-C2. When using a
USB-C PD charger rated above 45W, use USB-C1.
USB-C1 accepts up to 100W charging input.
With a compatible 100W USB-C PD charger, charging time can be
approximately 1 hour.
Important: Use only one USB-C port at a time to charge
the battery. Do not connect chargers to USB-C1 and USB-C2 simultaneously.

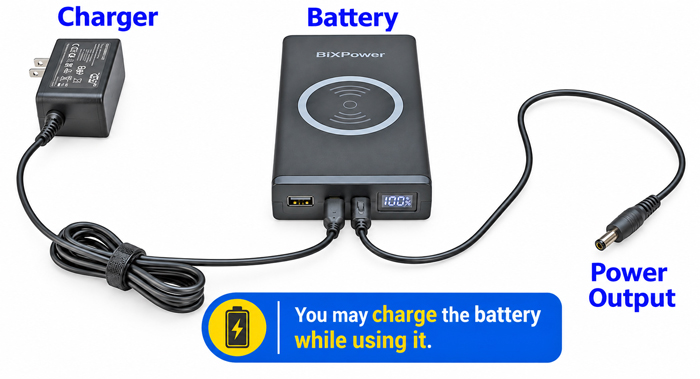

Charge the Battery While Using It
The battery supports pass-through operation. You may charge the
BAT-UC70B-12V through one USB-C port while using another port to
provide power to your device.

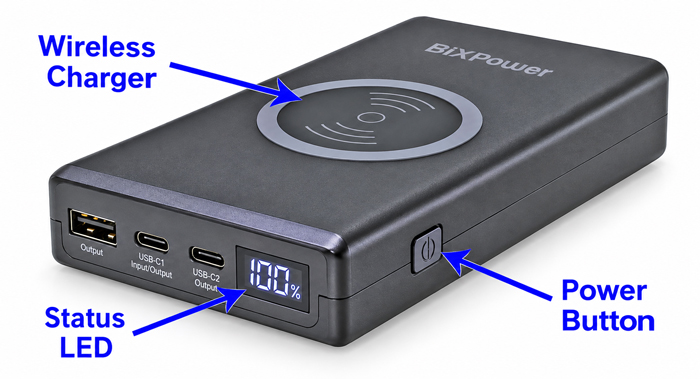

Wireless Charging
- Press the power button to activate wireless charging.
- Place a compatible wireless-charging device over the wireless charging area on top of the battery.
- Charging should begin within approximately 1–2 seconds after the device is detected.
- If no compatible device is detected, wireless charging automatically turns off after approximately 25 seconds.
- You can also turn off wireless charging manually by double-pressing the power button.

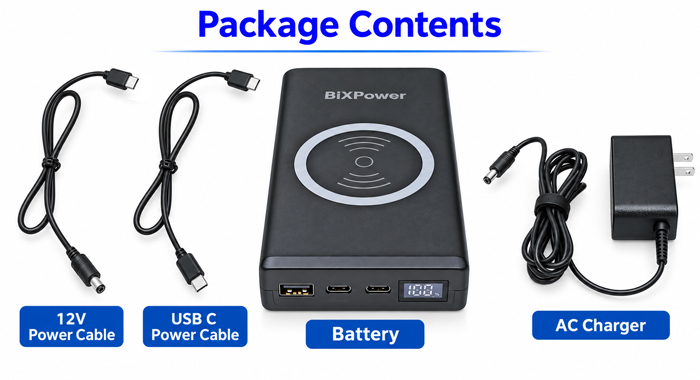

Package Contents
- 1 × BAT-UC70B 74Wh Battery
- 1 × 12V Power Cable — 5.5 × 2.5mm, Center Positive
- 1 × USB-C Power Cable
- 1 × AC Charger
The AC charger, USB-C cable, and special 12V power cable are all included with the standard package.
Important: Check Your Device Polarity
The included 12V power cable has center-positive polarity:
the inside contact is positive (+) and the outside contact is negative (−).
This is the most common polarity, but you should always verify your
device before connecting it.
Before connecting your device:
Confirm that your device requires 12V DC, draws no more
than 3A, uses a 5.5 × 2.5mm connector,
and requires center-positive polarity.

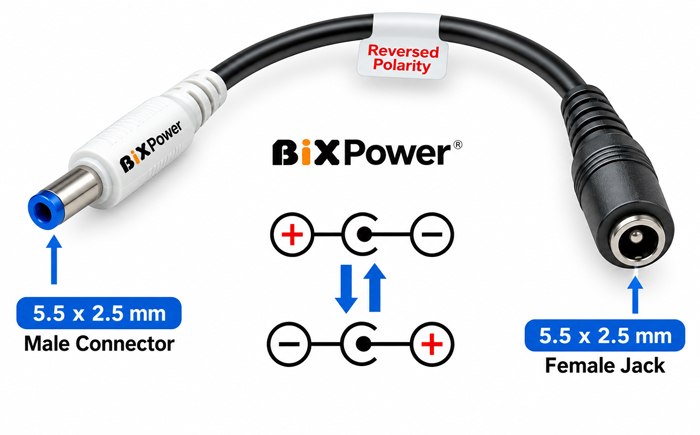

If your device requires center-negative polarity, an
optional polarity-reversing adapter can be used.

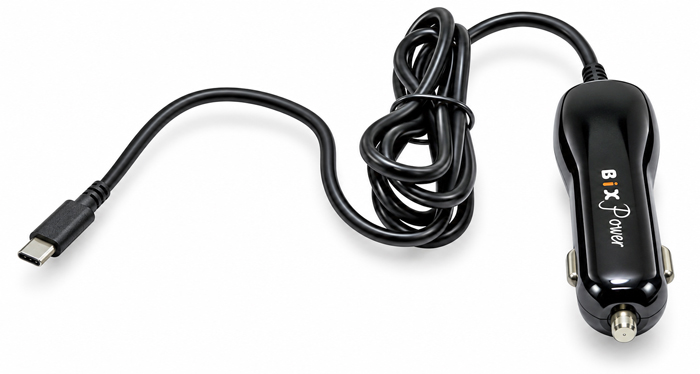

Optional Car / Truck Charger
An optional 45W USB-C PD car charger allows you to
recharge the battery from a 12V car or 24V truck
cigarette-lighter/accessory socket.
The car charger is optional and is not included
with the standard package.
Charging & Safety Notice
Use the included charger or a compatible certified USB-C PD charger.
Charge the battery in a well-ventilated area away from flammable
materials. Periodically monitor the battery while charging.
Discontinue use if you notice abnormal heat, swelling, odor, damage,
or other unusual conditions.
