99.6Wh Portable Battery Power Pack for ResMed AirMini CPAP
Compact, lightweight portable and backup power for your ResMed AirMini

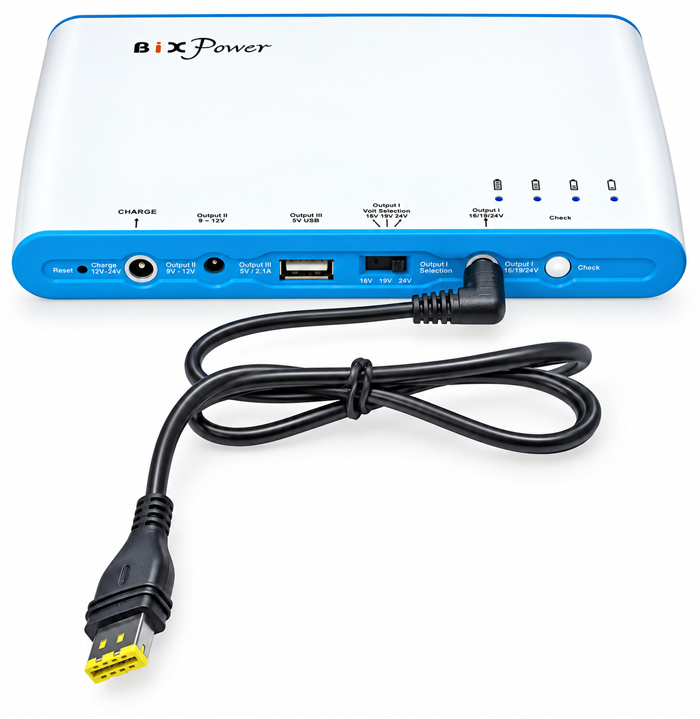

The BiXPower BP100-MINIAIR is a complete portable battery
power package designed for the ResMed AirMini CPAP machine.
It combines the compact 99.6Wh BP100 rechargeable lithium-ion battery
with a specially designed AirMini power cable, allowing the AirMini to operate
directly from the battery without an AC inverter.
Its slim, lightweight design makes it an excellent portable power solution for
travel, camping, road trips, emergency backup, and locations where AC wall power is unavailable.
Key Features
✓ 99.6Wh High Capacity:
Provides substantial portable power in a compact battery pack.
✓ Designed for ResMed AirMini:
Includes a special power cable designed to connect the BP100 battery directly
to the ResMed AirMini CPAP machine.
✓ Compact & Lightweight:
Approximately 7.2 × 4.2 × 0.9 inches and only about 1.4 lb.
✓ Multiple DC Outputs:
The versatile BP100 also provides selectable 16V / 19V / 24V DC output,
an additional 9V–12.6V DC output, and a 5V USB output.
✓ AC & Car Charging:
Recharge the battery from a standard AC wall outlet or a 12V vehicle
cigarette-lighter/accessory socket.
✓ Built-In Battery Protection:
Protection against over-charge, over-discharge, over-current,
over-temperature, and short circuit conditions.

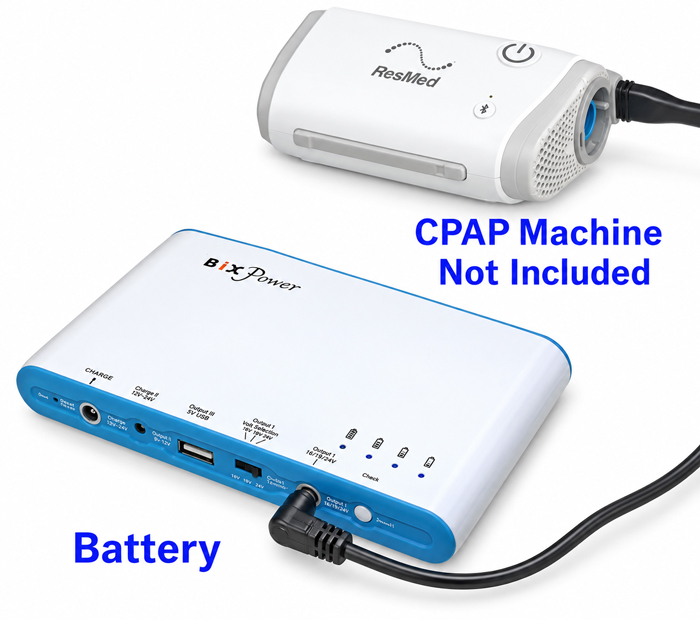

Easy Connection to ResMed AirMini

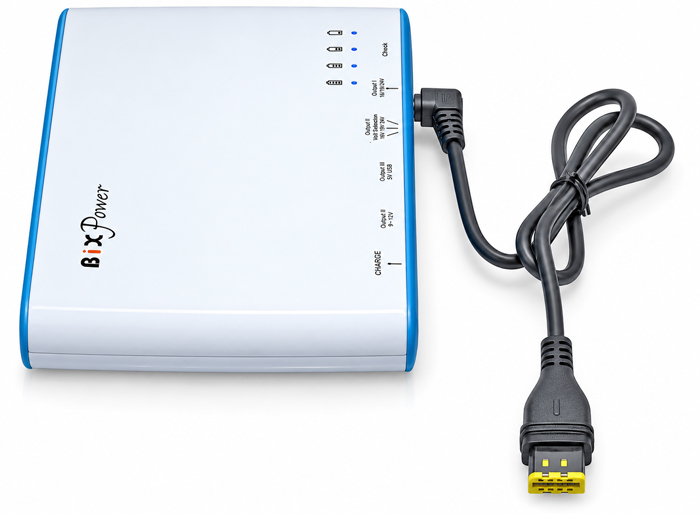

The package includes a special power cable for the ResMed AirMini.
Simply connect the cable to Output Port I on the BP100 battery,
set Output Port I to 24V, and connect the other end to the
AirMini power input.
Typical AirMini Runtime
The BP100 can typically provide approximately
1–2 nights of AirMini operation under average CPAP pressure,
average breathing rate, and a good mask seal, with power-consuming features
minimized or disabled.
Actual runtime varies depending on therapy pressure, breathing pattern,
mask leakage, battery condition, environmental conditions, and machine settings.

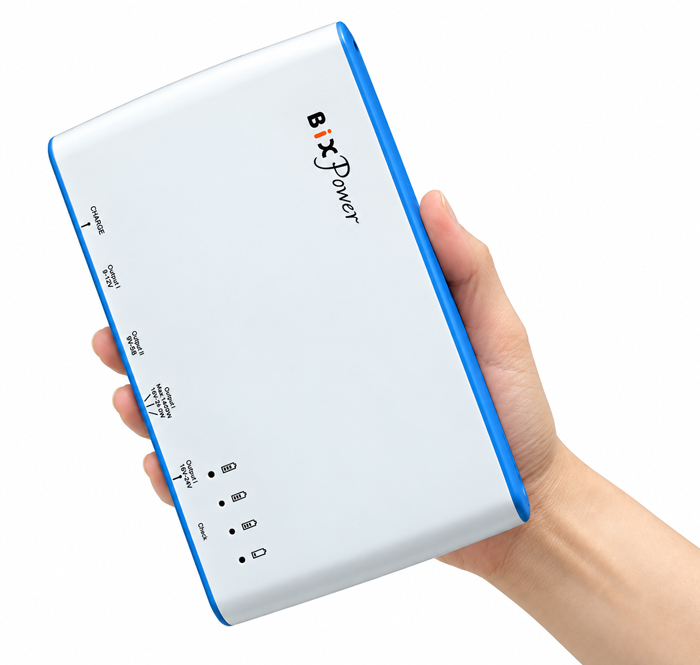

Compact & Lightweight for Travel
The BP100 measures approximately
180 × 110 × 22.5 mm (7.2 × 4.2 × 0.9 in)
and weighs only about 621 g (1.4 lb).
Its thin profile makes it easy to carry in a CPAP travel bag,
laptop bag, backpack, or carry-on luggage.

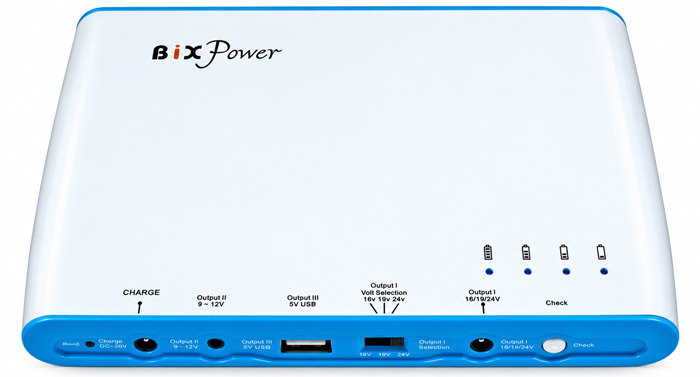

Versatile 99.6Wh Lithium-Ion Battery
The BP100 is not limited to CPAP use. It is a versatile external rechargeable
lithium-ion battery featuring multiple DC voltage outputs and a 5V USB output,
allowing it to power many compatible portable electronic devices.

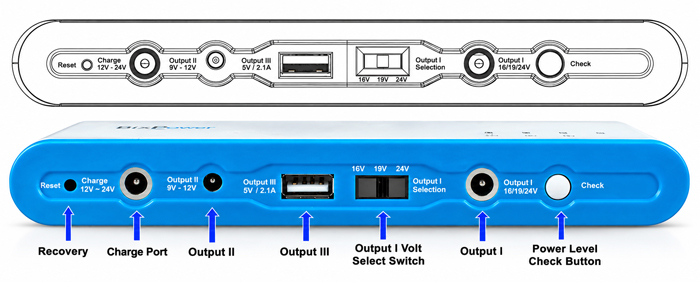

Multiple Output Ports
The BP100 provides three output ports for powering a variety of compatible
devices. Output Port I provides regulated selectable voltage and is the port
used with the included AirMini special power cable.

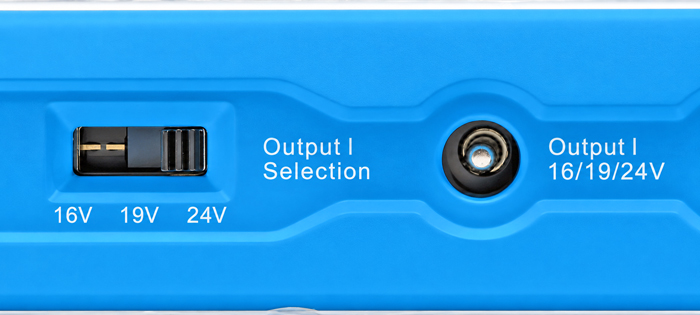

Regulated 16V / 19V / 24V Output Port
Output Port I provides three selectable regulated output
voltages: 16V, 19V, or 24V.
A hardware selection switch makes it easy to choose the required voltage.
Important
For the ResMed AirMini, set Output Port I to 24V
before connecting the special AirMini power cable.
When powering other devices, always verify the required input voltage
before making a connection.
Battery Specifications
|
Battery Model
|
BP100 |
|
Capacity
|
99.6Wh |
|
Battery Chemistry
|
Lithium-Ion |
|
Charging Input
|
DC 12V–24V |
|
Charging Connector
|
5.5 × 2.5mm |
|
Charging Time
|
Approximately 4–6 hours |
|
Size
|
180 × 110 × 22.5mm (7.2 × 4.2 × 0.9 in)
|
|
Weight
|
621g (1.4 lb) |
|
Power Indicator
|
4-Level LED Indicator |
|
Operating Temperature
|
-20°C to 60°C |
|
Storage Temperature
|
-20°C to 40°C |
Output Specifications
Output Port I:
Regulated 16V / 19V / 24V selectable
Port I Connector:
5.5 × 2.5mm
Maximum Port I Output:
4A @ 16V / 3.5A @ 19V / 2.5A @ 24V
Output Port II:
Nominal 11.1V; operating range approximately 9V–12.6V
Port II Connector:
3.5 × 1.35mm
Maximum Port II Output:
5A
Output Port III:
5V USB, up to 2.1A
Maximum Combined Output:
65W
Charge from an AC Wall Outlet
The included AC charger allows the BP100 battery to be recharged from a
standard 100V–240V AC, 50/60Hz power source.

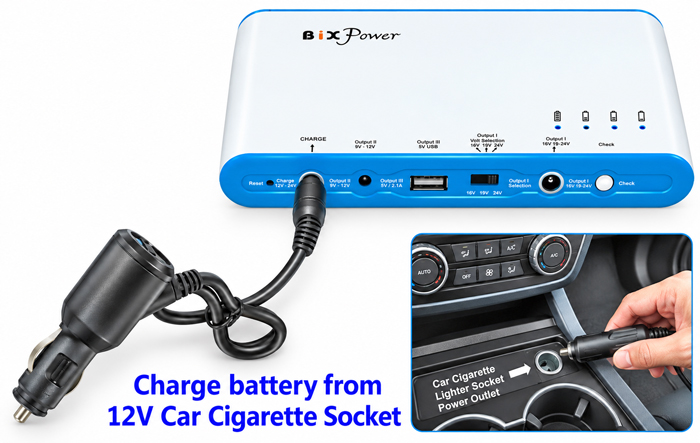

Charge from a 12V Vehicle Socket
A car charger is included, allowing the BP100 battery
to be recharged from a compatible 12V vehicle cigarette-lighter/accessory
socket. This provides a convenient way to recharge the battery during
road trips and travel.
Flexible 12V–24V DC Charging Input
The BP100 has a built-in charging controller and accepts a wide
12V–24V DC input range.
The battery charging port is a 5.5 × 2.5mm female DC jack.
A compatible charger or power adapter therefore requires a
5.5 × 2.5mm male connector.
Built-In Battery Protection
The BP100 incorporates an internal protection circuit designed to help
protect the battery against:
✓ Over-Charge Protection
✓ Over-Discharge Protection
✓ Over-Current Protection
✓ Over-Temperature Protection
✓ Short-Circuit Protection

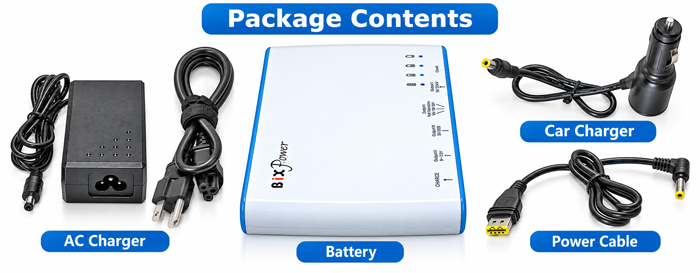

Package Contents
1 × BiXPower BP100 99.6Wh Rechargeable Lithium-Ion Battery
1 × Special Power Cable for ResMed AirMini
1 × AC Battery Charger
1 × Car Charger
Note:
ResMed AirMini CPAP machine is not included.
Actual operating time varies depending on CPAP pressure, breathing pattern,
mask leakage, machine settings, environmental conditions, battery condition,
and other operating factors.
