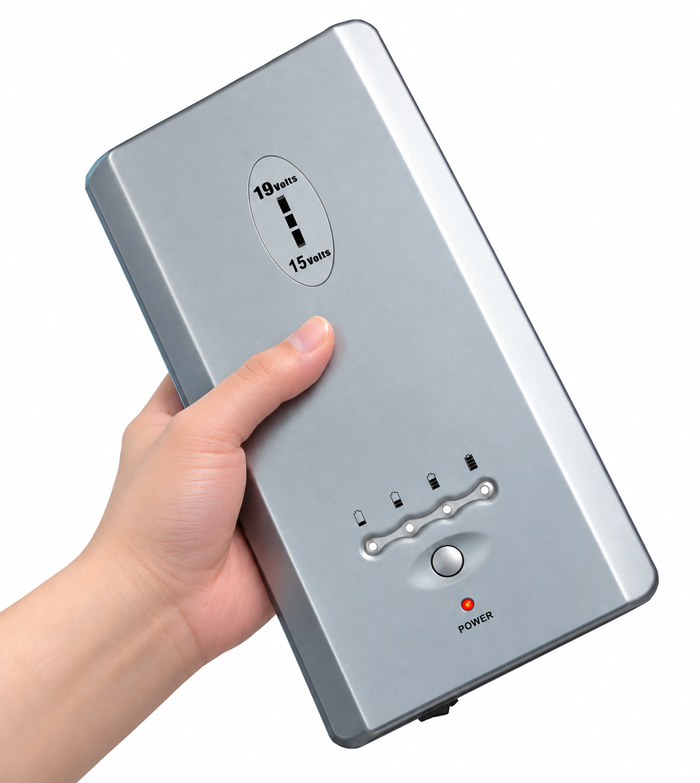

BiXPower BP220 Super Capacity 223 Wh IEC 62133 Certificated Rechargeable Battery Pack with USB Type C Converter
BiXPower BP220 Super Capacity 223 Wh IEC 62133 Certificated Rechargeable Battery Pack with USB Type C Converter



Alternative Views:


Regular Price: US$499.00
Sale Price: US$349.95

Stock Status:In Stock

Product Code: BP220-UCPD65W
Qty:

Description

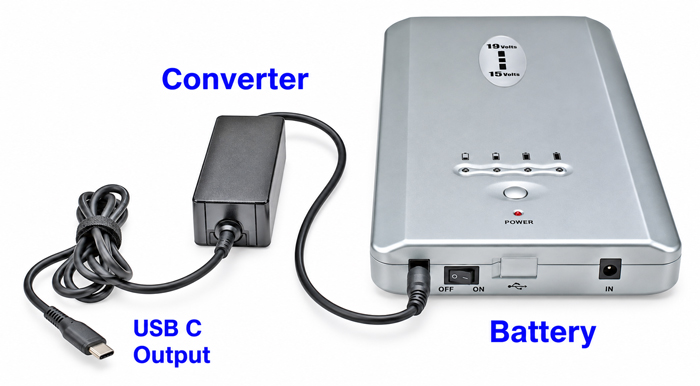

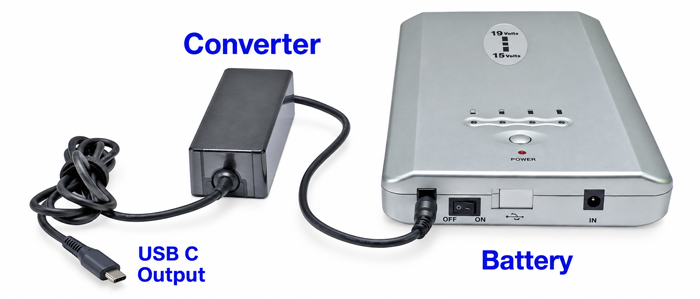

This package comes with a BiXPower BP220 Super Capacity 223 Watt-hour IEC 62133 Certificated Rechargeable Battery and a USB Type C PD65W power converter that converts battery DC power to a USB Type C output with PD65 support.



Battery Features:

  • It has up to 4 ~ 5 times internal battery running time . (223 Watt-Hour capacity compared to 40~60 Watt-Hour capacity of most notebook computer batteries.)
  • IEC /UL 62133 Certificated
  • Its universal platform works for most of notebook computers on the marketplace.
  • Its compact size can easily fit into a laptop/notebook carry bag.

  • Technical Specifications
  • Model: BP220
    Capacity: 223 Watt-Hour
    Battery Cell: Panasonic
    Colors: Silver
    Chemistry: Li-ion
    Input Charging Voltage: DC 12 - 19V
    Output Voltage: 15V/19V + 5V USB Port
    Max. Output Current: * Max. 5A for 19V, 5A for 15V, 2.1A for 5V USB Port
    Charging time: 4-6 hours
    Size: 270.00 x 145.00 x 32.55mm
    Weight: 1340g
    Power Indicator: 4 level LED indicator
    Built-in Protection Circuit: - Over-charge
    - Over-discharge
    - Over current
    - Over temperature
    - Short circuit protection

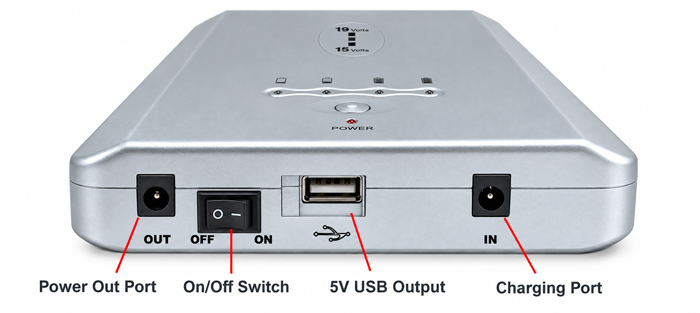

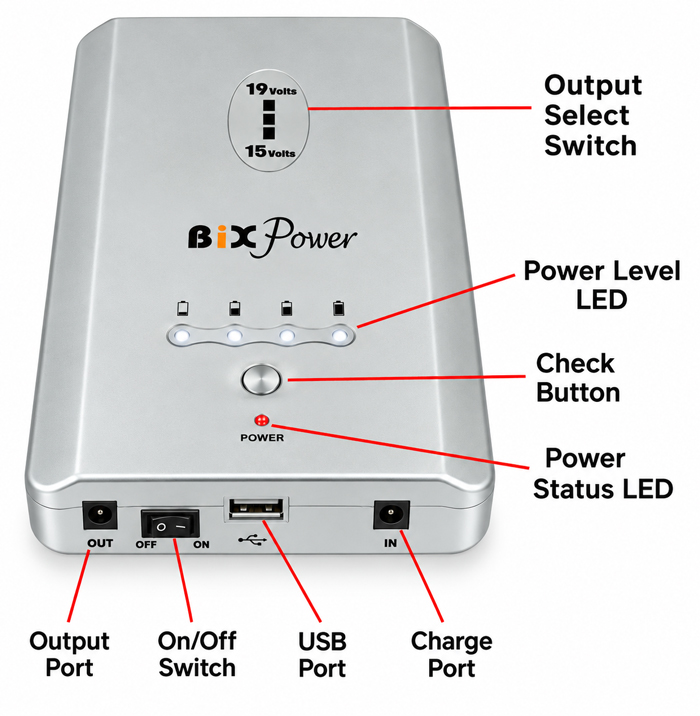

  • IN -- Battery input port for connecting to battery charger
    OUT -- Battery power output port, connect to output cord.
    ON/OFF -- This On/Off switch controls output port power.
    USB -- 5VUSB port with a sliding cover

    You can use the 5V USB Port on the battery to charge cellular phone, MP3 player or other small electronics that can be charged from a 5V USB port. However, the battery pack does not come with any cable for connector tips for this USB port. Our optional Z4 cable and connector tips will work with this 5V USB port.

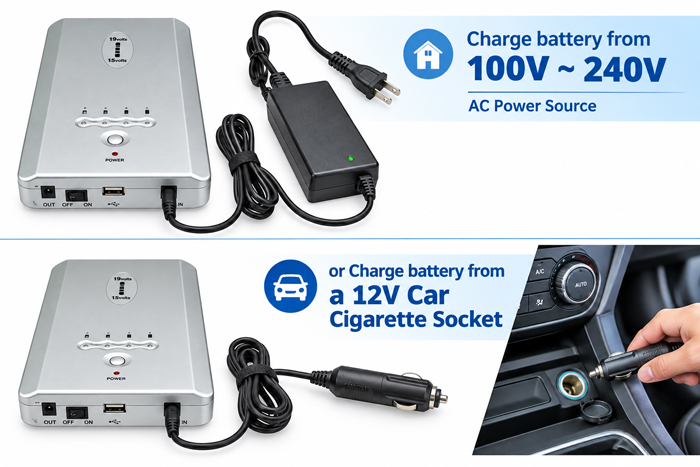

    Charge the battery:
    This battery has its own AC battery charger and 12V car charger. You can charge it from any 110V or 220V AC power source or from a car 12V cigarette lighter socket with the 12V car charger. Both the AC charger and the 12V car charger need to connect to the In-port of the battery pack.



    To quickly charge the battery, we recommend to charge it while it is not in use.

    The BP220 is specially designed to be able to charge and discharge at same time. However, since each lithium battery has limited charge/discharge cycles ( around 500 cycles), it is not recommend to use the battery when AC power is available.

    Set correct output voltage:



    This battery has a switch to set the voltage output at 15V or 19V. 15V is compatible with 14V~16V, 19V is compatible with 18V~21V.

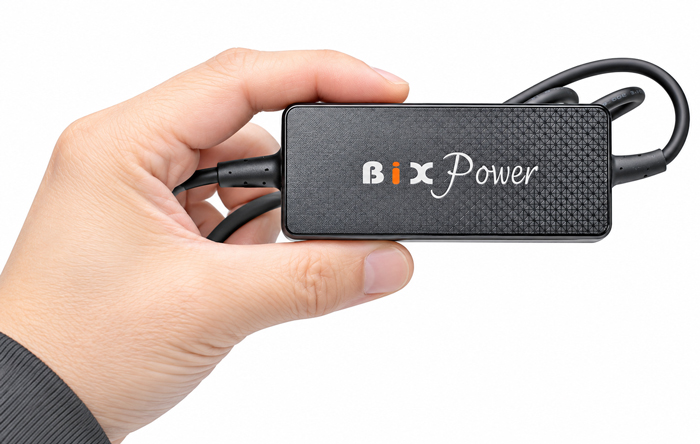

    USB Type C Power Converter

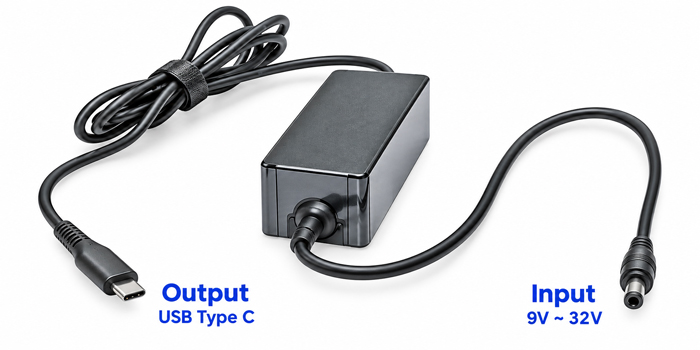

    This DC to DC power converter can convert 10V ~ 32V DC power to USB Type C with Power Delivery (PD) function support. It can output 5V, 9V, 12V, 15V and 20V. Its maximum output can reach 65W, 3.25A @ 20V. It input end is 5.5 x 2.5mm Male connector, output end is USB Type C connector.










    Specifications:
  • Input : DC 9V- 32V
  • Input Connector: 5.5 x 2.5mm Male
  • Input End Cable Length: 8 Inches ( or 200mm)
  • Output : USB Type C with Power Delivery, support 5V, 9V, 12V, 15V, 20V.
  • USB-C Maximum Output Current: 3.25A (Maximum 65W at 20V) *
  • Output cable length: 1000mm ( or 40 Inches)
  • Size: 90 x 36 x 27mm ( or 3.5" x 1.5" x 1.1")
  • Weight: 150 g ( or 5.5 Oz)

  • With the USB-C and Power Delivery function, this charger can easily charge your new MacBook at full speed via USB-C to USB-C cable.

    Unlike the Micro-USB plug you used on your last phone (a USB-B shape), you can stick in a USB-C cable any which way; either side is "up." No more fumbling around or swearing under your breath when you have trouble plugging in.

    Smart & Fast Charging
    Intelligently detects your device and delivers the optimal current to connected devices.
    Meets new energy efficiency requirements of DOE Level VI - the highest energy efficiency rating.

    What is USB Power Delivery?
    USB Power Delivery is a single-wire protocol leveraging new USB-C standard & cable. PD (Power Delivery) negotiation allows devices to create a contract to deliver the optimum power level for each application under the current battery conditions. This protocol expands USB output to many different high output voltages, such as 9V, 12V, 15V or 20V ( 20V output voltage works for devices that require 19V to 21V DC power)

    Advantages of USB Power Delivery:
    • Flexible single wire protocol, enabling enhanced power, data and video
    • Dynamic power negotiation: Allows for maximum battery life and performance
    • Allows a single port to output different output voltages by negotiation between power source and powered device, such as 9V, or 12V, 15V or 20V.
    • Efficient and fast charging over USB

    *Special Note:

    This DC power converter only works with USB C connector that with Power Delivery (PD) function support. It may not work with a dummy USB C connector that does not support Power Delivery (PD) function.

    This is just a DC power converter. It itself does not generate any power. To get 65W power output from this power converter, the input power source needs to be able to provide 75Wor more power.



    Input Connector Size

    The input connector size is 5.5 x 2.5mm male.

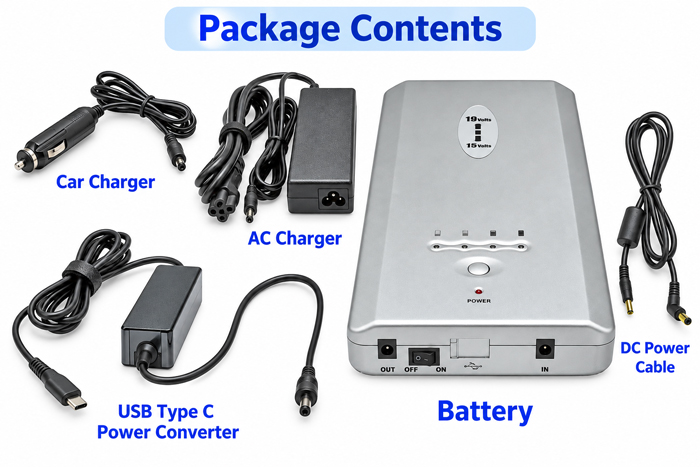

    Package Contents:



    Battery x 1
    AC Charger x 1
    Car Charger x 1
    USB C Converter x 1
