36V to 19V DC to DC Power Converter
36V  to 19V  DC  to DC  Power Converter



Alternative Views:


Regular Price: US$99.00
Sale Price: US$69.95

Price with Selected Options: US$69.95
Condition: Brand New!
Return Allowed: 30 Days
Warranty: 1 Year

Stock Status:In Stock
Product Code: DC36T19V-6A


Connector Tips*:
No Optional Connector Tips
with 12 connector tips [Add US$20.00]

Qty:
Description

This DC to DC power adapter can convert 36V DC (range 28-45V) to 19V DC power. Maximum output 6 Amps

It can directly connect to a 36V lithium ion battery or any battery with output voltage range between 28V to 45V. Its maximum output is 6 Amps

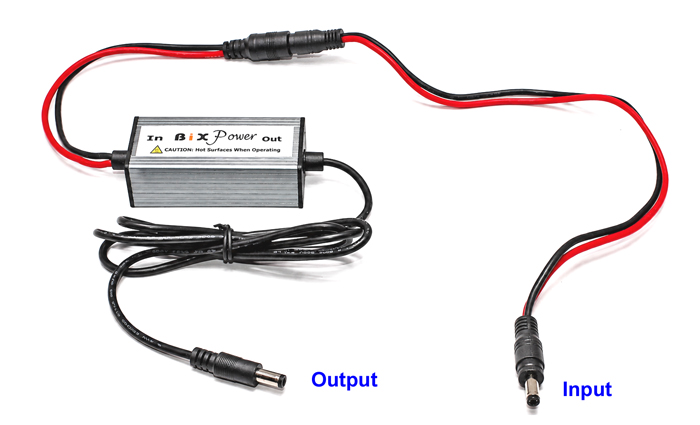

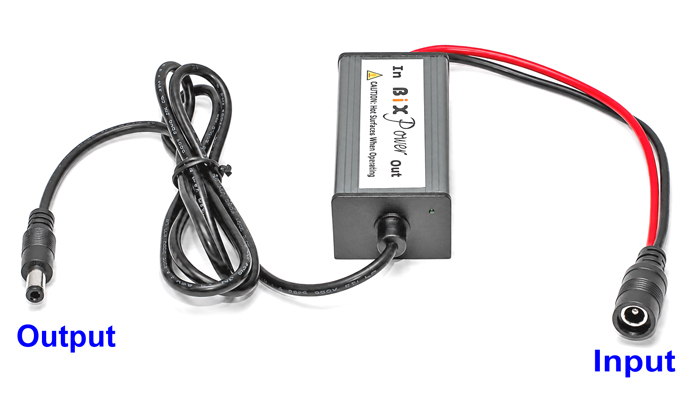

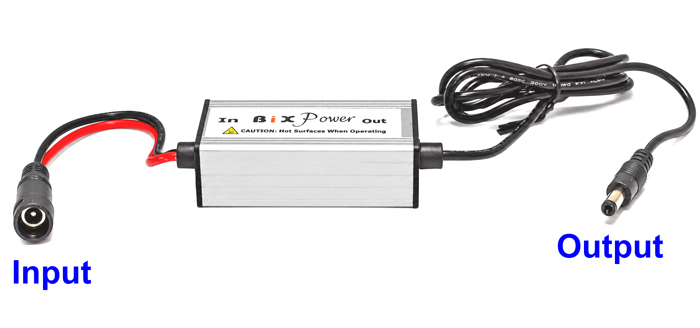

This DC to DC power adapter's input side has 5.5 x 2.5mm Female barrel connector with two 16AWG bare wires. The output is a 5.5 x 2.5mm male barrel connector with 18AWG wires. It is very easy and flexible to connect with batteries and other power source.
Features:
Wide input range: 28V ~ 45V
Large output: up to 6 Amps
High efficiency ( > 90%)
Small size: 78 x 36 x 24mm ( or 3.2" x 1.4" x 1")
Light weight: 180 g ( or 6.5 oz)









Input:

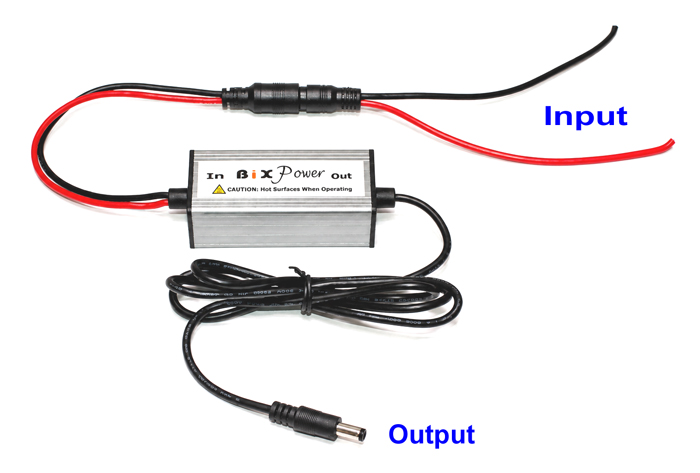

Input is 5.5 x 2.5mm female connector. If you cut off the connector, it will be two bare wires: red color is for Positive input and the black color is for Negative/Ground input. It is CRITICAL that the power adapter is connected correctly in polarity to the power source: Positive on adapter connects to Positive on power source. Negative on adapter connects to Negative on power source. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGES.
Output: The output connector is a 5.5 x 2.5mm male barrel connector.

Optional connector tips:


The connector on the power adapter output cable is a 5.5 x 2.5mm male barrel connector, which will work with many devices. If you need different size connectors, you may order our C series optional connector tips separately. A C series connector can plug on the battery output cable to form a new connector.



Technical Specifications:

  • Acceptable Input DC Voltage Range : 28V ~ 45V
  • Output voltage: 19V
  • Output current: Max. 6A*
  • Efficiency: > 90%
  • Safety Protections: Over Current & Over Voltage Protection
  • Short Circuit Protection: Yes
  • Small size: 78 x 36 x 24mm ( or 3.2" x 1.4" x 1")
  • Light weight: 180 g ( or 6.5 oz)

*6A is its maximum output current, not actual output current. Actual output current depends on the device's requirements. For example, if your device requires 2 Amps, it will output 2 Amps.
