99.6Wh Portable Battery Power Pack for ResMed AirSense 11 CPAP
Compact, lightweight portable and backup power for your AirSense 11
The
BiXPower BP100-AS11 is a complete portable battery
power package designed for the
ResMed AirSense 11 CPAP machine.
It combines the compact
99.6Wh BP100 rechargeable lithium-ion battery
with a specially designed AirSense 11 power cable.
The battery provides regulated
24V DC power through Output Port I,
allowing the AirSense 11 to operate directly from the battery without using
an AC inverter. It is ideal for
travel, camping, road trips,
emergency backup, and locations where AC wall power is unavailable
.
Key Features
✓ 99.6Wh High Capacity:
Provides substantial portable power in a compact, lightweight battery pack.
✓ Designed for ResMed AirSense 11:
Includes a specially designed power cable for connecting the BP100 directly
to a ResMed AirSense 11 CPAP machine.
✓ Regulated 24V Output:
Output Port I provides stable regulated 24V DC power when the voltage selector
is set to 24V.
✓ Compact & Lightweight:
Measures approximately 7.2 × 4.2 × 0.9 inches and weighs only about 1.4 lb.
✓ Multiple Output Voltages:
The versatile BP100 also provides selectable 16V / 19V / 24V regulated DC output,
an additional 9V–12.6V DC output, and a 5V USB output.
✓ AC & Car Charging:
Recharge from a standard AC wall outlet or a compatible 12V vehicle
cigarette-lighter/accessory socket.
✓ Built-In Protection:
Internal protection circuitry helps protect against over-charge,
over-discharge, over-current, over-temperature, and short circuit conditions.
99.6Wh Capacity — Convenient for Air Travel
One important advantage of the BP100 is its 99.6Wh rated capacity.
This provides substantial portable power while remaining within the
100Wh lithium-ion battery threshold commonly used by airlines and
aviation regulations for passenger travel
.
This makes the BP100 a practical choice for CPAP users who need a
portable CPAP battery for air travel, business trips,
vacations, camping, or emergency backup power.
Important Travel Notice:
Airline, TSA, FAA and international battery transportation requirements
can change, and individual airlines may apply additional restrictions.
Spare lithium-ion batteries are generally required to be transported in
carry-on baggage rather than checked baggage. Always verify the latest
requirements directly with your airline and the applicable transportation
authority before traveling.
Typical AirSense 11 Runtime
The BP100 may provide approximately
4–8 hours of AirSense 11 operation
under typical conditions when power-consuming features such as the
humidifier and heated tubing are turned off.
Runtime is only an estimate. Actual operating time can vary significantly
depending on therapy pressure, breathing pattern, mask leakage, humidification,
heated tubing, machine settings, battery condition and environmental conditions.

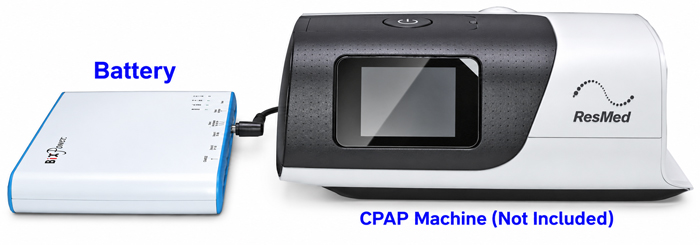

Easy Connection to ResMed AirSense 11
Using the battery is simple. Set
Output Port I to 24V,
plug the included special AirSense 11 power cable into Output Port I,
and connect the other end to your AirSense 11 CPAP machine.
Important — Set Output Port I to 24V
Before connecting the battery to your ResMed AirSense 11,
make sure
Output Port I is set to 24V.
Compact & Lightweight for Travel
The BP100 measures approximately
180 × 110 × 22.5mm (7.2 × 4.2 × 0.9 in)
and weighs approximately 621g (1.4 lb).
Its thin profile makes it convenient to carry in many CPAP travel bags,
laptop bags, backpacks, and carry-on luggage.
Versatile 99.6Wh Lithium-Ion Battery
The BP100 is more than a CPAP battery. It is a versatile rechargeable
lithium-ion battery featuring multiple DC output voltages and a 5V USB port,
allowing it to power many compatible portable electronic devices.
Multiple Output Ports
The BP100 provides three output ports for powering a variety of compatible
devices. Output Port I provides selectable regulated voltage and is the port
used with the included AirSense 11 special power cable.
Regulated 16V / 19V / 24V Output Port
Output Port I provides three selectable regulated output
voltages:
16V, 19V, or 24V. A hardware voltage-selection
switch allows you to select the required voltage for your compatible device.
For the
ResMed AirSense 11, set Output Port I to
24V.
Output Specifications
Output Port I:
Regulated 16V / 19V / 24V selectable
Port I Connector:
5.5 × 2.5mm
Maximum Port I Output:
4A @ 16V / 3.5A @ 19V / 2.5A @ 24V
Output Port II:
Nominal 11.1V; approximately 9V–12.6V
Port II Connector:
3.5 × 1.35mm
Maximum Port II Output:
5A
Output Port III:
5V USB, up to 2.1A
Maximum Combined Output:
65W
Battery Specifications
|
Battery Model
|
BP100
|
|
Capacity
|
99.6Wh
|
|
Battery Chemistry
|
Lithium-Ion
|
|
Charging Input
|
DC 12V–24V
|
|
Charging Connector
|
5.5 × 2.5mm
|
|
Charging Time
|
Approximately 4–6 Hours
|
|
Charging Temperature
|
0°C to 45°C
|
|
Size
|
180 × 110 × 22.5mm (7.2 × 4.2 × 0.9 in)
|
|
Weight
|
621g (1.4 lb)
|
|
Power Indicator
|
4-Level LED Indicator
|
|
Operating Temperature
|
-20°C to 60°C
|
|
Storage Temperature
|
-20°C to 40°C
|
Charge from an AC Wall Outlet
The included AC charger allows the BP100 to be recharged from a standard
100V–240V AC, 50/60Hz power source.
Charge the Battery While Using It
The BP100 can provide power to a connected compatible device while
the battery itself is connected to its charger.
Flexible 12V–24V DC Charging Input
The BP100 has a built-in charging controller and accepts a wide
12V–24V DC charging input range.
The battery charging port uses a
5.5 × 2.5mm female DC jack.
A compatible charging source therefore requires a 5.5 × 2.5mm male connector.
Charge from a 12V Vehicle Socket
A
car charger is included, allowing the BP100 to be
recharged from a compatible 12V vehicle cigarette-lighter/accessory socket.
This provides a convenient charging option during road trips and travel.
Built-In Battery Protection
The BP100 incorporates an internal protection circuit designed to help
protect the battery against:
✓ Over-Charge Protection
✓ Over-Discharge Protection
✓ Over-Current Protection
✓ Over-Temperature Protection
✓ Short-Circuit Protection

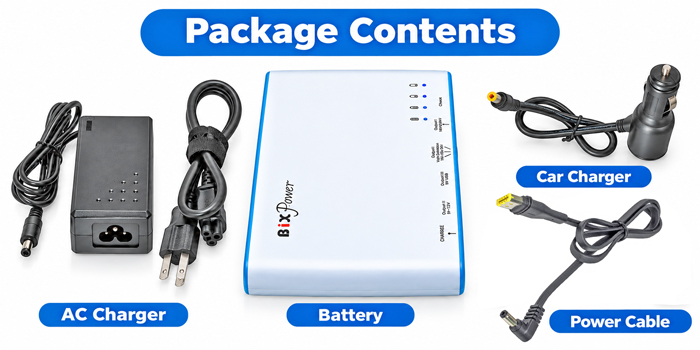

Package Contents
1 × BiXPower BP100 99.6Wh Rechargeable Lithium-Ion Battery
1 × Special Power Cable for ResMed AirSense 11
1 × AC Battery Charger
1 × Car Charger
About CPAP Battery Runtime
AirSense 11 power consumption can vary considerably depending on operating
conditions. Under lower-power conditions, the machine may draw approximately
10–12W, while under moderate operating conditions it may draw
approximately
20–25W.
Because of these variations, battery runtime cannot be guaranteed.
Turning off the humidifier and heated tubing can significantly extend battery
runtime. Always operate your CPAP using the therapy settings prescribed by
your healthcare provider.
Need Longer Runtime?
If you need more battery capacity for longer trips or extended backup power,
BiXPower also offers higher-capacity battery packages for the ResMed AirSense 11,
including dual-battery and approximately 300Wh battery options.
Note:
ResMed AirSense 11 CPAP machine is not included.
Actual battery runtime varies depending on CPAP pressure, breathing pattern,
mask leakage, humidifier and heated tubing use, machine settings,
environmental conditions, and battery condition.
