BiXPower V100-AS11 99Wh Portable Battery Kit for ResMed AirSense 11 CPAP Machine
Rechargeable CPAP Backup Power | Dedicated 24V DC Converter | Compact V-Mount Lithium-Ion Battery
Enjoy greater flexibility when powering your
ResMed AirSense 11 CPAP machine with the
BiXPower V100-AS11 Portable Battery Kit.
This complete power solution combines a compact
99Wh rechargeable lithium-ion battery
with a dedicated 24V DC power converter
designed for the AirSense 11.
Whether you are preparing for a power outage,
traveling, camping where suitable conditions allow,
or simply want a portable backup power option,
this kit provides an alternative to relying exclusively
on a household AC wall outlet.
The V100 battery stores energy at a nominal voltage of
14.4V. The included converter transforms the battery
output into compatible 24V DC power for the AirSense 11.
The system avoids the need to convert battery DC power
to household AC and then back to DC through the
CPAP machine's original AC power supply.

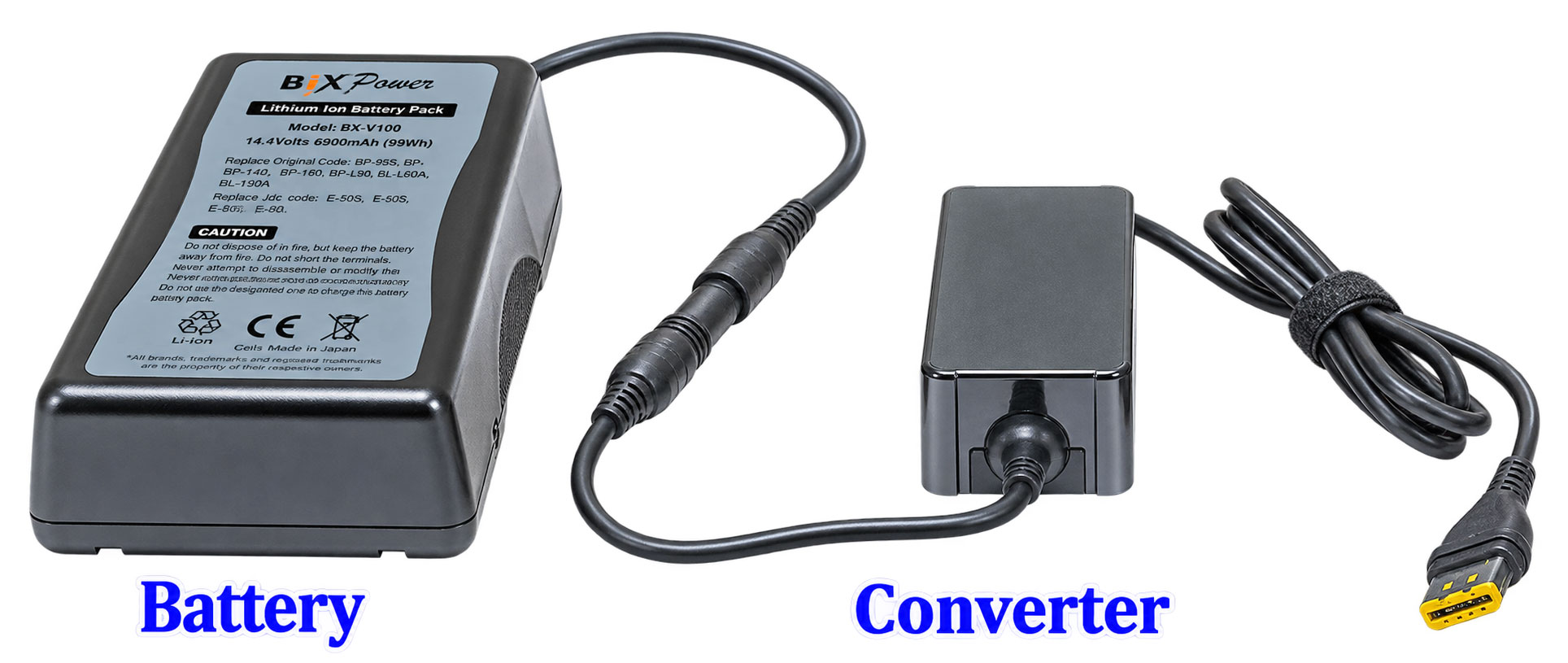

V100 99Wh Battery with Dedicated AirSense 11 DC Converter
Key Features & Benefits
-
Designed for ResMed AirSense 11:
Includes a dedicated DC power converter with the appropriate
AirSense 11 machine connector.
-
99Wh Rechargeable Battery:
Portable lithium-ion energy storage for CPAP backup power.
-
Dedicated 24V DC Conversion:
Converts the V100 battery's output to the power required
by the compatible CPAP machine.
-
DC-to-DC Power System:
Avoids the additional AC inverter conversion stage.
-
Premium Panasonic Lithium-Ion Cells:
Battery constructed with Panasonic cells.
-
Four-Level Battery Indicator:
Check approximate remaining battery capacity using
the battery's built-in LED display.
-
Compact and Portable:
Easy to store beside a bed, carry in a travel bag,
or keep ready for backup use.
-
Rechargeable and Reusable:
Includes an AC battery charger for recharging the V100.
-
Complete Connection Accessories:
Includes the special V-Mount battery adapter and
AirSense 11 power converter.
-
One-Year Warranty:
Backed by BiXPower's limited product warranty.
How the V100-AS11 Powers Your AirSense 11
The ResMed AirSense 11 requires a compatible 24V DC
power input. The BiXPower V100 battery has a nominal
voltage of 14.4V, so it cannot power the AirSense 11
directly without voltage conversion.
The V100-AS11 kit includes a dedicated DC-to-DC converter
that accepts battery power and provides the output
required by the compatible AirSense 11 machine.
V100 Battery (14.4V Nominal)
↓
V-Mount Battery Connection Adapter
↓
Dedicated 24V DC Power Converter
↓
ResMed AirSense 11 CPAP Machine

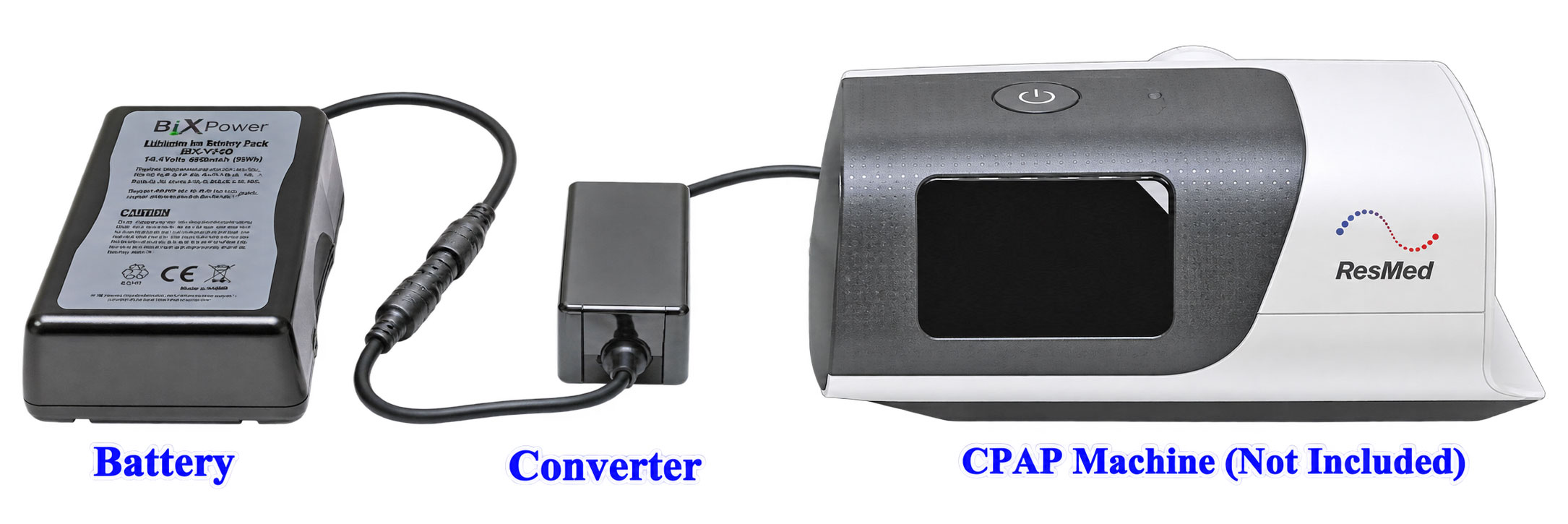

AirSense 11 Connection Diagram — CPAP Machine Not Included
Important:
The V100 battery must be connected to the AirSense 11
through the included dedicated DC converter.
Do not connect the battery's raw 14.4V output
directly to the CPAP machine.

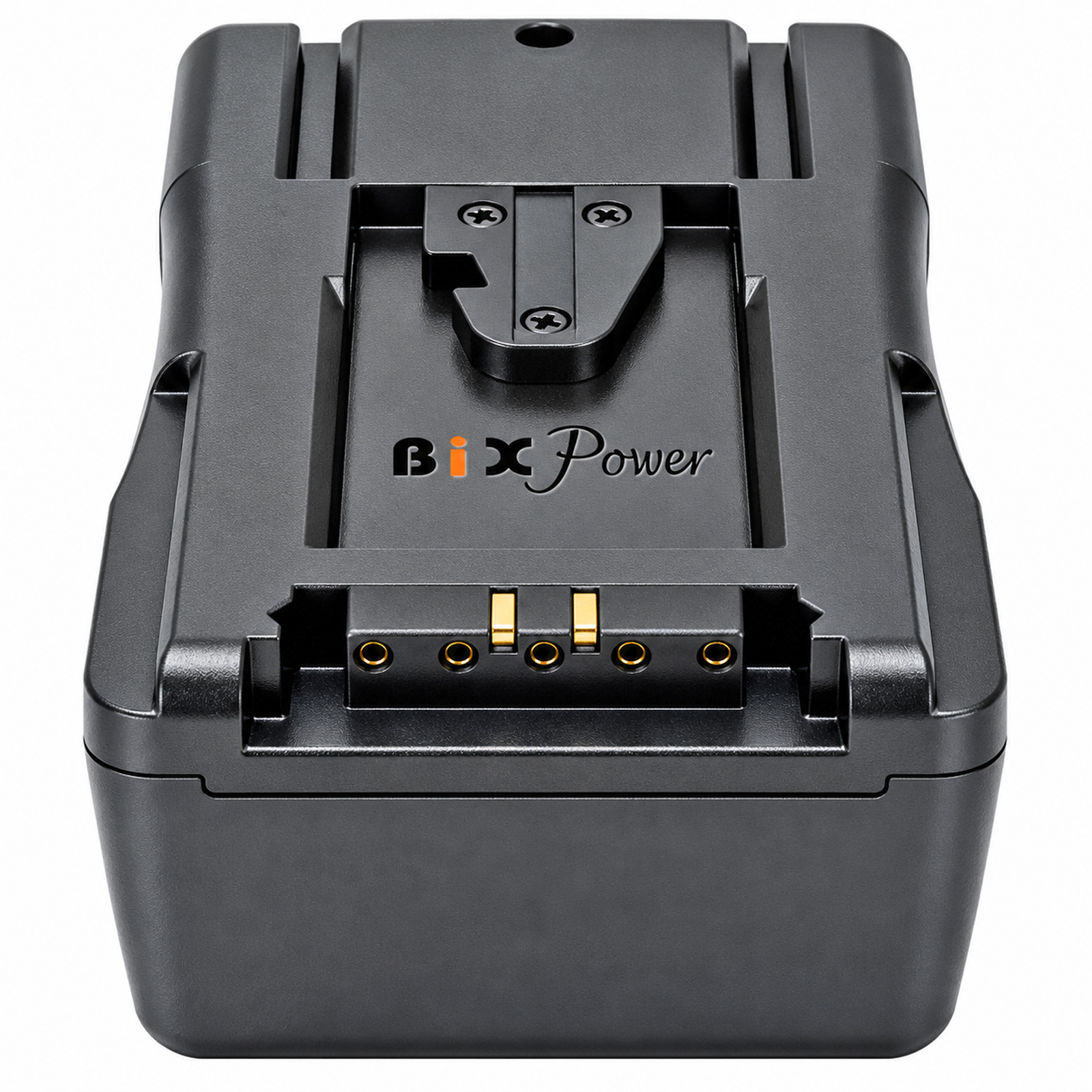

99Wh V100 Rechargeable Lithium-Ion Battery
The heart of the V100-AS11 kit is the BiXPower V100
high-capacity V-Mount rechargeable lithium-ion battery.
It offers approximately 99 watt-hours (Wh)
of energy storage in a relatively compact package.
The battery is constructed with premium Panasonic
lithium-ion cells and includes a convenient
four-level LED battery indicator.
V100 Battery Specifications
| Battery Model |
V100-NL180D |
| Battery Chemistry |
Rechargeable Lithium-Ion |
| Nominal Voltage |
14.4V DC |
| Rated Capacity |
99Wh / 6900mAh |
| Battery Cells |
Panasonic Lithium-Ion Cells |
| Dimensions |
141.5 x 85.95 x 48.5mm |
| Approximate Battery Weight |
722g / 1.59 lb |
| Battery Indicator |
Four-Level LED Display |
| Battery Mounting Type |
V-Mount / V-Lock |
Check Remaining Battery Power
The V100 battery includes a built-in LED indicator.
Press the battery's indicator button to view the
approximate remaining charge before use.
For CPAP backup use, checking the battery level before
going to sleep is especially important.
Recharge the battery as needed to prepare for the
next use.
How Long Will the V100 Battery Run an AirSense 11?
Runtime depends on the AirSense 11's actual power consumption,
therapy pressure, operating mode, humidifier settings,
heated tubing, ambient conditions, and DC converter efficiency.
Because the battery stores approximately 99Wh, the expected
runtime can be estimated using the following relationship:
Estimated Runtime = Usable Battery Energy / Average CPAP Power
The following examples assume approximately 90% of
battery energy reaches the CPAP machine after conversion.
These are illustrations only, not guaranteed runtime results.
|
Average CPAP Power
|
Illustrative Runtime
|
| 10W |
About 8.9 hours |
| 15W |
About 5.9 hours |
| 20W |
About 4.5 hours |
| 30W |
About 3.0 hours |
| 40W |
About 2.2 hours |
Actual runtime may be substantially shorter when
the heated humidifier or heated tubing is enabled.
The examples above do not establish that a particular
AirSense 11 configuration will draw the listed power.
Plan Your Backup Power Carefully
If you rely on CPAP therapy overnight, test your
actual AirSense 11 settings and accessories with
the fully charged V100-AS11 kit before depending on it.
A 99Wh battery may not provide a full night of therapy
under every operating condition.
Dedicated AirSense 11 DC Power Converter
The included power converter is designed to provide
compatible 24V DC power for the ResMed AirSense 11
using energy from the V100 battery.
The converter accepts a wide DC input voltage range,
allowing it to accommodate changes in the V100 battery's
voltage during discharge.
| Converter Type |
DC-to-DC Power Converter |
| Input Voltage Range |
9-32V DC |
| Output Voltage |
24V DC, for compatible AirSense 11 |
| Input Connection |
DC Barrel Plug for Included Battery Adapter |
| Output Connection |
Dedicated ResMed AirSense 11 Connector |
| Dimensions |
3.5 x 1.5 x 1.1 inches |
| Weight |
Approximately 5 oz |

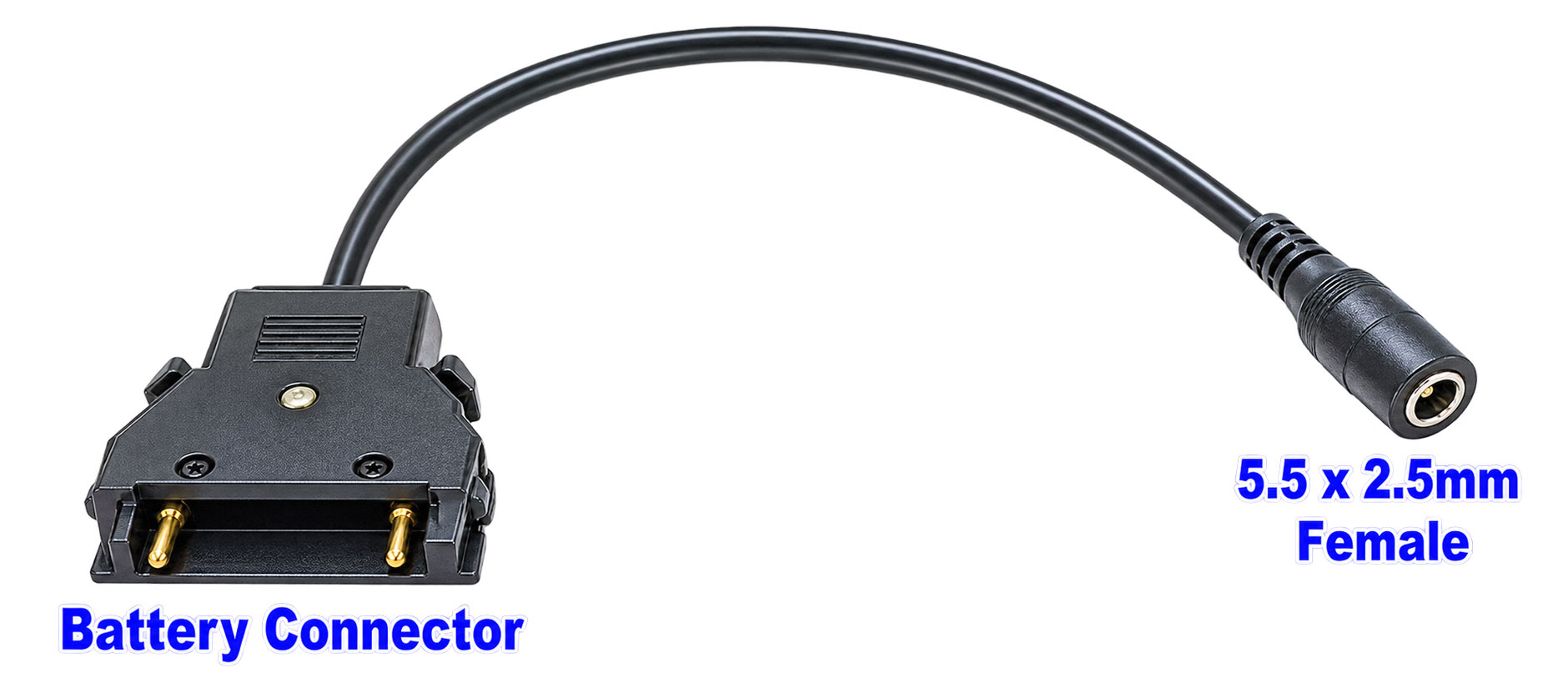

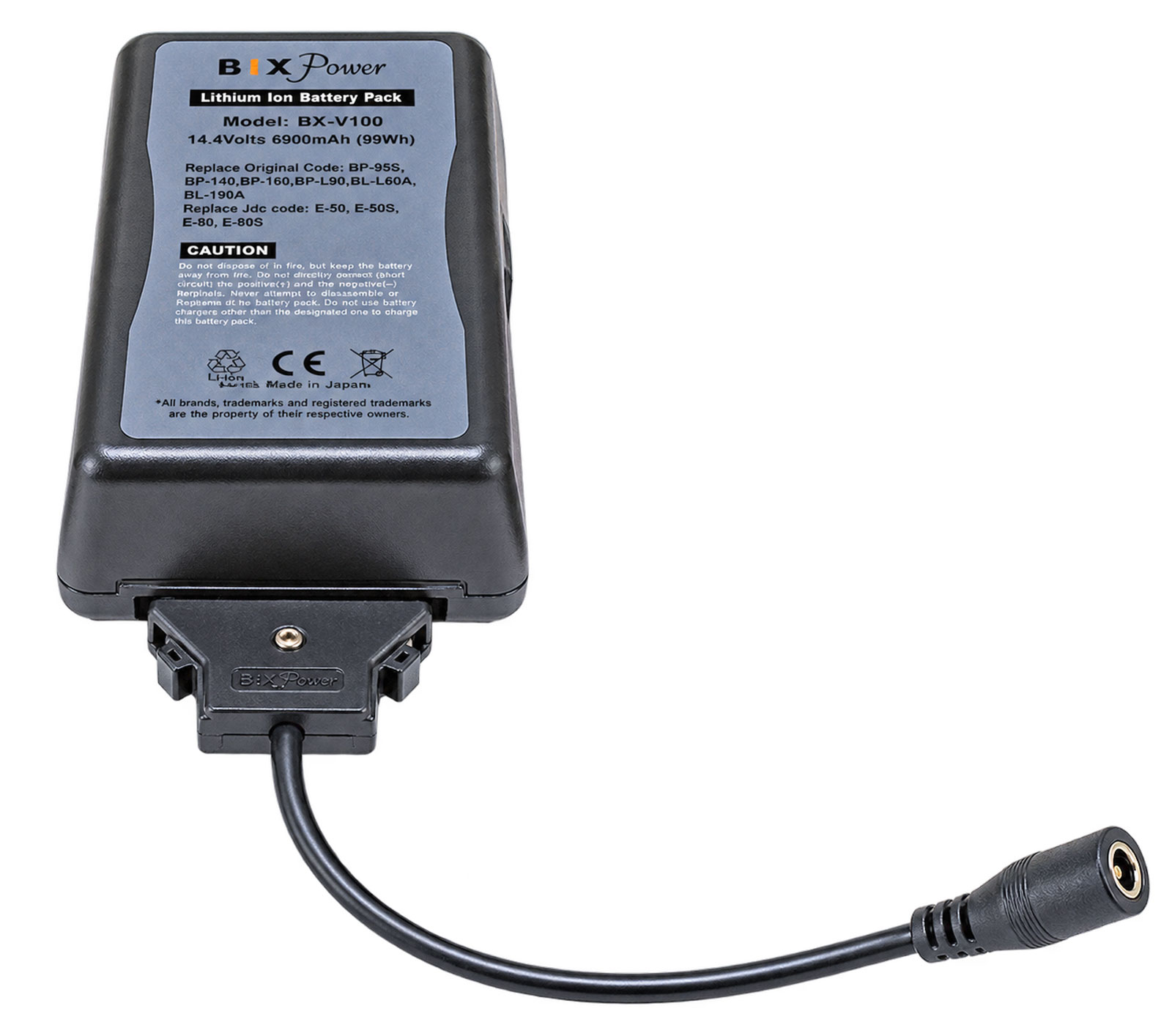

Special V-Mount Battery Connection Adapter
The V100-AS11 kit includes a special adapter that
connects to the V100 battery's V-Mount contacts
and provides a 5.5 x 2.5mm female DC jack.
This adapter provides a convenient connection between
the battery and the included AirSense 11 DC converter.
It also serves as the connection point for the
included battery AC charger.

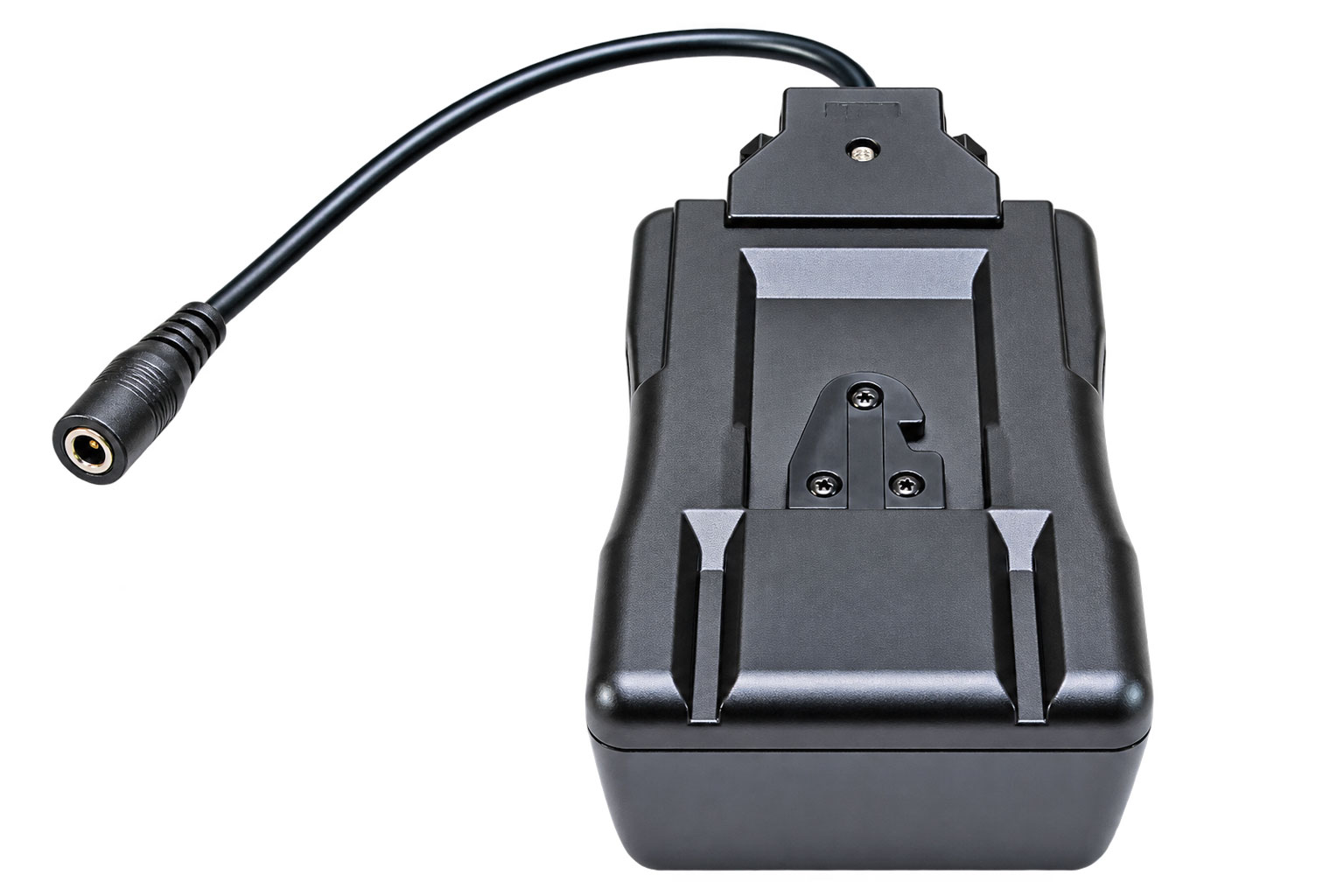

Attach the Adapter to the V100 Battery
Align the special battery adapter with the
V-Mount battery connection and attach it securely.
Make sure the adapter is properly seated before
connecting the charger or DC converter.

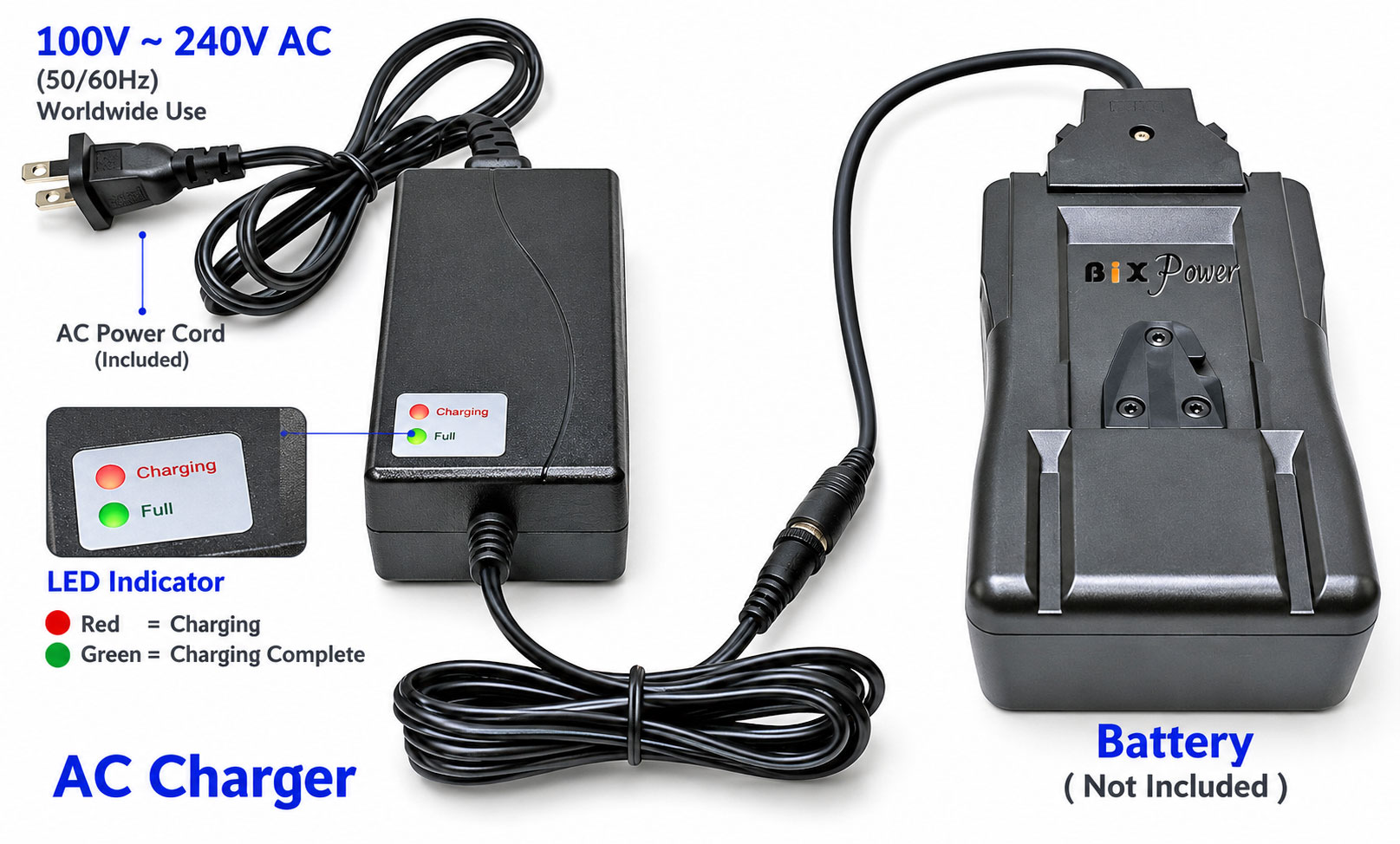

Recharge the V100 Battery with the Included AC Charger
The V100-AS11 package includes an AC battery charger
with power cord, allowing you to recharge the V100
battery from a suitable household AC outlet.
The charger connects to the battery through
the special V-Mount battery connection adapter.
Charging Instructions
- Disconnect the V100 battery from the CPAP power converter.
- Attach the special V-Mount battery connection adapter securely to the battery.
- Connect the included AC charger's DC plug to the adapter's female DC jack.
- Connect the charger to an appropriate AC outlet.
- Allow the battery to charge according to the charger's status indicator.
- After charging is complete, disconnect the charger and AC power.
- Check the battery's LED level indicator before the next use.
Use the supplied battery charger or another charger
specifically approved for the V100 battery.
Do not attempt to charge the V100 using the
AirSense 11 DC power converter.

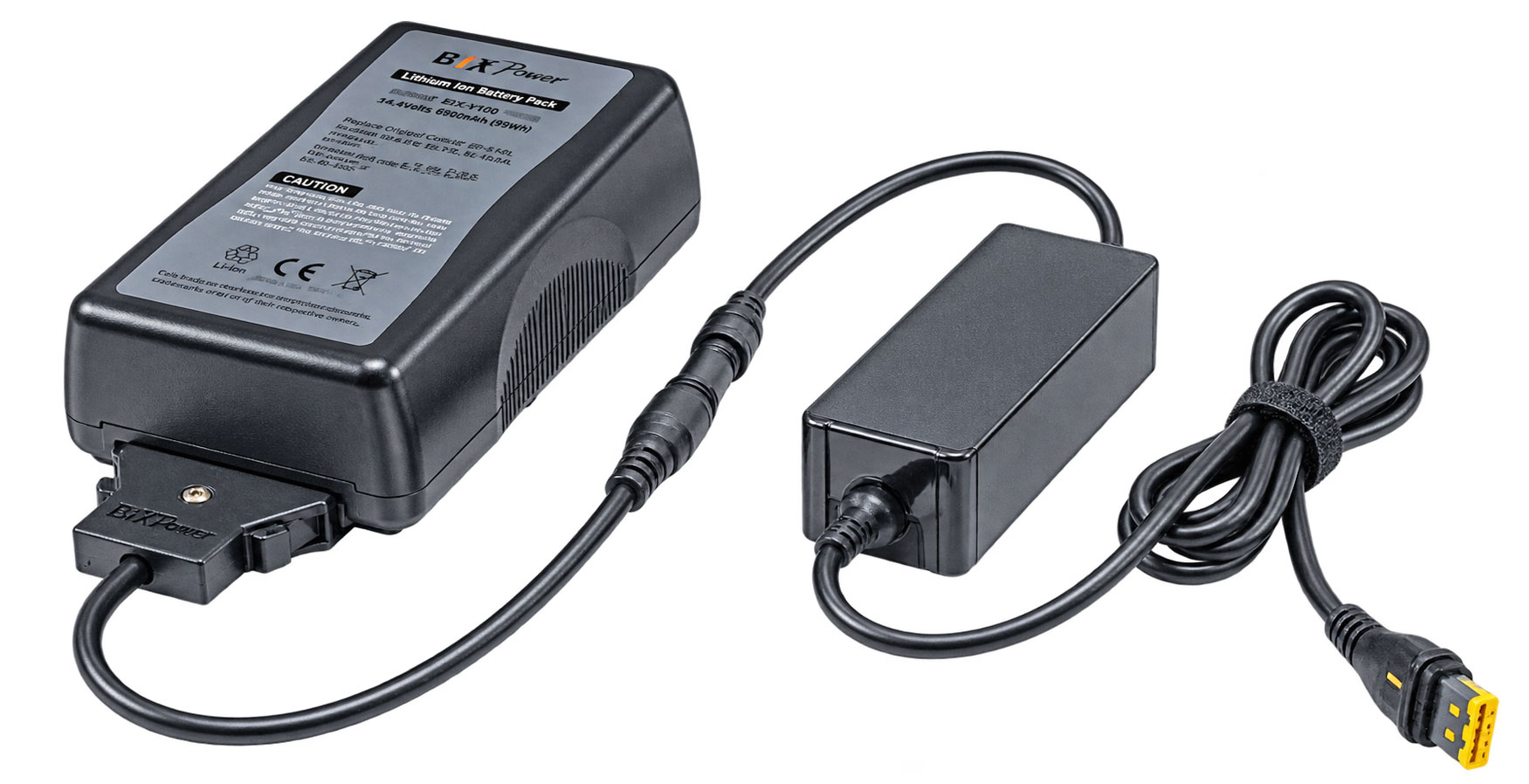

How to Connect the Battery to Your AirSense 11
-
Fully Charge the V100:
Recharge the battery and check its remaining capacity.
-
Attach the Battery Adapter:
Connect the special V-Mount adapter securely to the V100.
-
Connect the DC Converter:
Insert the converter's DC input plug into the
adapter's 5.5 x 2.5mm female jack.
-
Connect the AirSense 11:
Insert the converter's dedicated output connector
into the AirSense 11 power input.
-
Start the CPAP Machine:
Turn on the AirSense 11 and verify that it operates
normally with your prescribed settings.
-
Monitor Battery Capacity:
Check battery level and plan charging or backup
power accordingly.
Always position the battery and converter on a stable,
dry, ventilated surface where cables cannot be pulled
loose accidentally.
Portable CPAP Power for Travel and Backup Use
The V100-AS11 kit can be useful in a variety of situations:
- Home Power Outages: Portable backup power when household AC power is unavailable.
- Travel: Rechargeable power for suitable locations without convenient wall outlets.
- Camping: Portable CPAP operation where environmental and operating conditions are appropriate.
- Temporary Backup: Additional power during short interruptions or while arranging another power source.
- Emergency Preparedness: A rechargeable component of a broader CPAP backup-power plan.
The V100 battery's 99Wh rating may also make it suitable
for airline carry-on travel under commonly applicable
lithium-ion battery limits, subject to airline rules,
terminal protection, and current aviation regulations.
Air Travel Notice
Spare lithium-ion batteries must generally be carried
in carry-on baggage rather than checked baggage.
Airline-specific rules and safety requirements apply.
A 99Wh capacity does not guarantee acceptance on every flight.
Check with your airline before traveling.

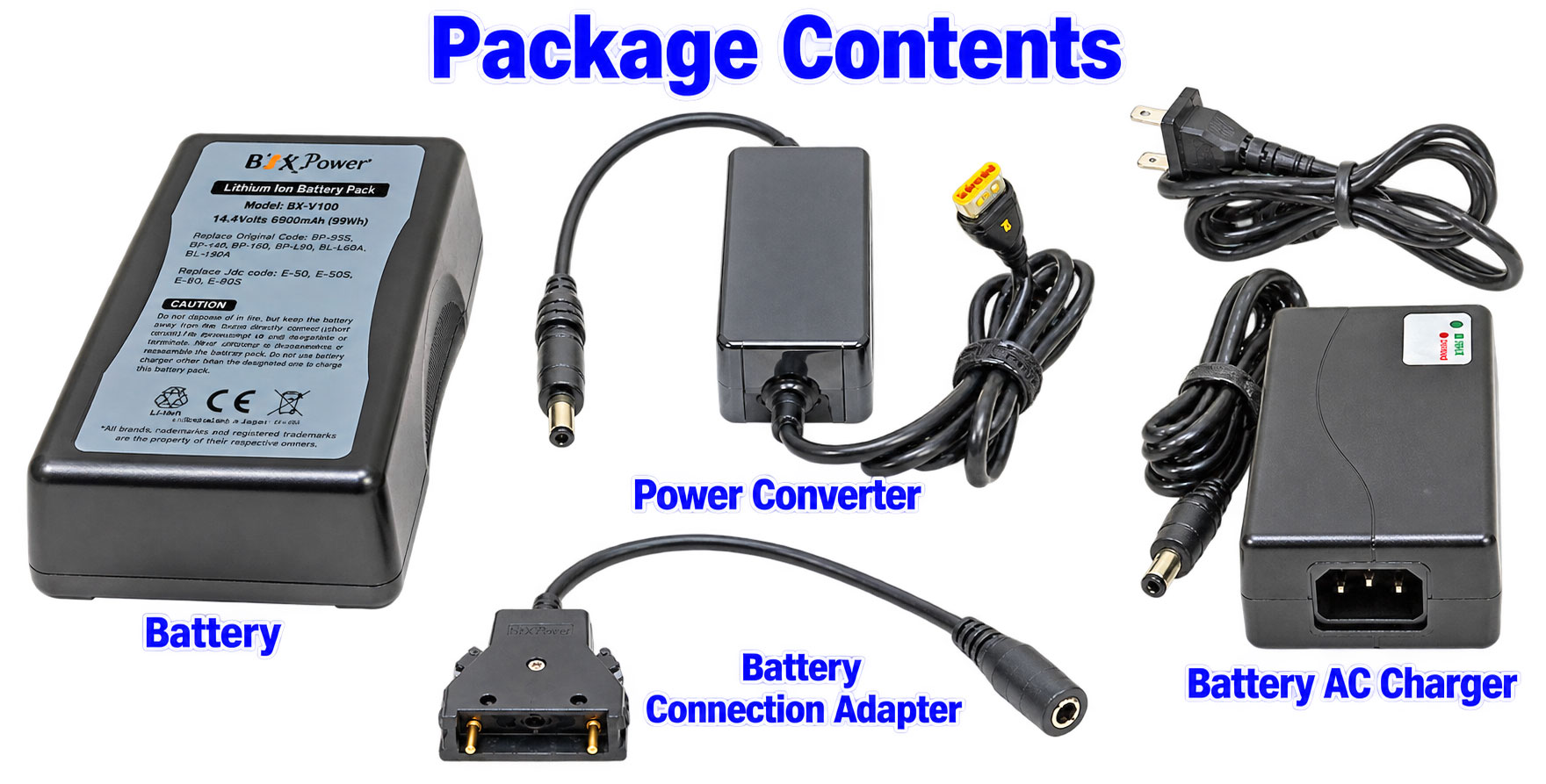

Package Contents
The BiXPower V100-AS11 package includes:
- 1 x BiXPower V100 99Wh Rechargeable V-Mount Lithium-Ion Battery
- 1 x Dedicated ResMed AirSense 11 24V DC Power Converter
- 1 x AC Lithium-Ion Battery Charger with Power Cord
- 1 x Special V-Mount Battery Connection Adapter with 5.5 x 2.5mm Female DC Jack
Complete V100-AS11 Battery Kit — CPAP Machine Not Included
V100-AS11 Complete Kit Specifications
| Product Code |
V100-AS11 |
| Product Type |
Portable CPAP Battery and DC Converter Kit |
| Intended CPAP Model |
ResMed AirSense 11 |
| Battery Capacity |
99Wh / 6900mAh |
| Battery Nominal Voltage |
14.4V DC |
| Converter Input Voltage |
9-32V DC |
| Converter Output Voltage |
24V DC |
| Battery Connection |
Special V-Mount Adapter |
| CPAP Connection |
Dedicated AirSense 11 DC Connector |
| Battery Charger |
Included |
| CPAP Machine |
Not Included |
| Warranty |
1 Year |
Frequently Asked Questions
Q: Can the V100 battery directly power a ResMed AirSense 11?
A: No. The V100 battery has a nominal output of 14.4V,
while the AirSense 11 requires compatible 24V DC power.
Use the included dedicated converter.
Q: Is the AirSense 11 CPAP machine included?
A: No. The package includes the battery, converter,
battery adapter, and battery charger only.
Q: How many hours can the battery run my AirSense 11?
A: Runtime varies according to your therapy settings,
humidifier, heated tubing, power consumption, and converter
efficiency. The 99Wh battery may not provide a full night
of therapy in every configuration. Test your actual setup
before relying on it overnight.
Q: Will the battery last longer if I turn off the heated humidifier?
A: Heated humidification and heated tubing can consume
significant additional power. Lower accessory power
consumption may extend runtime. Follow your healthcare
provider's guidance regarding changes to your therapy setup.
Q: Can I use this battery while traveling?
A: Yes, where the device and environment permit.
The battery is rated at 99Wh, which may qualify for
carry-on air travel under applicable airline rules.
Confirm the requirements with your airline.
Q: Can I recharge the battery using the AirSense 11 converter?
A: No. The DC converter is designed to supply power
to the CPAP machine. Use the included battery AC charger
to recharge the V100.
Q: Does this kit work with ResMed AirSense 10?
A: This kit is configured for the AirSense 11.
Do not assume the dedicated AirSense 11 connector
is compatible with other CPAP models.
Q: Can the V100 battery be used for other equipment?
A: The V100 is a rechargeable V-Mount lithium-ion battery
that may power other compatible devices when used
with suitable connection accessories and voltage conversion.
The included AirSense 11 converter is specifically
intended for the AirSense 11.
Important Safety and Usage Information
- Use the included DC converter when powering the AirSense 11.
- Do not connect the V100 battery directly to the CPAP machine.
- Do not use damaged, swollen, leaking, or overheated batteries.
- Keep the battery, charger, and converter dry and adequately ventilated.
- Do not cover the converter or battery with bedding or other insulating materials.
- Use the correct charger when recharging the battery.
- Confirm adequate runtime before relying on battery power overnight.
- For medically necessary continuous therapy, maintain an appropriate backup-power plan.
- Follow all ResMed operating instructions and your healthcare provider's guidance.
Portable 99Wh Backup Power for Your AirSense 11
The BiXPower V100-AS11 provides a compact rechargeable
battery solution for compatible ResMed AirSense 11 CPAP
machines. With a 99Wh lithium-ion battery, dedicated
24V DC converter, convenient battery indicator,
and included charging accessories, this kit offers
flexible portable power when a wall outlet is unavailable.
Prepare your AirSense 11 for travel and temporary
power interruptions with the BiXPower V100-AS11 Battery Kit.
Compatibility Notice: This product is an aftermarket
portable battery and DC converter kit intended for
compatible ResMed AirSense 11 CPAP machines.
The CPAP machine is not included.
ResMed and AirSense are trademarks of their respective owners.
BiXPower is not represented as the CPAP device manufacturer.
Actual battery runtime varies by operating conditions
and machine settings.
