BiXPower CP330 – 322Wh Rechargeable
Backup Battery Kit for Philips Respironics
DreamStation CPAP & BiPAP Machines
The BiXPower CP330-12V-S10 is a
high-capacity rechargeable CPAP
backup battery system designed for
compatible Philips Respironics
DreamStation CPAP and BiPAP machines
requiring 12V DC power.
This complete power package combines
a BiXPower BX2499 322Wh rechargeable
battery, a compact high-efficiency
DC-to-DC converter, and a special
DreamStation power connector.
The converter delivers a stable,
regulated 12V DC output to the
compatible CPAP machine.
Ideal for emergency backup power,
camping, off-grid use, and situations
where conventional AC power is
unavailable.
322Wh High Capacity
Large rechargeable energy reserve
for extended CPAP operation.
Regulated 12V Output
Dedicated converter supplies stable
12V DC power to compatible machines.
Up to 96% Efficiency
High-efficiency converter helps
minimize energy loss.
DreamStation Connector
Special connector included for
supported Philips Respironics models.
AC Charger Included
Recharge using a standard
100–240V AC electrical outlet.
Built-In Battery Protection
Multiple electronic protection
functions and cell balancing.

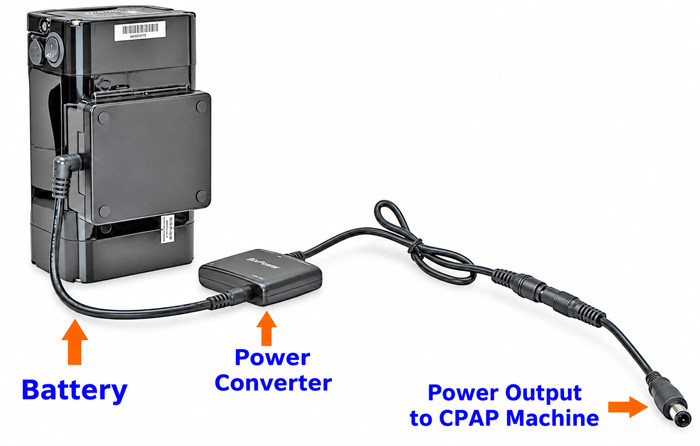

Complete 12V DreamStation
Battery Power System
Complete CP330 battery-to-CPAP
power connection.
The CP330 system uses a separate
voltage converter to deliver stable
12V DC power from the BX2499 battery.
This allows the battery to operate
within its normal voltage range
while the connected CPAP machine
receives regulated power.
The system includes three important
power components:
-
BX2499 Battery:
Stores 322Wh of rechargeable energy.
-
12V DC Converter:
Converts the battery's variable
output voltage to regulated 12V DC.
-
DreamStation Connector:
Connects the regulated output
to compatible CPAP machines.
Compatible DreamStation
CPAP and BiPAP Machines
The CP330 is designed for selected
Philips Respironics DreamStation
machines requiring 12V DC input,
including:
- DreamStation CPAP
- DreamStation Pro CPAP
- DreamStation Auto CPAP
- DreamStation BiPAP Pro
- DreamStation BiPAP Auto
Compatibility:
This package is intended for
compatible original DreamStation
models requiring 12V DC power.
Confirm your machine model,
input voltage, power requirements,
and connector before ordering.
DreamStation 2 compatibility
is not established by this listing.
High-Capacity 322Wh
Rechargeable Battery
BX2499 rechargeable battery
with integrated carrying handle.
The BX2499 is a compact,
high-capacity lithium-ion battery
designed for portable DC power
applications.
Its approximately 322Wh capacity
provides substantially more stored
energy than many small travel
power banks. The integrated handle
makes it easier to carry and
position the battery.
Battery Specifications
| Battery Model |
BiXPower BX2499 |
| Battery Chemistry |
Lithium-ion rechargeable |
| Energy Capacity |
322Wh |
| Nominal Voltage |
Approximately 25V DC |
| Battery Output Range |
Approximately 20–29.5V DC |
| Maximum Continuous Discharge |
12A at battery output |
| Dimensions |
175 × 110 × 75 mm
(approximately 6.8 × 4.3 × 3 inches) |
| Weight |
Approximately 2 kg (4.3 lb) |
| Charge Temperature |
0°C to 45°C |
| Discharge Temperature |
-20°C to 60°C |
| Storage Temperature |
-20°C to 40°C |
| Rated Cycle Life |
500 cycles |
Battery Protection Features
- Cell balancing
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Temperature protection
- Secondary protection circuitry

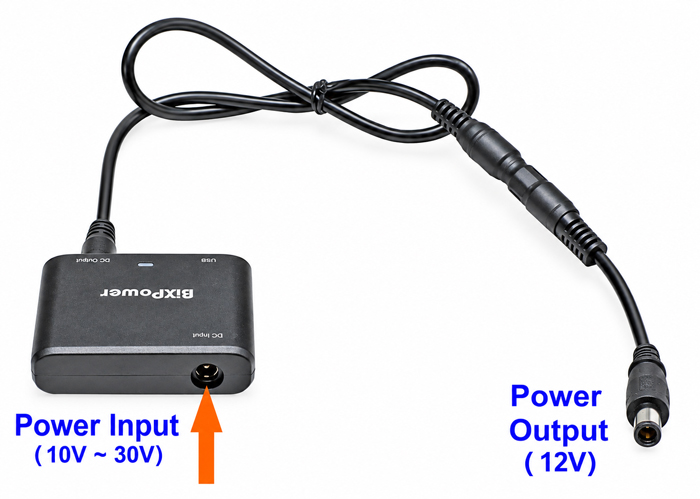

Compact High-Efficiency
12V DC Power Converter
Compact converter regulates
battery power to 12V DC.
The included BiXPower DC-to-DC
converter accepts a wide
10–30V DC input range and
produces regulated 12V DC output.
This converter is particularly
important because the BX2499
battery voltage changes as the
battery discharges. The converter
maintains a stable output voltage
for compatible CPAP equipment.
Converter Benefits
-
Wide Input Range:
10–30V DC
-
Regulated Output:
12V DC
-
High Efficiency:
Up to 96%
-
Compact Size:
Approximately 2.5 × 1.9 × 0.7 inches
-
Lightweight:
Approximately 72 grams (2.54 oz)
-
Protection:
Short circuit, over-current,
over-voltage, and over-temperature
protection
Converter Specifications
| Input Voltage |
10–30V DC |
| Regulated Output |
12V DC |
| Maximum Output Current |
6A |
| Maximum DC Output Power |
72W (12V × 6A) |
| Conversion Efficiency |
Up to 96% |
| USB Output |
5V/3A, 9V/2A, or 12V/1.5A
maximum, depending on mode |
| Dimensions |
63.5 × 48.9 × 16.9 mm |
| Weight |
Approximately 72g |
| Operating Temperature |
0°C to 40°C |
| Ripple and Noise |
300mV maximum |
Important:
The converter's maximum regulated
12V output is 6A (72W).
Confirm that your CPAP machine,
including any heated humidifier
or heated tubing, does not exceed
the converter's rated output.
Small Size, Easy to Carry
Lightweight, compact power converter.
How Long Will the CP330
Power a CPAP Machine?
Actual runtime depends on the
machine's average power consumption,
therapy settings, humidifier use,
heated tubing, battery condition,
and conversion losses.
The following estimates assume
322Wh nominal battery capacity
and an illustrative 90% overall
usable-energy factor.
| Average CPAP Power |
Estimated Runtime |
| 10W | 29 hours |
| 15W | 19.3 hours |
| 20W | 14.5 hours |
| 30W | 9.7 hours |
| 40W | 7.2 hours |
| 50W | 5.8 hours |
| 60W | 4.8 hours |
These are calculated examples,
not guaranteed operating times.
The 90% factor is an assumption
for illustration, not a verified
system efficiency measurement.
Actual results may vary.
How to Extend CPAP Battery Runtime
-
Turn off heated humidification
when appropriate for your treatment.
-
Disable heated tubing if your
therapy setup permits.
-
Use your prescribed pressure settings.
-
Fully charge the battery before use.
-
Test your complete CPAP configuration
before depending on battery power
overnight.
How to Charge the CP330 Battery
The BX2499 battery includes a
dedicated AC battery charger
compatible with 100–240V AC outlets.
Charge the battery using
the included AC charger.
-
Connect the included AC charger
to the battery charging port.
-
Plug the charger into a compatible
100–240V AC wall outlet.
-
Allow the battery to charge according
to the charger instructions.
-
Disconnect the charger when
charging is complete.

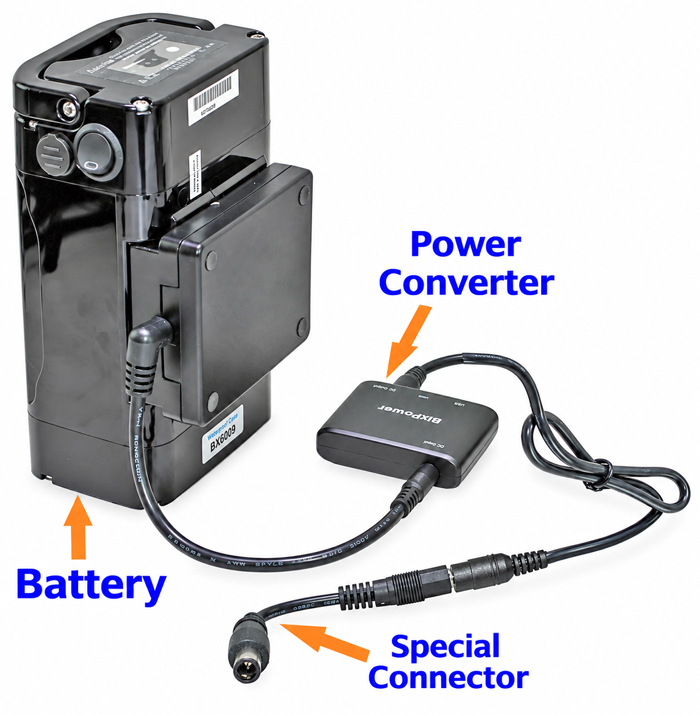

How to Connect the CP330
to a DreamStation Machine
Battery, converter, and special
DreamStation connector arrangement.
-
Fully charge the BX2499 battery.
-
Connect the DC converter input
to the battery output cable.
-
Connect the special DreamStation
power connector to the converter.
-
Connect the special connector
to the compatible CPAP machine.
-
Turn on the battery output.
-
Start the CPAP machine and
verify normal operation.
Electrical Safety:
The BX2499 battery's direct output
is approximately 20–29.5V DC.
Do not connect this unregulated
output directly to a 12V
DreamStation machine.
Always use the included
regulated 12V converter.
Understanding Battery
Output Voltage
Direct battery output must pass
through the 12V converter.
The BX2499 battery has a nominal
voltage of approximately 25V.
Its output may reach approximately
29.5V when fully charged and
decrease toward 20V as it discharges.
This variation is normal for
the battery. The included converter
regulates the output to 12V DC
for compatible DreamStation machines.
Illustrative battery discharge
voltage curve.

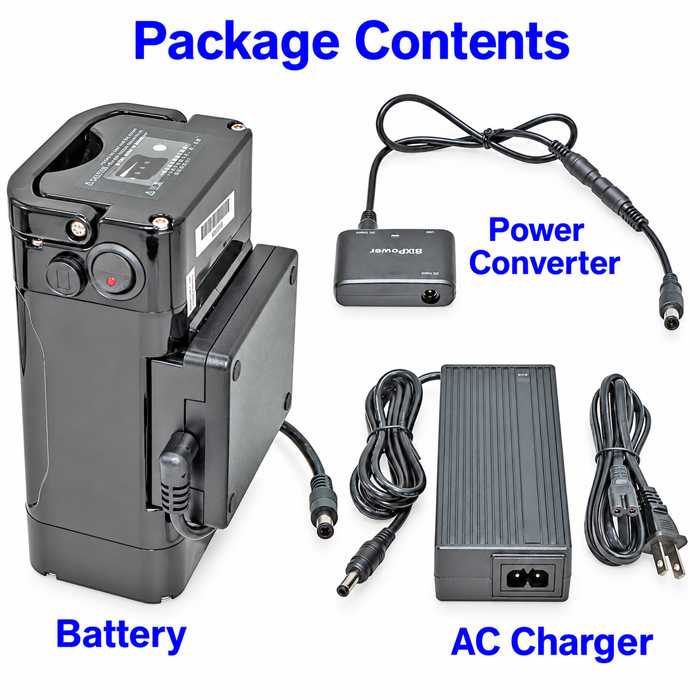

Package Contents
Complete CP330-12V-S10 package.
-
1 × BX2499 Battery:
322Wh rechargeable battery pack
-
1 × AC Charger:
For charging the BX2499 battery
-
1 × 12V DC Converter:
High-efficiency regulated output
-
1 × Special Connector:
For compatible Philips Respironics
DreamStation machines
CPAP machine is not included.
Important Airline Travel Notice
322Wh Lithium Battery:
This battery exceeds the standard
160Wh maximum for passenger airline
lithium-ion spare batteries under
FAA rules. It is not suitable
for normal passenger carry-on
or checked baggage transport.
If you need CPAP battery power
during air travel, consider
a smaller battery that meets
applicable airline regulations.
Frequently Asked Questions
Does the CP330 provide
regulated 12V output?
Yes. The included DC converter
provides regulated 12V DC power
for compatible DreamStation
CPAP and BiPAP machines.
Why does this battery
need a converter?
The BX2499 battery operates at
approximately 20–29.5V DC.
The converter reduces and regulates
this voltage to the 12V required
by compatible CPAP machines.
Can I use the CP330
during a power outage?
Yes. The system provides independent
battery power for compatible CPAP
machines when wall power is unavailable.
It is not advertised as an
automatic UPS system.
Can I use heated humidification?
Only if the complete CPAP
configuration stays within the
converter's 12V/6A output rating.
Heated humidification may
substantially reduce runtime.
Check the machine's power
requirements before use.
Can I use this battery
with DreamStation 2?
Compatibility with DreamStation 2
has not been established for
this package. Confirm model-specific
power and connector requirements.
How much energy does
the CP330 store?
The included BX2499 battery
stores 322 watt-hours of
nominal energy.
Does the package
include a charger?
Yes. The package includes
a compatible AC battery charger.
Can I take the CP330
on an airplane?
The 322Wh battery exceeds the
normal passenger airline lithium
battery energy limits.
Do not treat it as an
airline-approved battery.
Product Image Gallery
Complete power system
Package contents
Warranty and Support
The CP330 package includes a
one-year limited warranty covering
qualifying manufacturing and
quality defects.
Rechargeable batteries naturally
lose some capacity with use and
aging. Normal battery wear is
not covered as a manufacturing
defect.
For additional product information,
compatibility assistance, and
technical support, visit
BiXPower.com
.
BiXPower CP330-12V-S10 –
High-capacity rechargeable power
with regulated 12V output for
compatible DreamStation CPAP
and BiPAP machines.
